Green Pin® Standard shackle

Green Pin® Standard shackle

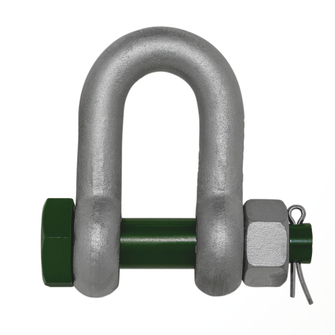

Straight standard shackle with safety bolt, nut and split pin for permanent use and single occupancy.
Technical data

Operating temperature

  • –40 °C to +200 °C

Standard

  • EN 13889
  • US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A

Safety factor

  • 6

Material

  • High-tensile steel (quality grade 6)

Shape

  • straight

Stirrup surface

  • hot-dip galvanised

Bolt surface

  • coated

Bolt type

  • Safety bolt, nut and split pin
Options

Options on request

  • with RFID chip
Product variants
Working load limit [t]
Reference no.
Details
  • 2
    112942
    HGB GRP-2T-G4153
    Reference no. 112942
    Working load limit 2

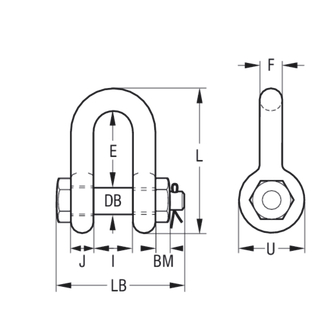

    Distance suspension point E [mm] 43
    Stirrup section Ø F [mm] 13.5
    Eye width J [mm] 13
    Distance to eye I 22
    Eye Ø U [mm] 34
    Nut width BM [mm] 13
    Bolt Ø DB 16
    Overall length L [mm] 81
    Bolt length LB 82
    Weight approx. [kg] 0.4
  • 3.25
    112943
    HGB GRP-3.25T-G4153
    Reference no. 112943
    Working load limit 3.25
    Distance suspension point E [mm] 51
    Stirrup section Ø F [mm] 16
    Eye width J [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 40
    Nut width BM [mm] 17
    Bolt Ø DB 19
    Overall length L [mm] 97
    Bolt length LB 98
    Weight approx. [kg] 0.68
  • 4.75
    112944
    HGB GRP-4.75T-G4153
    Reference no. 112944
    Working load limit 4.75
    Distance suspension point E [mm] 59
    Stirrup section Ø F [mm] 19
    Eye width J [mm] 19
    Distance to eye I 31
    Eye Ø U [mm] 46
    Nut width BM [mm] 19
    Bolt Ø DB 22
    Overall length L [mm] 112
    Bolt length LB 114
    Weight approx. [kg] 1.08
  • 6.5
    112945
    HGB GRP-6.5T-G4153
    Reference no. 112945
    Working load limit 6.5
    Distance suspension point E [mm] 73
    Stirrup section Ø F [mm] 22
    Eye width J [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 52
    Nut width BM [mm] 22
    Bolt Ø DB 25
    Overall length L [mm] 134
    Bolt length LB 130
    Weight approx. [kg] 1.67
  • 8.5
    112946
    HGB GRP-8.5T-G4153
    Reference no. 112946
    Working load limit 8.5
    Distance suspension point E [mm] 85
    Stirrup section Ø F [mm] 25
    Eye width J [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 59
    Nut width BM [mm] 25
    Bolt Ø DB 28
    Overall length L [mm] 154
    Bolt length LB 150
    Weight approx. [kg] 2.78
  • 9.5
    112948
    HGB GRP-9.5T-G4153
    Reference no. 112948
    Working load limit 9.5
    Distance suspension point E [mm] 90
    Stirrup section Ø F [mm] 28
    Eye width J [mm] 28
    Distance to eye I 47
    Eye Ø U [mm] 66
    Nut width BM [mm] 27
    Bolt Ø DB 32
    Overall length L [mm] 167
    Bolt length LB 166
    Weight approx. [kg] 3.46
  • 12
    112949
    HGB GRP-12T-G4153
    Reference no. 112949
    Working load limit 12
    Distance suspension point E [mm] 94
    Stirrup section Ø F [mm] 32
    Eye width J [mm] 32
    Distance to eye I 51
    Eye Ø U [mm] 72
    Nut width BM [mm] 30
    Bolt Ø DB 35
    Overall length L [mm] 180
    Bolt length LB 178
    Weight approx. [kg] 5.26
  • 13.5
    112950
    HGB GRP-13.5T-G4153
    Reference no. 112950
    Working load limit 13.5
    Distance suspension point E [mm] 115
    Stirrup section Ø F [mm] 35
    Eye width J [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 80
    Nut width BM [mm] 33
    Bolt Ø DB 38
    Overall length L [mm] 209
    Bolt length LB 197
    Weight approx. [kg] 6.94
  • 17
    112951
    HGB GRP-17T-G4153
    Reference no. 112951
    Working load limit 17
    Distance suspension point E [mm] 127
    Stirrup section Ø F [mm] 38
    Eye width J [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 88
    Nut width BM [mm] 19
    Bolt Ø DB 42
    Overall length L [mm] 230
    Bolt length LB 202
    Weight approx. [kg] 7.63
  • 25
    112952
    HGB GRP-25T-G4153
    Reference no. 112952
    Working load limit 25
    Distance suspension point E [mm] 149
    Stirrup section Ø F [mm] 45
    Eye width J [mm] 45
    Distance to eye I 74
    Eye Ø U [mm] 103
    Nut width BM [mm] 23
    Bolt Ø DB 50
    Overall length L [mm] 271
    Bolt length LB 249
    Weight approx. [kg] 13.04
  • 35
    112953
    HGB GRP-35T-G4153
    Reference no. 112953
    Working load limit 35
    Distance suspension point E [mm] 171
    Stirrup section Ø F [mm] 50
    Eye width J [mm] 50
    Distance to eye I 83
    Eye Ø U [mm] 111
    Nut width BM [mm] 26
    Bolt Ø DB 57
    Overall length L [mm] 305
    Bolt length LB 269
    Weight approx. [kg] 20.65
  • 42.5
    227092
    HGB GRP-42.5T-G4153
    Reference no. 227092
    Working load limit 42.5
    Distance suspension point E [mm] 190
    Stirrup section Ø F [mm] 57
    Eye width J [mm] 57
    Distance to eye I 95
    Eye Ø U [mm] 130
    Nut width BM [mm] 29
    Bolt Ø DB 65
    Overall length L [mm] 345
    Bolt length LB 301
    Weight approx. [kg] 25.94
  • 55
    112954
    HGB GRP-55T-G4153
    Reference no. 112954
    Working load limit 55
    Distance suspension point E [mm] 203
    Stirrup section Ø F [mm] 65
    Eye width J [mm] 65
    Distance to eye I 105
    Eye Ø U [mm] 145
    Nut width BM [mm] 32
    Bolt Ø DB 70
    Overall length L [mm] 376
    Bolt length LB 330
    Weight approx. [kg] 41.05
  • 85
    304513
    HGB GRP-85T-G4153
    Reference no. 304513
    Working load limit 85
    Distance suspension point E [mm] 229
    Stirrup section Ø F [mm] 75
    Eye width J [mm] 73
    Distance to eye I 127
    Eye Ø U [mm] 162
    Nut width BM [mm] 39
    Bolt Ø DB 83
    Overall length L [mm] 427
    Bolt length LB 380
    Weight approx. [kg] 52.97
