Green Pin® Standard shackle

Green Pin® Standard shackle

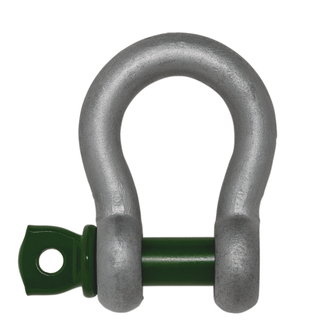

Curved standard shackle with eye bolt, not for permanent use and multiple occupancy. The shackle fully complies with EN 13889 and to the performance specifications of the US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A.
Technical data

Operating temperature

  • –40 °C to +200 °C

Standard

  • EN 13889
  • US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A

Safety factor

  • 6

Material

  • High-tensile steel (quality grade 6)

Shape

  • curved

Stirrup surface

  • hot-dip galvanised

Bolt surface

  • coated

Bolt type

  • Eye bolt
Options

Options on request

  • with RFID chip
Product variants
Working load limit [t]
Reference no.
Details
  • 0.33
    110847
    HWA GRP-0.33T-G4161
    Reference no. 110847
    Working load limit 0.33

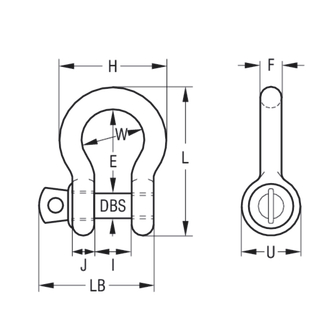

    Stud bolt Ø DBS 6
    Distance suspension point E [mm] 22
    Clear span stirrup W [mm] 16
    Stirrup section Ø F [mm] 5
    Eye width J [mm] 5
    Distance to eye I 9.5
    Eye Ø U [mm] 12
    Stirrup width H 26
    Overall length L [mm] 36
    Bolt length LB 29.5
    Weight approx. [kg] 0.02
  • 0.5
    110848
    HWA GRP-0.5T-G4161
    Reference no. 110848
    Working load limit 0.5
    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 29
    Clear span stirrup W [mm] 20
    Stirrup section Ø F [mm] 7
    Eye width J [mm] 7
    Distance to eye I 12
    Eye Ø U [mm] 16.5
    Stirrup width H 34
    Overall length L [mm] 48.5
    Bolt length LB 38
    Weight approx. [kg] 0.06
  • 0.75
    110849
    HWA GRP-0.75T-G4161
    Reference no. 110849
    Working load limit 0.75
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 32
    Clear span stirrup W [mm] 22
    Stirrup section Ø F [mm] 9
    Eye width J [mm] 9
    Distance to eye I 13.5
    Eye Ø U [mm] 20
    Stirrup width H 40
    Overall length L [mm] 56
    Bolt length LB 46.5
    Weight approx. [kg] 0.1
  • 1
    110851
    HWA GRP-1T-G4161
    Reference no. 110851
    Working load limit 1
    Stud bolt Ø DBS 11
    Distance suspension point E [mm] 36.5
    Clear span stirrup W [mm] 26
    Stirrup section Ø F [mm] 10
    Eye width J [mm] 10
    Distance to eye I 17
    Eye Ø U [mm] 22.5
    Stirrup width H 46
    Overall length L [mm] 63.5
    Bolt length LB 54
    Weight approx. [kg] 0.14
  • 1.5
    110852
    HWA GRP-1.5T-G4161
    Reference no. 110852
    Working load limit 1.5
    Stud bolt Ø DBS 13
    Distance suspension point E [mm] 43
    Clear span stirrup W [mm] 29
    Stirrup section Ø F [mm] 11
    Eye width J [mm] 11
    Distance to eye I 19
    Eye Ø U [mm] 26.5
    Stirrup width H 51
    Overall length L [mm] 74
    Bolt length LB 59.5
    Weight approx. [kg] 0.2
  • 2
    110853
    HWA GRP-2T-G4161
    Reference no. 110853
    Working load limit 2
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 51
    Clear span stirrup W [mm] 32
    Stirrup section Ø F [mm] 13.5
    Eye width J [mm] 13
    Distance to eye I 22
    Eye Ø U [mm] 34
    Stirrup width H 58
    Overall length L [mm] 89
    Bolt length LB 73
    Weight approx. [kg] 0.36
  • 3.25
    110854
    HWA GRP-3.25T-G4161
    Reference no. 110854
    Working load limit 3.25
    Stud bolt Ø DBS 19
    Distance suspension point E [mm] 64
    Clear span stirrup W [mm] 43
    Stirrup section Ø F [mm] 16
    Eye width J [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 40
    Stirrup width H 75
    Overall length L [mm] 110
    Bolt length LB 89
    Weight approx. [kg] 0.63
  • 4.75
    110855
    HWA GRP-4.75T-G4161
    Reference no. 110855
    Working load limit 4.75
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 76
    Clear span stirrup W [mm] 51
    Stirrup section Ø F [mm] 19
    Eye width J [mm] 19
    Distance to eye I 31
    Eye Ø U [mm] 46
    Stirrup width H 89
    Overall length L [mm] 129
    Bolt length LB 103
    Weight approx. [kg] 1.01
  • 6.5
    110856
    HWA GRP-6.5T-G4161
    Reference no. 110856
    Working load limit 6.5
    Stud bolt Ø DBS 25
    Distance suspension point E [mm] 83
    Clear span stirrup W [mm] 58
    Stirrup section Ø F [mm] 22
    Eye width J [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 52
    Stirrup width H 102
    Overall length L [mm] 144
    Bolt length LB 119
    Weight approx. [kg] 1.5
  • 8.5
    110858
    HWA GRP-8.5T-G4161
    Reference no. 110858
    Working load limit 8.5
    Stud bolt Ø DBS 28
    Distance suspension point E [mm] 95
    Clear span stirrup W [mm] 68
    Stirrup section Ø F [mm] 25
    Eye width J [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 59
    Stirrup width H 118
    Overall length L [mm] 164
    Bolt length LB 137
    Weight approx. [kg] 2.32
  • 9.5
    110860
    HWA GRP-9.5T-G4161
    Reference no. 110860
    Working load limit 9.5
    Stud bolt Ø DBS 32
    Distance suspension point E [mm] 108
    Clear span stirrup W [mm] 75
    Stirrup section Ø F [mm] 28
    Eye width J [mm] 28
    Distance to eye I 47
    Eye Ø U [mm] 66
    Stirrup width H 131
    Overall length L [mm] 185
    Bolt length LB 153
    Weight approx. [kg] 3.16
  • 12
    110861
    HWA GRP-12T-G4161
    Reference no. 110861
    Working load limit 12
    Stud bolt Ø DBS 35
    Distance suspension point E [mm] 115
    Clear span stirrup W [mm] 83
    Stirrup section Ø F [mm] 32
    Eye width J [mm] 32
    Distance to eye I 51
    Eye Ø U [mm] 72
    Stirrup width H 147
    Overall length L [mm] 201
    Bolt length LB 170
    Weight approx. [kg] 4.31
  • 13.5
    110862
    HWA GRP-13.5T-G4161
    Reference no. 110862
    Working load limit 13.5
    Stud bolt Ø DBS 38
    Distance suspension point E [mm] 133
    Clear span stirrup W [mm] 92
    Stirrup section Ø F [mm] 35
    Eye width J [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 80
    Stirrup width H 162
    Overall length L [mm] 227
    Bolt length LB 186
    Weight approx. [kg] 5.55
  • 17
    110863
    HWA GRP-17T-G4161
    Reference no. 110863
    Working load limit 17
    Stud bolt Ø DBS 42
    Distance suspension point E [mm] 146
    Clear span stirrup W [mm] 99
    Stirrup section Ø F [mm] 38
    Eye width J [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 88
    Stirrup width H 175
    Overall length L [mm] 249
    Bolt length LB 203
    Weight approx. [kg] 7.43
  • 25
    110864
    HWA GRP-25T-G4161
    Reference no. 110864
    Working load limit 25
    Stud bolt Ø DBS 50
    Distance suspension point E [mm] 178
    Clear span stirrup W [mm] 126
    Stirrup section Ø F [mm] 45
    Eye width J [mm] 45
    Distance to eye I 74
    Eye Ø U [mm] 103
    Stirrup width H 216
    Overall length L [mm] 300
    Bolt length LB 243
    Weight approx. [kg] 13.4
  • 35
    110865
    HWA GRP-35T-G4161
    Reference no. 110865
    Working load limit 35
    Stud bolt Ø DBS 57
    Distance suspension point E [mm] 197
    Clear span stirrup W [mm] 138
    Stirrup section Ø F [mm] 50
    Eye width J [mm] 50
    Distance to eye I 83
    Eye Ø U [mm] 111
    Stirrup width H 238
    Overall length L [mm] 331
    Bolt length LB 272
    Weight approx. [kg] 18.15
  • 42.5
    304506
    HWA GRP-42.5T-G4161
    Reference no. 304506
    Working load limit 42.5
    Stud bolt Ø DBS 65
    Distance suspension point E [mm] 222
    Clear span stirrup W [mm] 160
    Stirrup section Ø F [mm] 57
    Eye width J [mm] 57
    Distance to eye I 95
    Eye Ø U [mm] 130
    Stirrup width H 274
    Overall length L [mm] 377
    Bolt length LB 310
    Weight approx. [kg] 26.29
  • 55
    110866
    HWA GRP-55T-G4161
    Reference no. 110866
    Working load limit 55
    Stud bolt Ø DBS 70
    Distance suspension point E [mm] 260
    Clear span stirrup W [mm] 180
    Stirrup section Ø F [mm] 65
    Eye width J [mm] 65
    Distance to eye I 105
    Eye Ø U [mm] 145
    Stirrup width H 310
    Overall length L [mm] 433
    Bolt length LB 344
    Weight approx. [kg] 37.6
