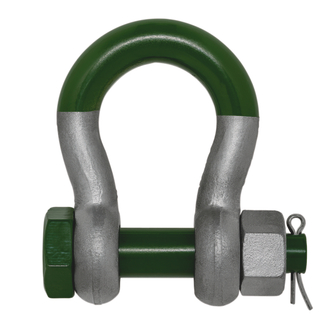

Green Pin® Super shackle

Green Pin® Super shackle
Curved shackle with high working load limit and compact dimensions with safety bolt, nut and split pin.
Technical data

Operating temperature

  • –20 °C to +200 °C

Standard

  • US Fed. Spec. RR-C-271 Type IVA Class 3, Grade B

Safety factor

  • 5

Material

  • Alloyed steel (quality grade 8)

Shape

  • curved

Stirrup surface

  • hot-dip galvanised version (175 t coated)

Bolt surface

  • coated

Bolt type

  • Safety bolt, nut and split pin
Options

Options on request

  • with RFID chip
Product variants
Working load limit [t]
Reference no.
Details
  • 3.3
    304551
    HLS GPS-3.3T-G5263
    Reference no. 304551
    Working load limit 3.3

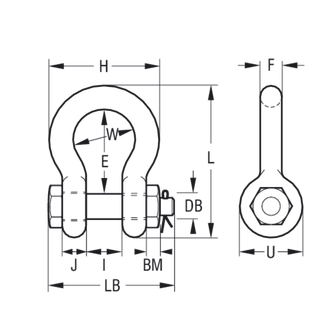

    Distance suspension point E [mm] 51
    Clear span stirrup W [mm] 32
    Stirrup section Ø F [mm] 13.5
    Eye width J [mm] 13
    Distance to eye I 22
    Eye Ø U [mm] 34
    Nut width BM [mm] 13
    Bolt Ø DB 16
    Stirrup width H 58
    Overall length L [mm] 89
    Bolt length LB 82
    Weight approx. [kg] 0.4
  • 5
    263373
    HLS GPS-5T-G5263
    Reference no. 263373
    Working load limit 5
    Distance suspension point E [mm] 64
    Clear span stirrup W [mm] 43
    Stirrup section Ø F [mm] 16
    Eye width J [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 40
    Nut width BM [mm] 17
    Bolt Ø DB 19
    Stirrup width H 75
    Overall length L [mm] 110
    Bolt length LB 98
    Weight approx. [kg] 0.79
  • 7
    304553
    HLS GPS-7T-G5263
    Reference no. 304553
    Working load limit 7
    Distance suspension point E [mm] 76
    Clear span stirrup W [mm] 51
    Stirrup section Ø F [mm] 19
    Eye width J [mm] 19
    Distance to eye I 31
    Eye Ø U [mm] 46
    Nut width BM [mm] 19
    Bolt Ø DB 22
    Stirrup width H 89
    Overall length L [mm] 129
    Bolt length LB 114
    Weight approx. [kg] 1.19
  • 9.5
    304554
    HLS GPS-9.5T-G5263
    Reference no. 304554
    Working load limit 9.5
    Distance suspension point E [mm] 83
    Clear span stirrup W [mm] 58
    Stirrup section Ø F [mm] 22
    Eye width J [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 52
    Nut width BM [mm] 22
    Bolt Ø DB 25
    Stirrup width H 102
    Overall length L [mm] 144
    Bolt length LB 130
    Weight approx. [kg] 1.73
  • 12.5
    304555
    HLS GPS-12.5T-G5263
    Reference no. 304555
    Working load limit 12.5
    Distance suspension point E [mm] 95
    Clear span stirrup W [mm] 68
    Stirrup section Ø F [mm] 25
    Eye width J [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 59
    Nut width BM [mm] 25
    Bolt Ø DB 28
    Stirrup width H 118
    Overall length L [mm] 164
    Bolt length LB 150
    Weight approx. [kg] 2.56
  • 15
    304556
    HLS GPS-15T-G5263
    Reference no. 304556
    Working load limit 15
    Distance suspension point E [mm] 108
    Clear span stirrup W [mm] 75
    Stirrup section Ø F [mm] 28
    Eye width J [mm] 28
    Distance to eye I 47
    Eye Ø U [mm] 66
    Nut width BM [mm] 27
    Bolt Ø DB 32
    Stirrup width H 131
    Overall length L [mm] 185
    Bolt length LB 166
    Weight approx. [kg] 3.6
  • 18
    304557
    HLS GPS-18T-G5263
    Reference no. 304557
    Working load limit 18
    Distance suspension point E [mm] 115
    Clear span stirrup W [mm] 83
    Stirrup section Ø F [mm] 32
    Eye width J [mm] 32
    Distance to eye I 51
    Eye Ø U [mm] 72
    Nut width BM [mm] 30
    Bolt Ø DB 35
    Stirrup width H 147
    Overall length L [mm] 201
    Bolt length LB 178
    Weight approx. [kg] 4.95
  • 21
    304558
    HLS GPS-21T-G5263
    Reference no. 304558
    Working load limit 21
    Distance suspension point E [mm] 133
    Clear span stirrup W [mm] 92
    Stirrup section Ø F [mm] 35
    Eye width J [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 80
    Nut width BM [mm] 33
    Bolt Ø DB 38
    Stirrup width H 162
    Overall length L [mm] 227
    Bolt length LB 197
    Weight approx. [kg] 6.62
  • 30
    304559
    HLS GPS-30T-G5263
    Reference no. 304559
    Working load limit 30
    Distance suspension point E [mm] 146
    Clear span stirrup W [mm] 99
    Stirrup section Ø F [mm] 38
    Eye width J [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 88
    Nut width BM [mm] 34
    Bolt Ø DB 42
    Stirrup width H 175
    Overall length L [mm] 249
    Bolt length LB 217
    Weight approx. [kg] 8.11
  • 40
    242568
    HLS GPS-40T-G5263
    Reference no. 242568
    Working load limit 40
    Distance suspension point E [mm] 178
    Clear span stirrup W [mm] 126
    Stirrup section Ø F [mm] 45
    Eye width J [mm] 45
    Distance to eye I 74
    Eye Ø U [mm] 103
    Nut width BM [mm] 40
    Bolt Ø DB 50
    Stirrup width H 216
    Overall length L [mm] 300
    Bolt length LB 260
    Weight approx. [kg] 15
  • 55
    276008
    HLS GPS-55T-G5263
    Reference no. 276008
    Working load limit 55
    Distance suspension point E [mm] 197
    Clear span stirrup W [mm] 138
    Stirrup section Ø F [mm] 57
    Eye width J [mm] 57
    Distance to eye I 83
    Eye Ø U [mm] 117
    Nut width BM [mm] 46
    Bolt Ø DB 57
    Stirrup width H 252
    Overall length L [mm] 341
    Bolt length LB 303
    Weight approx. [kg] 23
  • 85
    218640
    HLS GPS-85T-G5263
    Reference no. 218640
    Working load limit 85
    Distance suspension point E [mm] 260
    Clear span stirrup W [mm] 180
    Stirrup section Ø F [mm] 70
    Eye width J [mm] 70
    Distance to eye I 105
    Eye Ø U [mm] 143
    Nut width BM [mm] 56
    Bolt Ø DB 70
    Stirrup width H 320
    Overall length L [mm] 437
    Bolt length LB 363
    Weight approx. [kg] 44
  • 120
    212979
    HLS GPS-120T-G5263
    Reference no. 212979
    Working load limit 120
    Distance suspension point E [mm] 329
    Clear span stirrup W [mm] 190
    Stirrup section Ø F [mm] 83
    Eye width J [mm] 83
    Distance to eye I 127
    Eye Ø U [mm] 162
    Nut width BM [mm] 66
    Bolt Ø DB 83
    Stirrup width H 356
    Overall length L [mm] 535
    Bolt length LB 425
    Weight approx. [kg] 72
  • 150
    212980
    HLS GPS-150T-G5263
    Reference no. 212980
    Working load limit 150
    Distance suspension point E [mm] 400
    Clear span stirrup W [mm] 238
    Stirrup section Ø F [mm] 95
    Eye width J [mm] 91
    Distance to eye I 147
    Eye Ø U [mm] 208
    Nut width BM [mm] 50
    Bolt Ø DB 95
    Stirrup width H 428
    Overall length L [mm] 647
    Bolt length LB 511
    Weight approx. [kg] 112
  • 175
    304560
    HLS GPS-175T-G5263
    Reference no. 304560
    Working load limit 175
    Distance suspension point E [mm] 410
    Clear span stirrup W [mm] 275
    Stirrup section Ø F [mm] 105
    Eye width J [mm] 102
    Distance to eye I 169
    Eye Ø U [mm] 238
    Nut width BM [mm] 60
    Bolt Ø DB 108
    Stirrup width H 485
    Overall length L [mm] 688
    Bolt length LB 561
    Weight approx. [kg] 160
