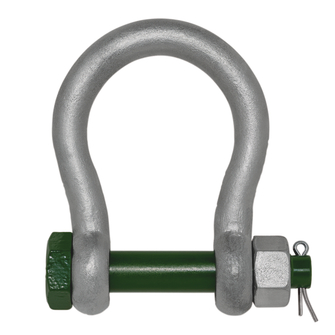

Green Pin® wide-bowl shackle

Green Pin® wide-bowl shackle
Curved shackle for larger connection dimensions with safety bolt, nut and split pin.
Technical data

Operating temperature

  • –20 °C to +200 °C

Standard

  • ASME B30.26

Safety factor

  • 6

Material

  • Alloyed steel (quality grade 8)

Shape

  • curved

Stirrup surface

  • hot-dip galvanised

Bolt surface

  • coated

Bolt type

  • Safety bolt, nut and split pin
Options

Options on request

  • with RFID chip

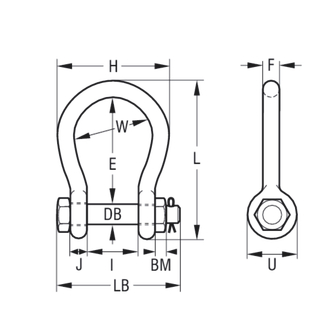

Product variants
Working load limit [t]
Reference no.
Details
  • 4.75
    279345
    WMS GRP-4.75T-G4263
    Reference no. 279345
    Working load limit 4.75
    Distance suspension point E [mm] 112
    Clear span stirrup W [mm] 88
    Stirrup section Ø F [mm] 22
    Eye width J [mm] 22
    Distance to eye I 63
    Eye Ø U [mm] 52
    Nut width BM [mm] 22
    Bolt Ø DB 25
    Stirrup width H 132
    Overall length L [mm] 173
    Bolt length LB 157
    Weight approx. [kg] 2.08
  • 6.5
    279346
    WMS GRP-6.5T-G4263
    Reference no. 279346
    Working load limit 6.5
    Distance suspension point E [mm] 135
    Clear span stirrup W [mm] 105
    Stirrup section Ø F [mm] 25
    Eye width J [mm] 25
    Distance to eye I 75
    Eye Ø U [mm] 59
    Nut width BM [mm] 25
    Bolt Ø DB 28
    Stirrup width H 155
    Overall length L [mm] 204
    Bolt length LB 183
    Weight approx. [kg] 3.14
  • 8.5
    279347
    WMS GRP-8.5T-G4263
    Reference no. 279347
    Working load limit 8.5
    Distance suspension point E [mm] 148
    Clear span stirrup W [mm] 115
    Stirrup section Ø F [mm] 28
    Eye width J [mm] 28
    Distance to eye I 82
    Eye Ø U [mm] 66
    Nut width BM [mm] 27
    Bolt Ø DB 32
    Stirrup width H 171
    Overall length L [mm] 225
    Bolt length LB 205
    Weight approx. [kg] 4.36
  • 9.5
    279349
    WMS GRP-9.5T-G4263
    Reference no. 279349
    Working load limit 9.5
    Distance suspension point E [mm] 162
    Clear span stirrup W [mm] 126
    Stirrup section Ø F [mm] 32
    Eye width J [mm] 32
    Distance to eye I 90
    Eye Ø U [mm] 72
    Nut width BM [mm] 30
    Bolt Ø DB 35
    Stirrup width H 190
    Overall length L [mm] 248
    Bolt length LB 224
    Weight approx. [kg] 5.95
  • 12
    279316
    WMS GRP-12T-G4263
    Reference no. 279316
    Working load limit 12
    Distance suspension point E [mm] 180
    Clear span stirrup W [mm] 140
    Stirrup section Ø F [mm] 35
    Eye width J [mm] 35
    Distance to eye I 100
    Eye Ø U [mm] 79
    Nut width BM [mm] 33
    Bolt Ø DB 38
    Stirrup width H 210
    Overall length L [mm] 274
    Bolt length LB 245
    Weight approx. [kg] 7.87
  • 16
    279350
    WMS GRP-16T-G4263
    Reference no. 279350
    Working load limit 16
    Distance suspension point E [mm] 216
    Clear span stirrup W [mm] 159
    Stirrup section Ø F [mm] 38
    Eye width J [mm] 38
    Distance to eye I 106
    Eye Ø U [mm] 88
    Nut width BM [mm] 19
    Bolt Ø DB 42
    Stirrup width H 235
    Overall length L [mm] 319
    Bolt length LB 248
    Weight approx. [kg] 12.5
  • 25
    279351
    WMS GRP-25T-G4263
    Reference no. 279351
    Working load limit 25
    Distance suspension point E [mm] 248
    Clear span stirrup W [mm] 175
    Stirrup section Ø F [mm] 45
    Eye width J [mm] 45
    Distance to eye I 127
    Eye Ø U [mm] 103
    Nut width BM [mm] 23
    Bolt Ø DB 50
    Stirrup width H 265
    Overall length L [mm] 370
    Bolt length LB 296
    Weight approx. [kg] 18
  • 30
    279352
    WMS GRP-30T-G4263
    Reference no. 279352
    Working load limit 30
    Distance suspension point E [mm] 273
    Clear span stirrup W [mm] 207
    Stirrup section Ø F [mm] 50
    Eye width J [mm] 50
    Distance to eye I 146
    Eye Ø U [mm] 118
    Nut width BM [mm] 26
    Bolt Ø DB 57
    Stirrup width H 307
    Overall length L [mm] 411
    Bolt length LB 332
    Weight approx. [kg] 25
  • 55
    279318
    WMS GRP-55T-G4263
    Reference no. 279318
    Working load limit 55
    Distance suspension point E [mm] 314
    Clear span stirrup W [mm] 213
    Stirrup section Ø F [mm] 65
    Eye width J [mm] 65
    Distance to eye I 165
    Eye Ø U [mm] 145
    Nut width BM [mm] 32
    Bolt Ø DB 70
    Stirrup width H 343
    Overall length L [mm] 487
    Bolt length LB 391
    Weight approx. [kg] 45
  • 75
    279353
    WMS GRP-75T-G4263
    Reference no. 279353
    Working load limit 75
    Distance suspension point E [mm] 330
    Clear span stirrup W [mm] 254
    Stirrup section Ø F [mm] 83
    Eye width J [mm] 83
    Distance to eye I 184
    Eye Ø U [mm] 164
    Nut width BM [mm] 39
    Bolt Ø DB 83
    Stirrup width H 420
    Overall length L [mm] 537
    Bolt length LB 460
    Weight approx. [kg] 70
