High-tensile shackle

High-tensile shackle

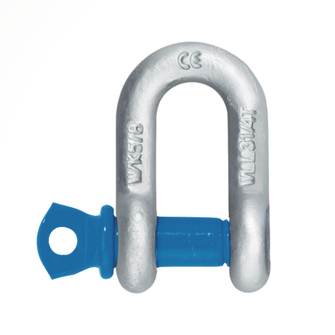

Straight high-tensile shackle with eye bolt, ideal for single occupation.
Technical data

Operating temperature

  • 0 °C to 100 °C
  • reduced carrying capacities outside this range

Standard

  • similar to US Fed. Spec. RR-C-271

Safety factor

  • 6

Material

  • High-tensile steel (quality grade 6)

Shape

  • straight

Stirrup surface

  • hot-dip galvanised

Bolt surface

  • coated

Bolt type

  • Eye bolt
Product variants
Working load limit [t]
Reference no.
Details
  • 0.5
    435821
    Alloy Dee Shackle K alloy NG1/4" 0.50t galv
    Reference no. 435821
    Working load limit 0.5

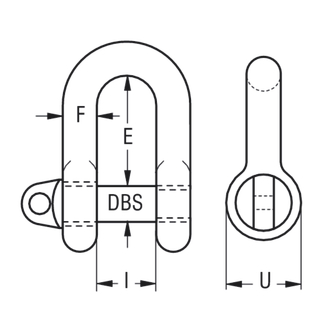

    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 22
    Stirrup section Ø F [mm] 6
    Distance to eye I 12
    Eye Ø U [mm] 17
    Weight approx. [kg] 0.05
  • 0.75
    435823
    Alloy Dee Shackle K alloy NG5/16" 0.75t galv
    Reference no. 435823
    Working load limit 0.75
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 26
    Stirrup section Ø F [mm] 8
    Distance to eye I 13
    Eye Ø U [mm] 21
    Weight approx. [kg] 0.08
  • 1
    435824
    Alloy Dee Shackle K alloy NG3/8" 1.00t galv
    Reference no. 435824
    Working load limit 1
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 31
    Stirrup section Ø F [mm] 9
    Distance to eye I 16
    Eye Ø U [mm] 26
    Weight approx. [kg] 0.13
  • 1.5
    435825
    Alloy Dee Shackle K alloy NG7/16" 1.50t galv
    Reference no. 435825
    Working load limit 1.5
    Stud bolt Ø DBS 14
    Distance suspension point E [mm] 36
    Stirrup section Ø F [mm] 11
    Distance to eye I 18
    Eye Ø U [mm] 28
    Weight approx. [kg] 0.17
  • 2
    435827
    Alloy Dee Shackle K alloy NG1/2" 2.00t galv
    Reference no. 435827
    Working load limit 2
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 41
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 30
    Weight approx. [kg] 0.3
  • 3.25
    435828
    Alloy Dee Shackle K alloy NG5/8" 3.25t galv
    Reference no. 435828
    Working load limit 3.25
    Stud bolt Ø DBS 19
    Distance suspension point E [mm] 51
    Stirrup section Ø F [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 42
    Weight approx. [kg] 0.57
  • 4.75
    435829
    Alloy Dee Shackle K alloy NG3/4" 4.75t galv
    Reference no. 435829
    Working load limit 4.75
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 60
    Stirrup section Ø F [mm] 19
    Distance to eye I 32
    Eye Ø U [mm] 48
    Weight approx. [kg] 0.98
  • 6.5
    435830
    Alloy Dee Shackle K alloy NG7/8" 6.50t galv
    Reference no. 435830
    Working load limit 6.5
    Stud bolt Ø DBS 25
    Distance suspension point E [mm] 71
    Stirrup section Ø F [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 57
    Weight approx. [kg] 1.46
  • 8.5
    435832
    Alloy Dee Shackle K alloy NG1" 8.50t galv
    Reference no. 435832
    Working load limit 8.5
    Stud bolt Ø DBS 28
    Distance suspension point E [mm] 81
    Stirrup section Ø F [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 62
    Weight approx. [kg] 1.96
  • 9.5
    435833
    Alloy Dee Shackle K alloy NG1 1/8" 9.50t galv
    Reference no. 435833
    Working load limit 9.5
    Stud bolt Ø DBS 32
    Distance suspension point E [mm] 90
    Stirrup section Ø F [mm] 28
    Distance to eye I 46
    Eye Ø U [mm] 69
    Weight approx. [kg] 2.75
  • 12
    435834
    Alloy Dee Shackle K alloy NG1 1/4" 12.00t galv
    Reference no. 435834
    Working load limit 12
    Stud bolt Ø DBS 35
    Distance suspension point E [mm] 100
    Stirrup section Ø F [mm] 32
    Distance to eye I 52
    Eye Ø U [mm] 78
    Weight approx. [kg] 4.11
  • 13.5
    435835
    Alloy Dee Shackle K alloy NG1 3/8" 13.50t galv
    Reference no. 435835
    Working load limit 13.5
    Stud bolt Ø DBS 38
    Distance suspension point E [mm] 113
    Stirrup section Ø F [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 86
    Weight approx. [kg] 5.2
  • 17
    435836
    Alloy Dee Shackle K alloy NG1 1/2" 17.00t galv
    Reference no. 435836
    Working load limit 17
    Stud bolt Ø DBS 42
    Distance suspension point E [mm] 124
    Stirrup section Ø F [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 94
    Weight approx. [kg] 6.81
  • 25
    435837
    Alloy Dee Shackle K alloy NG1 3/4" 25.00t galv
    Reference no. 435837
    Working load limit 25
    Stud bolt Ø DBS 50
    Distance suspension point E [mm] 146
    Stirrup section Ø F [mm] 44
    Distance to eye I 73
    Eye Ø U [mm] 112
    Weight approx. [kg] 11.3
  • 35
    436298
    Alloy Dee Shackle K alloy NG2" 35.00t galv
    Reference no. 436298
    Working load limit 35
    Stud bolt Ø DBS 55
    Distance suspension point E [mm] 171
    Stirrup section Ø F [mm] 50
    Distance to eye I 83
    Eye Ø U [mm] 127
    Weight approx. [kg] 16.5
  • 55
    436299
    Alloy Dee Shackle K alloy NG2 1/2" 55.00t galv
    Reference no. 436299
    Working load limit 55
    Stud bolt Ø DBS 70
    Distance suspension point E [mm] 203
    Stirrup section Ø F [mm] 62
    Distance to eye I 105
    Eye Ø U [mm] 152
    Weight approx. [kg] 34.2
Working load limit 0.5
Reference no. 435821
  • Details
    Alloy Dee Shackle K alloy NG1/4" 0.50t galv
    Reference no. 435821
    Working load limit 0.5
    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 22
    Stirrup section Ø F [mm] 6
    Distance to eye I 12
    Eye Ø U [mm] 17
    Weight approx. [kg] 0.05
Working load limit 0.75
Reference no. 435823
  • Details
    Alloy Dee Shackle K alloy NG5/16" 0.75t galv
    Reference no. 435823
    Working load limit 0.75
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 26
    Stirrup section Ø F [mm] 8
    Distance to eye I 13
    Eye Ø U [mm] 21
    Weight approx. [kg] 0.08
Working load limit 1
Reference no. 435824
  • Details
    Alloy Dee Shackle K alloy NG3/8" 1.00t galv
    Reference no. 435824
    Working load limit 1
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 31
    Stirrup section Ø F [mm] 9
    Distance to eye I 16
    Eye Ø U [mm] 26
    Weight approx. [kg] 0.13
Working load limit 1.5
Reference no. 435825
  • Details
    Alloy Dee Shackle K alloy NG7/16" 1.50t galv
    Reference no. 435825
    Working load limit 1.5
    Stud bolt Ø DBS 14
    Distance suspension point E [mm] 36
    Stirrup section Ø F [mm] 11
    Distance to eye I 18
    Eye Ø U [mm] 28
    Weight approx. [kg] 0.17
Working load limit 2
Reference no. 435827
  • Details
    Alloy Dee Shackle K alloy NG1/2" 2.00t galv
    Reference no. 435827
    Working load limit 2
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 41
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 30
    Weight approx. [kg] 0.3
Working load limit 3.25
Reference no. 435828
  • Details
    Alloy Dee Shackle K alloy NG5/8" 3.25t galv
    Reference no. 435828
    Working load limit 3.25
    Stud bolt Ø DBS 19
    Distance suspension point E [mm] 51
    Stirrup section Ø F [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 42
    Weight approx. [kg] 0.57
Working load limit 4.75
Reference no. 435829
  • Details
    Alloy Dee Shackle K alloy NG3/4" 4.75t galv
    Reference no. 435829
    Working load limit 4.75
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 60
    Stirrup section Ø F [mm] 19
    Distance to eye I 32
    Eye Ø U [mm] 48
    Weight approx. [kg] 0.98
Working load limit 6.5
Reference no. 435830
  • Details
    Alloy Dee Shackle K alloy NG7/8" 6.50t galv
    Reference no. 435830
    Working load limit 6.5
    Stud bolt Ø DBS 25
    Distance suspension point E [mm] 71
    Stirrup section Ø F [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 57
    Weight approx. [kg] 1.46
Working load limit 8.5
Reference no. 435832
  • Details
    Alloy Dee Shackle K alloy NG1" 8.50t galv
    Reference no. 435832
    Working load limit 8.5
    Stud bolt Ø DBS 28
    Distance suspension point E [mm] 81
    Stirrup section Ø F [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 62
    Weight approx. [kg] 1.96
Working load limit 9.5
Reference no. 435833
  • Details
    Alloy Dee Shackle K alloy NG1 1/8" 9.50t galv
    Reference no. 435833
    Working load limit 9.5
    Stud bolt Ø DBS 32
    Distance suspension point E [mm] 90
    Stirrup section Ø F [mm] 28
    Distance to eye I 46
    Eye Ø U [mm] 69
    Weight approx. [kg] 2.75
Working load limit 12
Reference no. 435834
  • Details
    Alloy Dee Shackle K alloy NG1 1/4" 12.00t galv
    Reference no. 435834
    Working load limit 12
    Stud bolt Ø DBS 35
    Distance suspension point E [mm] 100
    Stirrup section Ø F [mm] 32
    Distance to eye I 52
    Eye Ø U [mm] 78
    Weight approx. [kg] 4.11
Working load limit 13.5
Reference no. 435835
  • Details
    Alloy Dee Shackle K alloy NG1 3/8" 13.50t galv
    Reference no. 435835
    Working load limit 13.5
    Stud bolt Ø DBS 38
    Distance suspension point E [mm] 113
    Stirrup section Ø F [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 86
    Weight approx. [kg] 5.2
Working load limit 17
Reference no. 435836
  • Details
    Alloy Dee Shackle K alloy NG1 1/2" 17.00t galv
    Reference no. 435836
    Working load limit 17
    Stud bolt Ø DBS 42
    Distance suspension point E [mm] 124
    Stirrup section Ø F [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 94
    Weight approx. [kg] 6.81
Working load limit 25
Reference no. 435837
  • Details
    Alloy Dee Shackle K alloy NG1 3/4" 25.00t galv
    Reference no. 435837
    Working load limit 25
    Stud bolt Ø DBS 50
    Distance suspension point E [mm] 146
    Stirrup section Ø F [mm] 44
    Distance to eye I 73
    Eye Ø U [mm] 112
    Weight approx. [kg] 11.3
Working load limit 35
Reference no. 436298
  • Details
    Alloy Dee Shackle K alloy NG2" 35.00t galv
    Reference no. 436298
    Working load limit 35
    Stud bolt Ø DBS 55
    Distance suspension point E [mm] 171
    Stirrup section Ø F [mm] 50
    Distance to eye I 83
    Eye Ø U [mm] 127
    Weight approx. [kg] 16.5
Working load limit 55
Reference no. 436299
  • Details
    Alloy Dee Shackle K alloy NG2 1/2" 55.00t galv
    Reference no. 436299
    Working load limit 55
    Stud bolt Ø DBS 70
    Distance suspension point E [mm] 203
    Stirrup section Ø F [mm] 62
    Distance to eye I 105
    Eye Ø U [mm] 152
    Weight approx. [kg] 34.2
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
