High-tensile shackle

High-tensile shackle

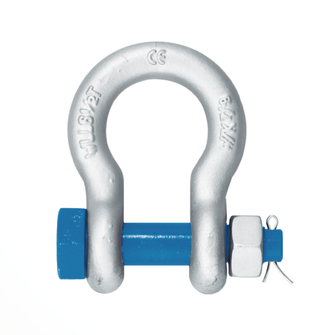

Curved high-tensile shackle with safety bolt, nut and split pin, ideal for multiple occupation.
Technical data

Operating temperature

  • 0 °C to 100 °C
  • reduced carrying capacities outside this range

Standard

  • similar to US Fed. Spec. RR-C-271

Safety factor

  • 6

Material

  • High-tensile steel (quality grade 6)

Shape

  • curved

Stirrup surface

  • hot-dip galvanised

Bolt surface

  • coated

Bolt type

  • Safety bolt, nut and split pin
Product variants
Working load limit [t]
Reference no.
Details
  • 0.5
    435789
    Bow Shackle K alloy w.N. NG1/4" 0.50t galv
    Reference no. 435789
    Working load limit 0.5

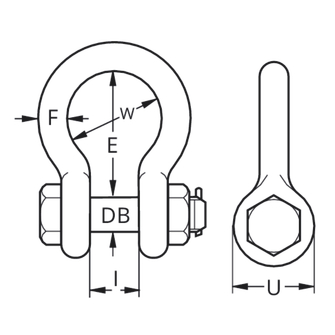

    Distance suspension point E [mm] 28
    Clear span stirrup W [mm] 19
    Stirrup section Ø F [mm] 6
    Distance to eye I 12
    Eye Ø U [mm] 17
    Bolt Ø DB 8
    Weight approx. [kg] 0.07
  • 0.75
    435791
    Bow Shackle K alloy w.N. NG5/16" 0.75t galv
    Reference no. 435791
    Working load limit 0.75
    Distance suspension point E [mm] 31
    Clear span stirrup W [mm] 20
    Stirrup section Ø F [mm] 8
    Distance to eye I 13
    Eye Ø U [mm] 21
    Bolt Ø DB 10
    Weight approx. [kg] 0.1
  • 1
    435793
    Bow Shackle K alloy w.N. NG3/8" 1.00t galv
    Reference no. 435793
    Working load limit 1
    Distance suspension point E [mm] 36
    Clear span stirrup W [mm] 23
    Stirrup section Ø F [mm] 10
    Distance to eye I 16
    Eye Ø U [mm] 26
    Bolt Ø DB 12
    Weight approx. [kg] 0.15
  • 1.5
    435795
    Bow Shackle K alloy w.N. NG7/16" 1.50t galv
    Reference no. 435795
    Working load limit 1.5
    Distance suspension point E [mm] 42
    Clear span stirrup W [mm] 27
    Stirrup section Ø F [mm] 11
    Distance to eye I 18
    Eye Ø U [mm] 28
    Bolt Ø DB 14
    Weight approx. [kg] 0.21
  • 2
    435797
    Bow Shackle K alloy w.N. NG1/2" 2.00t galv
    Reference no. 435797
    Working load limit 2
    Distance suspension point E [mm] 48
    Clear span stirrup W [mm] 30
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 30
    Bolt Ø DB 16
    Weight approx. [kg] 0.34
  • 3.25
    435799
    Bow Shackle K alloy w.N. NG5/8" 3.25t galv
    Reference no. 435799
    Working load limit 3.25
    Distance suspension point E [mm] 60
    Clear span stirrup W [mm] 38
    Stirrup section Ø F [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 42
    Bolt Ø DB 19
    Weight approx. [kg] 0.68
  • 4.75
    435804
    Bow Shackle k alloy w.N. NG3/4" 4.75t galv
    Reference no. 435804
    Working load limit 4.75
    Distance suspension point E [mm] 71
    Clear span stirrup W [mm] 44
    Stirrup section Ø F [mm] 19
    Distance to eye I 32
    Eye Ø U [mm] 48
    Bolt Ø DB 22
    Weight approx. [kg] 1.11
  • 6.5
    435808
    Bow Shackle K alloy w.N. NG7/8" 6.50t galv
    Reference no. 435808
    Working load limit 6.5
    Distance suspension point E [mm] 84
    Clear span stirrup W [mm] 50
    Stirrup section Ø F [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 57
    Bolt Ø DB 25
    Weight approx. [kg] 1.58
  • 8.5
    435810
    Bow Shackle K alloy w.N. NG1" 8.50t galv
    Reference no. 435810
    Working load limit 8.5
    Distance suspension point E [mm] 95
    Clear span stirrup W [mm] 58
    Stirrup section Ø F [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 62
    Bolt Ø DB 28
    Weight approx. [kg] 2.35
  • 9.5
    435812
    Bow Shackle K alloy w.N. NG1 1/8" 9.50t galv
    Reference no. 435812
    Working load limit 9.5
    Distance suspension point E [mm] 109
    Clear span stirrup W [mm] 66
    Stirrup section Ø F [mm] 29
    Distance to eye I 46
    Eye Ø U [mm] 69
    Bolt Ø DB 32
    Weight approx. [kg] 3.22
  • 12
    435815
    Bow Shackle K alloy w.N. NG1 1/4" 12.00t galv
    Reference no. 435815
    Working load limit 12
    Distance suspension point E [mm] 119
    Clear span stirrup W [mm] 73
    Stirrup section Ø F [mm] 32
    Distance to eye I 52
    Eye Ø U [mm] 78
    Bolt Ø DB 35
    Weight approx. [kg] 4.98
  • 13.5
    435817
    Bow Shackle K alloy w.N. NG1 3/8" 13.50t galv
    Reference no. 435817
    Working load limit 13.5
    Distance suspension point E [mm] 133
    Clear span stirrup W [mm] 82
    Stirrup section Ø F [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 86
    Bolt Ø DB 38
    Weight approx. [kg] 6.36
  • 17
    435819
    Bow Shackle K alloy w.N. NG1 1/2" 17.00t galv
    Reference no. 435819
    Working load limit 17
    Distance suspension point E [mm] 146
    Clear span stirrup W [mm] 85
    Stirrup section Ø F [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 94
    Bolt Ø DB 42
    Weight approx. [kg] 8.14
  • 25
    435820
    Bow Shackle K alloy w.N. NG1 3/4" 25.00t galv
    Reference no. 435820
    Working load limit 25
    Distance suspension point E [mm] 178
    Clear span stirrup W [mm] 114
    Stirrup section Ø F [mm] 44
    Distance to eye I 73
    Eye Ø U [mm] 112
    Bolt Ø DB 50
    Weight approx. [kg] 14.29
  • 35
    436294
    Bow Shackle K alloy w.N. NG2" 35.00t galv
    Reference no. 436294
    Working load limit 35
    Distance suspension point E [mm] 197
    Clear span stirrup W [mm] 133
    Stirrup section Ø F [mm] 51
    Distance to eye I 83
    Eye Ø U [mm] 127
    Bolt Ø DB 55
    Weight approx. [kg] 20.1
  • 55
    436295
    Bow Shackle K alloy w.N. NG2 1/2" 55.00t galv
    Reference no. 436295
    Working load limit 55
    Distance suspension point E [mm] 267
    Clear span stirrup W [mm] 171
    Stirrup section Ø F [mm] 62
    Distance to eye I 105
    Eye Ø U [mm] 152
    Bolt Ø DB 70
    Weight approx. [kg] 43.6
Working load limit 0.5
Reference no. 435789
  • Details
    Bow Shackle K alloy w.N. NG1/4" 0.50t galv
    Reference no. 435789
    Working load limit 0.5
    Distance suspension point E [mm] 28
    Clear span stirrup W [mm] 19
    Stirrup section Ø F [mm] 6
    Distance to eye I 12
    Eye Ø U [mm] 17
    Bolt Ø DB 8
    Weight approx. [kg] 0.07
Working load limit 0.75
Reference no. 435791
  • Details
    Bow Shackle K alloy w.N. NG5/16" 0.75t galv
    Reference no. 435791
    Working load limit 0.75
    Distance suspension point E [mm] 31
    Clear span stirrup W [mm] 20
    Stirrup section Ø F [mm] 8
    Distance to eye I 13
    Eye Ø U [mm] 21
    Bolt Ø DB 10
    Weight approx. [kg] 0.1
Working load limit 1
Reference no. 435793
  • Details
    Bow Shackle K alloy w.N. NG3/8" 1.00t galv
    Reference no. 435793
    Working load limit 1
    Distance suspension point E [mm] 36
    Clear span stirrup W [mm] 23
    Stirrup section Ø F [mm] 10
    Distance to eye I 16
    Eye Ø U [mm] 26
    Bolt Ø DB 12
    Weight approx. [kg] 0.15
Working load limit 1.5
Reference no. 435795
  • Details
    Bow Shackle K alloy w.N. NG7/16" 1.50t galv
    Reference no. 435795
    Working load limit 1.5
    Distance suspension point E [mm] 42
    Clear span stirrup W [mm] 27
    Stirrup section Ø F [mm] 11
    Distance to eye I 18
    Eye Ø U [mm] 28
    Bolt Ø DB 14
    Weight approx. [kg] 0.21
Working load limit 2
Reference no. 435797
  • Details
    Bow Shackle K alloy w.N. NG1/2" 2.00t galv
    Reference no. 435797
    Working load limit 2
    Distance suspension point E [mm] 48
    Clear span stirrup W [mm] 30
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 30
    Bolt Ø DB 16
    Weight approx. [kg] 0.34
Working load limit 3.25
Reference no. 435799
  • Details
    Bow Shackle K alloy w.N. NG5/8" 3.25t galv
    Reference no. 435799
    Working load limit 3.25
    Distance suspension point E [mm] 60
    Clear span stirrup W [mm] 38
    Stirrup section Ø F [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 42
    Bolt Ø DB 19
    Weight approx. [kg] 0.68
Working load limit 4.75
Reference no. 435804
  • Details
    Bow Shackle k alloy w.N. NG3/4" 4.75t galv
    Reference no. 435804
    Working load limit 4.75
    Distance suspension point E [mm] 71
    Clear span stirrup W [mm] 44
    Stirrup section Ø F [mm] 19
    Distance to eye I 32
    Eye Ø U [mm] 48
    Bolt Ø DB 22
    Weight approx. [kg] 1.11
Working load limit 6.5
Reference no. 435808
  • Details
    Bow Shackle K alloy w.N. NG7/8" 6.50t galv
    Reference no. 435808
    Working load limit 6.5
    Distance suspension point E [mm] 84
    Clear span stirrup W [mm] 50
    Stirrup section Ø F [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 57
    Bolt Ø DB 25
    Weight approx. [kg] 1.58
Working load limit 8.5
Reference no. 435810
  • Details
    Bow Shackle K alloy w.N. NG1" 8.50t galv
    Reference no. 435810
    Working load limit 8.5
    Distance suspension point E [mm] 95
    Clear span stirrup W [mm] 58
    Stirrup section Ø F [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 62
    Bolt Ø DB 28
    Weight approx. [kg] 2.35
Working load limit 9.5
Reference no. 435812
  • Details
    Bow Shackle K alloy w.N. NG1 1/8" 9.50t galv
    Reference no. 435812
    Working load limit 9.5
    Distance suspension point E [mm] 109
    Clear span stirrup W [mm] 66
    Stirrup section Ø F [mm] 29
    Distance to eye I 46
    Eye Ø U [mm] 69
    Bolt Ø DB 32
    Weight approx. [kg] 3.22
Working load limit 12
Reference no. 435815
  • Details
    Bow Shackle K alloy w.N. NG1 1/4" 12.00t galv
    Reference no. 435815
    Working load limit 12
    Distance suspension point E [mm] 119
    Clear span stirrup W [mm] 73
    Stirrup section Ø F [mm] 32
    Distance to eye I 52
    Eye Ø U [mm] 78
    Bolt Ø DB 35
    Weight approx. [kg] 4.98
Working load limit 13.5
Reference no. 435817
  • Details
    Bow Shackle K alloy w.N. NG1 3/8" 13.50t galv
    Reference no. 435817
    Working load limit 13.5
    Distance suspension point E [mm] 133
    Clear span stirrup W [mm] 82
    Stirrup section Ø F [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 86
    Bolt Ø DB 38
    Weight approx. [kg] 6.36
Working load limit 17
Reference no. 435819
  • Details
    Bow Shackle K alloy w.N. NG1 1/2" 17.00t galv
    Reference no. 435819
    Working load limit 17
    Distance suspension point E [mm] 146
    Clear span stirrup W [mm] 85
    Stirrup section Ø F [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 94
    Bolt Ø DB 42
    Weight approx. [kg] 8.14
Working load limit 25
Reference no. 435820
  • Details
    Bow Shackle K alloy w.N. NG1 3/4" 25.00t galv
    Reference no. 435820
    Working load limit 25
    Distance suspension point E [mm] 178
    Clear span stirrup W [mm] 114
    Stirrup section Ø F [mm] 44
    Distance to eye I 73
    Eye Ø U [mm] 112
    Bolt Ø DB 50
    Weight approx. [kg] 14.29
Working load limit 35
Reference no. 436294
  • Details
    Bow Shackle K alloy w.N. NG2" 35.00t galv
    Reference no. 436294
    Working load limit 35
    Distance suspension point E [mm] 197
    Clear span stirrup W [mm] 133
    Stirrup section Ø F [mm] 51
    Distance to eye I 83
    Eye Ø U [mm] 127
    Bolt Ø DB 55
    Weight approx. [kg] 20.1
Working load limit 55
Reference no. 436295
  • Details
    Bow Shackle K alloy w.N. NG2 1/2" 55.00t galv
    Reference no. 436295
    Working load limit 55
    Distance suspension point E [mm] 267
    Clear span stirrup W [mm] 171
    Stirrup section Ø F [mm] 62
    Distance to eye I 105
    Eye Ø U [mm] 152
    Bolt Ø DB 70
    Weight approx. [kg] 43.6
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
