High-tensile shackle

High-tensile shackle

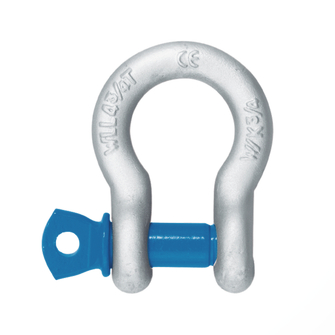

Curved high-tensile shackle with eye bolt, ideal for multiple occupation.
Technical data

Operating temperature

  • 0 °C to 100 °C
  • reduced carrying capacities outside this range

Standard

  • similar to US Fed. Spec. RR-C-271

Safety factor

  • 6

Material

  • High-tensile steel (quality grade 6)

Shape

  • curved

Stirrup surface

  • hot-dip galvanised

Bolt surface

  • coated

Bolt type

  • Eye bolt
Product variants
Working load limit [t]
Reference no.
Details
  • 0.5
    435745
    Bow Shackle K alloy NG1/4" 0.5t galv
    Reference no. 435745
    Working load limit 0.5

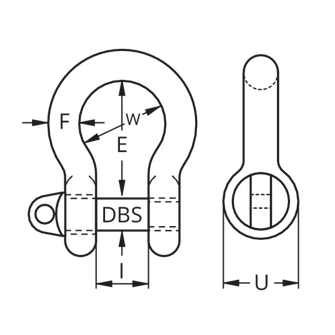

    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 28
    Clear span stirrup W [mm] 19
    Stirrup section Ø F [mm] 6
    Distance to eye I 12
    Eye Ø U [mm] 17
    Weight approx. [kg] 0.05
  • 0.75
    435748
    Bow Shackle K alloy NG5/16" 0.75t galv
    Reference no. 435748
    Working load limit 0.75
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 31
    Clear span stirrup W [mm] 20
    Stirrup section Ø F [mm] 8
    Distance to eye I 13
    Eye Ø U [mm] 21
    Weight approx. [kg] 0.08
  • 1
    435754
    Bow Shackle K alloy NG3/8" 1.0t galv
    Reference no. 435754
    Working load limit 1
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 36
    Clear span stirrup W [mm] 23
    Stirrup section Ø F [mm] 10
    Distance to eye I 16
    Eye Ø U [mm] 26
    Weight approx. [kg] 0.15
  • 1.5
    435758
    Bow Shackle K alloy NG7/16" 1.5t galv
    Reference no. 435758
    Working load limit 1.5
    Stud bolt Ø DBS 14
    Distance suspension point E [mm] 42
    Clear span stirrup W [mm] 27
    Stirrup section Ø F [mm] 11
    Distance to eye I 18
    Eye Ø U [mm] 28
    Weight approx. [kg] 0.2
  • 2
    435759
    Bow Shackle K alloy NG1/2" 2.00t galv
    Reference no. 435759
    Working load limit 2
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 48
    Clear span stirrup W [mm] 30
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 30
    Weight approx. [kg] 0.31
  • 3.25
    435762
    Bow Shackle K alloy NG5/8" 3.25t galv
    Reference no. 435762
    Working load limit 3.25
    Stud bolt Ø DBS 19
    Distance suspension point E [mm] 60
    Clear span stirrup W [mm] 38
    Stirrup section Ø F [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 42
    Weight approx. [kg] 0.62
  • 4.75
    435765
    Bow Shackle K alloy NG3/4" 4.75t galv
    Reference no. 435765
    Working load limit 4.75
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 71
    Clear span stirrup W [mm] 44
    Stirrup section Ø F [mm] 19
    Distance to eye I 32
    Eye Ø U [mm] 48
    Weight approx. [kg] 1
  • 6.5
    435766
    Bow Shackle K alloy NG7/8" 6.50t galv
    Reference no. 435766
    Working load limit 6.5
    Stud bolt Ø DBS 25
    Distance suspension point E [mm] 84
    Clear span stirrup W [mm] 50
    Stirrup section Ø F [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 57
    Weight approx. [kg] 1.58
  • 8.5
    435767
    Bow Shackle K alloy NG1" 8.50t galv
    Reference no. 435767
    Working load limit 8.5
    Stud bolt Ø DBS 28
    Distance suspension point E [mm] 95
    Clear span stirrup W [mm] 58
    Stirrup section Ø F [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 62
    Weight approx. [kg] 2.3
  • 9.5
    435768
    Bow Shackle K alloy NG1 1/8" 9.50t galv
    Reference no. 435768
    Working load limit 9.5
    Stud bolt Ø DBS 32
    Distance suspension point E [mm] 109
    Clear span stirrup W [mm] 66
    Stirrup section Ø F [mm] 29
    Distance to eye I 46
    Eye Ø U [mm] 69
    Weight approx. [kg] 3.05
  • 12
    435769
    Bow Shackle K alloy NG1 1/4" 12.0t galv
    Reference no. 435769
    Working load limit 12
    Stud bolt Ø DBS 35
    Distance suspension point E [mm] 119
    Clear span stirrup W [mm] 73
    Stirrup section Ø F [mm] 32
    Distance to eye I 52
    Eye Ø U [mm] 78
    Weight approx. [kg] 4.8
  • 13.5
    435770
    Bow Shackle K alloy NG1 3/8" 13.5t galv
    Reference no. 435770
    Working load limit 13.5
    Stud bolt Ø DBS 38
    Distance suspension point E [mm] 133
    Clear span stirrup W [mm] 82
    Stirrup section Ø F [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 86
    Weight approx. [kg] 6.3
  • 17
    435771
    Bow Shackle K alloy NG1 1/2" 17.0t galv
    Reference no. 435771
    Working load limit 17
    Stud bolt Ø DBS 42
    Distance suspension point E [mm] 146
    Clear span stirrup W [mm] 85
    Stirrup section Ø F [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 94
    Weight approx. [kg] 8.65
  • 25
    435772
    Bow Shackle K alloy NG1 3/4" 25.0t galv
    Reference no. 435772
    Working load limit 25
    Stud bolt Ø DBS 50
    Distance suspension point E [mm] 178
    Clear span stirrup W [mm] 114
    Stirrup section Ø F [mm] 44
    Distance to eye I 73
    Eye Ø U [mm] 112
    Weight approx. [kg] 13.9
  • 35
    436291
    Bow Shackle K alloy NG2" 35.0t galv
    Reference no. 436291
    Working load limit 35
    Stud bolt Ø DBS 55
    Distance suspension point E [mm] 197
    Clear span stirrup W [mm] 133
    Stirrup section Ø F [mm] 51
    Distance to eye I 83
    Eye Ø U [mm] 127
    Weight approx. [kg] 20.55
  • 55
    436293
    Bow Shackle K alloy NG2 1/2" 55.0t galv
    Reference no. 436293
    Working load limit 55
    Stud bolt Ø DBS 70
    Distance suspension point E [mm] 267
    Clear span stirrup W [mm] 171
    Stirrup section Ø F [mm] 62
    Distance to eye I 105
    Eye Ø U [mm] 152
    Weight approx. [kg] 41.75
