Shackles similar to DIN 82101 (A)

Shackles similar to DIN 82101 (A)

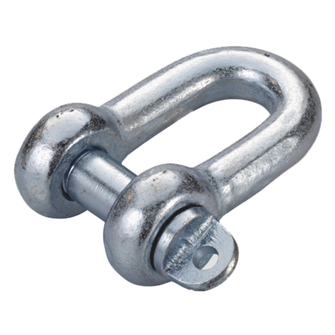

Straight shackle similar to DIN 82101 (form A) with eye bolt. Galvanised version resists corrosion.
Technical data

Operating temperature

  • 0 °C to 100 °C
  • reduced carrying capacities outside this range

Standard

  • similar to DIN 82101

Safety factor

  • 5

Material

  • Unalloyed structural steel

Shape

  • straight

Stirrup surface

  • galvanized

Bolt surface

  • galvanized

Bolt type

  • Eye bolt

Technical note

  • Please note that the actual dimensions of the products can differ due to tolerances in accordance with the designated standards!

Country of origin

  • Outside the European Economic Area
Options

Options on request

  • with bolt, nut and split pin
Product variants
Working load limit [t]
Reference no.
Details
  • 0.1
    111836
    DGA 821-TYPE-A-0.1T

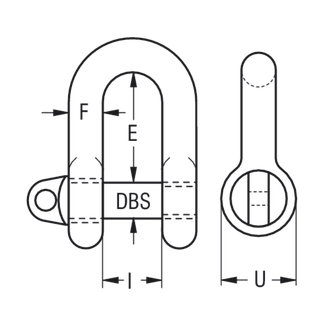

    Reference no. 111836
    Working load limit 0.1
    Stud bolt Ø DBS 4
    Distance suspension point E [mm] 15.5
    Stirrup section Ø F [mm] 4
    Distance to eye I 7
    Eye Ø U [mm] 10
    Weight approx. [kg] 0.01
  • 0.16
    111838
    DGA 821-TYPE-A-0.16T
    Reference no. 111838
    Working load limit 0.16
    Stud bolt Ø DBS 6
    Distance suspension point E [mm] 18
    Stirrup section Ø F [mm] 5
    Distance to eye I 8
    Eye Ø U [mm] 12
    Weight approx. [kg] 0.02
  • 0.25
    111840
    DGA 821-TYPE-A-0.25T
    Reference no. 111840
    Working load limit 0.25
    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 24
    Stirrup section Ø F [mm] 7
    Distance to eye I 11
    Eye Ø U [mm] 16
    Weight approx. [kg] 0.05
  • 0.4
    111842
    DGA 821-TYPE-A-0.4T
    Reference no. 111842
    Working load limit 0.4
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 30
    Stirrup section Ø F [mm] 8
    Distance to eye I 14
    Eye Ø U [mm] 20
    Weight approx. [kg] 0.09
  • 0.6
    111845
    DGA 821-TYPE-A-0.6T
    Reference no. 111845
    Working load limit 0.6
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 36
    Stirrup section Ø F [mm] 10
    Distance to eye I 17
    Eye Ø U [mm] 24
    Weight approx. [kg] 0.17
  • 1
    111850
    DGA 821-TYPE-A-1T
    Reference no. 111850
    Working load limit 1
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 49
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 32
    Weight approx. [kg] 0.29
  • 1.6
    111855
    DGA 821-TYPE-A-1,6T-G3351
    Reference no. 111855
    Working load limit 1.6
    Stud bolt Ø DBS 20
    Distance suspension point E [mm] 61
    Stirrup section Ø F [mm] 17
    Distance to eye I 27
    Eye Ø U [mm] 40
    Weight approx. [kg] 0.57
  • 2
    111861
    DGA 821-TYPE-A-2T
    Reference no. 111861
    Working load limit 2
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 67
    Stirrup section Ø F [mm] 19
    Distance to eye I 30
    Eye Ø U [mm] 44
    Weight approx. [kg] 1
  • 2.5
    111865
    DGA 821-TYPE-A-2.5T
    Reference no. 111865
    Working load limit 2.5
    Stud bolt Ø DBS 24
    Distance suspension point E [mm] 73
    Stirrup section Ø F [mm] 21
    Distance to eye I 33
    Eye Ø U [mm] 48
    Weight approx. [kg] 1.32
  • 3
    111869
    DGA 821-TYPE-A-3T
    Reference no. 111869
    Working load limit 3
    Stud bolt Ø DBS 27
    Distance suspension point E [mm] 83.5
    Stirrup section Ø F [mm] 24
    Distance to eye I 38
    Eye Ø U [mm] 54
    Weight approx. [kg] 1.8
  • 4
    111875
    DGA 821-TYPE-A-4T
    Reference no. 111875
    Working load limit 4
    Stud bolt Ø DBS 30
    Distance suspension point E [mm] 91
    Stirrup section Ø F [mm] 27
    Distance to eye I 42
    Eye Ø U [mm] 60
    Weight approx. [kg] 2.4
  • 5
    111881
    DGA 821-TYPE-A-5T
    Reference no. 111881
    Working load limit 5
    Stud bolt Ø DBS 36
    Distance suspension point E [mm] 111
    Stirrup section Ø F [mm] 30
    Distance to eye I 47
    Eye Ø U [mm] 72
    Weight approx. [kg] 3.9
  • 6
    111886
    DGA 821-TYPE-A-6T
    Reference no. 111886
    Working load limit 6
    Stud bolt Ø DBS 39
    Distance suspension point E [mm] 119.5
    Stirrup section Ø F [mm] 34
    Distance to eye I 53
    Eye Ø U [mm] 78
    Weight approx. [kg] 5.3
  • 8
    111889
    DGA 821-TYPE-A-8T
    Reference no. 111889
    Working load limit 8
    Stud bolt Ø DBS 45
    Distance suspension point E [mm] 139.5
    Stirrup section Ø F [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 90
    Weight approx. [kg] 7.9
  • 10
    111892
    DGA 821-TYPE-A-10T
    Reference no. 111892
    Working load limit 10
    Stud bolt Ø DBS 48
    Distance suspension point E [mm] 147
    Stirrup section Ø F [mm] 42
    Distance to eye I 66
    Eye Ø U [mm] 96
    Weight approx. [kg] 10
  • 12
    111895
    DGA 821-TYPE-A-12T
    Reference no. 111895
    Working load limit 12
    Stud bolt Ø DBS 52
    Distance suspension point E [mm] 158
    Stirrup section Ø F [mm] 47
    Distance to eye I 73
    Eye Ø U [mm] 104
    Weight approx. [kg] 13
  • 16
    111898
    DGA 821-TYPE-A-16T-G3351
    Reference no. 111898
    Working load limit 16
    Stud bolt Ø DBS 60
    Distance suspension point E [mm] 185
    Stirrup section Ø F [mm] 52
    Distance to eye I 81
    Eye Ø U [mm] 120
    Weight approx. [kg] 18.5
  • 20
    111901
    DGA 821-TYPE-A-20T
    Reference no. 111901
    Working load limit 20
    Stud bolt Ø DBS 68
    Distance suspension point E [mm] 211
    Stirrup section Ø F [mm] 58
    Distance to eye I 90
    Eye Ø U [mm] 136
    Weight approx. [kg] 27.2
  • 25
    111903
    DGA 821-TYPE-A-25T
    Reference no. 111903
    Working load limit 25
    Stud bolt Ø DBS 72
    Distance suspension point E [mm] 221
    Stirrup section Ø F [mm] 63
    Distance to eye I 100
    Eye Ø U [mm] 144
    Weight approx. [kg] 35
Working load limit 0.1
Reference no. 111836
  • Details
    DGA 821-TYPE-A-0.1T
    Reference no. 111836
    Working load limit 0.1
    Stud bolt Ø DBS 4
    Distance suspension point E [mm] 15.5
    Stirrup section Ø F [mm] 4
    Distance to eye I 7
    Eye Ø U [mm] 10
    Weight approx. [kg] 0.01
Working load limit 0.16
Reference no. 111838
  • Details
    DGA 821-TYPE-A-0.16T
    Reference no. 111838
    Working load limit 0.16
    Stud bolt Ø DBS 6
    Distance suspension point E [mm] 18
    Stirrup section Ø F [mm] 5
    Distance to eye I 8
    Eye Ø U [mm] 12
    Weight approx. [kg] 0.02
Working load limit 0.25
Reference no. 111840
  • Details
    DGA 821-TYPE-A-0.25T
    Reference no. 111840
    Working load limit 0.25
    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 24
    Stirrup section Ø F [mm] 7
    Distance to eye I 11
    Eye Ø U [mm] 16
    Weight approx. [kg] 0.05
Working load limit 0.4
Reference no. 111842
  • Details
    DGA 821-TYPE-A-0.4T
    Reference no. 111842
    Working load limit 0.4
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 30
    Stirrup section Ø F [mm] 8
    Distance to eye I 14
    Eye Ø U [mm] 20
    Weight approx. [kg] 0.09
Working load limit 0.6
Reference no. 111845
  • Details
    DGA 821-TYPE-A-0.6T
    Reference no. 111845
    Working load limit 0.6
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 36
    Stirrup section Ø F [mm] 10
    Distance to eye I 17
    Eye Ø U [mm] 24
    Weight approx. [kg] 0.17
Working load limit 1
Reference no. 111850
  • Details
    DGA 821-TYPE-A-1T
    Reference no. 111850
    Working load limit 1
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 49
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 32
    Weight approx. [kg] 0.29
Working load limit 1.6
Reference no. 111855
  • Details
    DGA 821-TYPE-A-1,6T-G3351
    Reference no. 111855
    Working load limit 1.6
    Stud bolt Ø DBS 20
    Distance suspension point E [mm] 61
    Stirrup section Ø F [mm] 17
    Distance to eye I 27
    Eye Ø U [mm] 40
    Weight approx. [kg] 0.57
Working load limit 2
Reference no. 111861
  • Details
    DGA 821-TYPE-A-2T
    Reference no. 111861
    Working load limit 2
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 67
    Stirrup section Ø F [mm] 19
    Distance to eye I 30
    Eye Ø U [mm] 44
    Weight approx. [kg] 1
Working load limit 2.5
Reference no. 111865
  • Details
    DGA 821-TYPE-A-2.5T
    Reference no. 111865
    Working load limit 2.5
    Stud bolt Ø DBS 24
    Distance suspension point E [mm] 73
    Stirrup section Ø F [mm] 21
    Distance to eye I 33
    Eye Ø U [mm] 48
    Weight approx. [kg] 1.32
Working load limit 3
Reference no. 111869
  • Details
    DGA 821-TYPE-A-3T
    Reference no. 111869
    Working load limit 3
    Stud bolt Ø DBS 27
    Distance suspension point E [mm] 83.5
    Stirrup section Ø F [mm] 24
    Distance to eye I 38
    Eye Ø U [mm] 54
    Weight approx. [kg] 1.8
Working load limit 4
Reference no. 111875
  • Details
    DGA 821-TYPE-A-4T
    Reference no. 111875
    Working load limit 4
    Stud bolt Ø DBS 30
    Distance suspension point E [mm] 91
    Stirrup section Ø F [mm] 27
    Distance to eye I 42
    Eye Ø U [mm] 60
    Weight approx. [kg] 2.4
Working load limit 5
Reference no. 111881
  • Details
    DGA 821-TYPE-A-5T
    Reference no. 111881
    Working load limit 5
    Stud bolt Ø DBS 36
    Distance suspension point E [mm] 111
    Stirrup section Ø F [mm] 30
    Distance to eye I 47
    Eye Ø U [mm] 72
    Weight approx. [kg] 3.9
Working load limit 6
Reference no. 111886
  • Details
    DGA 821-TYPE-A-6T
    Reference no. 111886
    Working load limit 6
    Stud bolt Ø DBS 39
    Distance suspension point E [mm] 119.5
    Stirrup section Ø F [mm] 34
    Distance to eye I 53
    Eye Ø U [mm] 78
    Weight approx. [kg] 5.3
Working load limit 8
Reference no. 111889
  • Details
    DGA 821-TYPE-A-8T
    Reference no. 111889
    Working load limit 8
    Stud bolt Ø DBS 45
    Distance suspension point E [mm] 139.5
    Stirrup section Ø F [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 90
    Weight approx. [kg] 7.9
Working load limit 10
Reference no. 111892
  • Details
    DGA 821-TYPE-A-10T
    Reference no. 111892
    Working load limit 10
    Stud bolt Ø DBS 48
    Distance suspension point E [mm] 147
    Stirrup section Ø F [mm] 42
    Distance to eye I 66
    Eye Ø U [mm] 96
    Weight approx. [kg] 10
Working load limit 12
Reference no. 111895
  • Details
    DGA 821-TYPE-A-12T
    Reference no. 111895
    Working load limit 12
    Stud bolt Ø DBS 52
    Distance suspension point E [mm] 158
    Stirrup section Ø F [mm] 47
    Distance to eye I 73
    Eye Ø U [mm] 104
    Weight approx. [kg] 13
Working load limit 16
Reference no. 111898
  • Details
    DGA 821-TYPE-A-16T-G3351
    Reference no. 111898
    Working load limit 16
    Stud bolt Ø DBS 60
    Distance suspension point E [mm] 185
    Stirrup section Ø F [mm] 52
    Distance to eye I 81
    Eye Ø U [mm] 120
    Weight approx. [kg] 18.5
Working load limit 20
Reference no. 111901
  • Details
    DGA 821-TYPE-A-20T
    Reference no. 111901
    Working load limit 20
    Stud bolt Ø DBS 68
    Distance suspension point E [mm] 211
    Stirrup section Ø F [mm] 58
    Distance to eye I 90
    Eye Ø U [mm] 136
    Weight approx. [kg] 27.2
Working load limit 25
Reference no. 111903
  • Details
    DGA 821-TYPE-A-25T
    Reference no. 111903
    Working load limit 25
    Stud bolt Ø DBS 72
    Distance suspension point E [mm] 221
    Stirrup section Ø F [mm] 63
    Distance to eye I 100
    Eye Ø U [mm] 144
    Weight approx. [kg] 35
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
