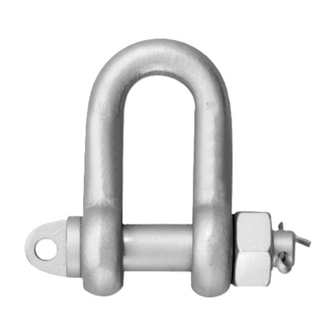

Straight shackle similar to DIN 82101 (form C) with eye bolt, nut and split. Galvanised version resists corrosion.
Technical data

Operating temperature

  • 0 °C to 100 °C
  • reduced carrying capacities outside this range

Standard

  • similar to DIN 82101

Safety factor

  • 5

Material

  • Unalloyed structural steel

Shape

  • straight

Stirrup surface

  • galvanized

Bolt surface

  • galvanized

Bolt type

  • Eye bolt

Technical note

  • Please note that the actual dimensions of the products can differ due to tolerances in accordance with the designated standards!

Country of origin

  • Outside the European Economic Area
Options

Options on request

  • with bolt, nut and split pin
Product variants
Working load limit [kg]
Reference no.
Details
  • 600
    111847
    DGC 821-TYPE-C-0.6T
    Reference no. 111847
    Working load limit [kg] 600
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 36
    Stirrup section Ø F [mm] 10
    Distance to eye I 17
    Eye Ø U [mm] 24
    Weight approx. [kg] 0.2
  • 1000
    111853
    DGC 821-TYPE-C-1T
    Reference no. 111853
    Working load limit [kg] 1000
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 49
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 32
    Weight approx. [kg] 0.37
  • 1600
    111858
    DGC 821-TYPE-C-1.6T
    Reference no. 111858
    Working load limit [kg] 1600
    Stud bolt Ø DBS 20
    Distance suspension point E [mm] 61
    Stirrup section Ø F [mm] 17
    Distance to eye I 27
    Eye Ø U [mm] 40
    Weight approx. [kg] 0.686
  • 2500
    111867
    DGC 821-TYPE-C-2.5T
    Reference no. 111867
    Working load limit [kg] 2500
    Stud bolt Ø DBS 24
    Distance suspension point E [mm] 73
    Stirrup section Ø F [mm] 21
    Distance to eye I 33
    Eye Ø U [mm] 48
    Weight approx. [kg] 1.5
  • 3000
    111873
    DGC 821-TYPE-C-3T
    Reference no. 111873
    Working load limit [kg] 3000
    Stud bolt Ø DBS 27
    Distance suspension point E [mm] 83.5
    Stirrup section Ø F [mm] 24
    Distance to eye I 38
    Eye Ø U [mm] 54
    Weight approx. [kg] 2.15
  • 4000
    111879
    DGC 821-TYPE-C-4T
    Reference no. 111879
    Working load limit [kg] 4000
    Stud bolt Ø DBS 30
    Distance suspension point E [mm] 91
    Stirrup section Ø F [mm] 27
    Distance to eye I 42
    Eye Ø U [mm] 60
    Weight approx. [kg] 2.82
  • 10000
    111894
    DGC 821-TYPE-C-10T-G3356
    Reference no. 111894
    Working load limit [kg] 10000
    Stud bolt Ø DBS 48
    Distance suspension point E [mm] 147
    Stirrup section Ø F [mm] 42
    Distance to eye I 66
    Eye Ø U [mm] 96
    Weight approx. [kg] 10.8
  • 16000
    111899
    DGC 821-TYPE-C-16T
    Reference no. 111899
    Working load limit [kg] 16000
    Stud bolt Ø DBS 60
    Distance suspension point E [mm] 185
    Stirrup section Ø F [mm] 52
    Distance to eye I 81
    Eye Ø U [mm] 120
    Weight approx. [kg] 20.36
Working load limit [kg] 600
Reference no. 111847
  • Details
    DGC 821-TYPE-C-0.6T
    Reference no. 111847
    Working load limit [kg] 600
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 36
    Stirrup section Ø F [mm] 10
    Distance to eye I 17
    Eye Ø U [mm] 24
    Weight approx. [kg] 0.2
Working load limit [kg] 1000
Reference no. 111853
  • Details
    DGC 821-TYPE-C-1T
    Reference no. 111853
    Working load limit [kg] 1000
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 49
    Stirrup section Ø F [mm] 13
    Distance to eye I 21
    Eye Ø U [mm] 32
    Weight approx. [kg] 0.37
Working load limit [kg] 1600
Reference no. 111858
  • Details
    DGC 821-TYPE-C-1.6T
    Reference no. 111858
    Working load limit [kg] 1600
    Stud bolt Ø DBS 20
    Distance suspension point E [mm] 61
    Stirrup section Ø F [mm] 17
    Distance to eye I 27
    Eye Ø U [mm] 40
    Weight approx. [kg] 0.686
Working load limit [kg] 2500
Reference no. 111867
  • Details
    DGC 821-TYPE-C-2.5T
    Reference no. 111867
    Working load limit [kg] 2500
    Stud bolt Ø DBS 24
    Distance suspension point E [mm] 73
    Stirrup section Ø F [mm] 21
    Distance to eye I 33
    Eye Ø U [mm] 48
    Weight approx. [kg] 1.5
Working load limit [kg] 3000
Reference no. 111873
  • Details
    DGC 821-TYPE-C-3T
    Reference no. 111873
    Working load limit [kg] 3000
    Stud bolt Ø DBS 27
    Distance suspension point E [mm] 83.5
    Stirrup section Ø F [mm] 24
    Distance to eye I 38
    Eye Ø U [mm] 54
    Weight approx. [kg] 2.15
Working load limit [kg] 4000
Reference no. 111879
  • Details
    DGC 821-TYPE-C-4T
    Reference no. 111879
    Working load limit [kg] 4000
    Stud bolt Ø DBS 30
    Distance suspension point E [mm] 91
    Stirrup section Ø F [mm] 27
    Distance to eye I 42
    Eye Ø U [mm] 60
    Weight approx. [kg] 2.82
Working load limit [kg] 10000
Reference no. 111894
  • Details
    DGC 821-TYPE-C-10T-G3356
    Reference no. 111894
    Working load limit [kg] 10000
    Stud bolt Ø DBS 48
    Distance suspension point E [mm] 147
    Stirrup section Ø F [mm] 42
    Distance to eye I 66
    Eye Ø U [mm] 96
    Weight approx. [kg] 10.8
Working load limit [kg] 16000
Reference no. 111899
  • Details
    DGC 821-TYPE-C-16T
    Reference no. 111899
    Working load limit [kg] 16000
    Stud bolt Ø DBS 60
    Distance suspension point E [mm] 185
    Stirrup section Ø F [mm] 52
    Distance to eye I 81
    Eye Ø U [mm] 120
    Weight approx. [kg] 20.36
