Stainless steel shackle Safety Pin Alloy ´D´Shackle

Stainless steel shackle Safety Pin Alloy ´D´Shackle

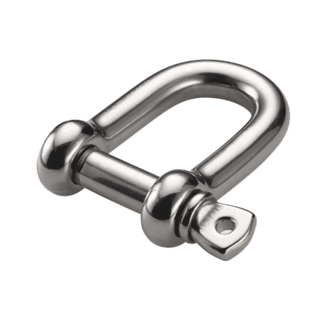

Straight stainless steel shackle similar to DIN 82102 with eye bolt.
Technical data

Standard

  • similar to DIN 82102

Safety factor

  • 5

Material

  • Stainless steel

Shape

  • straight

Stirrup surface

  • Stainless steel

Bolt surface

  • Stainless steel

Bolt type

  • Eye bolt

Country of origin

  • Outside the European Economic Area
Product variants
Working load limit [kg]
Reference no.
Details
  • 120
    111990
    EGA 822-TYPE-A-NG5-0.12T-VA
    Reference no. 111990
    Working load limit [kg] 120

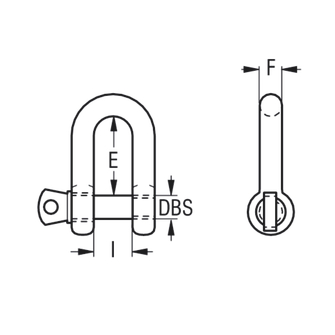

    Stud bolt Ø DBS 5
    Distance suspension point E [mm] 20
    Stirrup section Ø F [mm] 5
    Distance to eye I 10
    Weight approx. [kg] 0.018
  • 150
    111991
    EGA 822-TYPE-A-NG6-0.15T-VA
    Reference no. 111991
    Working load limit [kg] 150
    Stud bolt Ø DBS 6
    Distance suspension point E [mm] 24
    Stirrup section Ø F [mm] 6
    Distance to eye I 12
    Weight approx. [kg] 0.028
  • 300
    111992
    EGA 822-TYPE-A-NG8-0.3T-VA
    Reference no. 111992
    Working load limit [kg] 300
    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 32
    Stirrup section Ø F [mm] 8
    Distance to eye I 16
    Weight approx. [kg] 0.064
  • 400
    111993
    EGA 822-TYPE-A-NG10-0.4T-VA
    Reference no. 111993
    Working load limit [kg] 400
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 40
    Stirrup section Ø F [mm] 10
    Distance to eye I 20
    Weight approx. [kg] 0.15
  • 600
    111994
    EGA 822-TYPE-A-NG12-0.6T-VA
    Reference no. 111994
    Working load limit [kg] 600
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 48
    Stirrup section Ø F [mm] 12
    Distance to eye I 24
    Weight approx. [kg] 0.2
  • 1000
    111997
    EGA 822-TYPE-A-NG16-1T-VA
    Reference no. 111997
    Working load limit [kg] 1000
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 64
    Stirrup section Ø F [mm] 16
    Distance to eye I 32
    Weight approx. [kg] 0.48
  • 1500
    111998
    EGA 822-TYPE-A-NG19-1.5T-VA
    Reference no. 111998
    Working load limit [kg] 1500
    Stud bolt Ø DBS 19
    Distance suspension point E [mm] 76
    Stirrup section Ø F [mm] 19
    Distance to eye I 38
    Weight approx. [kg] 0.84
  • 2000
    111999
    EGA 822-TYPE-A-NG22-2T-VA
    Reference no. 111999
    Working load limit [kg] 2000
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 88
    Stirrup section Ø F [mm] 22
    Distance to eye I 45
    Weight approx. [kg] 1.27
Working load limit [kg] 120
Reference no. 111990
  • Details
    EGA 822-TYPE-A-NG5-0.12T-VA
    Reference no. 111990
    Working load limit [kg] 120
    Stud bolt Ø DBS 5
    Distance suspension point E [mm] 20
    Stirrup section Ø F [mm] 5
    Distance to eye I 10
    Weight approx. [kg] 0.018
Working load limit [kg] 150
Reference no. 111991
  • Details
    EGA 822-TYPE-A-NG6-0.15T-VA
    Reference no. 111991
    Working load limit [kg] 150
    Stud bolt Ø DBS 6
    Distance suspension point E [mm] 24
    Stirrup section Ø F [mm] 6
    Distance to eye I 12
    Weight approx. [kg] 0.028
Working load limit [kg] 300
Reference no. 111992
  • Details
    EGA 822-TYPE-A-NG8-0.3T-VA
    Reference no. 111992
    Working load limit [kg] 300
    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 32
    Stirrup section Ø F [mm] 8
    Distance to eye I 16
    Weight approx. [kg] 0.064
Working load limit [kg] 400
Reference no. 111993
  • Details
    EGA 822-TYPE-A-NG10-0.4T-VA
    Reference no. 111993
    Working load limit [kg] 400
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 40
    Stirrup section Ø F [mm] 10
    Distance to eye I 20
    Weight approx. [kg] 0.15
Working load limit [kg] 600
Reference no. 111994
  • Details
    EGA 822-TYPE-A-NG12-0.6T-VA
    Reference no. 111994
    Working load limit [kg] 600
    Stud bolt Ø DBS 12
    Distance suspension point E [mm] 48
    Stirrup section Ø F [mm] 12
    Distance to eye I 24
    Weight approx. [kg] 0.2
Working load limit [kg] 1000
Reference no. 111997
  • Details
    EGA 822-TYPE-A-NG16-1T-VA
    Reference no. 111997
    Working load limit [kg] 1000
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 64
    Stirrup section Ø F [mm] 16
    Distance to eye I 32
    Weight approx. [kg] 0.48
Working load limit [kg] 1500
Reference no. 111998
  • Details
    EGA 822-TYPE-A-NG19-1.5T-VA
    Reference no. 111998
    Working load limit [kg] 1500
    Stud bolt Ø DBS 19
    Distance suspension point E [mm] 76
    Stirrup section Ø F [mm] 19
    Distance to eye I 38
    Weight approx. [kg] 0.84
Working load limit [kg] 2000
Reference no. 111999
  • Details
    EGA 822-TYPE-A-NG22-2T-VA
    Reference no. 111999
    Working load limit [kg] 2000
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 88
    Stirrup section Ø F [mm] 22
    Distance to eye I 45
    Weight approx. [kg] 1.27
