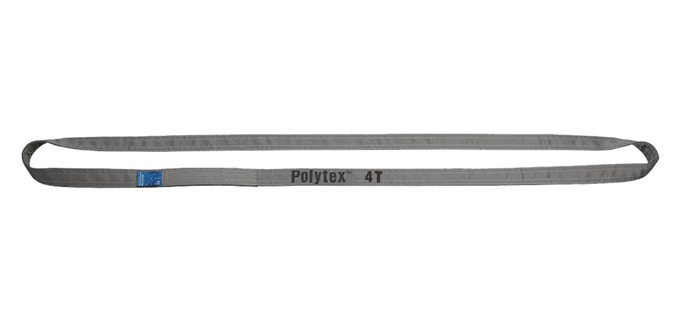

Polytex® endless lifting strap 2LA

Polytex® endless lifting strap 2LA
Two-layer endless lifting strap with double working load limit compared to single-layer endless lifting straps with the same strap width. The lifting strap has relatively narrow strap dimensions when comparing the working load limit and is ideal for use with cross bars.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-1

Safety factor

  • 7

Material

  • Polyester fabric

Material layers

  • two-layer
Options

Options on request

  • further useful lengths
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Wrap around working load limit [kg]
Effective length WLL [m]
Reference no.
Details
  • 2000
    1600
    4000
    2
    491507
    HBE-EN-2T-2L-30-2M-I
    Reference no. 491507
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 0.763
  • 2000
    1600
    4000
    3
    491508
    HBE-EN-2T-2L-30-3M-I
    Reference no. 491508
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 1.103
  • 2000
    1600
    4000
    4
    491509
    HBE-EN-2T-2L-30-4M-I
    Reference no. 491509
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 1.443
  • 2000
    1600
    4000
    5
    491510
    HBE-EN-2T-2L-30-5M-I
    Reference no. 491510
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 1.783
  • 2000
    1600
    4000
    6
    491511
    HBE-EN-2T-2L-30-6M-I
    Reference no. 491511
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 2.12
  • 2000
    1600
    4000
    8
    491512
    HBE-EN-2T-2L-30-8M-I
    Reference no. 491512
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 2.803
  • 4000
    3200
    8000
    2
    491513
    HBE-EN-4T-2L-60-2M-I
    Reference no. 491513
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 1.434
  • 4000
    3200
    8000
    3
    491514
    HBE-EN-4T-2L-60-3M-I
    Reference no. 491514
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 2.086
  • 4000
    3200
    8000
    4
    491515
    HBE-EN-4T-2L-60-4M-I
    Reference no. 491515
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 2.738
  • 4000
    3200
    8000
    5
    491516
    HBE-EN-4T-2L-60-5M-I
    Reference no. 491516
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 3.39
  • 4000
    3200
    8000
    6
    491517
    HBE-EN-4T-2L-60-6M-I
    Reference no. 491517
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 4.042
  • 4000
    3200
    8000
    8
    491518
    HBE-EN-4T-2L-60-8M-I
    Reference no. 491518
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 5.346
  • 6000
    4800
    12000
    2
    491519
    HBE-EN-6T-2L-90-2M-I
    Reference no. 491519
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 2.015
  • 6000
    4800
    12000
    3
    491520
    HBE-EN-6T-2L-90-3M-I
    Reference no. 491520
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 2.959
  • 6000
    4800
    12000
    4
    491521
    HBE-EN-6T-2L-90-4M-I
    Reference no. 491521
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 3.903
  • 6000
    4800
    12000
    5
    491522
    HBE-EN-6T-2L-90-5M-I
    Reference no. 491522
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 4.847
  • 6000
    4800
    12000
    6
    491523
    HBE-EN-6T-2L-90-6M-I
    Reference no. 491523
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 5.791
  • 6000
    4800
    12000
    8
    491524
    HBE-EN-6T-2L-90-8M-I
    Reference no. 491524
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 7.679
  • 8000
    6400
    16000
    2
    491525
    HBE-EN-8T-2L-120-2M-I
    Reference no. 491525
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 3.127
  • 8000
    6400
    16000
    3
    491526
    HBE-EN-8T-2L-120-3M-I
    Reference no. 491526
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 4.566
  • 8000
    6400
    16000
    4
    491527
    HBE-EN-8T-2L-120-4M-I
    Reference no. 491527
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 6.005
  • 8000
    6400
    16000
    5
    491528
    HBE-EN-8T-2L-120-5M-I
    Reference no. 491528
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 7.444
  • 8000
    6400
    16000
    6
    491529
    HBE-EN-8T-2L-120-6M-I
    Reference no. 491529
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 8.883
  • 8000
    6400
    16000
    8
    491530
    HBE-EN-8T-2L-120-8M-I
    Reference no. 491530
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 11.761
  • 10000
    8000
    20000
    2
    491531
    HBE-EN-10T-2L-150-2M-I
    Reference no. 491531
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 3.525
  • 10000
    8000
    20000
    3
    491532
    HBE-EN-10T-2L-150-3M-I
    Reference no. 491532
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 5.193
  • 10000
    8000
    20000
    4
    491533
    HBE-EN-10T-2L-150-4M-I
    Reference no. 491533
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 6.861
  • 10000
    8000
    20000
    5
    491534
    HBE-EN-10T-2L-150-5M-I
    Reference no. 491534
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 8.529
  • 10000
    8000
    20000
    6
    491535
    HBE-EN-10T-2L-150-6M-I
    Reference no. 491535
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 10.197
  • 10000
    8000
    20000
    8
    491536
    HBE-EN-10T-2L-150-8M-I
    Reference no. 491536
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 13.533
  • 12000
    9600
    24000
    2
    491537
    HBE-EN-12T-2L-180-2M-I
    Reference no. 491537
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 2
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 4.771
  • 12000
    9600
    24000
    3
    491538
    HBE-EN-12T-2L-180-3M-I
    Reference no. 491538
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 3
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 6.977
  • 12000
    9600
    24000
    4
    491539
    HBE-EN-12T-2L-180-4M-I
    Reference no. 491539
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 4
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 9.183
  • 12000
    9600
    24000
    5
    491540
    HBE-EN-12T-2L-180-5M-I
    Reference no. 491540
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 5
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 11.389
  • 12000
    9600
    24000
    6
    491541
    HBE-EN-12T-2L-180-6M-I
    Reference no. 491541
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 6
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 13.595
  • 12000
    9600
    24000
    8
    491542
    HBE-EN-12T-2L-180-8M-I
    Reference no. 491542
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 8
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 18.007
  • 16000
    12800
    32000
    2
    491543
    HBE-EN-16T-2L-240-2M-I
    Reference no. 491543
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 2
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 7.299
  • 16000
    12800
    32000
    3
    491544
    HBE-EN-16T-2L-240-3M-I
    Reference no. 491544
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 3
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 10.602
  • 16000
    12800
    32000
    4
    491545
    HBE-EN-16T-2L-240-4M-I
    Reference no. 491545
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 4
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 13.905
  • 16000
    12800
    32000
    5
    491546
    HBE-EN-16T-2L-240-5M-I
    Reference no. 491546
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 5
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 17.208
  • 16000
    12800
    32000
    6
    491547
    HBE-EN-16T-2L-240-6M-I
    Reference no. 491547
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 6
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 20.511
  • 16000
    12800
    32000
    8
    491548
    HBE-EN-16T-2L-240-8M-I
    Reference no. 491548
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 8
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 27.117
  • 20000
    16000
    40000
    2
    491549
    HBE-EN-20T-2L-300-2M-I
    Reference no. 491549
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 2
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 8.45
  • 20000
    16000
    40000
    3
    491550
    HBE-EN-20T-2L-300-3M-I
    Reference no. 491550
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 3
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 12.191
  • 20000
    16000
    40000
    4
    491551
    HBE-EN-20T-2L-300-4M-I
    Reference no. 491551
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 4
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 15.932
  • 20000
    16000
    40000
    5
    491552
    HBE-EN-20T-2L-300-5M-I
    Reference no. 491552
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 5
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 19.673
  • 20000
    16000
    40000
    6
    491553
    HBE-EN-20T-2L-300-6M-I
    Reference no. 491553
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 6
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 23.414
  • 20000
    16000
    40000
    8
    491554
    HBE-EN-20T-2L-300-8M-I
    Reference no. 491554
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 8
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 30.896
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2
Reference no. 491507
  • Details
    HBE-EN-2T-2L-30-2M-I
    Reference no. 491507
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 0.763
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 3
Reference no. 491508
  • Details
    HBE-EN-2T-2L-30-3M-I
    Reference no. 491508
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 1.103
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 4
Reference no. 491509
  • Details
    HBE-EN-2T-2L-30-4M-I
    Reference no. 491509
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 1.443
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 5
Reference no. 491510
  • Details
    HBE-EN-2T-2L-30-5M-I
    Reference no. 491510
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 1.783
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 6
Reference no. 491511
  • Details
    HBE-EN-2T-2L-30-6M-I
    Reference no. 491511
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 2.12
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 8
Reference no. 491512
  • Details
    HBE-EN-2T-2L-30-8M-I
    Reference no. 491512
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour green
    stueckgewicht 2.803
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2
Reference no. 491513
  • Details
    HBE-EN-4T-2L-60-2M-I
    Reference no. 491513
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 1.434
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 3
Reference no. 491514
  • Details
    HBE-EN-4T-2L-60-3M-I
    Reference no. 491514
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 2.086
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 4
Reference no. 491515
  • Details
    HBE-EN-4T-2L-60-4M-I
    Reference no. 491515
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 2.738
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 5
Reference no. 491516
  • Details
    HBE-EN-4T-2L-60-5M-I
    Reference no. 491516
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 3.39
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 6
Reference no. 491517
  • Details
    HBE-EN-4T-2L-60-6M-I
    Reference no. 491517
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 4.042
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 8
Reference no. 491518
  • Details
    HBE-EN-4T-2L-60-8M-I
    Reference no. 491518
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour grey
    stueckgewicht 5.346
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 2
Reference no. 491519
  • Details
    HBE-EN-6T-2L-90-2M-I
    Reference no. 491519
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 2.015
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 3
Reference no. 491520
  • Details
    HBE-EN-6T-2L-90-3M-I
    Reference no. 491520
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 2.959
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 4
Reference no. 491521
  • Details
    HBE-EN-6T-2L-90-4M-I
    Reference no. 491521
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 3.903
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 5
Reference no. 491522
  • Details
    HBE-EN-6T-2L-90-5M-I
    Reference no. 491522
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 4.847
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 6
Reference no. 491523
  • Details
    HBE-EN-6T-2L-90-6M-I
    Reference no. 491523
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 5.791
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 8
Reference no. 491524
  • Details
    HBE-EN-6T-2L-90-8M-I
    Reference no. 491524
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour brown
    stueckgewicht 7.679
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 2
Reference no. 491525
  • Details
    HBE-EN-8T-2L-120-2M-I
    Reference no. 491525
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 3.127
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 3
Reference no. 491526
  • Details
    HBE-EN-8T-2L-120-3M-I
    Reference no. 491526
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 4.566
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 4
Reference no. 491527
  • Details
    HBE-EN-8T-2L-120-4M-I
    Reference no. 491527
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 6.005
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 5
Reference no. 491528
  • Details
    HBE-EN-8T-2L-120-5M-I
    Reference no. 491528
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 7.444
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 6
Reference no. 491529
  • Details
    HBE-EN-8T-2L-120-6M-I
    Reference no. 491529
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 8.883
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 8
Reference no. 491530
  • Details
    HBE-EN-8T-2L-120-8M-I
    Reference no. 491530
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour blue
    stueckgewicht 11.761
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 2
Reference no. 491531
  • Details
    HBE-EN-10T-2L-150-2M-I
    Reference no. 491531
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 3.525
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 3
Reference no. 491532
  • Details
    HBE-EN-10T-2L-150-3M-I
    Reference no. 491532
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 5.193
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 4
Reference no. 491533
  • Details
    HBE-EN-10T-2L-150-4M-I
    Reference no. 491533
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 6.861
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 5
Reference no. 491534
  • Details
    HBE-EN-10T-2L-150-5M-I
    Reference no. 491534
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 8.529
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 6
Reference no. 491535
  • Details
    HBE-EN-10T-2L-150-6M-I
    Reference no. 491535
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 10.197
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 8
Reference no. 491536
  • Details
    HBE-EN-10T-2L-150-8M-I
    Reference no. 491536
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 13.533
Working load limit 0° [kg] 12000
Working load limit laced [kg] 9600
Wrap around working load limit [kg] 24000
Effective length WLL [m] 2
Reference no. 491537
  • Details
    HBE-EN-12T-2L-180-2M-I
    Reference no. 491537
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 2
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 4.771
Working load limit 0° [kg] 12000
Working load limit laced [kg] 9600
Wrap around working load limit [kg] 24000
Effective length WLL [m] 3
Reference no. 491538
  • Details
    HBE-EN-12T-2L-180-3M-I
    Reference no. 491538
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 3
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 6.977
Working load limit 0° [kg] 12000
Working load limit laced [kg] 9600
Wrap around working load limit [kg] 24000
Effective length WLL [m] 4
Reference no. 491539
  • Details
    HBE-EN-12T-2L-180-4M-I
    Reference no. 491539
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 4
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 9.183
Working load limit 0° [kg] 12000
Working load limit laced [kg] 9600
Wrap around working load limit [kg] 24000
Effective length WLL [m] 5
Reference no. 491540
  • Details
    HBE-EN-12T-2L-180-5M-I
    Reference no. 491540
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 5
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 11.389
Working load limit 0° [kg] 12000
Working load limit laced [kg] 9600
Wrap around working load limit [kg] 24000
Effective length WLL [m] 6
Reference no. 491541
  • Details
    HBE-EN-12T-2L-180-6M-I
    Reference no. 491541
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 6
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 13.595
Working load limit 0° [kg] 12000
Working load limit laced [kg] 9600
Wrap around working load limit [kg] 24000
Effective length WLL [m] 8
Reference no. 491542
  • Details
    HBE-EN-12T-2L-180-8M-I
    Reference no. 491542
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Effective length WLL [m] 8
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour orange
    stueckgewicht 18.007
Working load limit 0° [kg] 16000
Working load limit laced [kg] 12800
Wrap around working load limit [kg] 32000
Effective length WLL [m] 2
Reference no. 491543
  • Details
    HBE-EN-16T-2L-240-2M-I
    Reference no. 491543
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 2
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 7.299
Working load limit 0° [kg] 16000
Working load limit laced [kg] 12800
Wrap around working load limit [kg] 32000
Effective length WLL [m] 3
Reference no. 491544
  • Details
    HBE-EN-16T-2L-240-3M-I
    Reference no. 491544
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 3
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 10.602
Working load limit 0° [kg] 16000
Working load limit laced [kg] 12800
Wrap around working load limit [kg] 32000
Effective length WLL [m] 4
Reference no. 491545
  • Details
    HBE-EN-16T-2L-240-4M-I
    Reference no. 491545
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 4
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 13.905
Working load limit 0° [kg] 16000
Working load limit laced [kg] 12800
Wrap around working load limit [kg] 32000
Effective length WLL [m] 5
Reference no. 491546
  • Details
    HBE-EN-16T-2L-240-5M-I
    Reference no. 491546
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 5
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 17.208
Working load limit 0° [kg] 16000
Working load limit laced [kg] 12800
Wrap around working load limit [kg] 32000
Effective length WLL [m] 6
Reference no. 491547
  • Details
    HBE-EN-16T-2L-240-6M-I
    Reference no. 491547
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 6
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 20.511
Working load limit 0° [kg] 16000
Working load limit laced [kg] 12800
Wrap around working load limit [kg] 32000
Effective length WLL [m] 8
Reference no. 491548
  • Details
    HBE-EN-16T-2L-240-8M-I
    Reference no. 491548
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Effective length WLL [m] 8
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 27.117
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 2
Reference no. 491549
  • Details
    HBE-EN-20T-2L-300-2M-I
    Reference no. 491549
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 2
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 8.45
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 3
Reference no. 491550
  • Details
    HBE-EN-20T-2L-300-3M-I
    Reference no. 491550
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 3
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 12.191
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 4
Reference no. 491551
  • Details
    HBE-EN-20T-2L-300-4M-I
    Reference no. 491551
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 4
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 15.932
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 5
Reference no. 491552
  • Details
    HBE-EN-20T-2L-300-5M-I
    Reference no. 491552
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 5
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 19.673
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 6
Reference no. 491553
  • Details
    HBE-EN-20T-2L-300-6M-I
    Reference no. 491553
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 6
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 23.414
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 8
Reference no. 491554
  • Details
    HBE-EN-20T-2L-300-8M-I
    Reference no. 491554
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 8
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    stueckgewicht 30.896
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
