Polytex® round sling suspension gear 2-leg

Polytex® round sling suspension gear 2-leg
2-leg round sling suspension gear with eye load hooks with PU-impregnated protective sleeve for suspension gear.
Technical data

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-2

Marking

  • Working load limit label
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • further useful lengths
  • End fittings such as oval ring, shackle, special hook, etc.
Product variants
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
TL [m]
Reference no.
Details
  • 1400
    1000
    1
    494410
    GR2 REH-1.4T-1M-VI
    Reference no. 494410
    Working load limit 0–45° [kg] 1400
    Working load limit 45–60° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 1
    Weight approx. [kg] 2.91
  • 1400
    1000
    2
    494411
    GR2 REH-1.4T-2M-VI
    Reference no. 494411
    Working load limit 0–45° [kg] 1400
    Working load limit 45–60° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 2
    Weight approx. [kg] 3.43
  • 1400
    1000
    3
    494412
    GR2 REH-1.4T-3M-VI
    Reference no. 494412
    Working load limit 0–45° [kg] 1400
    Working load limit 45–60° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 3
    Weight approx. [kg] 3.95
  • 1400
    1000
    4
    494413
    GR2 REH-1.4T-4M-VI
    Reference no. 494413
    Working load limit 0–45° [kg] 1400
    Working load limit 45–60° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 4
    Weight approx. [kg] 4.47
  • 2800
    2000
    1
    494414
    GR2 REH-2.8T-1M-GN
    Reference no. 494414
    Working load limit 0–45° [kg] 2800
    Working load limit 45–60° [kg] 2000
    Overall component length approx. Q 380
    Colour green
    TL [m] 1
    Weight approx. [kg] 5.16
  • 2800
    2000
    2
    494415
    GR2 REH-2.8T-2M-GN
    Reference no. 494415
    Working load limit 0–45° [kg] 2800
    Working load limit 45–60° [kg] 2000
    Overall component length approx. Q 380
    Colour green
    TL [m] 2
    Weight approx. [kg] 7.04
  • 2800
    2000
    3
    494416
    GR2 REH-2.8T-3M-GN
    Reference no. 494416
    Working load limit 0–45° [kg] 2800
    Working load limit 45–60° [kg] 2000
    Overall component length approx. Q 380
    Colour green
    TL [m] 3
    Weight approx. [kg] 8.92
  • 2800
    2000
    4
    494417
    GR2 REH-2.8T-4M-GN
    Reference no. 494417
    Working load limit 0–45° [kg] 2800
    Working load limit 45–60° [kg] 2000
    Overall component length approx. Q 380
    Colour green
    TL [m] 4
    Weight approx. [kg] 10.8
  • 4200
    3000
    1
    494418
    GR2 REH-4.2T-1M-YE
    Reference no. 494418
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 460

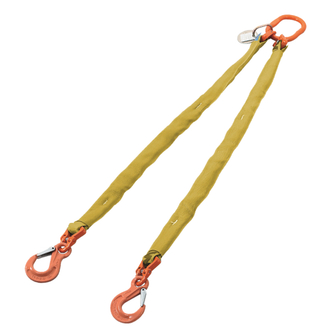

    Colour yellow
    TL [m] 1
    Weight approx. [kg] 7.06
  • 4200
    3000
    2
    494419
    GR2 REH-4.2T-2M-YE
    Reference no. 494419
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 460
    Colour yellow
    TL [m] 2
    Weight approx. [kg] 8.52
  • 4200
    3000
    3
    494420
    GR2 REH-4.2T-3M-YE
    Reference no. 494420
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 460
    Colour yellow
    TL [m] 3
    Weight approx. [kg] 9.98
  • 4200
    3000
    4
    494421
    GR2 REH-4.2T-4M-YE
    Reference no. 494421
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 460
    Colour yellow
    TL [m] 4
    Weight approx. [kg] 11.44
  • 5600
    4000
    1
    494422
    GR2 REH-5.6T-1M-GR
    Reference no. 494422
    Working load limit 0–45° [kg] 5600
    Working load limit 45–60° [kg] 4000
    Overall component length approx. Q 460
    Colour grey
    TL [m] 1
    Weight approx. [kg] 7.46
  • 5600
    4000
    2
    494423
    GR2 REH-5.6T-2M-GR
    Reference no. 494423
    Working load limit 0–45° [kg] 5600
    Working load limit 45–60° [kg] 4000
    Overall component length approx. Q 460
    Colour grey
    TL [m] 2
    Weight approx. [kg] 9.32
  • 5600
    4000
    3
    494424
    GR2 REH-5.6T-3M-GR
    Reference no. 494424
    Working load limit 0–45° [kg] 5600
    Working load limit 45–60° [kg] 4000
    Overall component length approx. Q 460
    Colour grey
    TL [m] 3
    Weight approx. [kg] 11.18
  • 5600
    4000
    4
    494425
    GR2 REH-5.6T-4M-GR
    Reference no. 494425
    Working load limit 0–45° [kg] 5600
    Working load limit 45–60° [kg] 4000
    Overall component length approx. Q 460
    Colour grey
    TL [m] 4
    Weight approx. [kg] 13.04
  • 7000
    5000
    1
    494426
    GR2 REH-7T-1M-RD
    Reference no. 494426
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Overall component length approx. Q 560
    Colour red
    TL [m] 1
    Weight approx. [kg] 13.2
  • 7000
    5000
    2
    494427
    GR2 REH-7T-2M-RD
    Reference no. 494427
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Overall component length approx. Q 560
    Colour red
    TL [m] 2
    Weight approx. [kg] 15.54
  • 7000
    5000
    3
    494428
    GR2 REH-7T-3M-RD
    Reference no. 494428
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Overall component length approx. Q 560
    Colour red
    TL [m] 3
    Weight approx. [kg] 17.88
  • 7000
    5000
    4
    494429
    GR2 REH-7T-4M-RD
    Reference no. 494429
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Overall component length approx. Q 560
    Colour red
    TL [m] 4
    Weight approx. [kg] 20.22
  • 8400
    6000
    1
    494548
    GR2 REH-8.4T-1M-BR
    Reference no. 494548
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560

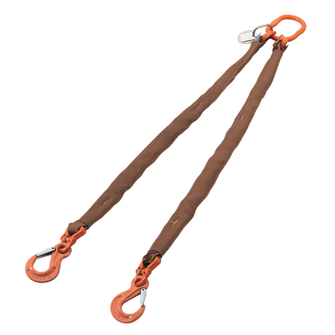

    Colour brown
    TL [m] 1
    Weight approx. [kg] 13.92
  • 8400
    6000
    2
    494549
    GR2 REH-8.4T-2M-BR
    Reference no. 494549
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour brown
    TL [m] 2
    Weight approx. [kg] 16.98
  • 8400
    6000
    3
    494550
    GR2 REH-8.4T-3M-BR
    Reference no. 494550
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour brown
    TL [m] 3
    Weight approx. [kg] 20.04
  • 8400
    6000
    4
    494551
    GR2 REH-8.4T-4M-BR
    Reference no. 494551
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour brown
    TL [m] 4
    Weight approx. [kg] 23.1
  • 11200
    8000
    1
    494430
    GR2 REH-11.2T-1M-BL
    Reference no. 494430
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Overall component length approx. Q 610

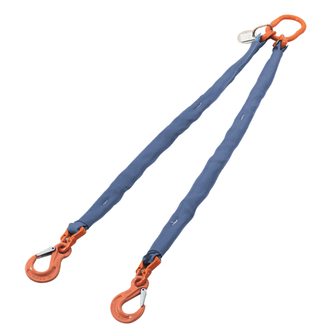

    Colour blue
    TL [m] 1
    Weight approx. [kg] 22.98
  • 11200
    8000
    2
    494431
    GR2 REH-11.2T-2M-BL
    Reference no. 494431
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Overall component length approx. Q 610
    Colour blue
    TL [m] 2
    Weight approx. [kg] 27.06
  • 11200
    8000
    3
    494432
    GR2 REH-11.2T-3M-BL
    Reference no. 494432
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Overall component length approx. Q 610
    Colour blue
    TL [m] 3
    Weight approx. [kg] 31.14
  • 11200
    8000
    4
    494433
    GR2 REH-11.2T-4M-BL
    Reference no. 494433
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Overall component length approx. Q 610
    Colour blue
    TL [m] 4
    Weight approx. [kg] 35.22
  • 14000
    10000
    1
    494434
    GR2 XXL-14T-1M-OR
    Reference no. 494434
    Working load limit 0–45° [kg] 14000
    Working load limit 45–60° [kg] 10000
    Overall component length approx. Q 610
    Colour orange
    TL [m] 1
    Weight approx. [kg] 22.56
  • 14000
    10000
    2
    494435
    GR2 XXL-14T-2M-OR
    Reference no. 494435
    Working load limit 0–45° [kg] 14000
    Working load limit 45–60° [kg] 10000
    Overall component length approx. Q 610
    Colour orange
    TL [m] 2
    Weight approx. [kg] 26.22
  • 14000
    10000
    3
    494436
    GR2 XXL-14T-3M-OR
    Reference no. 494436
    Working load limit 0–45° [kg] 14000
    Working load limit 45–60° [kg] 10000
    Overall component length approx. Q 610
    Colour orange
    TL [m] 3
    Weight approx. [kg] 29.88
  • 14000
    10000
    4
    494437
    GR2 XXL-14T-4M-OR
    Reference no. 494437
    Working load limit 0–45° [kg] 14000
    Working load limit 45–60° [kg] 10000
    Overall component length approx. Q 610
    Colour orange
    TL [m] 4
    Weight approx. [kg] 33.54
  • 21000
    15000
    1
    494532
    GR2 XXL-21T-1M-OR
    Reference no. 494532
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 900
    Colour orange
    TL [m] 1
    Weight approx. [kg] 60.14
  • 21000
    15000
    2
    494533
    GR2 XXL-21T-2M-OR
    Reference no. 494533
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 900
    Colour orange
    TL [m] 2
    Weight approx. [kg] 66.58
  • 21000
    15000
    3
    494534
    GR2 XXL-21T-3M-OR
    Reference no. 494534
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 900
    Colour orange
    TL [m] 3
    Weight approx. [kg] 73.02
  • 21000
    15000
    4
    494535
    GR2 XXL-21T-4M-OR
    Reference no. 494535
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 900
    Colour orange
    TL [m] 4
    Weight approx. [kg] 79.46
  • 26600
    19000
    1
    494552
    GR2 XXL-26.6T-1M-OR
    Reference no. 494552
    Working load limit 0–45° [kg] 26600
    Working load limit 45–60° [kg] 19000
    Overall component length approx. Q 920
    Colour orange
    TL [m] 1
    Weight approx. [kg] 68.9
  • 26600
    19000
    2
    494553
    GR2 XXL-26.6T-2M-OR
    Reference no. 494553
    Working load limit 0–45° [kg] 26600
    Working load limit 45–60° [kg] 19000
    Overall component length approx. Q 920
    Colour orange
    TL [m] 2
    Weight approx. [kg] 78.9
  • 26600
    19000
    3
    494554
    GR2 XXL-26.6T-3M-OR
    Reference no. 494554
    Working load limit 0–45° [kg] 26600
    Working load limit 45–60° [kg] 19000
    Overall component length approx. Q 920
    Colour orange
    TL [m] 3
    Weight approx. [kg] 88.9
  • 26600
    19000
    4
    494555
    GR2 XXL-26.6T-4M-OR
    Reference no. 494555
    Working load limit 0–45° [kg] 26600
    Working load limit 45–60° [kg] 19000
    Overall component length approx. Q 920
    Colour orange
    TL [m] 4
    Weight approx. [kg] 98.9
  • 28000
    20000
    1
    494536
    GR2 XXL-28T-1M-OR
    Reference no. 494536
    Working load limit 0–45° [kg] 28000
    Working load limit 45–60° [kg] 20000
    Overall component length approx. Q 1030
    Colour orange
    TL [m] 1
    Weight approx. [kg] 96.71
  • 28000
    20000
    2
    494537
    GR2 XXL-28T-2M-OR
    Reference no. 494537
    Working load limit 0–45° [kg] 28000
    Working load limit 45–60° [kg] 20000
    Overall component length approx. Q 1030
    Colour orange
    TL [m] 2
    Weight approx. [kg] 106.71
  • 28000
    20000
    3
    494538
    GR2 XXL-28T-3M-OR
    Reference no. 494538
    Working load limit 0–45° [kg] 28000
    Working load limit 45–60° [kg] 20000
    Overall component length approx. Q 1030
    Colour orange
    TL [m] 3
    Weight approx. [kg] 116.71
  • 28000
    20000
    4
    494539
    GR2 XXL-28T-4M-OR
    Reference no. 494539
    Working load limit 0–45° [kg] 28000
    Working load limit 45–60° [kg] 20000
    Overall component length approx. Q 1030
    Colour orange
    TL [m] 4
    Weight approx. [kg] 126.71
Working load limit 0–45° [kg] 1400
Working load limit 45–60° [kg] 1000
TL [m] 1
Reference no. 494410
  • Details
    GR2 REH-1.4T-1M-VI
    Reference no. 494410
    Working load limit 0–45° [kg] 1400
    Working load limit 45–60° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 1
    Weight approx. [kg] 2.91
Working load limit 0–45° [kg] 1400
Working load limit 45–60° [kg] 1000
TL [m] 2
Reference no. 494411
  • Details
    GR2 REH-1.4T-2M-VI
    Reference no. 494411
    Working load limit 0–45° [kg] 1400
    Working load limit 45–60° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 2
    Weight approx. [kg] 3.43
Working load limit 0–45° [kg] 1400
Working load limit 45–60° [kg] 1000
TL [m] 3
Reference no. 494412
  • Details
    GR2 REH-1.4T-3M-VI
    Reference no. 494412
    Working load limit 0–45° [kg] 1400
    Working load limit 45–60° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 3
    Weight approx. [kg] 3.95
Working load limit 0–45° [kg] 1400
Working load limit 45–60° [kg] 1000
TL [m] 4
Reference no. 494413
  • Details
    GR2 REH-1.4T-4M-VI
    Reference no. 494413
    Working load limit 0–45° [kg] 1400
    Working load limit 45–60° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 4
    Weight approx. [kg] 4.47
Working load limit 0–45° [kg] 2800
Working load limit 45–60° [kg] 2000
TL [m] 1
Reference no. 494414
  • Details
    GR2 REH-2.8T-1M-GN
    Reference no. 494414
    Working load limit 0–45° [kg] 2800
    Working load limit 45–60° [kg] 2000
    Overall component length approx. Q 380
    Colour green
    TL [m] 1
    Weight approx. [kg] 5.16
Working load limit 0–45° [kg] 2800
Working load limit 45–60° [kg] 2000
TL [m] 2
Reference no. 494415
  • Details
    GR2 REH-2.8T-2M-GN
    Reference no. 494415
    Working load limit 0–45° [kg] 2800
    Working load limit 45–60° [kg] 2000
    Overall component length approx. Q 380
    Colour green
    TL [m] 2
    Weight approx. [kg] 7.04
Working load limit 0–45° [kg] 2800
Working load limit 45–60° [kg] 2000
TL [m] 3
Reference no. 494416
  • Details
    GR2 REH-2.8T-3M-GN
    Reference no. 494416
    Working load limit 0–45° [kg] 2800
    Working load limit 45–60° [kg] 2000
    Overall component length approx. Q 380
    Colour green
    TL [m] 3
    Weight approx. [kg] 8.92
Working load limit 0–45° [kg] 2800
Working load limit 45–60° [kg] 2000
TL [m] 4
Reference no. 494417
  • Details
    GR2 REH-2.8T-4M-GN
    Reference no. 494417
    Working load limit 0–45° [kg] 2800
    Working load limit 45–60° [kg] 2000
    Overall component length approx. Q 380
    Colour green
    TL [m] 4
    Weight approx. [kg] 10.8
Working load limit 0–45° [kg] 4200
Working load limit 45–60° [kg] 3000
TL [m] 1
Reference no. 494418
  • Details
    GR2 REH-4.2T-1M-YE
    Reference no. 494418
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 460
    Colour yellow
    TL [m] 1
    Weight approx. [kg] 7.06
Working load limit 0–45° [kg] 4200
Working load limit 45–60° [kg] 3000
TL [m] 2
Reference no. 494419
  • Details
    GR2 REH-4.2T-2M-YE
    Reference no. 494419
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 460
    Colour yellow
    TL [m] 2
    Weight approx. [kg] 8.52
Working load limit 0–45° [kg] 4200
Working load limit 45–60° [kg] 3000
TL [m] 3
Reference no. 494420
  • Details
    GR2 REH-4.2T-3M-YE
    Reference no. 494420
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 460
    Colour yellow
    TL [m] 3
    Weight approx. [kg] 9.98
Working load limit 0–45° [kg] 4200
Working load limit 45–60° [kg] 3000
TL [m] 4
Reference no. 494421
  • Details
    GR2 REH-4.2T-4M-YE
    Reference no. 494421
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 460
    Colour yellow
    TL [m] 4
    Weight approx. [kg] 11.44
Working load limit 0–45° [kg] 5600
Working load limit 45–60° [kg] 4000
TL [m] 1
Reference no. 494422
  • Details
    GR2 REH-5.6T-1M-GR
    Reference no. 494422
    Working load limit 0–45° [kg] 5600
    Working load limit 45–60° [kg] 4000
    Overall component length approx. Q 460
    Colour grey
    TL [m] 1
    Weight approx. [kg] 7.46
Working load limit 0–45° [kg] 5600
Working load limit 45–60° [kg] 4000
TL [m] 2
Reference no. 494423
  • Details
    GR2 REH-5.6T-2M-GR
    Reference no. 494423
    Working load limit 0–45° [kg] 5600
    Working load limit 45–60° [kg] 4000
    Overall component length approx. Q 460
    Colour grey
    TL [m] 2
    Weight approx. [kg] 9.32
Working load limit 0–45° [kg] 5600
Working load limit 45–60° [kg] 4000
TL [m] 3
Reference no. 494424
  • Details
    GR2 REH-5.6T-3M-GR
    Reference no. 494424
    Working load limit 0–45° [kg] 5600
    Working load limit 45–60° [kg] 4000
    Overall component length approx. Q 460
    Colour grey
    TL [m] 3
    Weight approx. [kg] 11.18
Working load limit 0–45° [kg] 5600
Working load limit 45–60° [kg] 4000
TL [m] 4
Reference no. 494425
  • Details
    GR2 REH-5.6T-4M-GR
    Reference no. 494425
    Working load limit 0–45° [kg] 5600
    Working load limit 45–60° [kg] 4000
    Overall component length approx. Q 460
    Colour grey
    TL [m] 4
    Weight approx. [kg] 13.04
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
TL [m] 1
Reference no. 494426
  • Details
    GR2 REH-7T-1M-RD
    Reference no. 494426
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Overall component length approx. Q 560
    Colour red
    TL [m] 1
    Weight approx. [kg] 13.2
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
TL [m] 2
Reference no. 494427
  • Details
    GR2 REH-7T-2M-RD
    Reference no. 494427
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Overall component length approx. Q 560
    Colour red
    TL [m] 2
    Weight approx. [kg] 15.54
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
TL [m] 3
Reference no. 494428
  • Details
    GR2 REH-7T-3M-RD
    Reference no. 494428
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Overall component length approx. Q 560
    Colour red
    TL [m] 3
    Weight approx. [kg] 17.88
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
TL [m] 4
Reference no. 494429
  • Details
    GR2 REH-7T-4M-RD
    Reference no. 494429
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Overall component length approx. Q 560
    Colour red
    TL [m] 4
    Weight approx. [kg] 20.22
Working load limit 0–45° [kg] 8400
Working load limit 45–60° [kg] 6000
TL [m] 1
Reference no. 494548
  • Details
    GR2 REH-8.4T-1M-BR
    Reference no. 494548
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour brown
    TL [m] 1
    Weight approx. [kg] 13.92
Working load limit 0–45° [kg] 8400
Working load limit 45–60° [kg] 6000
TL [m] 2
Reference no. 494549
  • Details
    GR2 REH-8.4T-2M-BR
    Reference no. 494549
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour brown
    TL [m] 2
    Weight approx. [kg] 16.98
Working load limit 0–45° [kg] 8400
Working load limit 45–60° [kg] 6000
TL [m] 3
Reference no. 494550
  • Details
    GR2 REH-8.4T-3M-BR
    Reference no. 494550
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour brown
    TL [m] 3
    Weight approx. [kg] 20.04
Working load limit 0–45° [kg] 8400
Working load limit 45–60° [kg] 6000
TL [m] 4
Reference no. 494551
  • Details
    GR2 REH-8.4T-4M-BR
    Reference no. 494551
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour brown
    TL [m] 4
    Weight approx. [kg] 23.1
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
TL [m] 1
Reference no. 494430
  • Details
    GR2 REH-11.2T-1M-BL
    Reference no. 494430
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Overall component length approx. Q 610
    Colour blue
    TL [m] 1
    Weight approx. [kg] 22.98
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
TL [m] 2
Reference no. 494431
  • Details
    GR2 REH-11.2T-2M-BL
    Reference no. 494431
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Overall component length approx. Q 610
    Colour blue
    TL [m] 2
    Weight approx. [kg] 27.06
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
TL [m] 3
Reference no. 494432
  • Details
    GR2 REH-11.2T-3M-BL
    Reference no. 494432
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Overall component length approx. Q 610
    Colour blue
    TL [m] 3
    Weight approx. [kg] 31.14
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
TL [m] 4
Reference no. 494433
  • Details
    GR2 REH-11.2T-4M-BL
    Reference no. 494433
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Overall component length approx. Q 610
    Colour blue
    TL [m] 4
    Weight approx. [kg] 35.22
Working load limit 0–45° [kg] 14000
Working load limit 45–60° [kg] 10000
TL [m] 1
Reference no. 494434
  • Details
    GR2 XXL-14T-1M-OR
    Reference no. 494434
    Working load limit 0–45° [kg] 14000
    Working load limit 45–60° [kg] 10000
    Overall component length approx. Q 610
    Colour orange
    TL [m] 1
    Weight approx. [kg] 22.56
Working load limit 0–45° [kg] 14000
Working load limit 45–60° [kg] 10000
TL [m] 2
Reference no. 494435
  • Details
    GR2 XXL-14T-2M-OR
    Reference no. 494435
    Working load limit 0–45° [kg] 14000
    Working load limit 45–60° [kg] 10000
    Overall component length approx. Q 610
    Colour orange
    TL [m] 2
    Weight approx. [kg] 26.22
Working load limit 0–45° [kg] 14000
Working load limit 45–60° [kg] 10000
TL [m] 3
Reference no. 494436
  • Details
    GR2 XXL-14T-3M-OR
    Reference no. 494436
    Working load limit 0–45° [kg] 14000
    Working load limit 45–60° [kg] 10000
    Overall component length approx. Q 610
    Colour orange
    TL [m] 3
    Weight approx. [kg] 29.88
Working load limit 0–45° [kg] 14000
Working load limit 45–60° [kg] 10000
TL [m] 4
Reference no. 494437
  • Details
    GR2 XXL-14T-4M-OR
    Reference no. 494437
    Working load limit 0–45° [kg] 14000
    Working load limit 45–60° [kg] 10000
    Overall component length approx. Q 610
    Colour orange
    TL [m] 4
    Weight approx. [kg] 33.54
Working load limit 0–45° [kg] 21000
Working load limit 45–60° [kg] 15000
TL [m] 1
Reference no. 494532
  • Details
    GR2 XXL-21T-1M-OR
    Reference no. 494532
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 900
    Colour orange
    TL [m] 1
    Weight approx. [kg] 60.14
Working load limit 0–45° [kg] 21000
Working load limit 45–60° [kg] 15000
TL [m] 2
Reference no. 494533
  • Details
    GR2 XXL-21T-2M-OR
    Reference no. 494533
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 900
    Colour orange
    TL [m] 2
    Weight approx. [kg] 66.58
Working load limit 0–45° [kg] 21000
Working load limit 45–60° [kg] 15000
TL [m] 3
Reference no. 494534
  • Details
    GR2 XXL-21T-3M-OR
    Reference no. 494534
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 900
    Colour orange
    TL [m] 3
    Weight approx. [kg] 73.02
Working load limit 0–45° [kg] 21000
Working load limit 45–60° [kg] 15000
TL [m] 4
Reference no. 494535
  • Details
    GR2 XXL-21T-4M-OR
    Reference no. 494535
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 900
    Colour orange
    TL [m] 4
    Weight approx. [kg] 79.46
Working load limit 0–45° [kg] 26600
Working load limit 45–60° [kg] 19000
TL [m] 1
Reference no. 494552
  • Details
    GR2 XXL-26.6T-1M-OR
    Reference no. 494552
    Working load limit 0–45° [kg] 26600
    Working load limit 45–60° [kg] 19000
    Overall component length approx. Q 920
    Colour orange
    TL [m] 1
    Weight approx. [kg] 68.9
Working load limit 0–45° [kg] 26600
Working load limit 45–60° [kg] 19000
TL [m] 2
Reference no. 494553
  • Details
    GR2 XXL-26.6T-2M-OR
    Reference no. 494553
    Working load limit 0–45° [kg] 26600
    Working load limit 45–60° [kg] 19000
    Overall component length approx. Q 920
    Colour orange
    TL [m] 2
    Weight approx. [kg] 78.9
Working load limit 0–45° [kg] 26600
Working load limit 45–60° [kg] 19000
TL [m] 3
Reference no. 494554
  • Details
    GR2 XXL-26.6T-3M-OR
    Reference no. 494554
    Working load limit 0–45° [kg] 26600
    Working load limit 45–60° [kg] 19000
    Overall component length approx. Q 920
    Colour orange
    TL [m] 3
    Weight approx. [kg] 88.9
Working load limit 0–45° [kg] 26600
Working load limit 45–60° [kg] 19000
TL [m] 4
Reference no. 494555
  • Details
    GR2 XXL-26.6T-4M-OR
    Reference no. 494555
    Working load limit 0–45° [kg] 26600
    Working load limit 45–60° [kg] 19000
    Overall component length approx. Q 920
    Colour orange
    TL [m] 4
    Weight approx. [kg] 98.9
Working load limit 0–45° [kg] 28000
Working load limit 45–60° [kg] 20000
TL [m] 1
Reference no. 494536
  • Details
    GR2 XXL-28T-1M-OR
    Reference no. 494536
    Working load limit 0–45° [kg] 28000
    Working load limit 45–60° [kg] 20000
    Overall component length approx. Q 1030
    Colour orange
    TL [m] 1
    Weight approx. [kg] 96.71
Working load limit 0–45° [kg] 28000
Working load limit 45–60° [kg] 20000
TL [m] 2
Reference no. 494537
  • Details
    GR2 XXL-28T-2M-OR
    Reference no. 494537
    Working load limit 0–45° [kg] 28000
    Working load limit 45–60° [kg] 20000
    Overall component length approx. Q 1030
    Colour orange
    TL [m] 2
    Weight approx. [kg] 106.71
Working load limit 0–45° [kg] 28000
Working load limit 45–60° [kg] 20000
TL [m] 3
Reference no. 494538
  • Details
    GR2 XXL-28T-3M-OR
    Reference no. 494538
    Working load limit 0–45° [kg] 28000
    Working load limit 45–60° [kg] 20000
    Overall component length approx. Q 1030
    Colour orange
    TL [m] 3
    Weight approx. [kg] 116.71
Working load limit 0–45° [kg] 28000
Working load limit 45–60° [kg] 20000
TL [m] 4
Reference no. 494539
  • Details
    GR2 XXL-28T-4M-OR
    Reference no. 494539
    Working load limit 0–45° [kg] 28000
    Working load limit 45–60° [kg] 20000
    Overall component length approx. Q 1030
    Colour orange
    TL [m] 4
    Weight approx. [kg] 126.71
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
