Polytex® round sling suspension gear 4-leg

Polytex® round sling suspension gear 4-leg
4-leg round sling suspension gear with eye load hooks with PU-impregnated protective sleeve for suspension gear.
Technical data

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-2

Marking

  • Working load limit label
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • further useful lengths
  • End fittings such as oval ring, shackle, special hook, etc.
Product variants
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
TL [m]
Reference no.
Details
  • 2100
    1500
    1
    494438
    GR4 REH-2.1T-1M-VI
    Reference no. 494438
    Working load limit 0–45° [kg] 2100
    Working load limit 45–60° [kg] 1500
    Overall component length approx. Q 400
    Colour violet
    TL [m] 1
    Weight approx. [kg] 5.86
  • 2100
    1500
    2
    494439
    GR4 REH-2.1T-2M-VI
    Reference no. 494439
    Working load limit 0–45° [kg] 2100
    Working load limit 45–60° [kg] 1500
    Overall component length approx. Q 400
    Colour violet
    TL [m] 2
    Weight approx. [kg] 6.9
  • 2100
    1500
    3
    494440
    GR4 REH-2.1T-3M-VI
    Reference no. 494440
    Working load limit 0–45° [kg] 2100
    Working load limit 45–60° [kg] 1500
    Overall component length approx. Q 400
    Colour violet
    TL [m] 3
    Weight approx. [kg] 7.94
  • 2100
    1500
    4
    494441
    GR4 REH-2.1T-4M-VI
    Reference no. 494441
    Working load limit 0–45° [kg] 2100
    Working load limit 45–60° [kg] 1500
    Overall component length approx. Q 400
    Colour violet
    TL [m] 4
    Weight approx. [kg] 8.98
  • 4200
    3000
    1
    494442
    GR4 REH-4.2T-1M-GN
    Reference no. 494442
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 470
    Colour green
    TL [m] 1
    Weight approx. [kg] 11.04
  • 4200
    3000
    2
    494443
    GR4 REH-4.2T-2M-GN
    Reference no. 494443
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 470
    Colour green
    TL [m] 2
    Weight approx. [kg] 14.8
  • 4200
    3000
    3
    494444
    GR4 REH-4.2T-3M-GN
    Reference no. 494444
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 470
    Colour green
    TL [m] 3
    Weight approx. [kg] 18.56
  • 4200
    3000
    4
    494445
    GR4 REH-4.2T-4M-GN
    Reference no. 494445
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 470
    Colour green
    TL [m] 4
    Weight approx. [kg] 22.32
  • 6300
    4500
    1
    494446
    GR4 REH-6.3T-1M-YE
    Reference no. 494446
    Working load limit 0–45° [kg] 6300
    Working load limit 45–60° [kg] 4500
    Overall component length approx. Q 560

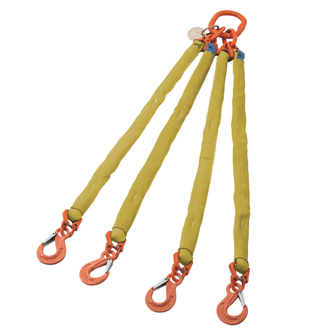

    Colour yellow
    TL [m] 1
    Weight approx. [kg] 14.76
  • 6300
    4500
    2
    494447
    GR4 REH-6.3T-2M-YE
    Reference no. 494447
    Working load limit 0–45° [kg] 6300
    Working load limit 45–60° [kg] 4500
    Overall component length approx. Q 560
    Colour yellow
    TL [m] 2
    Weight approx. [kg] 17.68
  • 6300
    4500
    3
    494448
    GR4 REH-6.3T-3M-YE
    Reference no. 494448
    Working load limit 0–45° [kg] 6300
    Working load limit 45–60° [kg] 4500
    Overall component length approx. Q 560
    Colour yellow
    TL [m] 3
    Weight approx. [kg] 20.6
  • 6300
    4500
    4
    494449
    GR4 REH-6.3T-4M-YE
    Reference no. 494449
    Working load limit 0–45° [kg] 6300
    Working load limit 45–60° [kg] 4500
    Overall component length approx. Q 560
    Colour yellow
    TL [m] 4
    Weight approx. [kg] 23.52
  • 8400
    6000
    1
    494450
    GR4 REH-8.4T-1M-GR
    Reference no. 494450
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour grey
    TL [m] 1
    Weight approx. [kg] 15.56
  • 8400
    6000
    2
    494451
    GR4 REH-8.4T-2M-GR
    Reference no. 494451
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour grey
    TL [m] 2
    Weight approx. [kg] 19.28
  • 8400
    6000
    3
    494452
    GR4 REH-8.4T-3M-GR
    Reference no. 494452
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour grey
    TL [m] 3
    Weight approx. [kg] 23
  • 8400
    6000
    4
    494453
    GR4 REH-8.4T-4M-GR
    Reference no. 494453
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour grey
    TL [m] 4
    Weight approx. [kg] 26.72
  • 10500
    7500
    1
    494454
    GR4 REH-10.5T-1M-RD
    Reference no. 494454
    Working load limit 0–45° [kg] 10500
    Working load limit 45–60° [kg] 7500
    Overall component length approx. Q 700
    Colour red
    TL [m] 1
    Weight approx. [kg] 27.7
  • 10500
    7500
    2
    494455
    GR4 REH-10.5T-2M-RD
    Reference no. 494455
    Working load limit 0–45° [kg] 10500
    Working load limit 45–60° [kg] 7500
    Overall component length approx. Q 700
    Colour red
    TL [m] 2
    Weight approx. [kg] 32.38
  • 10500
    7500
    3
    494456
    GR4 REH-10.5T-3M-RD
    Reference no. 494456
    Working load limit 0–45° [kg] 10500
    Working load limit 45–60° [kg] 7500
    Overall component length approx. Q 700
    Colour red
    TL [m] 3
    Weight approx. [kg] 37.06
  • 10500
    7500
    4
    494457
    GR4 REH-10.5T-4M-RD
    Reference no. 494457
    Working load limit 0–45° [kg] 10500
    Working load limit 45–60° [kg] 7500
    Overall component length approx. Q 700
    Colour red
    TL [m] 4
    Weight approx. [kg] 41.74
  • 12600
    9000
    1
    494556
    GR4 REH-12.6T-1M-BR
    Reference no. 494556
    Working load limit 0–45° [kg] 12600
    Working load limit 45–60° [kg] 9000
    Overall component length approx. Q 700

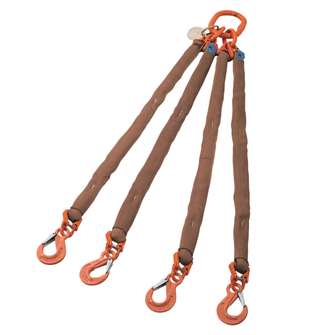

    Colour brown
    TL [m] 1
    Weight approx. [kg] 29.14
  • 12600
    9000
    2
    494557
    GR4 REH-12.6T-2M-BR
    Reference no. 494557
    Working load limit 0–45° [kg] 12600
    Working load limit 45–60° [kg] 9000
    Overall component length approx. Q 700
    Colour brown
    TL [m] 2
    Weight approx. [kg] 35.26
  • 12600
    9000
    3
    494558
    GR4 REH-12.6T-3M-BR
    Reference no. 494558
    Working load limit 0–45° [kg] 12600
    Working load limit 45–60° [kg] 9000
    Overall component length approx. Q 700
    Colour brown
    TL [m] 3
    Weight approx. [kg] 41.38
  • 12600
    9000
    4
    494559
    GR4 REH-12.6T-4M-BR
    Reference no. 494559
    Working load limit 0–45° [kg] 12600
    Working load limit 45–60° [kg] 9000
    Overall component length approx. Q 700
    Colour brown
    TL [m] 4
    Weight approx. [kg] 47.5
  • 16800
    12000
    1
    494458
    GR4 REH-16.8T-1M-BL
    Reference no. 494458
    Working load limit 0–45° [kg] 16800
    Working load limit 45–60° [kg] 12000
    Overall component length approx. Q 810
    Colour blue
    TL [m] 1
    Weight approx. [kg] 47.08
  • 16800
    12000
    2
    494459
    GR4 REH-16.8T-2M-BL
    Reference no. 494459
    Working load limit 0–45° [kg] 16800
    Working load limit 45–60° [kg] 12000
    Overall component length approx. Q 810
    Colour blue
    TL [m] 2
    Weight approx. [kg] 55.24
  • 16800
    12000
    3
    494460
    GR4 REH-16.8T-3M-BL
    Reference no. 494460
    Working load limit 0–45° [kg] 16800
    Working load limit 45–60° [kg] 12000
    Overall component length approx. Q 810
    Colour blue
    TL [m] 3
    Weight approx. [kg] 63.4
  • 16800
    12000
    4
    494461
    GR4 REH-16.8T-4M-BL
    Reference no. 494461
    Working load limit 0–45° [kg] 16800
    Working load limit 45–60° [kg] 12000
    Overall component length approx. Q 810
    Colour blue
    TL [m] 4
    Weight approx. [kg] 71.56
  • 21000
    15000
    1
    494462
    GR4 XXL-21T-1M-OR
    Reference no. 494462
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 810

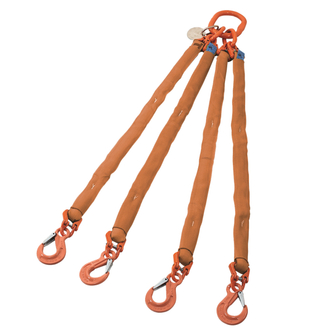

    Colour orange
    TL [m] 1
    Weight approx. [kg] 46.24
  • 21000
    15000
    2
    494463
    GR4 XXL-21T-2M-OR
    Reference no. 494463
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 810
    Colour orange
    TL [m] 2
    Weight approx. [kg] 53.56
  • 21000
    15000
    3
    494464
    GR4 XXL-21T-3M-OR
    Reference no. 494464
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 810
    Colour orange
    TL [m] 3
    Weight approx. [kg] 60.88
  • 21000
    15000
    4
    494465
    GR4 XXL-21T-4M-OR
    Reference no. 494465
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 810
    Colour orange
    TL [m] 4
    Weight approx. [kg] 68.2
  • 31500
    22500
    1
    494524
    GR4 XXL-31.5T-1M-OR
    Reference no. 494524
    Working load limit 0–45° [kg] 31500
    Working load limit 45–60° [kg] 22500
    Overall component length approx. Q 1060
    Colour orange
    TL [m] 1
    Weight approx. [kg] 117.35
  • 31500
    22500
    2
    494525
    GR4 XXL-31.5T-2M-OR
    Reference no. 494525
    Working load limit 0–45° [kg] 31500
    Working load limit 45–60° [kg] 22500
    Overall component length approx. Q 1060
    Colour orange
    TL [m] 2
    Weight approx. [kg] 130.23
  • 31500
    22500
    3
    494526
    GR4 XXL-31.5T-3M-OR
    Reference no. 494526
    Working load limit 0–45° [kg] 31500
    Working load limit 45–60° [kg] 22500
    Overall component length approx. Q 1060
    Colour orange
    TL [m] 3
    Weight approx. [kg] 143.11
  • 31500
    22500
    4
    494527
    GR4 XXL-31.5T-4M-OR
    Reference no. 494527
    Working load limit 0–45° [kg] 31500
    Working load limit 45–60° [kg] 22500
    Overall component length approx. Q 1060
    Colour orange
    TL [m] 4
    Weight approx. [kg] 155.99
  • 39900
    28500
    1
    494560
    GR4 XXL-39.9T-1M-OR
    Reference no. 494560
    Working load limit 0–45° [kg] 39900
    Working load limit 45–60° [kg] 28500
    Overall component length approx. Q 1100
    Colour orange
    TL [m] 1
    Weight approx. [kg] 137.19
  • 39900
    28500
    2
    494561
    GR4 XXL-39.9T-2M-OR
    Reference no. 494561
    Working load limit 0–45° [kg] 39900
    Working load limit 45–60° [kg] 28500
    Overall component length approx. Q 1100
    Colour orange
    TL [m] 2
    Weight approx. [kg] 157.19
  • 39900
    28500
    3
    494562
    GR4 XXL-39.9T-3M-OR
    Reference no. 494562
    Working load limit 0–45° [kg] 39900
    Working load limit 45–60° [kg] 28500
    Overall component length approx. Q 1100
    Colour orange
    TL [m] 3
    Weight approx. [kg] 177.19
  • 39900
    28500
    4
    494563
    GR4 XXL-39.9T-4M-OR
    Reference no. 494563
    Working load limit 0–45° [kg] 39900
    Working load limit 45–60° [kg] 28500
    Overall component length approx. Q 1100
    Colour orange
    TL [m] 4
    Weight approx. [kg] 197.19
  • 42000
    30000
    1
    494528
    GR4 XXL-42T-1M-OR
    Reference no. 494528
    Working load limit 0–45° [kg] 42000
    Working load limit 45–60° [kg] 30000
    Overall component length approx. Q 1250
    Colour orange
    TL [m] 1
    Weight approx. [kg] 201.47
  • 42000
    30000
    2
    494529
    GR4 XXL-42T-2M-OR
    Reference no. 494529
    Working load limit 0–45° [kg] 42000
    Working load limit 45–60° [kg] 30000
    Overall component length approx. Q 1250
    Colour orange
    TL [m] 2
    Weight approx. [kg] 221.47
  • 42000
    30000
    3
    494530
    GR4 XXL-42T-3M-OR
    Reference no. 494530
    Working load limit 0–45° [kg] 42000
    Working load limit 45–60° [kg] 30000
    Overall component length approx. Q 1250
    Colour orange
    TL [m] 3
    Weight approx. [kg] 241.47
  • 42000
    30000
    4
    494531
    GR4 XXL-42T-4M-OR
    Reference no. 494531
    Working load limit 0–45° [kg] 42000
    Working load limit 45–60° [kg] 30000
    Overall component length approx. Q 1250
    Colour orange
    TL [m] 4
    Weight approx. [kg] 261.47
Working load limit 0–45° [kg] 2100
Working load limit 45–60° [kg] 1500
TL [m] 1
Reference no. 494438
  • Details
    GR4 REH-2.1T-1M-VI
    Reference no. 494438
    Working load limit 0–45° [kg] 2100
    Working load limit 45–60° [kg] 1500
    Overall component length approx. Q 400
    Colour violet
    TL [m] 1
    Weight approx. [kg] 5.86
Working load limit 0–45° [kg] 2100
Working load limit 45–60° [kg] 1500
TL [m] 2
Reference no. 494439
  • Details
    GR4 REH-2.1T-2M-VI
    Reference no. 494439
    Working load limit 0–45° [kg] 2100
    Working load limit 45–60° [kg] 1500
    Overall component length approx. Q 400
    Colour violet
    TL [m] 2
    Weight approx. [kg] 6.9
Working load limit 0–45° [kg] 2100
Working load limit 45–60° [kg] 1500
TL [m] 3
Reference no. 494440
  • Details
    GR4 REH-2.1T-3M-VI
    Reference no. 494440
    Working load limit 0–45° [kg] 2100
    Working load limit 45–60° [kg] 1500
    Overall component length approx. Q 400
    Colour violet
    TL [m] 3
    Weight approx. [kg] 7.94
Working load limit 0–45° [kg] 2100
Working load limit 45–60° [kg] 1500
TL [m] 4
Reference no. 494441
  • Details
    GR4 REH-2.1T-4M-VI
    Reference no. 494441
    Working load limit 0–45° [kg] 2100
    Working load limit 45–60° [kg] 1500
    Overall component length approx. Q 400
    Colour violet
    TL [m] 4
    Weight approx. [kg] 8.98
Working load limit 0–45° [kg] 4200
Working load limit 45–60° [kg] 3000
TL [m] 1
Reference no. 494442
  • Details
    GR4 REH-4.2T-1M-GN
    Reference no. 494442
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 470
    Colour green
    TL [m] 1
    Weight approx. [kg] 11.04
Working load limit 0–45° [kg] 4200
Working load limit 45–60° [kg] 3000
TL [m] 2
Reference no. 494443
  • Details
    GR4 REH-4.2T-2M-GN
    Reference no. 494443
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 470
    Colour green
    TL [m] 2
    Weight approx. [kg] 14.8
Working load limit 0–45° [kg] 4200
Working load limit 45–60° [kg] 3000
TL [m] 3
Reference no. 494444
  • Details
    GR4 REH-4.2T-3M-GN
    Reference no. 494444
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 470
    Colour green
    TL [m] 3
    Weight approx. [kg] 18.56
Working load limit 0–45° [kg] 4200
Working load limit 45–60° [kg] 3000
TL [m] 4
Reference no. 494445
  • Details
    GR4 REH-4.2T-4M-GN
    Reference no. 494445
    Working load limit 0–45° [kg] 4200
    Working load limit 45–60° [kg] 3000
    Overall component length approx. Q 470
    Colour green
    TL [m] 4
    Weight approx. [kg] 22.32
Working load limit 0–45° [kg] 6300
Working load limit 45–60° [kg] 4500
TL [m] 1
Reference no. 494446
  • Details
    GR4 REH-6.3T-1M-YE
    Reference no. 494446
    Working load limit 0–45° [kg] 6300
    Working load limit 45–60° [kg] 4500
    Overall component length approx. Q 560
    Colour yellow
    TL [m] 1
    Weight approx. [kg] 14.76
Working load limit 0–45° [kg] 6300
Working load limit 45–60° [kg] 4500
TL [m] 2
Reference no. 494447
  • Details
    GR4 REH-6.3T-2M-YE
    Reference no. 494447
    Working load limit 0–45° [kg] 6300
    Working load limit 45–60° [kg] 4500
    Overall component length approx. Q 560
    Colour yellow
    TL [m] 2
    Weight approx. [kg] 17.68
Working load limit 0–45° [kg] 6300
Working load limit 45–60° [kg] 4500
TL [m] 3
Reference no. 494448
  • Details
    GR4 REH-6.3T-3M-YE
    Reference no. 494448
    Working load limit 0–45° [kg] 6300
    Working load limit 45–60° [kg] 4500
    Overall component length approx. Q 560
    Colour yellow
    TL [m] 3
    Weight approx. [kg] 20.6
Working load limit 0–45° [kg] 6300
Working load limit 45–60° [kg] 4500
TL [m] 4
Reference no. 494449
  • Details
    GR4 REH-6.3T-4M-YE
    Reference no. 494449
    Working load limit 0–45° [kg] 6300
    Working load limit 45–60° [kg] 4500
    Overall component length approx. Q 560
    Colour yellow
    TL [m] 4
    Weight approx. [kg] 23.52
Working load limit 0–45° [kg] 8400
Working load limit 45–60° [kg] 6000
TL [m] 1
Reference no. 494450
  • Details
    GR4 REH-8.4T-1M-GR
    Reference no. 494450
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour grey
    TL [m] 1
    Weight approx. [kg] 15.56
Working load limit 0–45° [kg] 8400
Working load limit 45–60° [kg] 6000
TL [m] 2
Reference no. 494451
  • Details
    GR4 REH-8.4T-2M-GR
    Reference no. 494451
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour grey
    TL [m] 2
    Weight approx. [kg] 19.28
Working load limit 0–45° [kg] 8400
Working load limit 45–60° [kg] 6000
TL [m] 3
Reference no. 494452
  • Details
    GR4 REH-8.4T-3M-GR
    Reference no. 494452
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour grey
    TL [m] 3
    Weight approx. [kg] 23
Working load limit 0–45° [kg] 8400
Working load limit 45–60° [kg] 6000
TL [m] 4
Reference no. 494453
  • Details
    GR4 REH-8.4T-4M-GR
    Reference no. 494453
    Working load limit 0–45° [kg] 8400
    Working load limit 45–60° [kg] 6000
    Overall component length approx. Q 560
    Colour grey
    TL [m] 4
    Weight approx. [kg] 26.72
Working load limit 0–45° [kg] 10500
Working load limit 45–60° [kg] 7500
TL [m] 1
Reference no. 494454
  • Details
    GR4 REH-10.5T-1M-RD
    Reference no. 494454
    Working load limit 0–45° [kg] 10500
    Working load limit 45–60° [kg] 7500
    Overall component length approx. Q 700
    Colour red
    TL [m] 1
    Weight approx. [kg] 27.7
Working load limit 0–45° [kg] 10500
Working load limit 45–60° [kg] 7500
TL [m] 2
Reference no. 494455
  • Details
    GR4 REH-10.5T-2M-RD
    Reference no. 494455
    Working load limit 0–45° [kg] 10500
    Working load limit 45–60° [kg] 7500
    Overall component length approx. Q 700
    Colour red
    TL [m] 2
    Weight approx. [kg] 32.38
Working load limit 0–45° [kg] 10500
Working load limit 45–60° [kg] 7500
TL [m] 3
Reference no. 494456
  • Details
    GR4 REH-10.5T-3M-RD
    Reference no. 494456
    Working load limit 0–45° [kg] 10500
    Working load limit 45–60° [kg] 7500
    Overall component length approx. Q 700
    Colour red
    TL [m] 3
    Weight approx. [kg] 37.06
Working load limit 0–45° [kg] 10500
Working load limit 45–60° [kg] 7500
TL [m] 4
Reference no. 494457
  • Details
    GR4 REH-10.5T-4M-RD
    Reference no. 494457
    Working load limit 0–45° [kg] 10500
    Working load limit 45–60° [kg] 7500
    Overall component length approx. Q 700
    Colour red
    TL [m] 4
    Weight approx. [kg] 41.74
Working load limit 0–45° [kg] 12600
Working load limit 45–60° [kg] 9000
TL [m] 1
Reference no. 494556
  • Details
    GR4 REH-12.6T-1M-BR
    Reference no. 494556
    Working load limit 0–45° [kg] 12600
    Working load limit 45–60° [kg] 9000
    Overall component length approx. Q 700
    Colour brown
    TL [m] 1
    Weight approx. [kg] 29.14
Working load limit 0–45° [kg] 12600
Working load limit 45–60° [kg] 9000
TL [m] 2
Reference no. 494557
  • Details
    GR4 REH-12.6T-2M-BR
    Reference no. 494557
    Working load limit 0–45° [kg] 12600
    Working load limit 45–60° [kg] 9000
    Overall component length approx. Q 700
    Colour brown
    TL [m] 2
    Weight approx. [kg] 35.26
Working load limit 0–45° [kg] 12600
Working load limit 45–60° [kg] 9000
TL [m] 3
Reference no. 494558
  • Details
    GR4 REH-12.6T-3M-BR
    Reference no. 494558
    Working load limit 0–45° [kg] 12600
    Working load limit 45–60° [kg] 9000
    Overall component length approx. Q 700
    Colour brown
    TL [m] 3
    Weight approx. [kg] 41.38
Working load limit 0–45° [kg] 12600
Working load limit 45–60° [kg] 9000
TL [m] 4
Reference no. 494559
  • Details
    GR4 REH-12.6T-4M-BR
    Reference no. 494559
    Working load limit 0–45° [kg] 12600
    Working load limit 45–60° [kg] 9000
    Overall component length approx. Q 700
    Colour brown
    TL [m] 4
    Weight approx. [kg] 47.5
Working load limit 0–45° [kg] 16800
Working load limit 45–60° [kg] 12000
TL [m] 1
Reference no. 494458
  • Details
    GR4 REH-16.8T-1M-BL
    Reference no. 494458
    Working load limit 0–45° [kg] 16800
    Working load limit 45–60° [kg] 12000
    Overall component length approx. Q 810
    Colour blue
    TL [m] 1
    Weight approx. [kg] 47.08
Working load limit 0–45° [kg] 16800
Working load limit 45–60° [kg] 12000
TL [m] 2
Reference no. 494459
  • Details
    GR4 REH-16.8T-2M-BL
    Reference no. 494459
    Working load limit 0–45° [kg] 16800
    Working load limit 45–60° [kg] 12000
    Overall component length approx. Q 810
    Colour blue
    TL [m] 2
    Weight approx. [kg] 55.24
Working load limit 0–45° [kg] 16800
Working load limit 45–60° [kg] 12000
TL [m] 3
Reference no. 494460
  • Details
    GR4 REH-16.8T-3M-BL
    Reference no. 494460
    Working load limit 0–45° [kg] 16800
    Working load limit 45–60° [kg] 12000
    Overall component length approx. Q 810
    Colour blue
    TL [m] 3
    Weight approx. [kg] 63.4
Working load limit 0–45° [kg] 16800
Working load limit 45–60° [kg] 12000
TL [m] 4
Reference no. 494461
  • Details
    GR4 REH-16.8T-4M-BL
    Reference no. 494461
    Working load limit 0–45° [kg] 16800
    Working load limit 45–60° [kg] 12000
    Overall component length approx. Q 810
    Colour blue
    TL [m] 4
    Weight approx. [kg] 71.56
Working load limit 0–45° [kg] 21000
Working load limit 45–60° [kg] 15000
TL [m] 1
Reference no. 494462
  • Details
    GR4 XXL-21T-1M-OR
    Reference no. 494462
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 810
    Colour orange
    TL [m] 1
    Weight approx. [kg] 46.24
Working load limit 0–45° [kg] 21000
Working load limit 45–60° [kg] 15000
TL [m] 2
Reference no. 494463
  • Details
    GR4 XXL-21T-2M-OR
    Reference no. 494463
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 810
    Colour orange
    TL [m] 2
    Weight approx. [kg] 53.56
Working load limit 0–45° [kg] 21000
Working load limit 45–60° [kg] 15000
TL [m] 3
Reference no. 494464
  • Details
    GR4 XXL-21T-3M-OR
    Reference no. 494464
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 810
    Colour orange
    TL [m] 3
    Weight approx. [kg] 60.88
Working load limit 0–45° [kg] 21000
Working load limit 45–60° [kg] 15000
TL [m] 4
Reference no. 494465
  • Details
    GR4 XXL-21T-4M-OR
    Reference no. 494465
    Working load limit 0–45° [kg] 21000
    Working load limit 45–60° [kg] 15000
    Overall component length approx. Q 810
    Colour orange
    TL [m] 4
    Weight approx. [kg] 68.2
Working load limit 0–45° [kg] 31500
Working load limit 45–60° [kg] 22500
TL [m] 1
Reference no. 494524
  • Details
    GR4 XXL-31.5T-1M-OR
    Reference no. 494524
    Working load limit 0–45° [kg] 31500
    Working load limit 45–60° [kg] 22500
    Overall component length approx. Q 1060
    Colour orange
    TL [m] 1
    Weight approx. [kg] 117.35
Working load limit 0–45° [kg] 31500
Working load limit 45–60° [kg] 22500
TL [m] 2
Reference no. 494525
  • Details
    GR4 XXL-31.5T-2M-OR
    Reference no. 494525
    Working load limit 0–45° [kg] 31500
    Working load limit 45–60° [kg] 22500
    Overall component length approx. Q 1060
    Colour orange
    TL [m] 2
    Weight approx. [kg] 130.23
Working load limit 0–45° [kg] 31500
Working load limit 45–60° [kg] 22500
TL [m] 3
Reference no. 494526
  • Details
    GR4 XXL-31.5T-3M-OR
    Reference no. 494526
    Working load limit 0–45° [kg] 31500
    Working load limit 45–60° [kg] 22500
    Overall component length approx. Q 1060
    Colour orange
    TL [m] 3
    Weight approx. [kg] 143.11
Working load limit 0–45° [kg] 31500
Working load limit 45–60° [kg] 22500
TL [m] 4
Reference no. 494527
  • Details
    GR4 XXL-31.5T-4M-OR
    Reference no. 494527
    Working load limit 0–45° [kg] 31500
    Working load limit 45–60° [kg] 22500
    Overall component length approx. Q 1060
    Colour orange
    TL [m] 4
    Weight approx. [kg] 155.99
Working load limit 0–45° [kg] 39900
Working load limit 45–60° [kg] 28500
TL [m] 1
Reference no. 494560
  • Details
    GR4 XXL-39.9T-1M-OR
    Reference no. 494560
    Working load limit 0–45° [kg] 39900
    Working load limit 45–60° [kg] 28500
    Overall component length approx. Q 1100
    Colour orange
    TL [m] 1
    Weight approx. [kg] 137.19
Working load limit 0–45° [kg] 39900
Working load limit 45–60° [kg] 28500
TL [m] 2
Reference no. 494561
  • Details
    GR4 XXL-39.9T-2M-OR
    Reference no. 494561
    Working load limit 0–45° [kg] 39900
    Working load limit 45–60° [kg] 28500
    Overall component length approx. Q 1100
    Colour orange
    TL [m] 2
    Weight approx. [kg] 157.19
Working load limit 0–45° [kg] 39900
Working load limit 45–60° [kg] 28500
TL [m] 3
Reference no. 494562
  • Details
    GR4 XXL-39.9T-3M-OR
    Reference no. 494562
    Working load limit 0–45° [kg] 39900
    Working load limit 45–60° [kg] 28500
    Overall component length approx. Q 1100
    Colour orange
    TL [m] 3
    Weight approx. [kg] 177.19
Working load limit 0–45° [kg] 39900
Working load limit 45–60° [kg] 28500
TL [m] 4
Reference no. 494563
  • Details
    GR4 XXL-39.9T-4M-OR
    Reference no. 494563
    Working load limit 0–45° [kg] 39900
    Working load limit 45–60° [kg] 28500
    Overall component length approx. Q 1100
    Colour orange
    TL [m] 4
    Weight approx. [kg] 197.19
Working load limit 0–45° [kg] 42000
Working load limit 45–60° [kg] 30000
TL [m] 1
Reference no. 494528
  • Details
    GR4 XXL-42T-1M-OR
    Reference no. 494528
    Working load limit 0–45° [kg] 42000
    Working load limit 45–60° [kg] 30000
    Overall component length approx. Q 1250
    Colour orange
    TL [m] 1
    Weight approx. [kg] 201.47
Working load limit 0–45° [kg] 42000
Working load limit 45–60° [kg] 30000
TL [m] 2
Reference no. 494529
  • Details
    GR4 XXL-42T-2M-OR
    Reference no. 494529
    Working load limit 0–45° [kg] 42000
    Working load limit 45–60° [kg] 30000
    Overall component length approx. Q 1250
    Colour orange
    TL [m] 2
    Weight approx. [kg] 221.47
Working load limit 0–45° [kg] 42000
Working load limit 45–60° [kg] 30000
TL [m] 3
Reference no. 494530
  • Details
    GR4 XXL-42T-3M-OR
    Reference no. 494530
    Working load limit 0–45° [kg] 42000
    Working load limit 45–60° [kg] 30000
    Overall component length approx. Q 1250
    Colour orange
    TL [m] 3
    Weight approx. [kg] 241.47
Working load limit 0–45° [kg] 42000
Working load limit 45–60° [kg] 30000
TL [m] 4
Reference no. 494531
  • Details
    GR4 XXL-42T-4M-OR
    Reference no. 494531
    Working load limit 0–45° [kg] 42000
    Working load limit 45–60° [kg] 30000
    Overall component length approx. Q 1250
    Colour orange
    TL [m] 4
    Weight approx. [kg] 261.47
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
