Polytex® round sling suspension gear single-leg

Polytex® round sling suspension gear single-leg
Single-leg round sling suspension gear with eye load hooks with PU-impregnated protective sleeve for suspension gear.
Technical data

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-2

Marking

  • Working load limit label
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • further useful lengths
  • End fittings such as oval ring, shackle, special hook, etc.
Product variants
Working load limit 0° [kg]

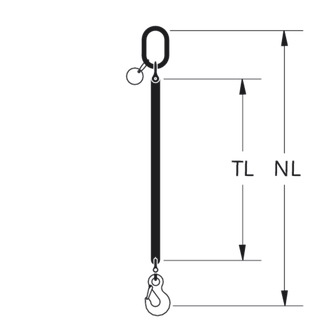

TL [m]
Reference no.
Details
  • 1000
    1
    494378
    GR1 REH-1T-1M-VI
    Reference no. 494378
    Working load limit 0° [kg] 1000
    Overall component length approx. Q 320

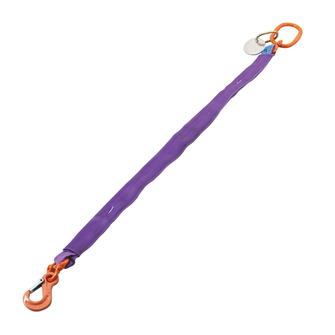

    Colour violet
    TL [m] 1
    Weight approx. [kg] 1.6
  • 1000
    2
    494379
    GR1 REH-1T-2M-VI
    Reference no. 494379
    Working load limit 0° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 2
    Weight approx. [kg] 1.86
  • 1000
    3
    494380
    GR1 REH-1T-3M-VI
    Reference no. 494380
    Working load limit 0° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 3
    Weight approx. [kg] 2.12
  • 1000
    4
    494381
    GR1 REH-1T-4M-VI
    Reference no. 494381
    Working load limit 0° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 4
    Weight approx. [kg] 2.38
  • 2000
    1
    494382
    GR1 REH-2T-1M-GN
    Reference no. 494382
    Working load limit 0° [kg] 2000
    Overall component length approx. Q 350

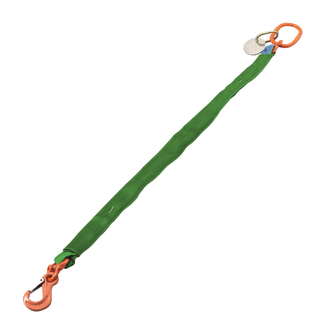

    Colour green
    TL [m] 1
    Weight approx. [kg] 2.72
  • 2000
    2
    494383
    GR1 REH-2T-2M-GN
    Reference no. 494383
    Working load limit 0° [kg] 2000
    Overall component length approx. Q 350
    Colour green
    TL [m] 2
    Weight approx. [kg] 3.66
  • 2000
    3
    494384
    GR1 REH-2T-3M-GN
    Reference no. 494384
    Working load limit 0° [kg] 2000
    Overall component length approx. Q 350
    Colour green
    TL [m] 3
    Weight approx. [kg] 4.6
  • 2000
    4
    494385
    GR1 REH-2T-4M-GN
    Reference no. 494385
    Working load limit 0° [kg] 2000
    Overall component length approx. Q 350
    Colour green
    TL [m] 4
    Weight approx. [kg] 5.54
  • 3000
    1
    494386
    GR1 REH-3T-1M-YE
    Reference no. 494386
    Working load limit 0° [kg] 3000
    Overall component length approx. Q 430

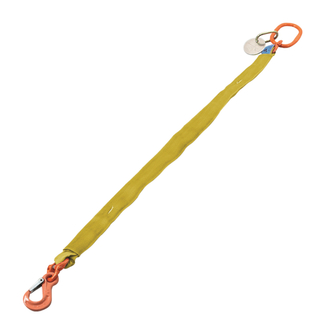

    Colour yellow
    TL [m] 1
    Weight approx. [kg] 3.77
  • 3000
    2
    494387
    GR1 REH-3T-2M-YE
    Reference no. 494387
    Working load limit 0° [kg] 3000
    Overall component length approx. Q 430
    Colour yellow
    TL [m] 2
    Weight approx. [kg] 4.5
  • 3000
    3
    494388
    GR1 REH-3T-3M-YE
    Reference no. 494388
    Working load limit 0° [kg] 3000
    Overall component length approx. Q 430
    Colour yellow
    TL [m] 3
    Weight approx. [kg] 5.23
  • 3000
    4
    494389
    GR1 REH-3T-4M-YE
    Reference no. 494389
    Working load limit 0° [kg] 3000
    Overall component length approx. Q 430
    Colour yellow
    TL [m] 4
    Weight approx. [kg] 5.96
  • 4000
    1
    494390
    GR1 REH-4T-1M-GR
    Reference no. 494390
    Working load limit 0° [kg] 4000
    Overall component length approx. Q 430
    Colour grey
    TL [m] 1
    Weight approx. [kg] 3.97
  • 4000
    2
    494391
    GR1 REH-4T-2M-GR
    Reference no. 494391
    Working load limit 0° [kg] 4000
    Overall component length approx. Q 430
    Colour grey
    TL [m] 2
    Weight approx. [kg] 4.9
  • 4000
    3
    494392
    GR1 REH-4T-3M-GR
    Reference no. 494392
    Working load limit 0° [kg] 4000
    Overall component length approx. Q 430
    Colour grey
    TL [m] 3
    Weight approx. [kg] 5.83
  • 4000
    4
    494393
    GR1 REH-4T-4M-GR
    Reference no. 494393
    Working load limit 0° [kg] 4000
    Overall component length approx. Q 430
    Colour grey
    TL [m] 4
    Weight approx. [kg] 6.76
  • 5000
    1
    494394
    GR1 REH-5T-1M-RD
    Reference no. 494394
    Working load limit 0° [kg] 5000
    Overall component length approx. Q 540
    Colour red
    TL [m] 1
    Weight approx. [kg] 6.92
  • 5000
    2
    494395
    GR1 REH-5T-2M-RD
    Reference no. 494395
    Working load limit 0° [kg] 5000
    Overall component length approx. Q 540
    Colour red
    TL [m] 2
    Weight approx. [kg] 8.09
  • 5000
    3
    494396
    GR1 REH-5T-3M-RD
    Reference no. 494396
    Working load limit 0° [kg] 5000
    Overall component length approx. Q 540
    Colour red
    TL [m] 3
    Weight approx. [kg] 9.26
  • 5000
    4
    494397
    GR1 REH-5T-4M-RD
    Reference no. 494397
    Working load limit 0° [kg] 5000
    Overall component length approx. Q 540
    Colour red
    TL [m] 4
    Weight approx. [kg] 10.43
  • 6000
    1
    494540
    GR1 REH-6T-1M-BR
    Reference no. 494540
    Working load limit 0° [kg] 6000
    Overall component length approx. Q 540
    Colour brown
    TL [m] 1
    Weight approx. [kg] 7.28
  • 6000
    2
    494541
    GR1 REH-6T-2M-BR
    Reference no. 494541
    Working load limit 0° [kg] 6000
    Overall component length approx. Q 540
    Colour brown
    TL [m] 2
    Weight approx. [kg] 8.81
  • 6000
    3
    494542
    GR1 REH-6T-3M-BR
    Reference no. 494542
    Working load limit 0° [kg] 6000
    Overall component length approx. Q 540
    Colour brown
    TL [m] 3
    Weight approx. [kg] 10.34
  • 6000
    4
    494543
    GR1 REH-6T-4M-BR
    Reference no. 494543
    Working load limit 0° [kg] 6000
    Overall component length approx. Q 540
    Colour brown
    TL [m] 4
    Weight approx. [kg] 11.87
  • 8000
    1
    494398
    GR1 REH-8T-1M-BL
    Reference no. 494398
    Working load limit 0° [kg] 8000
    Overall component length approx. Q 590
    Colour blue
    TL [m] 1
    Weight approx. [kg] 11.99
  • 8000
    2
    494399
    GR1 REH-8T-2M-BL
    Reference no. 494399
    Working load limit 0° [kg] 8000
    Overall component length approx. Q 590
    Colour blue
    TL [m] 2
    Weight approx. [kg] 14.03
  • 8000
    3
    494400
    GR1 REH-8T-3M-BL
    Reference no. 494400
    Working load limit 0° [kg] 8000
    Overall component length approx. Q 590
    Colour blue
    TL [m] 3
    Weight approx. [kg] 16.07
  • 8000
    4
    494401
    GR1 REH-8T-4M-BL
    Reference no. 494401
    Working load limit 0° [kg] 8000
    Overall component length approx. Q 590
    Colour blue
    TL [m] 4
    Weight approx. [kg] 18.11
  • 10000
    1
    494402
    GR1 XXL-10T-1M-OR
    Reference no. 494402
    Working load limit 0° [kg] 10000
    Overall component length approx. Q 590
    Colour orange
    TL [m] 1
    Weight approx. [kg] 11.78
  • 10000
    2
    494403
    GR1 XXL-10T-2M-OR
    Reference no. 494403
    Working load limit 0° [kg] 10000
    Overall component length approx. Q 590
    Colour orange
    TL [m] 2
    Weight approx. [kg] 13.61
  • 10000
    3
    494404
    GR1 XXL-10T-3M-OR
    Reference no. 494404
    Working load limit 0° [kg] 10000
    Overall component length approx. Q 590
    Colour orange
    TL [m] 3
    Weight approx. [kg] 15.44
  • 10000
    4
    494405
    GR1 XXL-10T-4M-OR
    Reference no. 494405
    Working load limit 0° [kg] 10000
    Overall component length approx. Q 590
    Colour orange
    TL [m] 4
    Weight approx. [kg] 17.27
  • 15000
    1
    494406
    GR1 XXL-15T-1M-OR
    Reference no. 494406
    Working load limit 0° [kg] 15000
    Overall component length approx. Q 820
    Colour orange
    TL [m] 1
    Weight approx. [kg] 29.75
  • 15000
    2
    494407
    GR1 XXL-15T-2M-OR
    Reference no. 494407
    Working load limit 0° [kg] 15000
    Overall component length approx. Q 820
    Colour orange
    TL [m] 2
    Weight approx. [kg] 32.97
  • 15000
    3
    494408
    GR1 XXL-15T-3M-OR
    Reference no. 494408
    Working load limit 0° [kg] 15000
    Overall component length approx. Q 820
    Colour orange
    TL [m] 3
    Weight approx. [kg] 36.19
  • 15000
    4
    494409
    GR1 XXL-15T-4M-OR
    Reference no. 494409
    Working load limit 0° [kg] 15000
    Overall component length approx. Q 820
    Colour orange
    TL [m] 4
    Weight approx. [kg] 39.41
  • 19000
    1
    494544
    GR1 XXL-19T-1M-OR
    Reference no. 494544
    Working load limit 0° [kg] 19000
    Overall component length approx. Q 840
    Colour orange
    TL [m] 1
    Weight approx. [kg] 34.13
  • 19000
    2
    494545
    GR1 XXL-19T-2M-OR
    Reference no. 494545
    Working load limit 0° [kg] 19000
    Overall component length approx. Q 840
    Colour orange
    TL [m] 2
    Weight approx. [kg] 39.13
  • 19000
    3
    494546
    GR1 XXL-19T-3M-OR
    Reference no. 494546
    Working load limit 0° [kg] 19000
    Overall component length approx. Q 840
    Colour orange
    TL [m] 3
    Weight approx. [kg] 44.13
  • 19000
    4
    494547
    GR1 XXL-19T-4M-OR
    Reference no. 494547
    Working load limit 0° [kg] 19000
    Overall component length approx. Q 840
    Colour orange
    TL [m] 4
    Weight approx. [kg] 49.13
  • 20000
    1
    494520
    GR1 XXL-20T-1M-OR
    Reference no. 494520
    Working load limit 0° [kg] 20000
    Overall component length approx. Q 1020
    Colour orange
    TL [m] 1
    Weight approx. [kg] 52.97
  • 20000
    2
    494521
    GR1 XXL-20T-2M-OR
    Reference no. 494521
    Working load limit 0° [kg] 20000
    Overall component length approx. Q 1020
    Colour orange
    TL [m] 2
    Weight approx. [kg] 57.97
  • 20000
    3
    494522
    GR1 XXL-20T-3M-OR
    Reference no. 494522
    Working load limit 0° [kg] 20000
    Overall component length approx. Q 1020
    Colour orange
    TL [m] 3
    Weight approx. [kg] 62.97
  • 20000
    4
    494523
    GR1 XXL-20T-4M-OR
    Reference no. 494523
    Working load limit 0° [kg] 20000
    Overall component length approx. Q 1020
    Colour orange
    TL [m] 4
    Weight approx. [kg] 67.97
Working load limit 0° [kg] 1000
TL [m] 1
Reference no. 494378
  • Details
    GR1 REH-1T-1M-VI
    Reference no. 494378
    Working load limit 0° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 1
    Weight approx. [kg] 1.6
Working load limit 0° [kg] 1000
TL [m] 2
Reference no. 494379
  • Details
    GR1 REH-1T-2M-VI
    Reference no. 494379
    Working load limit 0° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 2
    Weight approx. [kg] 1.86
Working load limit 0° [kg] 1000
TL [m] 3
Reference no. 494380
  • Details
    GR1 REH-1T-3M-VI
    Reference no. 494380
    Working load limit 0° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 3
    Weight approx. [kg] 2.12
Working load limit 0° [kg] 1000
TL [m] 4
Reference no. 494381
  • Details
    GR1 REH-1T-4M-VI
    Reference no. 494381
    Working load limit 0° [kg] 1000
    Overall component length approx. Q 320
    Colour violet
    TL [m] 4
    Weight approx. [kg] 2.38
Working load limit 0° [kg] 2000
TL [m] 1
Reference no. 494382
  • Details
    GR1 REH-2T-1M-GN
    Reference no. 494382
    Working load limit 0° [kg] 2000
    Overall component length approx. Q 350
    Colour green
    TL [m] 1
    Weight approx. [kg] 2.72
Working load limit 0° [kg] 2000
TL [m] 2
Reference no. 494383
  • Details
    GR1 REH-2T-2M-GN
    Reference no. 494383
    Working load limit 0° [kg] 2000
    Overall component length approx. Q 350
    Colour green
    TL [m] 2
    Weight approx. [kg] 3.66
Working load limit 0° [kg] 2000
TL [m] 3
Reference no. 494384
  • Details
    GR1 REH-2T-3M-GN
    Reference no. 494384
    Working load limit 0° [kg] 2000
    Overall component length approx. Q 350
    Colour green
    TL [m] 3
    Weight approx. [kg] 4.6
Working load limit 0° [kg] 2000
TL [m] 4
Reference no. 494385
  • Details
    GR1 REH-2T-4M-GN
    Reference no. 494385
    Working load limit 0° [kg] 2000
    Overall component length approx. Q 350
    Colour green
    TL [m] 4
    Weight approx. [kg] 5.54
Working load limit 0° [kg] 3000
TL [m] 1
Reference no. 494386
  • Details
    GR1 REH-3T-1M-YE
    Reference no. 494386
    Working load limit 0° [kg] 3000
    Overall component length approx. Q 430
    Colour yellow
    TL [m] 1
    Weight approx. [kg] 3.77
Working load limit 0° [kg] 3000
TL [m] 2
Reference no. 494387
  • Details
    GR1 REH-3T-2M-YE
    Reference no. 494387
    Working load limit 0° [kg] 3000
    Overall component length approx. Q 430
    Colour yellow
    TL [m] 2
    Weight approx. [kg] 4.5
Working load limit 0° [kg] 3000
TL [m] 3
Reference no. 494388
  • Details
    GR1 REH-3T-3M-YE
    Reference no. 494388
    Working load limit 0° [kg] 3000
    Overall component length approx. Q 430
    Colour yellow
    TL [m] 3
    Weight approx. [kg] 5.23
Working load limit 0° [kg] 3000
TL [m] 4
Reference no. 494389
  • Details
    GR1 REH-3T-4M-YE
    Reference no. 494389
    Working load limit 0° [kg] 3000
    Overall component length approx. Q 430
    Colour yellow
    TL [m] 4
    Weight approx. [kg] 5.96
Working load limit 0° [kg] 4000
TL [m] 1
Reference no. 494390
  • Details
    GR1 REH-4T-1M-GR
    Reference no. 494390
    Working load limit 0° [kg] 4000
    Overall component length approx. Q 430
    Colour grey
    TL [m] 1
    Weight approx. [kg] 3.97
Working load limit 0° [kg] 4000
TL [m] 2
Reference no. 494391
  • Details
    GR1 REH-4T-2M-GR
    Reference no. 494391
    Working load limit 0° [kg] 4000
    Overall component length approx. Q 430
    Colour grey
    TL [m] 2
    Weight approx. [kg] 4.9
Working load limit 0° [kg] 4000
TL [m] 3
Reference no. 494392
  • Details
    GR1 REH-4T-3M-GR
    Reference no. 494392
    Working load limit 0° [kg] 4000
    Overall component length approx. Q 430
    Colour grey
    TL [m] 3
    Weight approx. [kg] 5.83
Working load limit 0° [kg] 4000
TL [m] 4
Reference no. 494393
  • Details
    GR1 REH-4T-4M-GR
    Reference no. 494393
    Working load limit 0° [kg] 4000
    Overall component length approx. Q 430
    Colour grey
    TL [m] 4
    Weight approx. [kg] 6.76
Working load limit 0° [kg] 5000
TL [m] 1
Reference no. 494394
  • Details
    GR1 REH-5T-1M-RD
    Reference no. 494394
    Working load limit 0° [kg] 5000
    Overall component length approx. Q 540
    Colour red
    TL [m] 1
    Weight approx. [kg] 6.92
Working load limit 0° [kg] 5000
TL [m] 2
Reference no. 494395
  • Details
    GR1 REH-5T-2M-RD
    Reference no. 494395
    Working load limit 0° [kg] 5000
    Overall component length approx. Q 540
    Colour red
    TL [m] 2
    Weight approx. [kg] 8.09
Working load limit 0° [kg] 5000
TL [m] 3
Reference no. 494396
  • Details
    GR1 REH-5T-3M-RD
    Reference no. 494396
    Working load limit 0° [kg] 5000
    Overall component length approx. Q 540
    Colour red
    TL [m] 3
    Weight approx. [kg] 9.26
Working load limit 0° [kg] 5000
TL [m] 4
Reference no. 494397
  • Details
    GR1 REH-5T-4M-RD
    Reference no. 494397
    Working load limit 0° [kg] 5000
    Overall component length approx. Q 540
    Colour red
    TL [m] 4
    Weight approx. [kg] 10.43
Working load limit 0° [kg] 6000
TL [m] 1
Reference no. 494540
  • Details
    GR1 REH-6T-1M-BR
    Reference no. 494540
    Working load limit 0° [kg] 6000
    Overall component length approx. Q 540
    Colour brown
    TL [m] 1
    Weight approx. [kg] 7.28
Working load limit 0° [kg] 6000
TL [m] 2
Reference no. 494541
  • Details
    GR1 REH-6T-2M-BR
    Reference no. 494541
    Working load limit 0° [kg] 6000
    Overall component length approx. Q 540
    Colour brown
    TL [m] 2
    Weight approx. [kg] 8.81
Working load limit 0° [kg] 6000
TL [m] 3
Reference no. 494542
  • Details
    GR1 REH-6T-3M-BR
    Reference no. 494542
    Working load limit 0° [kg] 6000
    Overall component length approx. Q 540
    Colour brown
    TL [m] 3
    Weight approx. [kg] 10.34
Working load limit 0° [kg] 6000
TL [m] 4
Reference no. 494543
  • Details
    GR1 REH-6T-4M-BR
    Reference no. 494543
    Working load limit 0° [kg] 6000
    Overall component length approx. Q 540
    Colour brown
    TL [m] 4
    Weight approx. [kg] 11.87
Working load limit 0° [kg] 8000
TL [m] 1
Reference no. 494398
  • Details
    GR1 REH-8T-1M-BL
    Reference no. 494398
    Working load limit 0° [kg] 8000
    Overall component length approx. Q 590
    Colour blue
    TL [m] 1
    Weight approx. [kg] 11.99
Working load limit 0° [kg] 8000
TL [m] 2
Reference no. 494399
  • Details
    GR1 REH-8T-2M-BL
    Reference no. 494399
    Working load limit 0° [kg] 8000
    Overall component length approx. Q 590
    Colour blue
    TL [m] 2
    Weight approx. [kg] 14.03
Working load limit 0° [kg] 8000
TL [m] 3
Reference no. 494400
  • Details
    GR1 REH-8T-3M-BL
    Reference no. 494400
    Working load limit 0° [kg] 8000
    Overall component length approx. Q 590
    Colour blue
    TL [m] 3
    Weight approx. [kg] 16.07
Working load limit 0° [kg] 8000
TL [m] 4
Reference no. 494401
  • Details
    GR1 REH-8T-4M-BL
    Reference no. 494401
    Working load limit 0° [kg] 8000
    Overall component length approx. Q 590
    Colour blue
    TL [m] 4
    Weight approx. [kg] 18.11
Working load limit 0° [kg] 10000
TL [m] 1
Reference no. 494402
  • Details
    GR1 XXL-10T-1M-OR
    Reference no. 494402
    Working load limit 0° [kg] 10000
    Overall component length approx. Q 590
    Colour orange
    TL [m] 1
    Weight approx. [kg] 11.78
Working load limit 0° [kg] 10000
TL [m] 2
Reference no. 494403
  • Details
    GR1 XXL-10T-2M-OR
    Reference no. 494403
    Working load limit 0° [kg] 10000
    Overall component length approx. Q 590
    Colour orange
    TL [m] 2
    Weight approx. [kg] 13.61
Working load limit 0° [kg] 10000
TL [m] 3
Reference no. 494404
  • Details
    GR1 XXL-10T-3M-OR
    Reference no. 494404
    Working load limit 0° [kg] 10000
    Overall component length approx. Q 590
    Colour orange
    TL [m] 3
    Weight approx. [kg] 15.44
Working load limit 0° [kg] 10000
TL [m] 4
Reference no. 494405
  • Details
    GR1 XXL-10T-4M-OR
    Reference no. 494405
    Working load limit 0° [kg] 10000
    Overall component length approx. Q 590
    Colour orange
    TL [m] 4
    Weight approx. [kg] 17.27
Working load limit 0° [kg] 15000
TL [m] 1
Reference no. 494406
  • Details
    GR1 XXL-15T-1M-OR
    Reference no. 494406
    Working load limit 0° [kg] 15000
    Overall component length approx. Q 820
    Colour orange
    TL [m] 1
    Weight approx. [kg] 29.75
Working load limit 0° [kg] 15000
TL [m] 2
Reference no. 494407
  • Details
    GR1 XXL-15T-2M-OR
    Reference no. 494407
    Working load limit 0° [kg] 15000
    Overall component length approx. Q 820
    Colour orange
    TL [m] 2
    Weight approx. [kg] 32.97
Working load limit 0° [kg] 15000
TL [m] 3
Reference no. 494408
  • Details
    GR1 XXL-15T-3M-OR
    Reference no. 494408
    Working load limit 0° [kg] 15000
    Overall component length approx. Q 820
    Colour orange
    TL [m] 3
    Weight approx. [kg] 36.19
Working load limit 0° [kg] 15000
TL [m] 4
Reference no. 494409
  • Details
    GR1 XXL-15T-4M-OR
    Reference no. 494409
    Working load limit 0° [kg] 15000
    Overall component length approx. Q 820
    Colour orange
    TL [m] 4
    Weight approx. [kg] 39.41
Working load limit 0° [kg] 19000
TL [m] 1
Reference no. 494544
  • Details
    GR1 XXL-19T-1M-OR
    Reference no. 494544
    Working load limit 0° [kg] 19000
    Overall component length approx. Q 840
    Colour orange
    TL [m] 1
    Weight approx. [kg] 34.13
Working load limit 0° [kg] 19000
TL [m] 2
Reference no. 494545
  • Details
    GR1 XXL-19T-2M-OR
    Reference no. 494545
    Working load limit 0° [kg] 19000
    Overall component length approx. Q 840
    Colour orange
    TL [m] 2
    Weight approx. [kg] 39.13
Working load limit 0° [kg] 19000
TL [m] 3
Reference no. 494546
  • Details
    GR1 XXL-19T-3M-OR
    Reference no. 494546
    Working load limit 0° [kg] 19000
    Overall component length approx. Q 840
    Colour orange
    TL [m] 3
    Weight approx. [kg] 44.13
Working load limit 0° [kg] 19000
TL [m] 4
Reference no. 494547
  • Details
    GR1 XXL-19T-4M-OR
    Reference no. 494547
    Working load limit 0° [kg] 19000
    Overall component length approx. Q 840
    Colour orange
    TL [m] 4
    Weight approx. [kg] 49.13
Working load limit 0° [kg] 20000
TL [m] 1
Reference no. 494520
  • Details
    GR1 XXL-20T-1M-OR
    Reference no. 494520
    Working load limit 0° [kg] 20000
    Overall component length approx. Q 1020
    Colour orange
    TL [m] 1
    Weight approx. [kg] 52.97
Working load limit 0° [kg] 20000
TL [m] 2
Reference no. 494521
  • Details
    GR1 XXL-20T-2M-OR
    Reference no. 494521
    Working load limit 0° [kg] 20000
    Overall component length approx. Q 1020
    Colour orange
    TL [m] 2
    Weight approx. [kg] 57.97
Working load limit 0° [kg] 20000
TL [m] 3
Reference no. 494522
  • Details
    GR1 XXL-20T-3M-OR
    Reference no. 494522
    Working load limit 0° [kg] 20000
    Overall component length approx. Q 1020
    Colour orange
    TL [m] 3
    Weight approx. [kg] 62.97
Working load limit 0° [kg] 20000
TL [m] 4
Reference no. 494523
  • Details
    GR1 XXL-20T-4M-OR
    Reference no. 494523
    Working load limit 0° [kg] 20000
    Overall component length approx. Q 1020
    Colour orange
    TL [m] 4
    Weight approx. [kg] 67.97
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
