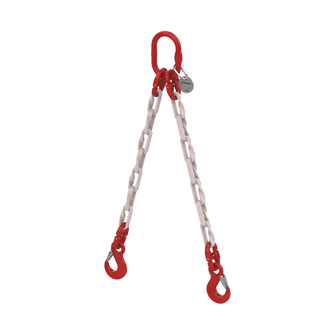

Polytex® Xtreme Chain sling, 2-leg, can be shortened

Polytex® Xtreme Chain sling, 2-leg, can be shortened
Caution! Synthetic chains are suitable for static use on the sharp edge, but cutting movements under load are prohibited!
Technical data

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +70 °C

Standard

  • Based on DIN EN 818

Marking

  • Polytex® logo

Safety factor

  • 4

Chain colour

  • grey

Chain Material

  • 100% original Dyneema®

Component surface

  • 100% original Dyneema®

Component colour

  • red

Shortening

  • can be shortened

Technical note

  • Can be shortened using a suitable shackle that can be purchased separately. Please ask us.
Product variants
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
Working load limit laced 0-45° [kg]
Working load limit laced 45-60° [kg]

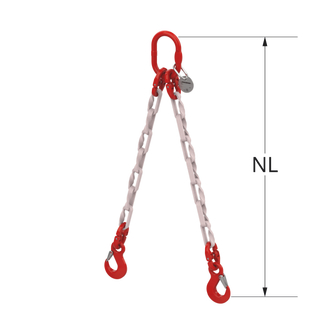

Effective length WLL [m]
Reference no.
Details
  • 3500
    2500
    2800
    2000
    1
    707715
    GT2 PTX-20X8-3.5T-100MM-RA-H-1M
    Reference no. 707715
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 7.31
  • 3500
    2500
    2800
    2000
    2
    707716
    GT2 PTX-20X8-3.5T-100MM-RA-H-2M
    Reference no. 707716
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 7.96
  • 3500
    2500
    2800
    2000
    4
    707717
    GT2 PTX-20X8-3.5T-100MM-RA-H-4M
    Reference no. 707717
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 9.26
  • 3500
    2500
    2800
    2000
    6
    707718
    GT2 PTX-20X8-3.5T-100MM-RA-H-6M
    Reference no. 707718
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 10.56
  • 3500
    2500
    2800
    2000
    8
    707719
    GT2 PTX-20X8-3.5T-100MM-RA-H-8M
    Reference no. 707719
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 11.86
  • 5250
    3750
    4200
    3000
    1
    707720
    GT2 PTX-20X12-5.25T-100MM-RA-H-1M
    Reference no. 707720
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 9.47
  • 5250
    3750
    4200
    3000
    2
    707721
    GT2 PTX-20X12-5.25T-100MM-RA-H-2M
    Reference no. 707721
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 10.42
  • 5250
    3750
    4200
    3000
    4
    707722
    GT2 PTX-20X12-5.25T-100MM-RA-H-4M
    Reference no. 707722
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 12.32
  • 5250
    3750
    4200
    3000
    6
    707723
    GT2 PTX-20X12-5.25T-100MM-RA-H-6M
    Reference no. 707723
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 14.22
  • 5250
    3750
    4200
    3000
    8
    707724
    GT2 PTX-20X12-5.25T-100MM-RA-H-8M
    Reference no. 707724
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 16.12
  • 7000
    5000
    5600
    4000
    1
    707725
    GT2 PTX-20X16-7T-100MM-RA-H-1M
    Reference no. 707725
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 10.343
  • 7000
    5000
    5600
    4000
    2
    707726
    GT2 PTX-20X16-7T-100MM-RA-H-2M
    Reference no. 707726
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 11.593
  • 7000
    5000
    5600
    4000
    4
    707727
    GT2 PTX-20X16-7T-100MM-RA-H-4M
    Reference no. 707727
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 14.093
  • 7000
    5000
    5600
    4000
    6
    707728
    GT2 PTX-20X16-7T-100MM-RA-H-6M
    Reference no. 707728
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 16.593
  • 7000
    5000
    5600
    4000
    8
    707729
    GT2 PTX-20X16-7T-100MM-RA-H-8M
    Reference no. 707729
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 19.093
  • 11200
    8000
    9000
    6400
    1
    707730
    GT2 PTX-30X16-11.2T-125MM-RA-H-1M
    Reference no. 707730
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 1
    Weight approx. [kg] 19.75
  • 11200
    8000
    9000
    6400
    2
    707731
    GT2 PTX-30X16-11.2T-125MM-RA-H-2M
    Reference no. 707731
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 2
    Weight approx. [kg] 21.63
  • 11200
    8000
    9000
    6400
    4
    707732
    GT2 PTX-30X16-11.2T-125MM-RA-H-4M
    Reference no. 707732
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 4
    Weight approx. [kg] 25.39
  • 11200
    8000
    9000
    6400
    6
    707733
    GT2 PTX-30X16-11.2T-125MM-RA-H-6M
    Reference no. 707733
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 6
    Weight approx. [kg] 29.15
  • 11200
    8000
    9000
    6400
    8
    707734
    GT2 PTX-30X16-11.2T-125MM-RA-H-8M
    Reference no. 707734
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 8
    Weight approx. [kg] 32.91
  • 14700
    10500
    11700
    8400
    2
    707735
    GT2 PTX-30X20-14.7T-150MM-RA-H-2M
    Reference no. 707735
    Working load limit 0–45° [kg] 14700
    Working load limit 45–60° [kg] 10500
    Working load limit laced 0-45° [kg] 11700
    Working load limit laced 45-60° [kg] 8400
    Chain link interior length [mm] 150
    Effective length WLL [m] 2
    Weight approx. [kg] 26.25
  • 14700
    10500
    11700
    8400
    4
    707736
    GT2 PTX-30X20-14.7T-150MM-RA-H-4M
    Reference no. 707736
    Working load limit 0–45° [kg] 14700
    Working load limit 45–60° [kg] 10500
    Working load limit laced 0-45° [kg] 11700
    Working load limit laced 45-60° [kg] 8400
    Chain link interior length [mm] 150
    Effective length WLL [m] 4
    Weight approx. [kg] 30.345
  • 14700
    10500
    11700
    8400
    6
    707737
    GT2 PTX-30X20-14.7T-150MM-RA-H-6M
    Reference no. 707737
    Working load limit 0–45° [kg] 14700
    Working load limit 45–60° [kg] 10500
    Working load limit laced 0-45° [kg] 11700
    Working load limit laced 45-60° [kg] 8400
    Chain link interior length [mm] 150
    Effective length WLL [m] 6
    Weight approx. [kg] 34.44
  • 14700
    10500
    11700
    8400
    8
    707738
    GT2 PTX-30X20-14.7T-150MM-RA-H-8M
    Reference no. 707738
    Working load limit 0–45° [kg] 14700
    Working load limit 45–60° [kg] 10500
    Working load limit laced 0-45° [kg] 11700
    Working load limit laced 45-60° [kg] 8400
    Chain link interior length [mm] 150
    Effective length WLL [m] 8
    Weight approx. [kg] 38.85
  • 17500
    12500
    14000
    10000
    2
    707739
    GT2 PTX-30X26-17.5T-150MM-RA-H-2M
    Reference no. 707739
    Working load limit 0–45° [kg] 17500
    Working load limit 45–60° [kg] 12500
    Working load limit laced 0-45° [kg] 14000
    Working load limit laced 45-60° [kg] 10000
    Chain link interior length [mm] 150
    Effective length WLL [m] 2
    Weight approx. [kg] 34.344
  • 17500
    12500
    14000
    10000
    4
    707740
    GT2 PTX-30X26-17.5T-150MM-RA-H-4M
    Reference no. 707740
    Working load limit 0–45° [kg] 17500
    Working load limit 45–60° [kg] 12500
    Working load limit laced 0-45° [kg] 14000
    Working load limit laced 45-60° [kg] 10000
    Chain link interior length [mm] 150
    Effective length WLL [m] 4
    Weight approx. [kg] 39.289
  • 17500
    12500
    14000
    10000
    6
    707741
    GT2 PTX-30X26-17.5T-150MM-RA-H-6M
    Reference no. 707741
    Working load limit 0–45° [kg] 17500
    Working load limit 45–60° [kg] 12500
    Working load limit laced 0-45° [kg] 14000
    Working load limit laced 45-60° [kg] 10000
    Chain link interior length [mm] 150
    Effective length WLL [m] 6
    Weight approx. [kg] 44.614
  • 17500
    12500
    14000
    10000
    8
    707742
    GT2 PTX-30X26-17.5T-150MM-RA-H-8M
    Reference no. 707742
    Working load limit 0–45° [kg] 17500
    Working load limit 45–60° [kg] 12500
    Working load limit laced 0-45° [kg] 14000
    Working load limit laced 45-60° [kg] 10000
    Chain link interior length [mm] 150
    Effective length WLL [m] 8
    Weight approx. [kg] 49.56
Working load limit 0–45° [kg] 3500
Working load limit 45–60° [kg] 2500
Working load limit laced 0-45° [kg] 2800
Working load limit laced 45-60° [kg] 2000
Effective length WLL [m] 1
Reference no. 707715
  • Details
    GT2 PTX-20X8-3.5T-100MM-RA-H-1M
    Reference no. 707715
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 7.31
Working load limit 0–45° [kg] 3500
Working load limit 45–60° [kg] 2500
Working load limit laced 0-45° [kg] 2800
Working load limit laced 45-60° [kg] 2000
Effective length WLL [m] 2
Reference no. 707716
  • Details
    GT2 PTX-20X8-3.5T-100MM-RA-H-2M
    Reference no. 707716
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 7.96
Working load limit 0–45° [kg] 3500
Working load limit 45–60° [kg] 2500
Working load limit laced 0-45° [kg] 2800
Working load limit laced 45-60° [kg] 2000
Effective length WLL [m] 4
Reference no. 707717
  • Details
    GT2 PTX-20X8-3.5T-100MM-RA-H-4M
    Reference no. 707717
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 9.26
Working load limit 0–45° [kg] 3500
Working load limit 45–60° [kg] 2500
Working load limit laced 0-45° [kg] 2800
Working load limit laced 45-60° [kg] 2000
Effective length WLL [m] 6
Reference no. 707718
  • Details
    GT2 PTX-20X8-3.5T-100MM-RA-H-6M
    Reference no. 707718
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 10.56
Working load limit 0–45° [kg] 3500
Working load limit 45–60° [kg] 2500
Working load limit laced 0-45° [kg] 2800
Working load limit laced 45-60° [kg] 2000
Effective length WLL [m] 8
Reference no. 707719
  • Details
    GT2 PTX-20X8-3.5T-100MM-RA-H-8M
    Reference no. 707719
    Working load limit 0–45° [kg] 3500
    Working load limit 45–60° [kg] 2500
    Working load limit laced 0-45° [kg] 2800
    Working load limit laced 45-60° [kg] 2000
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 11.86
Working load limit 0–45° [kg] 5250
Working load limit 45–60° [kg] 3750
Working load limit laced 0-45° [kg] 4200
Working load limit laced 45-60° [kg] 3000
Effective length WLL [m] 1
Reference no. 707720
  • Details
    GT2 PTX-20X12-5.25T-100MM-RA-H-1M
    Reference no. 707720
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 9.47
Working load limit 0–45° [kg] 5250
Working load limit 45–60° [kg] 3750
Working load limit laced 0-45° [kg] 4200
Working load limit laced 45-60° [kg] 3000
Effective length WLL [m] 2
Reference no. 707721
  • Details
    GT2 PTX-20X12-5.25T-100MM-RA-H-2M
    Reference no. 707721
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 10.42
Working load limit 0–45° [kg] 5250
Working load limit 45–60° [kg] 3750
Working load limit laced 0-45° [kg] 4200
Working load limit laced 45-60° [kg] 3000
Effective length WLL [m] 4
Reference no. 707722
  • Details
    GT2 PTX-20X12-5.25T-100MM-RA-H-4M
    Reference no. 707722
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 12.32
Working load limit 0–45° [kg] 5250
Working load limit 45–60° [kg] 3750
Working load limit laced 0-45° [kg] 4200
Working load limit laced 45-60° [kg] 3000
Effective length WLL [m] 6
Reference no. 707723
  • Details
    GT2 PTX-20X12-5.25T-100MM-RA-H-6M
    Reference no. 707723
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 14.22
Working load limit 0–45° [kg] 5250
Working load limit 45–60° [kg] 3750
Working load limit laced 0-45° [kg] 4200
Working load limit laced 45-60° [kg] 3000
Effective length WLL [m] 8
Reference no. 707724
  • Details
    GT2 PTX-20X12-5.25T-100MM-RA-H-8M
    Reference no. 707724
    Working load limit 0–45° [kg] 5250
    Working load limit 45–60° [kg] 3750
    Working load limit laced 0-45° [kg] 4200
    Working load limit laced 45-60° [kg] 3000
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 16.12
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
Working load limit laced 0-45° [kg] 5600
Working load limit laced 45-60° [kg] 4000
Effective length WLL [m] 1
Reference no. 707725
  • Details
    GT2 PTX-20X16-7T-100MM-RA-H-1M
    Reference no. 707725
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 10.343
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
Working load limit laced 0-45° [kg] 5600
Working load limit laced 45-60° [kg] 4000
Effective length WLL [m] 2
Reference no. 707726
  • Details
    GT2 PTX-20X16-7T-100MM-RA-H-2M
    Reference no. 707726
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 11.593
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
Working load limit laced 0-45° [kg] 5600
Working load limit laced 45-60° [kg] 4000
Effective length WLL [m] 4
Reference no. 707727
  • Details
    GT2 PTX-20X16-7T-100MM-RA-H-4M
    Reference no. 707727
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 14.093
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
Working load limit laced 0-45° [kg] 5600
Working load limit laced 45-60° [kg] 4000
Effective length WLL [m] 6
Reference no. 707728
  • Details
    GT2 PTX-20X16-7T-100MM-RA-H-6M
    Reference no. 707728
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 16.593
Working load limit 0–45° [kg] 7000
Working load limit 45–60° [kg] 5000
Working load limit laced 0-45° [kg] 5600
Working load limit laced 45-60° [kg] 4000
Effective length WLL [m] 8
Reference no. 707729
  • Details
    GT2 PTX-20X16-7T-100MM-RA-H-8M
    Reference no. 707729
    Working load limit 0–45° [kg] 7000
    Working load limit 45–60° [kg] 5000
    Working load limit laced 0-45° [kg] 5600
    Working load limit laced 45-60° [kg] 4000
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 19.093
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
Working load limit laced 0-45° [kg] 9000
Working load limit laced 45-60° [kg] 6400
Effective length WLL [m] 1
Reference no. 707730
  • Details
    GT2 PTX-30X16-11.2T-125MM-RA-H-1M
    Reference no. 707730
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 1
    Weight approx. [kg] 19.75
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
Working load limit laced 0-45° [kg] 9000
Working load limit laced 45-60° [kg] 6400
Effective length WLL [m] 2
Reference no. 707731
  • Details
    GT2 PTX-30X16-11.2T-125MM-RA-H-2M
    Reference no. 707731
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 2
    Weight approx. [kg] 21.63
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
Working load limit laced 0-45° [kg] 9000
Working load limit laced 45-60° [kg] 6400
Effective length WLL [m] 4
Reference no. 707732
  • Details
    GT2 PTX-30X16-11.2T-125MM-RA-H-4M
    Reference no. 707732
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 4
    Weight approx. [kg] 25.39
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
Working load limit laced 0-45° [kg] 9000
Working load limit laced 45-60° [kg] 6400
Effective length WLL [m] 6
Reference no. 707733
  • Details
    GT2 PTX-30X16-11.2T-125MM-RA-H-6M
    Reference no. 707733
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 6
    Weight approx. [kg] 29.15
Working load limit 0–45° [kg] 11200
Working load limit 45–60° [kg] 8000
Working load limit laced 0-45° [kg] 9000
Working load limit laced 45-60° [kg] 6400
Effective length WLL [m] 8
Reference no. 707734
  • Details
    GT2 PTX-30X16-11.2T-125MM-RA-H-8M
    Reference no. 707734
    Working load limit 0–45° [kg] 11200
    Working load limit 45–60° [kg] 8000
    Working load limit laced 0-45° [kg] 9000
    Working load limit laced 45-60° [kg] 6400
    Chain link interior length [mm] 125
    Effective length WLL [m] 8
    Weight approx. [kg] 32.91
Working load limit 0–45° [kg] 14700
Working load limit 45–60° [kg] 10500
Working load limit laced 0-45° [kg] 11700
Working load limit laced 45-60° [kg] 8400
Effective length WLL [m] 2
Reference no. 707735
  • Details
    GT2 PTX-30X20-14.7T-150MM-RA-H-2M
    Reference no. 707735
    Working load limit 0–45° [kg] 14700
    Working load limit 45–60° [kg] 10500
    Working load limit laced 0-45° [kg] 11700
    Working load limit laced 45-60° [kg] 8400
    Chain link interior length [mm] 150
    Effective length WLL [m] 2
    Weight approx. [kg] 26.25
Working load limit 0–45° [kg] 14700
Working load limit 45–60° [kg] 10500
Working load limit laced 0-45° [kg] 11700
Working load limit laced 45-60° [kg] 8400
Effective length WLL [m] 4
Reference no. 707736
  • Details
    GT2 PTX-30X20-14.7T-150MM-RA-H-4M
    Reference no. 707736
    Working load limit 0–45° [kg] 14700
    Working load limit 45–60° [kg] 10500
    Working load limit laced 0-45° [kg] 11700
    Working load limit laced 45-60° [kg] 8400
    Chain link interior length [mm] 150
    Effective length WLL [m] 4
    Weight approx. [kg] 30.345
Working load limit 0–45° [kg] 14700
Working load limit 45–60° [kg] 10500
Working load limit laced 0-45° [kg] 11700
Working load limit laced 45-60° [kg] 8400
Effective length WLL [m] 6
Reference no. 707737
  • Details
    GT2 PTX-30X20-14.7T-150MM-RA-H-6M
    Reference no. 707737
    Working load limit 0–45° [kg] 14700
    Working load limit 45–60° [kg] 10500
    Working load limit laced 0-45° [kg] 11700
    Working load limit laced 45-60° [kg] 8400
    Chain link interior length [mm] 150
    Effective length WLL [m] 6
    Weight approx. [kg] 34.44
Working load limit 0–45° [kg] 14700
Working load limit 45–60° [kg] 10500
Working load limit laced 0-45° [kg] 11700
Working load limit laced 45-60° [kg] 8400
Effective length WLL [m] 8
Reference no. 707738
  • Details
    GT2 PTX-30X20-14.7T-150MM-RA-H-8M
    Reference no. 707738
    Working load limit 0–45° [kg] 14700
    Working load limit 45–60° [kg] 10500
    Working load limit laced 0-45° [kg] 11700
    Working load limit laced 45-60° [kg] 8400
    Chain link interior length [mm] 150
    Effective length WLL [m] 8
    Weight approx. [kg] 38.85
Working load limit 0–45° [kg] 17500
Working load limit 45–60° [kg] 12500
Working load limit laced 0-45° [kg] 14000
Working load limit laced 45-60° [kg] 10000
Effective length WLL [m] 2
Reference no. 707739
  • Details
    GT2 PTX-30X26-17.5T-150MM-RA-H-2M
    Reference no. 707739
    Working load limit 0–45° [kg] 17500
    Working load limit 45–60° [kg] 12500
    Working load limit laced 0-45° [kg] 14000
    Working load limit laced 45-60° [kg] 10000
    Chain link interior length [mm] 150
    Effective length WLL [m] 2
    Weight approx. [kg] 34.344
Working load limit 0–45° [kg] 17500
Working load limit 45–60° [kg] 12500
Working load limit laced 0-45° [kg] 14000
Working load limit laced 45-60° [kg] 10000
Effective length WLL [m] 4
Reference no. 707740
  • Details
    GT2 PTX-30X26-17.5T-150MM-RA-H-4M
    Reference no. 707740
    Working load limit 0–45° [kg] 17500
    Working load limit 45–60° [kg] 12500
    Working load limit laced 0-45° [kg] 14000
    Working load limit laced 45-60° [kg] 10000
    Chain link interior length [mm] 150
    Effective length WLL [m] 4
    Weight approx. [kg] 39.289
Working load limit 0–45° [kg] 17500
Working load limit 45–60° [kg] 12500
Working load limit laced 0-45° [kg] 14000
Working load limit laced 45-60° [kg] 10000
Effective length WLL [m] 6
Reference no. 707741
  • Details
    GT2 PTX-30X26-17.5T-150MM-RA-H-6M
    Reference no. 707741
    Working load limit 0–45° [kg] 17500
    Working load limit 45–60° [kg] 12500
    Working load limit laced 0-45° [kg] 14000
    Working load limit laced 45-60° [kg] 10000
    Chain link interior length [mm] 150
    Effective length WLL [m] 6
    Weight approx. [kg] 44.614
Working load limit 0–45° [kg] 17500
Working load limit 45–60° [kg] 12500
Working load limit laced 0-45° [kg] 14000
Working load limit laced 45-60° [kg] 10000
Effective length WLL [m] 8
Reference no. 707742
  • Details
    GT2 PTX-30X26-17.5T-150MM-RA-H-8M
    Reference no. 707742
    Working load limit 0–45° [kg] 17500
    Working load limit 45–60° [kg] 12500
    Working load limit laced 0-45° [kg] 14000
    Working load limit laced 45-60° [kg] 10000
    Chain link interior length [mm] 150
    Effective length WLL [m] 8
    Weight approx. [kg] 49.56
Can be shortened using a suitable shackle that can be purchased separately. Please ask us.
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
