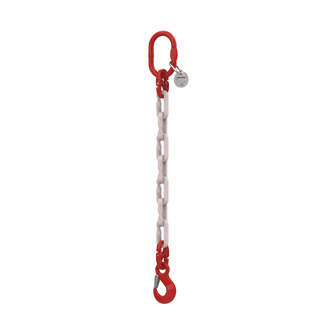

Polytex® Xtreme Chain sling, single-leg, can be shortened

Polytex® Xtreme Chain sling, single-leg, can be shortened
Caution! Synthetic chains are suitable for static use on the sharp edge, but cutting movements under load are prohibited!
Technical data

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +70 °C

Standard

  • Based on DIN EN 818

Marking

  • Polytex® logo

Safety factor

  • 4

Chain colour

  • grey

Chain Material

  • 100% original Dyneema®

Component surface

  • 100% original Dyneema®

Component colour

  • red

Shortening

  • can be shortened

Technical note

  • Can be shortened using a suitable shackle that can be purchased separately. Please ask us.
Product variants
Working load limit 0° [kg]

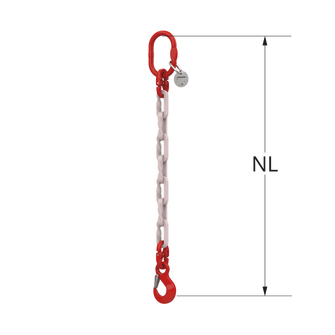

Effective length WLL [m]
Reference no.
Details
  • 2500
    1
    707687
    GT1 PTX-20X8-2.5T-100MM-RA-H-1M
    Reference no. 707687
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 3.848
  • 2500
    2
    707688
    GT1 PTX-20X8-2.5T-100MM-RA-H-2M
    Reference no. 707688
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 4.173
  • 2500
    4
    707689
    GT1 PTX-20X8-2.5T-100MM-RA-H-4M
    Reference no. 707689
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 4.823
  • 2500
    6
    707690
    GT1 PTX-20X8-2.5T-100MM-RA-H-6M
    Reference no. 707690
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 5.473
  • 2500
    8
    707691
    GT1 PTX-20X8-2.5T-100MM-RA-H-8M
    Reference no. 707691
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 6.123
  • 3750
    1
    707692
    GT1 PTX-20X12-3.75T-100MM-RA-H-1M
    Reference no. 707692
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 5.565
  • 3750
    2
    707693
    GT1 PTX-20X12-3.75T-100MM-RA-H-2M
    Reference no. 707693
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 6.04
  • 3750
    4
    707694
    GT1 PTX-20X12-3.75T-100MM-RA-H-4M
    Reference no. 707694
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 6.99
  • 3750
    6
    707695
    GT1 PTX-20X12-3.75T-100MM-RA-H-6M
    Reference no. 707695
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 7.94
  • 3750
    8
    707696
    GT1 PTX-20X12-3.75T-100MM-RA-H-8M
    Reference no. 707696
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 8.89
  • 5000
    1
    707697
    GT1 PTX-20X16-5T-100MM-RA-H-1M
    Reference no. 707697
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 5.655
  • 5000
    2
    707698
    GT1 PTX-20X16-5T-100MM-RA-H-2M
    Reference no. 707698
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 6.28
  • 5000
    4
    707699
    GT1 PTX-20X16-5T-100MM-RA-H-4M
    Reference no. 707699
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 7.53
  • 5000
    6
    707700
    GT1 PTX-20X16-5T-100MM-RA-H-6M
    Reference no. 707700
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 8.78
  • 5000
    8
    707701
    GT1 PTX-20X16-5T-100MM-RA-H-8M
    Reference no. 707701
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 10.03
  • 8000
    1
    707702
    GT1 PTX-30X16-8T-125MM-RA-H-1M
    Reference no. 707702
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 1
    Weight approx. [kg] 10.173
  • 8000
    2
    707703
    GT1 PTX-30X16-8T-125MM-RA-H-2M
    Reference no. 707703
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 2
    Weight approx. [kg] 11.113
  • 8000
    4
    707704
    GT1 PTX-30X16-8T-125MM-RA-H-4M
    Reference no. 707704
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 4
    Weight approx. [kg] 12.993
  • 8000
    6
    707705
    GT1 PTX-30X16-8T-125MM-RA-H-6M
    Reference no. 707705
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 6
    Weight approx. [kg] 14.873
  • 8000
    8
    707706
    GT1 PTX-30X16-8T-125MM-RA-H-8M
    Reference no. 707706
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 8
    Weight approx. [kg] 16.753
  • 10500
    2
    707707
    GT1 PTX-30X20-10.5T-150MM-RA-H-2M
    Reference no. 707707
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Effective length WLL [m] 2
    Weight approx. [kg] 13.985
  • 10500
    4
    707708
    GT1 PTX-30X20-10.5T-150MM-RA-H-4M
    Reference no. 707708
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Effective length WLL [m] 4
    Weight approx. [kg] 16.033
  • 10500
    6
    707709
    GT1 PTX-30X20-10.5T-150MM-RA-H-6M
    Reference no. 707709
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Effective length WLL [m] 6
    Weight approx. [kg] 18.238
  • 10500
    8
    707710
    GT1 PTX-30X20-10.5T-150MM-RA-H-8M
    Reference no. 707710
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Effective length WLL [m] 8
    Weight approx. [kg] 20.285
  • 12500
    2
    707711
    GT1 PTX-30X26-12.5T-150MM-RA-H-2M
    Reference no. 707711
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Effective length WLL [m] 2
    Weight approx. [kg] 16.912
  • 12500
    4
    707712
    GT1 PTX-30X26-12.5T-150MM-RA-H-4M
    Reference no. 707712
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Effective length WLL [m] 4
    Weight approx. [kg] 19.385
  • 12500
    6
    707713
    GT1 PTX-30X26-12.5T-150MM-RA-H-6M
    Reference no. 707713
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Effective length WLL [m] 6
    Weight approx. [kg] 22.047
  • 12500
    8
    707714
    GT1 PTX-30X26-12.5T-150MM-RA-H-8M
    Reference no. 707714
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Effective length WLL [m] 8
    Weight approx. [kg] 24.52
Working load limit 0° [kg] 2500
Effective length WLL [m] 1
Reference no. 707687
  • Details
    GT1 PTX-20X8-2.5T-100MM-RA-H-1M
    Reference no. 707687
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 3.848
Working load limit 0° [kg] 2500
Effective length WLL [m] 2
Reference no. 707688
  • Details
    GT1 PTX-20X8-2.5T-100MM-RA-H-2M
    Reference no. 707688
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 4.173
Working load limit 0° [kg] 2500
Effective length WLL [m] 4
Reference no. 707689
  • Details
    GT1 PTX-20X8-2.5T-100MM-RA-H-4M
    Reference no. 707689
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 4.823
Working load limit 0° [kg] 2500
Effective length WLL [m] 6
Reference no. 707690
  • Details
    GT1 PTX-20X8-2.5T-100MM-RA-H-6M
    Reference no. 707690
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 5.473
Working load limit 0° [kg] 2500
Effective length WLL [m] 8
Reference no. 707691
  • Details
    GT1 PTX-20X8-2.5T-100MM-RA-H-8M
    Reference no. 707691
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 6.123
Working load limit 0° [kg] 3750
Effective length WLL [m] 1
Reference no. 707692
  • Details
    GT1 PTX-20X12-3.75T-100MM-RA-H-1M
    Reference no. 707692
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 5.565
Working load limit 0° [kg] 3750
Effective length WLL [m] 2
Reference no. 707693
  • Details
    GT1 PTX-20X12-3.75T-100MM-RA-H-2M
    Reference no. 707693
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 6.04
Working load limit 0° [kg] 3750
Effective length WLL [m] 4
Reference no. 707694
  • Details
    GT1 PTX-20X12-3.75T-100MM-RA-H-4M
    Reference no. 707694
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 6.99
Working load limit 0° [kg] 3750
Effective length WLL [m] 6
Reference no. 707695
  • Details
    GT1 PTX-20X12-3.75T-100MM-RA-H-6M
    Reference no. 707695
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 7.94
Working load limit 0° [kg] 3750
Effective length WLL [m] 8
Reference no. 707696
  • Details
    GT1 PTX-20X12-3.75T-100MM-RA-H-8M
    Reference no. 707696
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 8.89
Working load limit 0° [kg] 5000
Effective length WLL [m] 1
Reference no. 707697
  • Details
    GT1 PTX-20X16-5T-100MM-RA-H-1M
    Reference no. 707697
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 1
    Weight approx. [kg] 5.655
Working load limit 0° [kg] 5000
Effective length WLL [m] 2
Reference no. 707698
  • Details
    GT1 PTX-20X16-5T-100MM-RA-H-2M
    Reference no. 707698
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 2
    Weight approx. [kg] 6.28
Working load limit 0° [kg] 5000
Effective length WLL [m] 4
Reference no. 707699
  • Details
    GT1 PTX-20X16-5T-100MM-RA-H-4M
    Reference no. 707699
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 4
    Weight approx. [kg] 7.53
Working load limit 0° [kg] 5000
Effective length WLL [m] 6
Reference no. 707700
  • Details
    GT1 PTX-20X16-5T-100MM-RA-H-6M
    Reference no. 707700
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 6
    Weight approx. [kg] 8.78
Working load limit 0° [kg] 5000
Effective length WLL [m] 8
Reference no. 707701
  • Details
    GT1 PTX-20X16-5T-100MM-RA-H-8M
    Reference no. 707701
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Effective length WLL [m] 8
    Weight approx. [kg] 10.03
Working load limit 0° [kg] 8000
Effective length WLL [m] 1
Reference no. 707702
  • Details
    GT1 PTX-30X16-8T-125MM-RA-H-1M
    Reference no. 707702
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 1
    Weight approx. [kg] 10.173
Working load limit 0° [kg] 8000
Effective length WLL [m] 2
Reference no. 707703
  • Details
    GT1 PTX-30X16-8T-125MM-RA-H-2M
    Reference no. 707703
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 2
    Weight approx. [kg] 11.113
Working load limit 0° [kg] 8000
Effective length WLL [m] 4
Reference no. 707704
  • Details
    GT1 PTX-30X16-8T-125MM-RA-H-4M
    Reference no. 707704
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 4
    Weight approx. [kg] 12.993
Working load limit 0° [kg] 8000
Effective length WLL [m] 6
Reference no. 707705
  • Details
    GT1 PTX-30X16-8T-125MM-RA-H-6M
    Reference no. 707705
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 6
    Weight approx. [kg] 14.873
Working load limit 0° [kg] 8000
Effective length WLL [m] 8
Reference no. 707706
  • Details
    GT1 PTX-30X16-8T-125MM-RA-H-8M
    Reference no. 707706
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Effective length WLL [m] 8
    Weight approx. [kg] 16.753
Working load limit 0° [kg] 10500
Effective length WLL [m] 2
Reference no. 707707
  • Details
    GT1 PTX-30X20-10.5T-150MM-RA-H-2M
    Reference no. 707707
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Effective length WLL [m] 2
    Weight approx. [kg] 13.985
Working load limit 0° [kg] 10500
Effective length WLL [m] 4
Reference no. 707708
  • Details
    GT1 PTX-30X20-10.5T-150MM-RA-H-4M
    Reference no. 707708
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Effective length WLL [m] 4
    Weight approx. [kg] 16.033
Working load limit 0° [kg] 10500
Effective length WLL [m] 6
Reference no. 707709
  • Details
    GT1 PTX-30X20-10.5T-150MM-RA-H-6M
    Reference no. 707709
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Effective length WLL [m] 6
    Weight approx. [kg] 18.238
Working load limit 0° [kg] 10500
Effective length WLL [m] 8
Reference no. 707710
  • Details
    GT1 PTX-30X20-10.5T-150MM-RA-H-8M
    Reference no. 707710
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Effective length WLL [m] 8
    Weight approx. [kg] 20.285
Working load limit 0° [kg] 12500
Effective length WLL [m] 2
Reference no. 707711
  • Details
    GT1 PTX-30X26-12.5T-150MM-RA-H-2M
    Reference no. 707711
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Effective length WLL [m] 2
    Weight approx. [kg] 16.912
Working load limit 0° [kg] 12500
Effective length WLL [m] 4
Reference no. 707712
  • Details
    GT1 PTX-30X26-12.5T-150MM-RA-H-4M
    Reference no. 707712
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Effective length WLL [m] 4
    Weight approx. [kg] 19.385
Working load limit 0° [kg] 12500
Effective length WLL [m] 6
Reference no. 707713
  • Details
    GT1 PTX-30X26-12.5T-150MM-RA-H-6M
    Reference no. 707713
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Effective length WLL [m] 6
    Weight approx. [kg] 22.047
Working load limit 0° [kg] 12500
Effective length WLL [m] 8
Reference no. 707714
  • Details
    GT1 PTX-30X26-12.5T-150MM-RA-H-8M
    Reference no. 707714
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Effective length WLL [m] 8
    Weight approx. [kg] 24.52
Can be shortened using a suitable shackle that can be purchased separately. Please ask us.
Options

Options on request

  • Can be shortened using a suitable shackle that can be purchased separately. Please ask us.
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
