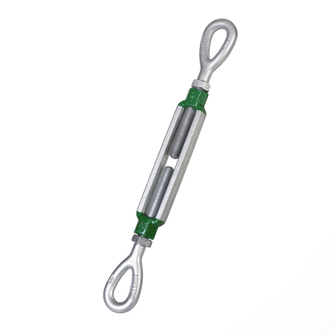

Green Pin® turnbuckles with 2 eyes

Green Pin® turnbuckles with 2 eyes
Turnbuckle with two eyes, designed for straight assembly for tensioning or lashing. The turnbuckles are also suitable for lifting tasks.
Technical data

Standard

  • similar to ASTM F1145-92 (formally U.S. Federal Specification FF-T-791b)

Safety factor

  • 5

Material

  • forged, high-tensile steel SAE 1035 or 1045

Surface

  • hot-dip galvanised
Product variants
Working load limit [kg]
Reference no.
Details
  • 540
    222789
    Turnbuckle c/w 2 eyes high str. 3/8" 540kg B
    Reference no. 222789
    Working load limit [kg] 540
    Imperial thread 3/8
    Tensioning stroke Inch 6

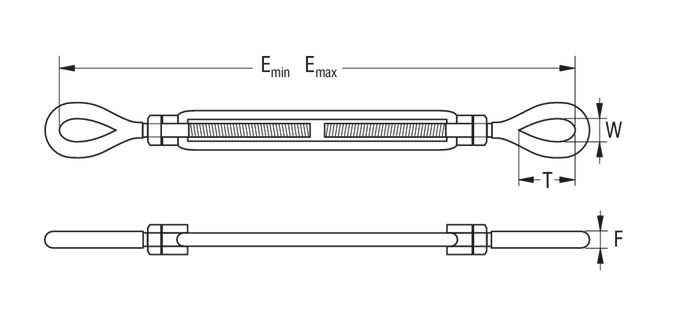

    Distance suspension point min Emin [mm] 292
    Distance suspension point max E1max [mm] 428
    Cross-section diameter of eye F [mm] 10
    Clear span eye W [mm] 13
    Clearance height eye T [mm] 29
    Weight approx. [kg] 0.48
  • 1000
    237427
    Turnbuckle c/w 2 eyes high str. 1/2x6" 1000kg B
    Reference no. 237427
    Working load limit [kg] 1000
    Imperial thread 1/2
    Tensioning stroke Inch 6
    Distance suspension point min Emin [mm] 325
    Distance suspension point max E1max [mm] 455
    Cross-section diameter of eye F [mm] 12
    Clear span eye W [mm] 18
    Clearance height eye T [mm] 36
    Weight approx. [kg] 0.81
  • 1000
    237428
    Turnbuckle c/w 2 eyes high str. 1/2x9" 1000kg B
    Reference no. 237428
    Working load limit [kg] 1000
    Imperial thread 1/2
    Tensioning stroke Inch 9
    Distance suspension point min Emin [mm] 400
    Distance suspension point max E1max [mm] 608
    Cross-section diameter of eye F [mm] 12
    Clear span eye W [mm] 18
    Clearance height eye T [mm] 36
    Weight approx. [kg] 1.07
  • 1000
    237429
    Turnbuckle c/w 2 eyes high str. 1/2x12" 1000kg B
    Reference no. 237429
    Working load limit [kg] 1000
    Imperial thread 1/2
    Tensioning stroke Inch 12
    Distance suspension point min Emin [mm] 476
    Distance suspension point max E1max [mm] 760
    Cross-section diameter of eye F [mm] 12
    Clear span eye W [mm] 18
    Clearance height eye T [mm] 36
    Weight approx. [kg] 0.91
  • 1590
    237430
    Turnbuckle c/w 2 eyes high str. 5/8x6" 1590kg B
    Reference no. 237430
    Working load limit [kg] 1590
    Imperial thread 5/8
    Tensioning stroke Inch 6
    Distance suspension point min Emin [mm] 380
    Distance suspension point max E1max [mm] 503
    Cross-section diameter of eye F [mm] 14
    Clear span eye W [mm] 21
    Clearance height eye T [mm] 45
    Weight approx. [kg] 1.33
  • 1590
    237431
    Turnbuckle c/w 2 eyes high str. 5/8x9" 1590kg B
    Reference no. 237431
    Working load limit [kg] 1590
    Imperial thread 5/8
    Tensioning stroke Inch 9
    Distance suspension point min Emin [mm] 455
    Distance suspension point max E1max [mm] 656
    Cross-section diameter of eye F [mm] 14
    Clear span eye W [mm] 21
    Clearance height eye T [mm] 45
    Weight approx. [kg] 1.31
  • 1590
    237433
    Turnbuckle c/w 2 eyes high str. 5/8x12" 1590kg B
    Reference no. 237433
    Working load limit [kg] 1590
    Imperial thread 5/8
    Tensioning stroke Inch 12
    Distance suspension point min Emin [mm] 531
    Distance suspension point max E1max [mm] 808
    Cross-section diameter of eye F [mm] 14
    Clear span eye W [mm] 21
    Clearance height eye T [mm] 45
    Weight approx. [kg] 1.71
  • 2360
    237434
    Turnbuckle c/w 2 eyes high str. 3/4x6" 2360kg B
    Reference no. 237434
    Working load limit [kg] 2360
    Imperial thread 3/4
    Tensioning stroke Inch 6
    Distance suspension point min Emin [mm] 413
    Distance suspension point max E1max [mm] 532
    Cross-section diameter of eye F [mm] 17
    Clear span eye W [mm] 26
    Clearance height eye T [mm] 54
    Weight approx. [kg] 2.03
  • 2360
    237435
    Turnbuckle c/w 2 eyes high str. 3/4x9" 2360kg B
    Reference no. 237435
    Working load limit [kg] 2360
    Imperial thread 3/4
    Tensioning stroke Inch 9
    Distance suspension point min Emin [mm] 490
    Distance suspension point max E1max [mm] 685
    Cross-section diameter of eye F [mm] 17
    Clear span eye W [mm] 26
    Clearance height eye T [mm] 54
    Weight approx. [kg] 2.47
  • 2360
    236150
    Turnbuckle c/w 2 eyes Alloy 3/4x12" 2360kg B
    Reference no. 236150
    Working load limit [kg] 2360
    Imperial thread 3/4
    Tensioning stroke Inch 12
    Distance suspension point min Emin [mm] 564
    Distance suspension point max E1max [mm] 837
    Cross-section diameter of eye F [mm] 17
    Clear span eye W [mm] 26
    Clearance height eye T [mm] 54
    Weight approx. [kg] 2.9
  • 2360
    237436
    Turnbuckle c/w 2 eyes high str. 3/4x18" 2360kg B
    Reference no. 237436
    Working load limit [kg] 2360
    Imperial thread 3/4
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 718
    Distance suspension point max E1max [mm] 1143
    Cross-section diameter of eye F [mm] 17
    Clear span eye W [mm] 26
    Clearance height eye T [mm] 54
    Weight approx. [kg] 3.94
  • 3270
    237437
    Turnbuckle c/w 2 eyes high str. 7/8x12" 3270kg B
    Reference no. 237437
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 12
    Distance suspension point min Emin [mm] 604
    Distance suspension point max E1max [mm] 870
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 4.31
  • 3270
    236151
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 540
Reference no. 222789
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 1000
Reference no. 237427
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 1000
Reference no. 237428
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 1000
Reference no. 237429
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 1590
Reference no. 237430
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 1590
Reference no. 237431
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 1590
Reference no. 237433
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 2360
Reference no. 237434
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 2360
Reference no. 237435
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 2360
Reference no. 236150
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 2360
Reference no. 237436
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 3270
Reference no. 237437
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Working load limit [kg] 3270
Reference no. 236151
  • Details
    Turnbuckle c/w 2 eyes Alloy 7/8X18" 3270kg B
    Reference no. 236151
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Distance suspension point min Emin [mm] 756
    Distance suspension point max E1max [mm] 1174
    Cross-section diameter of eye F [mm] 20
    Clear span eye W [mm] 31
    Clearance height eye T [mm] 61
    Weight approx. [kg] 5.51
Lock nuts are included with order.
Options

Options on request

  • further sizes
  • Further versions
  • with stop collar
Contact
Market Contact Location type
All other markets
PFEIFER Seil- und Hebetechnik GmbH
Anschützstraße 5
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
Parent company/Head office
Germany
PFEIFER DRAKO Drahtseilwerk GmbH
Tunnelstraße 38
DE-45479 Mülheim an der Ruhr
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
Service centre
Germany
PFEIFER Seil- und Hebetechnik GmbH
Lengeder Str. 21-23
DE-13407 Berlin
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
Service centre
Germany
PFEIFER Seil- und Hebetechnik GmbH
Anschützstraße 5
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
Service centre
Austria
PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
Sales subsidiary
France
PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
Sales subsidiary
Great Britain
PFEIFER Rope & Tackle Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail sales@ropeandtackle.com
Web www.pfeifer-rt.com
Sales subsidiary
Hungary
PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
Sales subsidiary
Luxemburg
PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
Sales subsidiary
Switzerland
pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
Agency

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
