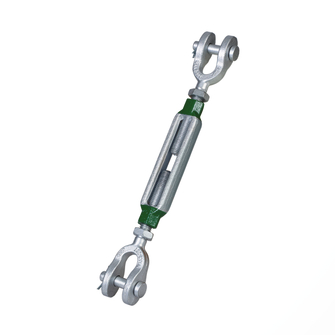

Green Pin® turnbuckles with 2 forks

Green Pin® turnbuckles with 2 forks
Turnbuckle with two forks, designed for straight assembly for tensioning or lashing. The turnbuckles are also suitable for lifting tasks.
Technical data

Standard

  • similar to ASTM F1145-92 (formally U.S. Federal Specification FF-T-791b)

Safety factor

  • 5

Material

  • forged, high-tensile steel SAE 1035 or 1045

Surface

  • hot-dip galvanised

Technical note

  • Up to ⅝-inch thread: bolt with nut; from ¾-inch thread: bolt with split pin.
Product variants
Working load limit [kg]
Reference no.
Details
  • 540
    110727
    Turnbuckle c/w 2 jaws high-tens. 3/8x6" 540kg B
    Reference no. 110727
    Working load limit [kg] 540
    Imperial thread 3/8
    Tensioning stroke Inch 6

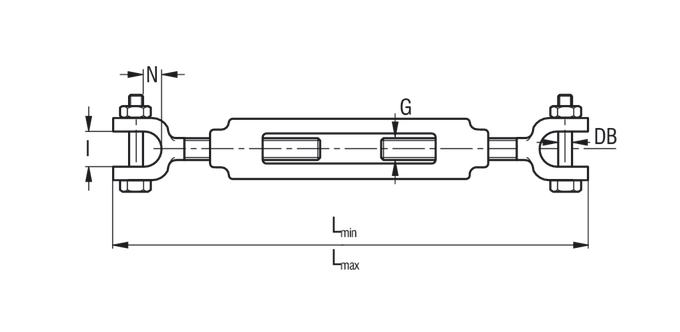

    Overall length min Lmin [mm] 304
    Overall length max Lmax [mm] 440
    Bolt diameter DB 7
    Distance suspension point to fork base N [mm] 21
    Interior fork clearance I 12
    Weight approx. [kg] 0.55
  • 1000
    110728
    Turnbuckle c/w 2 jaws high-tens. 1/2x6" 1000kg B
    Reference no. 110728
    Working load limit [kg] 1000
    Imperial thread 1/2
    Tensioning stroke Inch 6
    Overall length min Lmin [mm] 343
    Overall length max Lmax [mm] 474
    Bolt diameter DB 10
    Distance suspension point to fork base N [mm] 26
    Interior fork clearance I 16
    Weight approx. [kg] 0.96
  • 1000
    110729
    Turnbuckle c/w 2 jaws high-tens. 1/2x9" 1000kg B
    Reference no. 110729
    Working load limit [kg] 1000
    Imperial thread 1/2
    Tensioning stroke Inch 9
    Overall length min Lmin [mm] 418
    Overall length max Lmax [mm] 627
    Bolt diameter DB 10
    Distance suspension point to fork base N [mm] 26
    Interior fork clearance I 16
    Weight approx. [kg] 1.18
  • 1590
    110732
    Turnbuckle c/w 2 jaws high-tens. 5/8x6" 1590kg B
    Reference no. 110732
    Working load limit [kg] 1590
    Imperial thread 5/8
    Tensioning stroke Inch 6
    Overall length min Lmin [mm] 406
    Overall length max Lmax [mm] 529
    Bolt diameter DB 13
    Distance suspension point to fork base N [mm] 32
    Interior fork clearance I 18
    Weight approx. [kg] 1.75
  • 1590
    110734
    Turnbuckle c/w 2 jaws high-tens. 5/8x12" 1590kg B
    Reference no. 110734
    Working load limit [kg] 1590
    Imperial thread 5/8
    Tensioning stroke Inch 12
    Overall length min Lmin [mm] 557
    Overall length max Lmax [mm] 803
    Bolt diameter DB 13
    Distance suspension point to fork base N [mm] 32
    Interior fork clearance I 18
    Weight approx. [kg] 2.43
  • 2360
    110736
    Turnbuckle c/w 2 jaws high-tens. 3/4x6" 2360kg B
    Reference no. 110736
    Working load limit [kg] 2360
    Imperial thread 3/4
    Tensioning stroke Inch 6
    Overall length min Lmin [mm] 439
    Overall length max Lmax [mm] 557
    Bolt diameter DB 16
    Distance suspension point to fork base N [mm] 38
    Interior fork clearance I 24
    Weight approx. [kg] 2.7
  • 2360
    110737
    Turnbuckle c/w 2 jaws high-tens. 3/4x9" 2360kg B
    Reference no. 110737
    Working load limit [kg] 2360
    Imperial thread 3/4
    Tensioning stroke Inch 9
    Overall length min Lmin [mm] 514
    Overall length max Lmax [mm] 710
    Bolt diameter DB 16
    Distance suspension point to fork base N [mm] 38
    Interior fork clearance I 24
    Weight approx. [kg] 3.23
  • 2360
    110738
    Turnbuckle c/w 2 jaws Alloy 3/4x12" 2360kg B
    Reference no. 110738
    Working load limit [kg] 2360
    Imperial thread 3/4
    Tensioning stroke Inch 12
    Overall length min Lmin [mm] 590
    Overall length max Lmax [mm] 862
    Bolt diameter DB 16
    Distance suspension point to fork base N [mm] 38
    Interior fork clearance I 24
    Weight approx. [kg] 3.57
  • 2360
    110740
    Turnbuckle c/w 2 jaws high-tens. 3/4x18 2360kg B
    Reference no. 110740
    Working load limit [kg] 2360
    Imperial thread 3/4
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 740
    Overall length max Lmax [mm] 1166
    Bolt diameter DB 16
    Distance suspension point to fork base N [mm] 38
    Interior fork clearance I 24
    Weight approx. [kg] 4.55
  • 3270
    110742
    Turnbuckle c/w 2 jaws high-tens. 7/8x12" 3270kg B
    Reference no. 110742
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 12
    Overall length min Lmin [mm] 638
    Overall length max Lmax [mm] 903
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 5.22
  • 3270
    110745
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 540
Reference no. 110727
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 1000
Reference no. 110728
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 1000
Reference no. 110729
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 1590
Reference no. 110732
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 1590
Reference no. 110734
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 2360
Reference no. 110736
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 2360
Reference no. 110737
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 2360
Reference no. 110738
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 2360
Reference no. 110740
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 3270
Reference no. 110742
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Working load limit [kg] 3270
Reference no. 110745
  • Details
    Turnbuckle c/w 2 jaws high-tens. 7/8x18" 3270kg B
    Reference no. 110745
    Working load limit [kg] 3270
    Imperial thread 7/8
    Tensioning stroke Inch 18
    Overall length min Lmin [mm] 790
    Overall length max Lmax [mm] 1209
    Bolt diameter DB 19
    Distance suspension point to fork base N [mm] 42
    Interior fork clearance I 27
    Weight approx. [kg] 6.56
Lock nuts are included with order.
Options

Options on request

  • further sizes
  • Further versions
  • with stop collar
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Anschützstraße 5
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER DRAKO Drahtseilwerk GmbH
Tunnelstraße 38
DE-45479 Mülheim an der Ruhr
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Lengeder Str. 21-23
DE-13407 Berlin
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Anschützstraße 5
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Great Britain
 PFEIFER Rope & Tackle Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail sales@ropeandtackle.com
Web www.pfeifer-rt.com
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency
Order in the webshop

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
