Cable-laid wire rope sling/grommet with fibre core

Cable-laid wire rope sling/grommet with fibre core

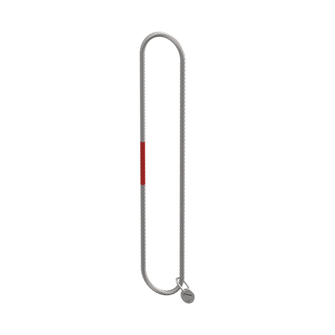

Endless cable-laid wire rope sling with fibre core for high flexibility.
Technical data

Quality

  • 1960 N/mm²

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 13414-3

Marking

  • WLL identification tag

Safety factor

  • 5

Surface

  • galvanized
Options

Options on request

  • Spliced eyes, integrated eyes, thimbles, as required with hooks or rings
Product variants
Working load limit 0° [kg]
Reference no.
Details
  • 2250
    504288
    ASE-12-2.25T-EN-0.5M
    Reference no. 504288
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12

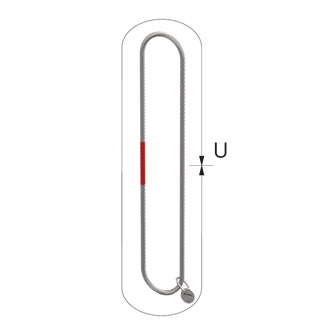

    Circumference U [m] 1
    Weight approx. [kg] 0.48
  • 2250
    504289
    ASE-12-2.25T-EN-1M
    Reference no. 504289
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 2
    Weight approx. [kg] 0.96
  • 2250
    504290
    ASE-12-2.25T-EN-2M
    Reference no. 504290
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 4
    Weight approx. [kg] 1.92
  • 2250
    504291
    ASE-12-2.25T-EN-3M
    Reference no. 504291
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 6
    Weight approx. [kg] 2.88
  • 2250
    504292
    ASE-12-2.25T-EN-4M
    Reference no. 504292
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 8
    Weight approx. [kg] 3.84
  • 2250
    504293
    ASE-12-2.25T-EN-5M
    Reference no. 504293
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 10
    Weight approx. [kg] 4.8
  • 2250
    504294
    ASE-12-2.25T-EN-6M
    Reference no. 504294
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 12
    Weight approx. [kg] 5.76
  • 3300
    504295
    ASE-15-3.3T-EN-0.5M
    Reference no. 504295
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 1
    Weight approx. [kg] 0.61
  • 3300
    504296
    ASE-15-3.3T-EN-1M
    Reference no. 504296
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 2
    Weight approx. [kg] 1.22
  • 3300
    504297
    ASE-15-3.3T-EN-2M
    Reference no. 504297
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 4
    Weight approx. [kg] 2.44
  • 3300
    504298
    ASE-15-3.3T-EN-3M
    Reference no. 504298
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 6
    Weight approx. [kg] 3.66
  • 3300
    504299
    ASE-15-3.3T-EN-4M
    Reference no. 504299
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 8
    Weight approx. [kg] 4.88
  • 3300
    504300
    ASE-15-3.3T-EN-5M
    Reference no. 504300
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 10
    Weight approx. [kg] 6.1
  • 3300
    504301
    ASE-15-3.3T-EN-6M
    Reference no. 504301
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 12
    Weight approx. [kg] 7.32
  • 6450
    504302
    ASE-21-6.45T-EN-0.5M
    Reference no. 504302
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 1
    Weight approx. [kg] 1.28
  • 6450
    504303
    ASE-21-6.45T-EN-1M
    Reference no. 504303
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 2
    Weight approx. [kg] 2.56
  • 6450
    504304
    ASE-21-6.45T-EN-2M
    Reference no. 504304
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 4
    Weight approx. [kg] 5.12
  • 6450
    504305
    ASE-21-6.45T-EN-3M
    Reference no. 504305
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 6
    Weight approx. [kg] 7.68
  • 6450
    504306
    ASE-21-6.45T-EN-4M
    Reference no. 504306
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 8
    Weight approx. [kg] 10.24
  • 6450
    504307
    ASE-21-6.45T-EN-5M
    Reference no. 504307
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 10
    Weight approx. [kg] 12.8
  • 6450
    504308
    ASE-21-6.45T-EN-6M
    Reference no. 504308
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 12
    Weight approx. [kg] 15.36
  • 7700
    504309
    ASE-24-7.7T-EN-0.5M
    Reference no. 504309
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 1
    Weight approx. [kg] 1.58
  • 7700
    504310
    ASE-24-7.7T-EN-1M
    Reference no. 504310
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 2
    Weight approx. [kg] 3.16
  • 7700
    504311
    ASE-24-7.7T-EN-2M
    Reference no. 504311
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 4
    Weight approx. [kg] 6.32
  • 7700
    504312
    ASE-24-7.7T-EN-3M
    Reference no. 504312
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 6
    Weight approx. [kg] 9.48
  • 7700
    504313
    ASE-24-7.7T-EN-4M
    Reference no. 504313
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 8
    Weight approx. [kg] 12.64
  • 7700
    504314
    ASE-24-7.7T-EN-5M
    Reference no. 504314
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 10
    Weight approx. [kg] 15.8
  • 7700
    504315
    ASE-24-7.7T-EN-6M
    Reference no. 504315
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 12
    Weight approx. [kg] 18.96
  • 10700
    504316
    ASE-27-10.7T-EN-0.5M
    Reference no. 504316
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 1
    Weight approx. [kg] 1.95
  • 10700
    504317
    ASE-27-10.7T-EN-1M
    Reference no. 504317
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 2
    Weight approx. [kg] 3.9
  • 10700
    504318
    ASE-27-10.7T-EN-2M
    Reference no. 504318
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 4
    Weight approx. [kg] 7.8
  • 10700
    504319
    ASE-27-10.7T-EN-3M
    Reference no. 504319
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 6
    Weight approx. [kg] 11.7
  • 10700
    504320
    ASE-27-10.7T-EN-4M
    Reference no. 504320
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 8
    Weight approx. [kg] 15.6
  • 10700
    504321
    ASE-27-10.7T-EN-5M
    Reference no. 504321
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 10
    Weight approx. [kg] 19.5
  • 10700
    504322
    ASE-27-10.7T-EN-6M
    Reference no. 504322
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 12
    Weight approx. [kg] 23.4
  • 13250
    504323
    ASE-30-13.25T-EN-1M
    Reference no. 504323
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 2
    Weight approx. [kg] 5.4
  • 13250
    504324
    ASE-30-13.25T-EN-2M
    Reference no. 504324
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 4
    Weight approx. [kg] 10.8
  • 13250
    504325
    ASE-30-13.25T-EN-3M
    Reference no. 504325
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 6
    Weight approx. [kg] 16.2
  • 13250
    504326
    ASE-30-13.25T-EN-4M
    Reference no. 504326
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 8
    Weight approx. [kg] 21
  • 13250
    504327
    ASE-30-13.25T-EN-5M
    Reference no. 504327
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 10
    Weight approx. [kg] 27
  • 13250
    504328
    ASE-30-13.25T-EN-6M
    Reference no. 504328
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 12
    Weight approx. [kg] 32.4
  • 16000
    504329
    ASE-33-16T-EN-1M
    Reference no. 504329
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 2
    Weight approx. [kg] 6.16
  • 16000
    504330
    ASE-33-16T-EN-2M
    Reference no. 504330
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 4
    Weight approx. [kg] 12.32
  • 16000
    504331
    ASE-33-16T-EN-3M
    Reference no. 504331
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 6
    Weight approx. [kg] 18.48
  • 16000
    504332
    ASE-33-16T-EN-4M
    Reference no. 504332
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 8
    Weight approx. [kg] 24.64
  • 16000
    504333
    ASE-33-16T-EN-5M
    Reference no. 504333
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 10
    Weight approx. [kg] 30.8
  • 16000
    504334
    ASE-33-16T-EN-6M
    Reference no. 504334
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 12
    Weight approx. [kg] 36.96
  • 20500
    504335
    ASE-36-20.5T-EN-1M
    Reference no. 504335
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 2
    Weight approx. [kg] 7.5
  • 20500
    504336
    ASE-36-20.5T-EN-2M
    Reference no. 504336
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 4
    Weight approx. [kg] 15
  • 20500
    504337
    ASE-36-20.5T-EN-3M
    Reference no. 504337
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 6
    Weight approx. [kg] 24.63
  • 20500
    504338
    ASE-36-20.5T-EN-4M
    Reference no. 504338
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 8
    Weight approx. [kg] 30
  • 20500
    504339
    ASE-36-20.5T-EN-5M
    Reference no. 504339
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 10
    Weight approx. [kg] 37.5
  • 20500
    504340
    ASE-36-20.5T-EN-6M
    Reference no. 504340
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 12
    Weight approx. [kg] 45
  • 19500
    504341
    ASE-39-19.5T-EN-1M
    Reference no. 504341
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 2
    Weight approx. [kg] 8.86
  • 19500
    504342
    ASE-39-19.5T-EN-2M
    Reference no. 504342
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 4
    Weight approx. [kg] 17.72
  • 19500
    504343
    ASE-39-19.5T-EN-3M
    Reference no. 504343
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 6
    Weight approx. [kg] 26.58
  • 19500
    504344
    ASE-39-19.5T-EN-4M
    Reference no. 504344
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 8
    Weight approx. [kg] 35.44
  • 19500
    504345
    ASE-39-19.5T-EN-5M
    Reference no. 504345
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 10
    Weight approx. [kg] 44.3
  • 19500
    504346
    ASE-39-19.5T-EN-6M
    Reference no. 504346
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 12
    Weight approx. [kg] 53.16
  • 27900
    504347
    ASE-42-27.9T-EN-1M
    Reference no. 504347
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 2
    Weight approx. [kg] 10.5
  • 27900
    491296
    ASE-42-27.9T-EN-1.5M
    Reference no. 491296
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 3
    Weight approx. [kg] 15.75
  • 27900
    504348
    ASE-42-27.9T-EN-2M
    Reference no. 504348
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 4
    Weight approx. [kg] 21
  • 27900
    504349
    ASE-42-27.9T-EN-3M
    Reference no. 504349
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 6
    Weight approx. [kg] 31.5
  • 27900
    504350
    ASE-42-27.9T-EN-4M
    Reference no. 504350
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 8
    Weight approx. [kg] 42
  • 27900
    504351
    ASE-42-27.9T-EN-5M
    Reference no. 504351
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 10
    Weight approx. [kg] 52.5
  • 27900
    504352
    ASE-42-27.9T-EN-6M
    Reference no. 504352
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 12
    Weight approx. [kg] 63
  • 36450
    504353
    ASE-48-36.45T-EN-1M
    Reference no. 504353
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 2
    Weight approx. [kg] 13.96
  • 36450
    491297
    ASE-48-36.45T-EN-1.5M
    Reference no. 491297
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 3
    Weight approx. [kg] 20.94
  • 36450
    504354
    ASE-48-36.45T-EN-2M
    Reference no. 504354
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 4
    Weight approx. [kg] 27.92
  • 36450
    504355
    ASE-48-36.45T-EN-3M
    Reference no. 504355
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 6
    Weight approx. [kg] 41.88
  • 36450
    504356
    ASE-48-36.45T-EN-4M
    Reference no. 504356
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 8
    Weight approx. [kg] 55.84
  • 36450
    504357
    ASE-48-36.45T-EN-5M
    Reference no. 504357
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 10
    Weight approx. [kg] 69.8
  • 36450
    504358
    ASE-48-36.45T-EN-6M
    Reference no. 504358
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 12
    Weight approx. [kg] 83.76
  • 46150
    504359
    ASE-54-46.15T-EN-1M
    Reference no. 504359
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 2
    Weight approx. [kg] 15.9
  • 46150
    491298
    ASE-54-46.15T-EN-1.5M
    Reference no. 491298
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 3
    Weight approx. [kg] 23.85
  • 46150
    504360
    ASE-54-46.15T-EN-2M
    Reference no. 504360
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 4
    Weight approx. [kg] 31.8
  • 46150
    504361
    ASE-54-46.15T-EN-3M
    Reference no. 504361
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 6
    Weight approx. [kg] 47.7
  • 46150
    504362
    ASE-54-46.15T-EN-4M
    Reference no. 504362
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 8
    Weight approx. [kg] 63.6
  • 46150
    504363
    ASE-54-46.15T-EN-5M
    Reference no. 504363
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 10
    Weight approx. [kg] 79.5
  • 46150
    504364
    ASE-54-46.15T-EN-6M
    Reference no. 504364
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 12
    Weight approx. [kg] 95.4
  • 56950
    504365
    ASE-60-56.95T-EN-2M
    Reference no. 504365
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 4
    Weight approx. [kg] 40.2
  • 56950
    504366
    ASE-60-56.95T-EN-3M
    Reference no. 504366
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 6
    Weight approx. [kg] 60.3
  • 56950
    504367
    ASE-60-56.95T-EN-4M
    Reference no. 504367
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 8
    Weight approx. [kg] 80.4
  • 56950
    504368
    ASE-60-56.95T-EN-5M
    Reference no. 504368
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 10
    Weight approx. [kg] 100.5
  • 56950
    504369
    ASE-60-56.95T-EN-6M
    Reference no. 504369
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 12
    Weight approx. [kg] 120.6
Working load limit 0° [kg] 2250
Reference no. 504288
  • Details
    ASE-12-2.25T-EN-0.5M
    Reference no. 504288
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 1
    Weight approx. [kg] 0.48
Working load limit 0° [kg] 2250
Reference no. 504289
  • Details
    ASE-12-2.25T-EN-1M
    Reference no. 504289
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 2
    Weight approx. [kg] 0.96
Working load limit 0° [kg] 2250
Reference no. 504290
  • Details
    ASE-12-2.25T-EN-2M
    Reference no. 504290
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 4
    Weight approx. [kg] 1.92
Working load limit 0° [kg] 2250
Reference no. 504291
  • Details
    ASE-12-2.25T-EN-3M
    Reference no. 504291
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 6
    Weight approx. [kg] 2.88
Working load limit 0° [kg] 2250
Reference no. 504292
  • Details
    ASE-12-2.25T-EN-4M
    Reference no. 504292
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 8
    Weight approx. [kg] 3.84
Working load limit 0° [kg] 2250
Reference no. 504293
  • Details
    ASE-12-2.25T-EN-5M
    Reference no. 504293
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 10
    Weight approx. [kg] 4.8
Working load limit 0° [kg] 2250
Reference no. 504294
  • Details
    ASE-12-2.25T-EN-6M
    Reference no. 504294
    Working load limit 0° [kg] 2250
    Rope Ø ds [mm] 12
    Circumference U [m] 12
    Weight approx. [kg] 5.76
Working load limit 0° [kg] 3300
Reference no. 504295
  • Details
    ASE-15-3.3T-EN-0.5M
    Reference no. 504295
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 1
    Weight approx. [kg] 0.61
Working load limit 0° [kg] 3300
Reference no. 504296
  • Details
    ASE-15-3.3T-EN-1M
    Reference no. 504296
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 2
    Weight approx. [kg] 1.22
Working load limit 0° [kg] 3300
Reference no. 504297
  • Details
    ASE-15-3.3T-EN-2M
    Reference no. 504297
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 4
    Weight approx. [kg] 2.44
Working load limit 0° [kg] 3300
Reference no. 504298
  • Details
    ASE-15-3.3T-EN-3M
    Reference no. 504298
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 6
    Weight approx. [kg] 3.66
Working load limit 0° [kg] 3300
Reference no. 504299
  • Details
    ASE-15-3.3T-EN-4M
    Reference no. 504299
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 8
    Weight approx. [kg] 4.88
Working load limit 0° [kg] 3300
Reference no. 504300
  • Details
    ASE-15-3.3T-EN-5M
    Reference no. 504300
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 10
    Weight approx. [kg] 6.1
Working load limit 0° [kg] 3300
Reference no. 504301
  • Details
    ASE-15-3.3T-EN-6M
    Reference no. 504301
    Working load limit 0° [kg] 3300
    Rope Ø ds [mm] 15
    Circumference U [m] 12
    Weight approx. [kg] 7.32
Working load limit 0° [kg] 6450
Reference no. 504302
  • Details
    ASE-21-6.45T-EN-0.5M
    Reference no. 504302
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 1
    Weight approx. [kg] 1.28
Working load limit 0° [kg] 6450
Reference no. 504303
  • Details
    ASE-21-6.45T-EN-1M
    Reference no. 504303
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 2
    Weight approx. [kg] 2.56
Working load limit 0° [kg] 6450
Reference no. 504304
  • Details
    ASE-21-6.45T-EN-2M
    Reference no. 504304
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 4
    Weight approx. [kg] 5.12
Working load limit 0° [kg] 6450
Reference no. 504305
  • Details
    ASE-21-6.45T-EN-3M
    Reference no. 504305
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 6
    Weight approx. [kg] 7.68
Working load limit 0° [kg] 6450
Reference no. 504306
  • Details
    ASE-21-6.45T-EN-4M
    Reference no. 504306
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 8
    Weight approx. [kg] 10.24
Working load limit 0° [kg] 6450
Reference no. 504307
  • Details
    ASE-21-6.45T-EN-5M
    Reference no. 504307
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 10
    Weight approx. [kg] 12.8
Working load limit 0° [kg] 6450
Reference no. 504308
  • Details
    ASE-21-6.45T-EN-6M
    Reference no. 504308
    Working load limit 0° [kg] 6450
    Rope Ø ds [mm] 21
    Circumference U [m] 12
    Weight approx. [kg] 15.36
Working load limit 0° [kg] 7700
Reference no. 504309
  • Details
    ASE-24-7.7T-EN-0.5M
    Reference no. 504309
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 1
    Weight approx. [kg] 1.58
Working load limit 0° [kg] 7700
Reference no. 504310
  • Details
    ASE-24-7.7T-EN-1M
    Reference no. 504310
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 2
    Weight approx. [kg] 3.16
Working load limit 0° [kg] 7700
Reference no. 504311
  • Details
    ASE-24-7.7T-EN-2M
    Reference no. 504311
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 4
    Weight approx. [kg] 6.32
Working load limit 0° [kg] 7700
Reference no. 504312
  • Details
    ASE-24-7.7T-EN-3M
    Reference no. 504312
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 6
    Weight approx. [kg] 9.48
Working load limit 0° [kg] 7700
Reference no. 504313
  • Details
    ASE-24-7.7T-EN-4M
    Reference no. 504313
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 8
    Weight approx. [kg] 12.64
Working load limit 0° [kg] 7700
Reference no. 504314
  • Details
    ASE-24-7.7T-EN-5M
    Reference no. 504314
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 10
    Weight approx. [kg] 15.8
Working load limit 0° [kg] 7700
Reference no. 504315
  • Details
    ASE-24-7.7T-EN-6M
    Reference no. 504315
    Working load limit 0° [kg] 7700
    Rope Ø ds [mm] 24
    Circumference U [m] 12
    Weight approx. [kg] 18.96
Working load limit 0° [kg] 10700
Reference no. 504316
  • Details
    ASE-27-10.7T-EN-0.5M
    Reference no. 504316
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 1
    Weight approx. [kg] 1.95
Working load limit 0° [kg] 10700
Reference no. 504317
  • Details
    ASE-27-10.7T-EN-1M
    Reference no. 504317
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 2
    Weight approx. [kg] 3.9
Working load limit 0° [kg] 10700
Reference no. 504318
  • Details
    ASE-27-10.7T-EN-2M
    Reference no. 504318
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 4
    Weight approx. [kg] 7.8
Working load limit 0° [kg] 10700
Reference no. 504319
  • Details
    ASE-27-10.7T-EN-3M
    Reference no. 504319
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 6
    Weight approx. [kg] 11.7
Working load limit 0° [kg] 10700
Reference no. 504320
  • Details
    ASE-27-10.7T-EN-4M
    Reference no. 504320
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 8
    Weight approx. [kg] 15.6
Working load limit 0° [kg] 10700
Reference no. 504321
  • Details
    ASE-27-10.7T-EN-5M
    Reference no. 504321
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 10
    Weight approx. [kg] 19.5
Working load limit 0° [kg] 10700
Reference no. 504322
  • Details
    ASE-27-10.7T-EN-6M
    Reference no. 504322
    Working load limit 0° [kg] 10700
    Rope Ø ds [mm] 27
    Circumference U [m] 12
    Weight approx. [kg] 23.4
Working load limit 0° [kg] 13250
Reference no. 504323
  • Details
    ASE-30-13.25T-EN-1M
    Reference no. 504323
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 2
    Weight approx. [kg] 5.4
Working load limit 0° [kg] 13250
Reference no. 504324
  • Details
    ASE-30-13.25T-EN-2M
    Reference no. 504324
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 4
    Weight approx. [kg] 10.8
Working load limit 0° [kg] 13250
Reference no. 504325
  • Details
    ASE-30-13.25T-EN-3M
    Reference no. 504325
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 6
    Weight approx. [kg] 16.2
Working load limit 0° [kg] 13250
Reference no. 504326
  • Details
    ASE-30-13.25T-EN-4M
    Reference no. 504326
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 8
    Weight approx. [kg] 21
Working load limit 0° [kg] 13250
Reference no. 504327
  • Details
    ASE-30-13.25T-EN-5M
    Reference no. 504327
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 10
    Weight approx. [kg] 27
Working load limit 0° [kg] 13250
Reference no. 504328
  • Details
    ASE-30-13.25T-EN-6M
    Reference no. 504328
    Working load limit 0° [kg] 13250
    Rope Ø ds [mm] 30
    Circumference U [m] 12
    Weight approx. [kg] 32.4
Working load limit 0° [kg] 16000
Reference no. 504329
  • Details
    ASE-33-16T-EN-1M
    Reference no. 504329
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 2
    Weight approx. [kg] 6.16
Working load limit 0° [kg] 16000
Reference no. 504330
  • Details
    ASE-33-16T-EN-2M
    Reference no. 504330
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 4
    Weight approx. [kg] 12.32
Working load limit 0° [kg] 16000
Reference no. 504331
  • Details
    ASE-33-16T-EN-3M
    Reference no. 504331
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 6
    Weight approx. [kg] 18.48
Working load limit 0° [kg] 16000
Reference no. 504332
  • Details
    ASE-33-16T-EN-4M
    Reference no. 504332
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 8
    Weight approx. [kg] 24.64
Working load limit 0° [kg] 16000
Reference no. 504333
  • Details
    ASE-33-16T-EN-5M
    Reference no. 504333
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 10
    Weight approx. [kg] 30.8
Working load limit 0° [kg] 16000
Reference no. 504334
  • Details
    ASE-33-16T-EN-6M
    Reference no. 504334
    Working load limit 0° [kg] 16000
    Rope Ø ds [mm] 33
    Circumference U [m] 12
    Weight approx. [kg] 36.96
Working load limit 0° [kg] 20500
Reference no. 504335
  • Details
    ASE-36-20.5T-EN-1M
    Reference no. 504335
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 2
    Weight approx. [kg] 7.5
Working load limit 0° [kg] 20500
Reference no. 504336
  • Details
    ASE-36-20.5T-EN-2M
    Reference no. 504336
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 4
    Weight approx. [kg] 15
Working load limit 0° [kg] 20500
Reference no. 504337
  • Details
    ASE-36-20.5T-EN-3M
    Reference no. 504337
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 6
    Weight approx. [kg] 24.63
Working load limit 0° [kg] 20500
Reference no. 504338
  • Details
    ASE-36-20.5T-EN-4M
    Reference no. 504338
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 8
    Weight approx. [kg] 30
Working load limit 0° [kg] 20500
Reference no. 504339
  • Details
    ASE-36-20.5T-EN-5M
    Reference no. 504339
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 10
    Weight approx. [kg] 37.5
Working load limit 0° [kg] 20500
Reference no. 504340
  • Details
    ASE-36-20.5T-EN-6M
    Reference no. 504340
    Working load limit 0° [kg] 20500
    Rope Ø ds [mm] 36
    Circumference U [m] 12
    Weight approx. [kg] 45
Working load limit 0° [kg] 19500
Reference no. 504341
  • Details
    ASE-39-19.5T-EN-1M
    Reference no. 504341
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 2
    Weight approx. [kg] 8.86
Working load limit 0° [kg] 19500
Reference no. 504342
  • Details
    ASE-39-19.5T-EN-2M
    Reference no. 504342
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 4
    Weight approx. [kg] 17.72
Working load limit 0° [kg] 19500
Reference no. 504343
  • Details
    ASE-39-19.5T-EN-3M
    Reference no. 504343
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 6
    Weight approx. [kg] 26.58
Working load limit 0° [kg] 19500
Reference no. 504344
  • Details
    ASE-39-19.5T-EN-4M
    Reference no. 504344
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 8
    Weight approx. [kg] 35.44
Working load limit 0° [kg] 19500
Reference no. 504345
  • Details
    ASE-39-19.5T-EN-5M
    Reference no. 504345
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 10
    Weight approx. [kg] 44.3
Working load limit 0° [kg] 19500
Reference no. 504346
  • Details
    ASE-39-19.5T-EN-6M
    Reference no. 504346
    Working load limit 0° [kg] 19500
    Rope Ø ds [mm] 39
    Circumference U [m] 12
    Weight approx. [kg] 53.16
Working load limit 0° [kg] 27900
Reference no. 504347
  • Details
    ASE-42-27.9T-EN-1M
    Reference no. 504347
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 2
    Weight approx. [kg] 10.5
Working load limit 0° [kg] 27900
Reference no. 491296
  • Details
    ASE-42-27.9T-EN-1.5M
    Reference no. 491296
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 3
    Weight approx. [kg] 15.75
Working load limit 0° [kg] 27900
Reference no. 504348
  • Details
    ASE-42-27.9T-EN-2M
    Reference no. 504348
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 4
    Weight approx. [kg] 21
Working load limit 0° [kg] 27900
Reference no. 504349
  • Details
    ASE-42-27.9T-EN-3M
    Reference no. 504349
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 6
    Weight approx. [kg] 31.5
Working load limit 0° [kg] 27900
Reference no. 504350
  • Details
    ASE-42-27.9T-EN-4M
    Reference no. 504350
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 8
    Weight approx. [kg] 42
Working load limit 0° [kg] 27900
Reference no. 504351
  • Details
    ASE-42-27.9T-EN-5M
    Reference no. 504351
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 10
    Weight approx. [kg] 52.5
Working load limit 0° [kg] 27900
Reference no. 504352
  • Details
    ASE-42-27.9T-EN-6M
    Reference no. 504352
    Working load limit 0° [kg] 27900
    Rope Ø ds [mm] 42
    Circumference U [m] 12
    Weight approx. [kg] 63
Working load limit 0° [kg] 36450
Reference no. 504353
  • Details
    ASE-48-36.45T-EN-1M
    Reference no. 504353
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 2
    Weight approx. [kg] 13.96
Working load limit 0° [kg] 36450
Reference no. 491297
  • Details
    ASE-48-36.45T-EN-1.5M
    Reference no. 491297
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 3
    Weight approx. [kg] 20.94
Working load limit 0° [kg] 36450
Reference no. 504354
  • Details
    ASE-48-36.45T-EN-2M
    Reference no. 504354
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 4
    Weight approx. [kg] 27.92
Working load limit 0° [kg] 36450
Reference no. 504355
  • Details
    ASE-48-36.45T-EN-3M
    Reference no. 504355
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 6
    Weight approx. [kg] 41.88
Working load limit 0° [kg] 36450
Reference no. 504356
  • Details
    ASE-48-36.45T-EN-4M
    Reference no. 504356
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 8
    Weight approx. [kg] 55.84
Working load limit 0° [kg] 36450
Reference no. 504357
  • Details
    ASE-48-36.45T-EN-5M
    Reference no. 504357
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 10
    Weight approx. [kg] 69.8
Working load limit 0° [kg] 36450
Reference no. 504358
  • Details
    ASE-48-36.45T-EN-6M
    Reference no. 504358
    Working load limit 0° [kg] 36450
    Rope Ø ds [mm] 48
    Circumference U [m] 12
    Weight approx. [kg] 83.76
Working load limit 0° [kg] 46150
Reference no. 504359
  • Details
    ASE-54-46.15T-EN-1M
    Reference no. 504359
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 2
    Weight approx. [kg] 15.9
Working load limit 0° [kg] 46150
Reference no. 491298
  • Details
    ASE-54-46.15T-EN-1.5M
    Reference no. 491298
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 3
    Weight approx. [kg] 23.85
Working load limit 0° [kg] 46150
Reference no. 504360
  • Details
    ASE-54-46.15T-EN-2M
    Reference no. 504360
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 4
    Weight approx. [kg] 31.8
Working load limit 0° [kg] 46150
Reference no. 504361
  • Details
    ASE-54-46.15T-EN-3M
    Reference no. 504361
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 6
    Weight approx. [kg] 47.7
Working load limit 0° [kg] 46150
Reference no. 504362
  • Details
    ASE-54-46.15T-EN-4M
    Reference no. 504362
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 8
    Weight approx. [kg] 63.6
Working load limit 0° [kg] 46150
Reference no. 504363
  • Details
    ASE-54-46.15T-EN-5M
    Reference no. 504363
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 10
    Weight approx. [kg] 79.5
Working load limit 0° [kg] 46150
Reference no. 504364
  • Details
    ASE-54-46.15T-EN-6M
    Reference no. 504364
    Working load limit 0° [kg] 46150
    Rope Ø ds [mm] 54
    Circumference U [m] 12
    Weight approx. [kg] 95.4
Working load limit 0° [kg] 56950
Reference no. 504365
  • Details
    ASE-60-56.95T-EN-2M
    Reference no. 504365
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 4
    Weight approx. [kg] 40.2
Working load limit 0° [kg] 56950
Reference no. 504366
  • Details
    ASE-60-56.95T-EN-3M
    Reference no. 504366
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 6
    Weight approx. [kg] 60.3
Working load limit 0° [kg] 56950
Reference no. 504367
  • Details
    ASE-60-56.95T-EN-4M
    Reference no. 504367
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 8
    Weight approx. [kg] 80.4
Working load limit 0° [kg] 56950
Reference no. 504368
  • Details
    ASE-60-56.95T-EN-5M
    Reference no. 504368
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 10
    Weight approx. [kg] 100.5
Working load limit 0° [kg] 56950
Reference no. 504369
  • Details
    ASE-60-56.95T-EN-6M
    Reference no. 504369
    Working load limit 0° [kg] 56950
    Rope Ø ds [mm] 60
    Circumference U [m] 12
    Weight approx. [kg] 120.6
Downloads

Applications

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
