Wire rope sling suspension gear

Wire rope sling suspension gear

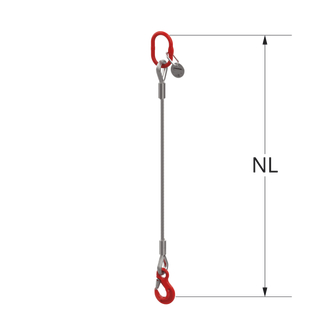

Single-leg wire rope sling with thimble on both sides for long-lasting application and safety load hook. Galvanised version resists corrosion.
Technical data

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +100 °C

Standard

  • similar to EN 13414-1

Marking

  • WLL identification tag

Safety factor

  • 5

Surface

  • galvanized

Component surface

  • coated

Suspension

  • Oval ring

End fitting

  • eye load hook

Technical note

  • Implementation: Galvanized
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Effective length WLL [m]
Reference no.
Details
  • 700
    560
    1
    491243
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=1m galv EN13414
    Reference no. 491243
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.204
  • 700
    560
    2
    491244
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=2m galv EN13414
    Reference no. 491244
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 2.584
  • 700
    560
    3
    491245
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=3m galv EN13414
    Reference no. 491245
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 2.964
  • 700
    560
    4
    491246
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=4m galv EN13414
    Reference no. 491246
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 3.344
  • 700
    560
    5
    491247
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=5m galv EN13414
    Reference no. 491247
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 3.724
  • 1000
    800
    1
    491248
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=1m galv EN1341
    Reference no. 491248
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 2.259
  • 1000
    800
    2
    491249
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=2m galv EN1341
    Reference no. 491249
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 2.605
  • 1000
    800
    3
    491250
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=3m galv EN1341
    Reference no. 491250
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 2.951
  • 1000
    800
    4
    491251
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=4m galv EN1341
    Reference no. 491251
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 3.297
  • 1000
    800
    5
    491252
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=5m galv EN1341
    Reference no. 491252
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 3.643
  • 1500
    1200
    1
    491253
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=1m galv EN1341
    Reference no. 491253
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.849
  • 1500
    1200
    2
    491254
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=2m galv EN1341
    Reference no. 491254
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 3.396
  • 1500
    1200
    3
    491255
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=3m galv EN1341
    Reference no. 491255
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 3
    Weight approx. [kg] 3.943
  • 1500
    1200
    4
    491256
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=4m galv EN1341
    Reference no. 491256
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 4.49
  • 1500
    1200
    5
    491257
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=5m galv EN1341
    Reference no. 491257
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 5
    Weight approx. [kg] 5.037
  • 2000
    1600
    1
    491258
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=1m galv EN1341
    Reference no. 491258
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 1
    Weight approx. [kg] 3.254
  • 2000
    1600
    2
    491259
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=2m galv EN1341
    Reference no. 491259
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 2
    Weight approx. [kg] 3.932
  • 2000
    1600
    3
    491260
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=3m galv EN1341
    Reference no. 491260
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 3
    Weight approx. [kg] 4.61
  • 2000
    1600
    4
    491261
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=4m galv EN1341
    Reference no. 491261
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 4
    Weight approx. [kg] 5.288
  • 2000
    1600
    5
    491262
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=5m galv EN1341
    Reference no. 491262
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 5
    Weight approx. [kg] 5.966
  • 2700
    2150
    1
    491263
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=1m galv EN1341
    Reference no. 491263
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 4.163
  • 2700
    2150
    2
    491264
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=2m galv EN1341
    Reference no. 491264
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 5.136
  • 2700
    2150
    3
    491265
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=3m galv EN1341
    Reference no. 491265
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 6.109
  • 2700
    2150
    4
    491266
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=4m galv EN1341
    Reference no. 491266
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 7.082
  • 2700
    2150
    5
    491267
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=5m galv EN1341
    Reference no. 491267
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 8.055
  • 3150
    2500
    1
    491268
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=1m galv EN1341
    Reference no. 491268
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 1
    Weight approx. [kg] 4.964
  • 3150
    2500
    2
    491269
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=2m galv EN1341
    Reference no. 491269
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 6.194
  • 3150
    2500
    3
    491270
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=3m galv EN1341
    Reference no. 491270
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 7.424
  • 3150
    2500
    4
    491271
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=4m galv EN1341
    Reference no. 491271
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 8.654
  • 3150
    2500
    5
    491272
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=5m galv EN1341
    Reference no. 491272
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 5
    Weight approx. [kg] 9.884
  • 4000
    3200
    2
    491273
    Wire Rope Sling 1-leg 20.0mm 1R/1H 4000kg L=2m galv EN1341
    Reference no. 491273
    Working load limit 0° [kg] 4000
    Working load limit laced 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 8.526
  • 4000
    3200
    3
    491274
    Wire Rope Sling 1-leg 20.0mm 1R/1H 4000kg L=3m galv EN1341
    Reference no. 491274
    Working load limit 0° [kg] 4000
    Working load limit laced 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 10.046
  • 4000
    3200
    4
    491275
    Wire Rope Sling 1-leg 20.0mm 1R/1H 4000kg L=4m galv EN1341
    Reference no. 491275
    Working load limit 0° [kg] 4000
    Working load limit laced 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 11.566
  • 4000
    3200
    5
    491276
    Wire Rope Sling 1-leg 20.0mm 1R/1H 4000kg L=5m galv EN1341
    Reference no. 491276
    Working load limit 0° [kg] 4000
    Working load limit laced 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 13.086
  • 5000
    4000
    2
    491277
    Wire Rope Sling 1-leg 22.0mm 1R/1H 5000kg L=2m galv EN1341
    Reference no. 491277
    Working load limit 0° [kg] 5000
    Working load limit laced 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 10.497
  • 5000
    4000
    3
    491278
    Wire Rope Sling 1-leg 22.0mm 1R/1H 5000kg L=3m galv EN1341
    Reference no. 491278
    Working load limit 0° [kg] 5000
    Working load limit laced 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 12.337
  • 5000
    4000
    4
    491279
    Wire Rope Sling 1-leg 22.0mm 1R/1H 5000kg L=4m galv EN1341
    Reference no. 491279
    Working load limit 0° [kg] 5000
    Working load limit laced 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 14.177
  • 5000
    4000
    5
    491280
    Wire Rope Sling 1-leg 22.0mm 1R/1H 5000kg L=5m galv EN1341
    Reference no. 491280
    Working load limit 0° [kg] 5000
    Working load limit laced 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 5
    Weight approx. [kg] 16.017
  • 6300
    5000
    2
    491281
    Wire Rope Sling 1-leg 24.0mm 1R/1H 6300kg L=2m galv EN1341
    Reference no. 491281
    Working load limit 0° [kg] 6300
    Working load limit laced 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 2
    Weight approx. [kg] 12.718
  • 6300
    5000
    3
    491282
    Wire Rope Sling 1-leg 24.0mm 1R/1H 6300kg L=3m galv EN1341
    Reference no. 491282
    Working load limit 0° [kg] 6300
    Working load limit laced 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 3
    Weight approx. [kg] 14.908
  • 6300
    5000
    4
    491283
    Wire Rope Sling 1-leg 24.0mm 1R/1H 6300kg L=4m galv EN1341
    Reference no. 491283
    Working load limit 0° [kg] 6300
    Working load limit laced 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 4
    Weight approx. [kg] 17.098
  • 6300
    5000
    5
    491284
    Wire Rope Sling 1-leg 24.0mm 1R/1H 6300kg L=5m galv EN1341
    Reference no. 491284
    Working load limit 0° [kg] 6300
    Working load limit laced 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 5
    Weight approx. [kg] 19.288
  • 7000
    5600
    2
    491285
    Wire Rope Sling 1-leg 26.0mm 1R/1H 7000kg L=2m galv EN1341
    Reference no. 491285
    Working load limit 0° [kg] 7000
    Working load limit laced 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 15.88
  • 7000
    5600
    3
    491286
    Wire Rope Sling 1-leg 26.0mm 1R/1H 7000kg L=3m galv EN1341
    Reference no. 491286
    Working load limit 0° [kg] 7000
    Working load limit laced 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 18.45
  • 7000
    5600
    4
    491287
    Wire Rope Sling 1-leg 26.0mm 1R/1H 7000kg L=4m galv EN1341
    Reference no. 491287
    Working load limit 0° [kg] 7000
    Working load limit laced 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 21.02
  • 7000
    5600
    5
    491288
    Wire Rope Sling 1-leg 26.0mm 1R/1H 7000kg L=5m galv EN1341
    Reference no. 491288
    Working load limit 0° [kg] 7000
    Working load limit laced 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 5
    Weight approx. [kg] 23.59
  • 8000
    6400
    2
    491289
    Wire Rope Sling 1-leg 28.0mm 1R/1H 8000kg L=2m galv EN1341
    Reference no. 491289
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 2
    Weight approx. [kg] 18.311
  • 8000
    6000
    3
    704145
    GA1-28-8T-SEN-RM-H-3M
    Reference no. 704145
    Working load limit 0° [kg] 8000
    Working load limit laced 6000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 3
    Weight approx. [kg] 21
  • 8000
    6400
    4
    491291
    Wire Rope Sling 1-leg 28.0mm 1R/1H 8000kg L=4m galv EN1341
    Reference no. 491291
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 4
    Weight approx. [kg] 24.271
  • 8000
    6400
    5
    491292
    Wire Rope Sling 1-leg 28.0mm 1R/1H 8000kg L=5m galv EN1341
    Reference no. 491292
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 5
    Weight approx. [kg] 27.251
Working load limit 0° [kg] 700
Working load limit laced 560
Effective length WLL [m] 1
Reference no. 491243
  • Details
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=1m galv EN13414
    Reference no. 491243
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.204
Working load limit 0° [kg] 700
Working load limit laced 560
Effective length WLL [m] 2
Reference no. 491244
  • Details
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=2m galv EN13414
    Reference no. 491244
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 2.584
Working load limit 0° [kg] 700
Working load limit laced 560
Effective length WLL [m] 3
Reference no. 491245
  • Details
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=3m galv EN13414
    Reference no. 491245
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 2.964
Working load limit 0° [kg] 700
Working load limit laced 560
Effective length WLL [m] 4
Reference no. 491246
  • Details
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=4m galv EN13414
    Reference no. 491246
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 3.344
Working load limit 0° [kg] 700
Working load limit laced 560
Effective length WLL [m] 5
Reference no. 491247
  • Details
    Wire Rope Sling 1-leg 8.0mm 1R/1H 700kg L=5m galv EN13414
    Reference no. 491247
    Working load limit 0° [kg] 700
    Working load limit laced 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 3.724
Working load limit 0° [kg] 1000
Working load limit laced 800
Effective length WLL [m] 1
Reference no. 491248
  • Details
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=1m galv EN1341
    Reference no. 491248
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 2.259
Working load limit 0° [kg] 1000
Working load limit laced 800
Effective length WLL [m] 2
Reference no. 491249
  • Details
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=2m galv EN1341
    Reference no. 491249
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 2.605
Working load limit 0° [kg] 1000
Working load limit laced 800
Effective length WLL [m] 3
Reference no. 491250
  • Details
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=3m galv EN1341
    Reference no. 491250
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 2.951
Working load limit 0° [kg] 1000
Working load limit laced 800
Effective length WLL [m] 4
Reference no. 491251
  • Details
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=4m galv EN1341
    Reference no. 491251
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 3.297
Working load limit 0° [kg] 1000
Working load limit laced 800
Effective length WLL [m] 5
Reference no. 491252
  • Details
    Wire Rope Sling 1-leg 10.0mm 1R/1H 1000kg L=5m galv EN1341
    Reference no. 491252
    Working load limit 0° [kg] 1000
    Working load limit laced 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 3.643
Working load limit 0° [kg] 1500
Working load limit laced 1200
Effective length WLL [m] 1
Reference no. 491253
  • Details
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=1m galv EN1341
    Reference no. 491253
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.849
Working load limit 0° [kg] 1500
Working load limit laced 1200
Effective length WLL [m] 2
Reference no. 491254
  • Details
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=2m galv EN1341
    Reference no. 491254
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 3.396
Working load limit 0° [kg] 1500
Working load limit laced 1200
Effective length WLL [m] 3
Reference no. 491255
  • Details
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=3m galv EN1341
    Reference no. 491255
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 3
    Weight approx. [kg] 3.943
Working load limit 0° [kg] 1500
Working load limit laced 1200
Effective length WLL [m] 4
Reference no. 491256
  • Details
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=4m galv EN1341
    Reference no. 491256
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 4.49
Working load limit 0° [kg] 1500
Working load limit laced 1200
Effective length WLL [m] 5
Reference no. 491257
  • Details
    Wire Rope Sling 1-leg 12.0mm 1R/1H 1500kg L=5m galv EN1341
    Reference no. 491257
    Working load limit 0° [kg] 1500
    Working load limit laced 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 5
    Weight approx. [kg] 5.037
Working load limit 0° [kg] 2000
Working load limit laced 1600
Effective length WLL [m] 1
Reference no. 491258
  • Details
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=1m galv EN1341
    Reference no. 491258
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 1
    Weight approx. [kg] 3.254
Working load limit 0° [kg] 2000
Working load limit laced 1600
Effective length WLL [m] 2
Reference no. 491259
  • Details
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=2m galv EN1341
    Reference no. 491259
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 2
    Weight approx. [kg] 3.932
Working load limit 0° [kg] 2000
Working load limit laced 1600
Effective length WLL [m] 3
Reference no. 491260
  • Details
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=3m galv EN1341
    Reference no. 491260
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 3
    Weight approx. [kg] 4.61
Working load limit 0° [kg] 2000
Working load limit laced 1600
Effective length WLL [m] 4
Reference no. 491261
  • Details
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=4m galv EN1341
    Reference no. 491261
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 4
    Weight approx. [kg] 5.288
Working load limit 0° [kg] 2000
Working load limit laced 1600
Effective length WLL [m] 5
Reference no. 491262
  • Details
    Wire Rope Sling 1-leg 14.0mm 1R/1H 2000kg L=5m galv EN1341
    Reference no. 491262
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 5
    Weight approx. [kg] 5.966
Working load limit 0° [kg] 2700
Working load limit laced 2150
Effective length WLL [m] 1
Reference no. 491263
  • Details
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=1m galv EN1341
    Reference no. 491263
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 4.163
Working load limit 0° [kg] 2700
Working load limit laced 2150
Effective length WLL [m] 2
Reference no. 491264
  • Details
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=2m galv EN1341
    Reference no. 491264
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 5.136
Working load limit 0° [kg] 2700
Working load limit laced 2150
Effective length WLL [m] 3
Reference no. 491265
  • Details
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=3m galv EN1341
    Reference no. 491265
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 6.109
Working load limit 0° [kg] 2700
Working load limit laced 2150
Effective length WLL [m] 4
Reference no. 491266
  • Details
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=4m galv EN1341
    Reference no. 491266
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 7.082
Working load limit 0° [kg] 2700
Working load limit laced 2150
Effective length WLL [m] 5
Reference no. 491267
  • Details
    Wire Rope Sling 1-leg 16.0mm 1R/1H 2700kg L=5m galv EN1341
    Reference no. 491267
    Working load limit 0° [kg] 2700
    Working load limit laced 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 8.055
Working load limit 0° [kg] 3150
Working load limit laced 2500
Effective length WLL [m] 1
Reference no. 491268
  • Details
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=1m galv EN1341
    Reference no. 491268
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 1
    Weight approx. [kg] 4.964
Working load limit 0° [kg] 3150
Working load limit laced 2500
Effective length WLL [m] 2
Reference no. 491269
  • Details
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=2m galv EN1341
    Reference no. 491269
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 6.194
Working load limit 0° [kg] 3150
Working load limit laced 2500
Effective length WLL [m] 3
Reference no. 491270
  • Details
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=3m galv EN1341
    Reference no. 491270
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 7.424
Working load limit 0° [kg] 3150
Working load limit laced 2500
Effective length WLL [m] 4
Reference no. 491271
  • Details
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=4m galv EN1341
    Reference no. 491271
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 8.654
Working load limit 0° [kg] 3150
Working load limit laced 2500
Effective length WLL [m] 5
Reference no. 491272
  • Details
    Wire Rope Sling 1-leg 18.0mm 1R/1H 3150kg L=5m galv EN1341
    Reference no. 491272
    Working load limit 0° [kg] 3150
    Working load limit laced 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 5
    Weight approx. [kg] 9.884
Working load limit 0° [kg] 4000
Working load limit laced 3200
Effective length WLL [m] 2
Reference no. 491273
  • Details
    Wire Rope Sling 1-leg 20.0mm 1R/1H 4000kg L=2m galv EN1341
    Reference no. 491273
    Working load limit 0° [kg] 4000
    Working load limit laced 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 8.526
Working load limit 0° [kg] 4000
Working load limit laced 3200
Effective length WLL [m] 3
Reference no. 491274
  • Details
    Wire Rope Sling 1-leg 20.0mm 1R/1H 4000kg L=3m galv EN1341
    Reference no. 491274
    Working load limit 0° [kg] 4000
    Working load limit laced 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 10.046
Working load limit 0° [kg] 4000
Working load limit laced 3200
Effective length WLL [m] 4
Reference no. 491275
  • Details
    Wire Rope Sling 1-leg 20.0mm 1R/1H 4000kg L=4m galv EN1341
    Reference no. 491275
    Working load limit 0° [kg] 4000
    Working load limit laced 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 11.566
Working load limit 0° [kg] 4000
Working load limit laced 3200
Effective length WLL [m] 5
Reference no. 491276
  • Details
    Wire Rope Sling 1-leg 20.0mm 1R/1H 4000kg L=5m galv EN1341
    Reference no. 491276
    Working load limit 0° [kg] 4000
    Working load limit laced 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 13.086
Working load limit 0° [kg] 5000
Working load limit laced 4000
Effective length WLL [m] 2
Reference no. 491277
  • Details
    Wire Rope Sling 1-leg 22.0mm 1R/1H 5000kg L=2m galv EN1341
    Reference no. 491277
    Working load limit 0° [kg] 5000
    Working load limit laced 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 10.497
Working load limit 0° [kg] 5000
Working load limit laced 4000
Effective length WLL [m] 3
Reference no. 491278
  • Details
    Wire Rope Sling 1-leg 22.0mm 1R/1H 5000kg L=3m galv EN1341
    Reference no. 491278
    Working load limit 0° [kg] 5000
    Working load limit laced 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 12.337
Working load limit 0° [kg] 5000
Working load limit laced 4000
Effective length WLL [m] 4
Reference no. 491279
  • Details
    Wire Rope Sling 1-leg 22.0mm 1R/1H 5000kg L=4m galv EN1341
    Reference no. 491279
    Working load limit 0° [kg] 5000
    Working load limit laced 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 14.177
Working load limit 0° [kg] 5000
Working load limit laced 4000
Effective length WLL [m] 5
Reference no. 491280
  • Details
    Wire Rope Sling 1-leg 22.0mm 1R/1H 5000kg L=5m galv EN1341
    Reference no. 491280
    Working load limit 0° [kg] 5000
    Working load limit laced 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 5
    Weight approx. [kg] 16.017
Working load limit 0° [kg] 6300
Working load limit laced 5000
Effective length WLL [m] 2
Reference no. 491281
  • Details
    Wire Rope Sling 1-leg 24.0mm 1R/1H 6300kg L=2m galv EN1341
    Reference no. 491281
    Working load limit 0° [kg] 6300
    Working load limit laced 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 2
    Weight approx. [kg] 12.718
Working load limit 0° [kg] 6300
Working load limit laced 5000
Effective length WLL [m] 3
Reference no. 491282
  • Details
    Wire Rope Sling 1-leg 24.0mm 1R/1H 6300kg L=3m galv EN1341
    Reference no. 491282
    Working load limit 0° [kg] 6300
    Working load limit laced 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 3
    Weight approx. [kg] 14.908
Working load limit 0° [kg] 6300
Working load limit laced 5000
Effective length WLL [m] 4
Reference no. 491283
  • Details
    Wire Rope Sling 1-leg 24.0mm 1R/1H 6300kg L=4m galv EN1341
    Reference no. 491283
    Working load limit 0° [kg] 6300
    Working load limit laced 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 4
    Weight approx. [kg] 17.098
Working load limit 0° [kg] 6300
Working load limit laced 5000
Effective length WLL [m] 5
Reference no. 491284
  • Details
    Wire Rope Sling 1-leg 24.0mm 1R/1H 6300kg L=5m galv EN1341
    Reference no. 491284
    Working load limit 0° [kg] 6300
    Working load limit laced 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 5
    Weight approx. [kg] 19.288
Working load limit 0° [kg] 7000
Working load limit laced 5600
Effective length WLL [m] 2
Reference no. 491285
  • Details
    Wire Rope Sling 1-leg 26.0mm 1R/1H 7000kg L=2m galv EN1341
    Reference no. 491285
    Working load limit 0° [kg] 7000
    Working load limit laced 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 15.88
Working load limit 0° [kg] 7000
Working load limit laced 5600
Effective length WLL [m] 3
Reference no. 491286
  • Details
    Wire Rope Sling 1-leg 26.0mm 1R/1H 7000kg L=3m galv EN1341
    Reference no. 491286
    Working load limit 0° [kg] 7000
    Working load limit laced 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 18.45
Working load limit 0° [kg] 7000
Working load limit laced 5600
Effective length WLL [m] 4
Reference no. 491287
  • Details
    Wire Rope Sling 1-leg 26.0mm 1R/1H 7000kg L=4m galv EN1341
    Reference no. 491287
    Working load limit 0° [kg] 7000
    Working load limit laced 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 21.02
Working load limit 0° [kg] 7000
Working load limit laced 5600
Effective length WLL [m] 5
Reference no. 491288
  • Details
    Wire Rope Sling 1-leg 26.0mm 1R/1H 7000kg L=5m galv EN1341
    Reference no. 491288
    Working load limit 0° [kg] 7000
    Working load limit laced 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 5
    Weight approx. [kg] 23.59
Working load limit 0° [kg] 8000
Working load limit laced 6400
Effective length WLL [m] 2
Reference no. 491289
  • Details
    Wire Rope Sling 1-leg 28.0mm 1R/1H 8000kg L=2m galv EN1341
    Reference no. 491289
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 2
    Weight approx. [kg] 18.311
Working load limit 0° [kg] 8000
Working load limit laced 6000
Effective length WLL [m] 3
Reference no. 704145
  • Details
    GA1-28-8T-SEN-RM-H-3M
    Reference no. 704145
    Working load limit 0° [kg] 8000
    Working load limit laced 6000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 3
    Weight approx. [kg] 21
Working load limit 0° [kg] 8000
Working load limit laced 6400
Effective length WLL [m] 4
Reference no. 491291
  • Details
    Wire Rope Sling 1-leg 28.0mm 1R/1H 8000kg L=4m galv EN1341
    Reference no. 491291
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 4
    Weight approx. [kg] 24.271
Working load limit 0° [kg] 8000
Working load limit laced 6400
Effective length WLL [m] 5
Reference no. 491292
  • Details
    Wire Rope Sling 1-leg 28.0mm 1R/1H 8000kg L=5m galv EN1341
    Reference no. 491292
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 5
    Weight approx. [kg] 27.251
Downloads

Applications

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
