Wire rope sling suspension gear

Wire rope sling suspension gear

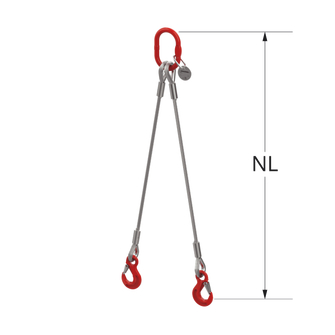

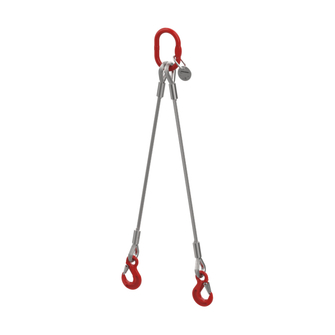

2-leg wire rope sling with thimble on both sides for long-lasting application and safety load hook. Galvanised version resists corrosion.
Technical data

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +100 °C

Standard

  • similar to EN 13414-1

Marking

  • WLL identification tag

Safety factor

  • 5

Surface

  • galvanized

Component surface

  • coated

Suspension

  • Oval ring

End fitting

  • eye load hook
Product variants
Working load limit 0° 0–45° [kg]
Working load limit 0° 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Effective length WLL [m]
Reference no.
Details
  • 950
    700
    760
    560
    2
    491306
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=2m ga
    Reference no. 491306
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 2.462
  • 950
    700
    760
    560
    3
    491307
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=3m ga
    Reference no. 491307
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 2.904
  • 950
    700
    760
    560
    4
    491308
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=4m ga
    Reference no. 491308
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 3.346
  • 950
    700
    760
    560
    5
    491309
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=5m ga
    Reference no. 491309
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 3.788
  • 950
    700
    760
    560
    6
    491310
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=6m ga
    Reference no. 491310
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 4.23
  • 1400
    1000
    1100
    800
    2
    491311
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=2m
    Reference no. 491311
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 3.447
  • 1400
    1000
    1100
    800
    3
    491312
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=3m
    Reference no. 491312
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 4.139
  • 1400
    1000
    1100
    800
    4
    491313
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=4m
    Reference no. 491313
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 4.831
  • 1400
    1000
    1100
    800
    5
    491314
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=5m
    Reference no. 491314
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 5.523
  • 1400
    1000
    1100
    800
    6
    491315
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=6m
    Reference no. 491315
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 6.215
  • 2100
    1500
    1700
    1200
    2
    491316
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=2m
    Reference no. 491316
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4.297
  • 2100
    1500
    1700
    1200
    3
    491317
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=3m
    Reference no. 491317
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 3
    Weight approx. [kg] 5.293
  • 2100
    1500
    1700
    1200
    4
    491318
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=4m
    Reference no. 491318
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 6.289
  • 2100
    1500
    1700
    1200
    5
    491319
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=5m
    Reference no. 491319
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 5
    Weight approx. [kg] 7.285
  • 2100
    1500
    1700
    1200
    6
    491320
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=6m
    Reference no. 491320
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 6
    Weight approx. [kg] 8.281
  • 2800
    2000
    2250
    1600
    2
    491321
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=2m
    Reference no. 491321
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 2
    Weight approx. [kg] 6.258
  • 2800
    2000
    2250
    1600
    3
    491322
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=3m
    Reference no. 491322
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 3
    Weight approx. [kg] 7.748
  • 2800
    2000
    2250
    1600
    4
    491323
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=4m
    Reference no. 491323
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 4
    Weight approx. [kg] 9.238
  • 2800
    2000
    2250
    1600
    5
    491324
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=5m
    Reference no. 491324
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 5
    Weight approx. [kg] 10.728
  • 2800
    2000
    2250
    1600
    6
    491325
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=6m
    Reference no. 491325
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 6
    Weight approx. [kg] 12.218
  • 3800
    2700
    3050
    2150
    2
    491326
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=2m
    Reference no. 491326
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 8.071
  • 3800
    2700
    3050
    2150
    3
    491327
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=3m
    Reference no. 491327
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 10.161
  • 3800
    2700
    3050
    2150
    4
    491328
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=4m
    Reference no. 491328
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 12.107
  • 3800
    2700
    3050
    2150
    5
    491329
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=5m
    Reference no. 491329
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 14.053
  • 3800
    2700
    3050
    2150
    6
    491330
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=6m
    Reference no. 491330
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 15.999
  • 4400
    3150
    3500
    2500
    2
    491331
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=2m
    Reference no. 491331
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 10.395
  • 4400
    3150
    3500
    2500
    3
    491332
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=3m
    Reference no. 491332
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 12.855
  • 4400
    3150
    3500
    2500
    4
    491333
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=4m
    Reference no. 491333
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 15.315
  • 4400
    3150
    3500
    2500
    5
    491334
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=5m
    Reference no. 491334
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 5
    Weight approx. [kg] 17.775
  • 4400
    3150
    3500
    2500
    6
    491335
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=6m
    Reference no. 491335
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 20.235
  • 5600
    4000
    4500
    3200
    2
    491336
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=2m
    Reference no. 491336
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 13.408
  • 5600
    4000
    4500
    3200
    3
    491337
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=3m
    Reference no. 491337
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 16.448
  • 5600
    4000
    4500
    3200
    4
    491338
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=4m
    Reference no. 491338
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 19.488
  • 5600
    4000
    4500
    3200
    5
    491339
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=5m
    Reference no. 491339
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 22.528
  • 5600
    4000
    4500
    3200
    6
    491340
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=6m
    Reference no. 491340
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 25.568
  • 7000
    5000
    5600
    4000
    2
    491341
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=2m
    Reference no. 491341
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 16.202
  • 7000
    5000
    5600
    4000
    3
    491342
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=3m
    Reference no. 491342
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 19.882
  • 7000
    5000
    5600
    4000
    4
    491343
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=4m
    Reference no. 491343
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 23.562
  • 7000
    5000
    5600
    4000
    5
    491344
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=5m
    Reference no. 491344
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 5
    Weight approx. [kg] 27.242
  • 7000
    5000
    5600
    4000
    6
    491345
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=6m
    Reference no. 491345
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 30.922
  • 8800
    6300
    7000
    5000
    2
    491346
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=2m
    Reference no. 491346
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 2
    Weight approx. [kg] 22.327
  • 8800
    6300
    7000
    5000
    3
    491347
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=3m
    Reference no. 491347
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 3
    Weight approx. [kg] 26.707
  • 8800
    6300
    7000
    5000
    4
    491348
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=4m
    Reference no. 491348
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 4
    Weight approx. [kg] 31.087
  • 8800
    6300
    7000
    5000
    5
    491349
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=5m
    Reference no. 491349
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 5
    Weight approx. [kg] 35.467
  • 8800
    6300
    7000
    5000
    6
    491350
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=6m
    Reference no. 491350
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 6
    Weight approx. [kg] 39.847
  • 9800
    7000
    7800
    5600
    2
    491351
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=2m
    Reference no. 491351
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 26.186
  • 9800
    7000
    7800
    5600
    3
    491352
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=3m
    Reference no. 491352
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 31.326
  • 9800
    7000
    7800
    5600
    4
    491353
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=4m
    Reference no. 491353
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 36.466
  • 9800
    7000
    7800
    5600
    5
    491354
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=5m
    Reference no. 491354
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 5
    Weight approx. [kg] 41.606
  • 9800
    7000
    7800
    5600
    6
    491355
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=6m
    Reference no. 491355
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 46.746
  • 11200
    8000
    9000
    6400
    2
    491356
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=2m
    Reference no. 491356
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 2
    Weight approx. [kg] 29.27
  • 11200
    8000
    9000
    6400
    3
    491357
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=3m
    Reference no. 491357
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 3
    Weight approx. [kg] 34.69
  • 11200
    8000
    9000
    6400
    4
    491358
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=4m
    Reference no. 491358
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 4
    Weight approx. [kg] 40.11
  • 11200
    8000
    9000
    6400
    5
    491359
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=5m
    Reference no. 491359
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 5
    Weight approx. [kg] 45.53
  • 11200
    8000
    9000
    6400
    6
    491360
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=6m
    Reference no. 491360
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 6
    Weight approx. [kg] 50.95
  • 15000
    11000
    12000
    8800
    2
    491361
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=2m
    Reference no. 491361
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 41.646
  • 15000
    11000
    12000
    8800
    3
    491362
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=3m
    Reference no. 491362
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 48.726
  • 15000
    11000
    12000
    8800
    4
    491363
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=4m
    Reference no. 491363
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 55.806
  • 15000
    11000
    12000
    8800
    5
    491364
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=5m
    Reference no. 491364
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 5
    Weight approx. [kg] 62.886
  • 15000
    11000
    12000
    8800
    6
    491365
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=6m
    Reference no. 491365
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 69.966
Working load limit 0° 0–45° [kg] 950
Working load limit 0° 45−60° [kg] 700
Working load limit laced 0–45° [kg] 760
Working load limit laced 45−60° [kg] 560
Effective length WLL [m] 2
Reference no. 491306
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=2m ga
    Reference no. 491306
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 2.462
Working load limit 0° 0–45° [kg] 950
Working load limit 0° 45−60° [kg] 700
Working load limit laced 0–45° [kg] 760
Working load limit laced 45−60° [kg] 560
Effective length WLL [m] 3
Reference no. 491307
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=3m ga
    Reference no. 491307
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 2.904
Working load limit 0° 0–45° [kg] 950
Working load limit 0° 45−60° [kg] 700
Working load limit laced 0–45° [kg] 760
Working load limit laced 45−60° [kg] 560
Effective length WLL [m] 4
Reference no. 491308
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=4m ga
    Reference no. 491308
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 3.346
Working load limit 0° 0–45° [kg] 950
Working load limit 0° 45−60° [kg] 700
Working load limit laced 0–45° [kg] 760
Working load limit laced 45−60° [kg] 560
Effective length WLL [m] 5
Reference no. 491309
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=5m ga
    Reference no. 491309
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 3.788
Working load limit 0° 0–45° [kg] 950
Working load limit 0° 45−60° [kg] 700
Working load limit laced 0–45° [kg] 760
Working load limit laced 45−60° [kg] 560
Effective length WLL [m] 6
Reference no. 491310
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 950kg 8.0 NL=6m ga
    Reference no. 491310
    Working load limit 0° 0–45° [kg] 950
    Working load limit 0° 45−60° [kg] 700
    Working load limit laced 0–45° [kg] 760
    Working load limit laced 45−60° [kg] 560
    Rope Ø ds [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 4.23
Working load limit 0° 0–45° [kg] 1400
Working load limit 0° 45−60° [kg] 1000
Working load limit laced 0–45° [kg] 1100
Working load limit laced 45−60° [kg] 800
Effective length WLL [m] 2
Reference no. 491311
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=2m
    Reference no. 491311
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 3.447
Working load limit 0° 0–45° [kg] 1400
Working load limit 0° 45−60° [kg] 1000
Working load limit laced 0–45° [kg] 1100
Working load limit laced 45−60° [kg] 800
Effective length WLL [m] 3
Reference no. 491312
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=3m
    Reference no. 491312
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 4.139
Working load limit 0° 0–45° [kg] 1400
Working load limit 0° 45−60° [kg] 1000
Working load limit laced 0–45° [kg] 1100
Working load limit laced 45−60° [kg] 800
Effective length WLL [m] 4
Reference no. 491313
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=4m
    Reference no. 491313
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 4.831
Working load limit 0° 0–45° [kg] 1400
Working load limit 0° 45−60° [kg] 1000
Working load limit laced 0–45° [kg] 1100
Working load limit laced 45−60° [kg] 800
Effective length WLL [m] 5
Reference no. 491314
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=5m
    Reference no. 491314
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 5.523
Working load limit 0° 0–45° [kg] 1400
Working load limit 0° 45−60° [kg] 1000
Working load limit laced 0–45° [kg] 1100
Working load limit laced 45−60° [kg] 800
Effective length WLL [m] 6
Reference no. 491315
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 1400kg 10.0 NL=6m
    Reference no. 491315
    Working load limit 0° 0–45° [kg] 1400
    Working load limit 0° 45−60° [kg] 1000
    Working load limit laced 0–45° [kg] 1100
    Working load limit laced 45−60° [kg] 800
    Rope Ø ds [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 6.215
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Working load limit laced 0–45° [kg] 1700
Working load limit laced 45−60° [kg] 1200
Effective length WLL [m] 2
Reference no. 491316
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=2m
    Reference no. 491316
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4.297
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Working load limit laced 0–45° [kg] 1700
Working load limit laced 45−60° [kg] 1200
Effective length WLL [m] 3
Reference no. 491317
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=3m
    Reference no. 491317
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 3
    Weight approx. [kg] 5.293
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Working load limit laced 0–45° [kg] 1700
Working load limit laced 45−60° [kg] 1200
Effective length WLL [m] 4
Reference no. 491318
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=4m
    Reference no. 491318
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 6.289
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Working load limit laced 0–45° [kg] 1700
Working load limit laced 45−60° [kg] 1200
Effective length WLL [m] 5
Reference no. 491319
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=5m
    Reference no. 491319
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 5
    Weight approx. [kg] 7.285
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Working load limit laced 0–45° [kg] 1700
Working load limit laced 45−60° [kg] 1200
Effective length WLL [m] 6
Reference no. 491320
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2100kg 12.0 NL=6m
    Reference no. 491320
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Working load limit laced 0–45° [kg] 1700
    Working load limit laced 45−60° [kg] 1200
    Rope Ø ds [mm] 12
    Effective length WLL [m] 6
    Weight approx. [kg] 8.281
Working load limit 0° 0–45° [kg] 2800
Working load limit 0° 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2250
Working load limit laced 45−60° [kg] 1600
Effective length WLL [m] 2
Reference no. 491321
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=2m
    Reference no. 491321
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 2
    Weight approx. [kg] 6.258
Working load limit 0° 0–45° [kg] 2800
Working load limit 0° 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2250
Working load limit laced 45−60° [kg] 1600
Effective length WLL [m] 3
Reference no. 491322
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=3m
    Reference no. 491322
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 3
    Weight approx. [kg] 7.748
Working load limit 0° 0–45° [kg] 2800
Working load limit 0° 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2250
Working load limit laced 45−60° [kg] 1600
Effective length WLL [m] 4
Reference no. 491323
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=4m
    Reference no. 491323
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 4
    Weight approx. [kg] 9.238
Working load limit 0° 0–45° [kg] 2800
Working load limit 0° 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2250
Working load limit laced 45−60° [kg] 1600
Effective length WLL [m] 5
Reference no. 491324
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=5m
    Reference no. 491324
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 5
    Weight approx. [kg] 10.728
Working load limit 0° 0–45° [kg] 2800
Working load limit 0° 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2250
Working load limit laced 45−60° [kg] 1600
Effective length WLL [m] 6
Reference no. 491325
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 2800kg 14.0 NL=6m
    Reference no. 491325
    Working load limit 0° 0–45° [kg] 2800
    Working load limit 0° 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2250
    Working load limit laced 45−60° [kg] 1600
    Rope Ø ds [mm] 14
    Effective length WLL [m] 6
    Weight approx. [kg] 12.218
Working load limit 0° 0–45° [kg] 3800
Working load limit 0° 45−60° [kg] 2700
Working load limit laced 0–45° [kg] 3050
Working load limit laced 45−60° [kg] 2150
Effective length WLL [m] 2
Reference no. 491326
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=2m
    Reference no. 491326
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 8.071
Working load limit 0° 0–45° [kg] 3800
Working load limit 0° 45−60° [kg] 2700
Working load limit laced 0–45° [kg] 3050
Working load limit laced 45−60° [kg] 2150
Effective length WLL [m] 3
Reference no. 491327
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=3m
    Reference no. 491327
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 10.161
Working load limit 0° 0–45° [kg] 3800
Working load limit 0° 45−60° [kg] 2700
Working load limit laced 0–45° [kg] 3050
Working load limit laced 45−60° [kg] 2150
Effective length WLL [m] 4
Reference no. 491328
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=4m
    Reference no. 491328
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 12.107
Working load limit 0° 0–45° [kg] 3800
Working load limit 0° 45−60° [kg] 2700
Working load limit laced 0–45° [kg] 3050
Working load limit laced 45−60° [kg] 2150
Effective length WLL [m] 5
Reference no. 491329
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=5m
    Reference no. 491329
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 14.053
Working load limit 0° 0–45° [kg] 3800
Working load limit 0° 45−60° [kg] 2700
Working load limit laced 0–45° [kg] 3050
Working load limit laced 45−60° [kg] 2150
Effective length WLL [m] 6
Reference no. 491330
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 3800kg 16.0 NL=6m
    Reference no. 491330
    Working load limit 0° 0–45° [kg] 3800
    Working load limit 0° 45−60° [kg] 2700
    Working load limit laced 0–45° [kg] 3050
    Working load limit laced 45−60° [kg] 2150
    Rope Ø ds [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 15.999
Working load limit 0° 0–45° [kg] 4400
Working load limit 0° 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3500
Working load limit laced 45−60° [kg] 2500
Effective length WLL [m] 2
Reference no. 491331
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=2m
    Reference no. 491331
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 10.395
Working load limit 0° 0–45° [kg] 4400
Working load limit 0° 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3500
Working load limit laced 45−60° [kg] 2500
Effective length WLL [m] 3
Reference no. 491332
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=3m
    Reference no. 491332
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 12.855
Working load limit 0° 0–45° [kg] 4400
Working load limit 0° 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3500
Working load limit laced 45−60° [kg] 2500
Effective length WLL [m] 4
Reference no. 491333
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=4m
    Reference no. 491333
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 15.315
Working load limit 0° 0–45° [kg] 4400
Working load limit 0° 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3500
Working load limit laced 45−60° [kg] 2500
Effective length WLL [m] 5
Reference no. 491334
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=5m
    Reference no. 491334
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 5
    Weight approx. [kg] 17.775
Working load limit 0° 0–45° [kg] 4400
Working load limit 0° 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3500
Working load limit laced 45−60° [kg] 2500
Effective length WLL [m] 6
Reference no. 491335
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 4400kg 18.0 NL=6m
    Reference no. 491335
    Working load limit 0° 0–45° [kg] 4400
    Working load limit 0° 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3500
    Working load limit laced 45−60° [kg] 2500
    Rope Ø ds [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 20.235
Working load limit 0° 0–45° [kg] 5600
Working load limit 0° 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4500
Working load limit laced 45−60° [kg] 3200
Effective length WLL [m] 2
Reference no. 491336
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=2m
    Reference no. 491336
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 13.408
Working load limit 0° 0–45° [kg] 5600
Working load limit 0° 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4500
Working load limit laced 45−60° [kg] 3200
Effective length WLL [m] 3
Reference no. 491337
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=3m
    Reference no. 491337
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 16.448
Working load limit 0° 0–45° [kg] 5600
Working load limit 0° 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4500
Working load limit laced 45−60° [kg] 3200
Effective length WLL [m] 4
Reference no. 491338
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=4m
    Reference no. 491338
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 19.488
Working load limit 0° 0–45° [kg] 5600
Working load limit 0° 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4500
Working load limit laced 45−60° [kg] 3200
Effective length WLL [m] 5
Reference no. 491339
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=5m
    Reference no. 491339
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 22.528
Working load limit 0° 0–45° [kg] 5600
Working load limit 0° 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4500
Working load limit laced 45−60° [kg] 3200
Effective length WLL [m] 6
Reference no. 491340
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 5600kg 20.0 NL=6m
    Reference no. 491340
    Working load limit 0° 0–45° [kg] 5600
    Working load limit 0° 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4500
    Working load limit laced 45−60° [kg] 3200
    Rope Ø ds [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 25.568
Working load limit 0° 0–45° [kg] 7000
Working load limit 0° 45−60° [kg] 5000
Working load limit laced 0–45° [kg] 5600
Working load limit laced 45−60° [kg] 4000
Effective length WLL [m] 2
Reference no. 491341
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=2m
    Reference no. 491341
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 16.202
Working load limit 0° 0–45° [kg] 7000
Working load limit 0° 45−60° [kg] 5000
Working load limit laced 0–45° [kg] 5600
Working load limit laced 45−60° [kg] 4000
Effective length WLL [m] 3
Reference no. 491342
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=3m
    Reference no. 491342
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 19.882
Working load limit 0° 0–45° [kg] 7000
Working load limit 0° 45−60° [kg] 5000
Working load limit laced 0–45° [kg] 5600
Working load limit laced 45−60° [kg] 4000
Effective length WLL [m] 4
Reference no. 491343
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=4m
    Reference no. 491343
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 23.562
Working load limit 0° 0–45° [kg] 7000
Working load limit 0° 45−60° [kg] 5000
Working load limit laced 0–45° [kg] 5600
Working load limit laced 45−60° [kg] 4000
Effective length WLL [m] 5
Reference no. 491344
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=5m
    Reference no. 491344
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 5
    Weight approx. [kg] 27.242
Working load limit 0° 0–45° [kg] 7000
Working load limit 0° 45−60° [kg] 5000
Working load limit laced 0–45° [kg] 5600
Working load limit laced 45−60° [kg] 4000
Effective length WLL [m] 6
Reference no. 491345
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 7000kg 22.0 NL=6m
    Reference no. 491345
    Working load limit 0° 0–45° [kg] 7000
    Working load limit 0° 45−60° [kg] 5000
    Working load limit laced 0–45° [kg] 5600
    Working load limit laced 45−60° [kg] 4000
    Rope Ø ds [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 30.922
Working load limit 0° 0–45° [kg] 8800
Working load limit 0° 45−60° [kg] 6300
Working load limit laced 0–45° [kg] 7000
Working load limit laced 45−60° [kg] 5000
Effective length WLL [m] 2
Reference no. 491346
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=2m
    Reference no. 491346
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 2
    Weight approx. [kg] 22.327
Working load limit 0° 0–45° [kg] 8800
Working load limit 0° 45−60° [kg] 6300
Working load limit laced 0–45° [kg] 7000
Working load limit laced 45−60° [kg] 5000
Effective length WLL [m] 3
Reference no. 491347
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=3m
    Reference no. 491347
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 3
    Weight approx. [kg] 26.707
Working load limit 0° 0–45° [kg] 8800
Working load limit 0° 45−60° [kg] 6300
Working load limit laced 0–45° [kg] 7000
Working load limit laced 45−60° [kg] 5000
Effective length WLL [m] 4
Reference no. 491348
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=4m
    Reference no. 491348
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 4
    Weight approx. [kg] 31.087
Working load limit 0° 0–45° [kg] 8800
Working load limit 0° 45−60° [kg] 6300
Working load limit laced 0–45° [kg] 7000
Working load limit laced 45−60° [kg] 5000
Effective length WLL [m] 5
Reference no. 491349
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=5m
    Reference no. 491349
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 5
    Weight approx. [kg] 35.467
Working load limit 0° 0–45° [kg] 8800
Working load limit 0° 45−60° [kg] 6300
Working load limit laced 0–45° [kg] 7000
Working load limit laced 45−60° [kg] 5000
Effective length WLL [m] 6
Reference no. 491350
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 8800kg 24.0 NL=6m
    Reference no. 491350
    Working load limit 0° 0–45° [kg] 8800
    Working load limit 0° 45−60° [kg] 6300
    Working load limit laced 0–45° [kg] 7000
    Working load limit laced 45−60° [kg] 5000
    Rope Ø ds [mm] 24
    Effective length WLL [m] 6
    Weight approx. [kg] 39.847
Working load limit 0° 0–45° [kg] 9800
Working load limit 0° 45−60° [kg] 7000
Working load limit laced 0–45° [kg] 7800
Working load limit laced 45−60° [kg] 5600
Effective length WLL [m] 2
Reference no. 491351
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=2m
    Reference no. 491351
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 26.186
Working load limit 0° 0–45° [kg] 9800
Working load limit 0° 45−60° [kg] 7000
Working load limit laced 0–45° [kg] 7800
Working load limit laced 45−60° [kg] 5600
Effective length WLL [m] 3
Reference no. 491352
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=3m
    Reference no. 491352
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 31.326
Working load limit 0° 0–45° [kg] 9800
Working load limit 0° 45−60° [kg] 7000
Working load limit laced 0–45° [kg] 7800
Working load limit laced 45−60° [kg] 5600
Effective length WLL [m] 4
Reference no. 491353
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=4m
    Reference no. 491353
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 36.466
Working load limit 0° 0–45° [kg] 9800
Working load limit 0° 45−60° [kg] 7000
Working load limit laced 0–45° [kg] 7800
Working load limit laced 45−60° [kg] 5600
Effective length WLL [m] 5
Reference no. 491354
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=5m
    Reference no. 491354
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 5
    Weight approx. [kg] 41.606
Working load limit 0° 0–45° [kg] 9800
Working load limit 0° 45−60° [kg] 7000
Working load limit laced 0–45° [kg] 7800
Working load limit laced 45−60° [kg] 5600
Effective length WLL [m] 6
Reference no. 491355
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 9800kg 26.0 NL=6m
    Reference no. 491355
    Working load limit 0° 0–45° [kg] 9800
    Working load limit 0° 45−60° [kg] 7000
    Working load limit laced 0–45° [kg] 7800
    Working load limit laced 45−60° [kg] 5600
    Rope Ø ds [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 46.746
Working load limit 0° 0–45° [kg] 11200
Working load limit 0° 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6400
Effective length WLL [m] 2
Reference no. 491356
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=2m
    Reference no. 491356
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 2
    Weight approx. [kg] 29.27
Working load limit 0° 0–45° [kg] 11200
Working load limit 0° 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6400
Effective length WLL [m] 3
Reference no. 491357
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=3m
    Reference no. 491357
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 3
    Weight approx. [kg] 34.69
Working load limit 0° 0–45° [kg] 11200
Working load limit 0° 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6400
Effective length WLL [m] 4
Reference no. 491358
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=4m
    Reference no. 491358
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 4
    Weight approx. [kg] 40.11
Working load limit 0° 0–45° [kg] 11200
Working load limit 0° 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6400
Effective length WLL [m] 5
Reference no. 491359
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=5m
    Reference no. 491359
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 5
    Weight approx. [kg] 45.53
Working load limit 0° 0–45° [kg] 11200
Working load limit 0° 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6400
Effective length WLL [m] 6
Reference no. 491360
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 11200kg 28.0 NL=6m
    Reference no. 491360
    Working load limit 0° 0–45° [kg] 11200
    Working load limit 0° 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6400
    Rope Ø ds [mm] 28
    Effective length WLL [m] 6
    Weight approx. [kg] 50.95
Working load limit 0° 0–45° [kg] 15000
Working load limit 0° 45−60° [kg] 11000
Working load limit laced 0–45° [kg] 12000
Working load limit laced 45−60° [kg] 8800
Effective length WLL [m] 2
Reference no. 491361
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=2m
    Reference no. 491361
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 41.646
Working load limit 0° 0–45° [kg] 15000
Working load limit 0° 45−60° [kg] 11000
Working load limit laced 0–45° [kg] 12000
Working load limit laced 45−60° [kg] 8800
Effective length WLL [m] 3
Reference no. 491362
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=3m
    Reference no. 491362
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 48.726
Working load limit 0° 0–45° [kg] 15000
Working load limit 0° 45−60° [kg] 11000
Working load limit laced 0–45° [kg] 12000
Working load limit laced 45−60° [kg] 8800
Effective length WLL [m] 4
Reference no. 491363
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=4m
    Reference no. 491363
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 55.806
Working load limit 0° 0–45° [kg] 15000
Working load limit 0° 45−60° [kg] 11000
Working load limit laced 0–45° [kg] 12000
Working load limit laced 45−60° [kg] 8800
Effective length WLL [m] 5
Reference no. 491364
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=5m
    Reference no. 491364
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 5
    Weight approx. [kg] 62.886
Working load limit 0° 0–45° [kg] 15000
Working load limit 0° 45−60° [kg] 11000
Working load limit laced 0–45° [kg] 12000
Working load limit laced 45−60° [kg] 8800
Effective length WLL [m] 6
Reference no. 491365
  • Details
    Wire Rope Sling 2-leg w.Safety-H. 15000kg 32.0 NL=6m
    Reference no. 491365
    Working load limit 0° 0–45° [kg] 15000
    Working load limit 0° 45−60° [kg] 11000
    Working load limit laced 0–45° [kg] 12000
    Working load limit laced 45−60° [kg] 8800
    Rope Ø ds [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 69.966
Downloads

Applications

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
