Wire rope sling suspension gear

Wire rope sling suspension gear

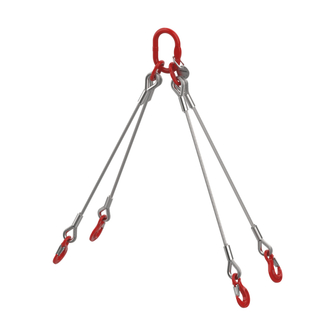

4-leg wire rope sling with thimble on both sides for long-lasting application and safety load hook. Galvanised version resists corrosion.
Technical data

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +100 °C

Standard

  • similar to EN 13414-1

Marking

  • WLL identification tag

Safety factor

  • 5

Surface

  • galvanized

Component surface

  • coated

Suspension

  • Suspension set

End fitting

  • eye load hook
Product variants
Working load limit 0° 0–45° [kg]
Working load limit 0° 45−60° [kg]

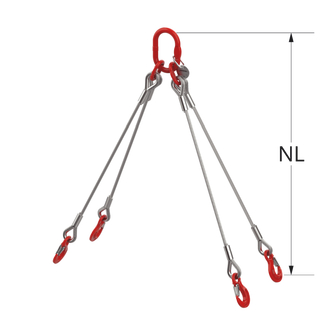

Effective length WLL [m]
Reference no.
Details
  • 1450
    1050
    2
    491371
    GA4-8-1.45T-SEN-GA-H-2M
    Reference no. 491371
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 5.978
  • 1450
    1050
    3
    491372
    GA4-8-1.45T-SEN-GA-H-3M
    Reference no. 491372
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 7.498
  • 1450
    1050
    4
    491373
    GA4-8-1.45T-SEN-GA-H-4M
    Reference no. 491373
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 9.018
  • 1450
    1050
    5
    491374
    GA4-8-1.45T-SEN-GA-H-5M
    Reference no. 491374
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 10.538
  • 1450
    1050
    6
    491375
    GA4-8-1.45T-SEN-GA-H-6M
    Reference no. 491375
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 12.058
  • 2100
    1500
    2
    491376
    GA4-10-2.1T-SEN-GA-H-2M
    Reference no. 491376
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 6.483
  • 2100
    1500
    3
    491377
    GA4-10-2.1T-SEN-GA-H-3M
    Reference no. 491377
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 7.867
  • 2100
    1500
    4
    491378
    GA4-10-2.1T-SEN-GA-H-4M
    Reference no. 491378
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 9.251
  • 2100
    1500
    5
    491379
    GA4-10-2.1T-SEN-GA-H-5M
    Reference no. 491379
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 10.635
  • 2100
    1500
    6
    491380
    GA4-10-2.1T-SEN-GA-H-6M
    Reference no. 491380
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 12.019
  • 3150
    2300
    2
    491381
    GA4-12-3.15T-SEN-GA-H-2M
    Reference no. 491381
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 8.26
  • 3150
    2300
    3
    491382
    GA4-12-3.15T-SEN-GA-H-3M
    Reference no. 491382
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 3
    Weight approx. [kg] 10.252
  • 3150
    2300
    4
    491383
    GA4-12-3.15T-SEN-GA-H-4M
    Reference no. 491383
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 12.244
  • 3150
    2300
    5
    491384
    GA4-12-3.15T-SEN-GA-H-5M
    Reference no. 491384
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 5
    Weight approx. [kg] 14.236
  • 3150
    2300
    6
    491385
    GA4-12-3.15T-SEN-GA-H-6M
    Reference no. 491385
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 6
    Weight approx. [kg] 16.228
  • 4200
    3000
    2
    491386
    GA4-14-4.2T-SEN-GA-H-2M
    Reference no. 491386
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 2
    Weight approx. [kg] 10.577
  • 4200
    3000
    3
    491387
    GA4-14-4.2T-SEN-GA-H-3M
    Reference no. 491387
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 3
    Weight approx. [kg] 13.289
  • 4200
    3000
    4
    491388
    GA4-14-4.2T-SEN-GA-H-4M
    Reference no. 491388
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 4
    Weight approx. [kg] 16.001
  • 4200
    3000
    5
    491389
    GA4-14-4.2T-SEN-GA-H-5M
    Reference no. 491389
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 5
    Weight approx. [kg] 18.713
  • 4200
    3000
    6
    491390
    GA4-14-4.2T-SEN-GA-H-6M
    Reference no. 491390
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 6
    Weight approx. [kg] 21.425
  • 5700
    4000
    2
    491391
    GA4-16-5.7T-SEN-GA-H-2M
    Reference no. 491391
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 13.7
  • 5700
    4000
    3
    491392
    GA4-16-5.7T-SEN-GA-H-3M
    Reference no. 491392
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 17.592
  • 5700
    4000
    4
    491393
    GA4-16-5.7T-SEN-GA-H-4M
    Reference no. 491393
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 21.484
  • 5700
    4000
    5
    491394
    GA4-16-5.7T-SEN-GA-H-5M
    Reference no. 491394
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 25.376
  • 5700
    4000
    6
    491395
    GA4-16-5.7T-SEN-GA-H-6M
    Reference no. 491395
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 29.268
  • 6600
    4700
    2
    491396
    GA4-18-6.6T-SEN-GA-H-2M
    Reference no. 491396
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 16.815
  • 6600
    4700
    3
    491397
    GA4-18-6.6T-SEN-GA-H-3M
    Reference no. 491397
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 21.735
  • 6600
    4700
    4
    491398
    GA4-18-6.6T-SEN-GA-H-4M
    Reference no. 491398
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 26.655
  • 6600
    4700
    5
    491399
    GA4-18-6.6T-SEN-GA-H-5M
    Reference no. 491399
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 5
    Weight approx. [kg] 31.575
  • 6600
    4700
    6
    491400
    GA4-18-6.6T-SEN-GA-H-6M
    Reference no. 491400
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 36.495
  • 8400
    6000
    2
    491401
    GA4-20-8.4T-SEN-GA-H-2M
    Reference no. 491401
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 24.303
  • 8400
    6000
    3
    491402
    GA4-20-8.4T-SEN-GA-H-3M
    Reference no. 491402
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 29.823
  • 8400
    6000
    4
    491403
    GA4-20-8.4T-SEN-GA-H-4M
    Reference no. 491403
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 35.343
  • 8400
    6000
    5
    491404
    GA4-20-8.4T-SEN-GA-H-5M
    Reference no. 491404
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 40.863
  • 8400
    6000
    6
    491405
    GA4-20-8.4T-SEN-GA-H-6M
    Reference no. 491405
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 46.383
  • 10500
    7500
    2
    491406
    GA4-22-10.5T-SEN-GA-H-2M
    Reference no. 491406
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 27.005
  • 10500
    7500
    3
    491407
    GA4-22-10.5T-SEN-GA-H-3M
    Reference no. 491407
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 33.685
  • 10500
    7500
    4
    491408
    GA4-22-10.5T-SEN-GA-H-4M
    Reference no. 491408
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 40.365
  • 10500
    7500
    5
    491409
    GA4-22-10.5T-SEN-GA-H-5M
    Reference no. 491409
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 5
    Weight approx. [kg] 47.045
  • 10500
    7500
    6
    491410
    GA4-22-10.5T-SEN-GA-H-6M
    Reference no. 491410
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 53.725
  • 13200
    9400
    2
    491411
    GA4-24-13.2T-SEN-GA-H-2M
    Reference no. 491411
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 2
    Weight approx. [kg] 35.645
  • 13200
    9400
    3
    491412
    GA4-24-13.2T-SEN-GA-H-3M
    Reference no. 491412
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 3
    Weight approx. [kg] 44.405
  • 13200
    9400
    4
    491413
    GA4-24-13.2T-SEN-GA-H-4M
    Reference no. 491413
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 4
    Weight approx. [kg] 53.165
  • 13200
    9400
    5
    491414
    GA4-24-13.2T-SEN-GA-H-5M
    Reference no. 491414
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 5
    Weight approx. [kg] 61.925
  • 13200
    9400
    6
    491415
    GA4-24-13.2T-SEN-GA-H-6M
    Reference no. 491415
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 6
    Weight approx. [kg] 70.685
  • 14700
    10500
    2
    491416
    GA4-26-14.7T-SEN-GA-H-2M
    Reference no. 491416
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 42.462
  • 14700
    10500
    3
    491417
    GA4-26-14.7T-SEN-GA-H-3M
    Reference no. 491417
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 52.742
  • 14700
    10500
    4
    491418
    GA4-26-14.7T-SEN-GA-H-4M
    Reference no. 491418
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 63.022
  • 14700
    10500
    5
    491419
    GA4-26-14.7T-SEN-GA-H-5M
    Reference no. 491419
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 5
    Weight approx. [kg] 73.302
  • 14700
    10500
    6
    491420
    GA4-26-14.7T-SEN-GA-H-6M
    Reference no. 491420
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 83.582
  • 16800
    12000
    2
    491421
    GA4-28-16.8T-SEN-GA-H-2M
    Reference no. 491421
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 2
    Weight approx. [kg] 44.519
  • 16800
    12000
    3
    491422
    GA4-28-16.8T-SEN-GA-H-3M
    Reference no. 491422
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 3
    Weight approx. [kg] 55.359
  • 16800
    12000
    4
    491423
    GA4-28-16.8T-SEN-GA-H-4M
    Reference no. 491423
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 4
    Weight approx. [kg] 66.199
  • 16800
    12000
    5
    491424
    GA4-28-16.8T-SEN-GA-H-5M
    Reference no. 491424
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 5
    Weight approx. [kg] 77.039
  • 16800
    12000
    6
    491425
    GA4-28-16.8T-SEN-GA-H-6M
    Reference no. 491425
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 6
    Weight approx. [kg] 87.879
  • 23000
    16500
    2
    491426
    GA4-32-23T-SEN-GA-H-2M
    Reference no. 491426
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 69.664
  • 23000
    16500
    3
    491427
    GA4-32-23T-SEN-GA-H-3M
    Reference no. 491427
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 84.704
  • 23000
    16500
    4
    491428
    GA4-32-23T-SEN-GA-H-4M
    Reference no. 491428
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 99.744
  • 23000
    16500
    5
    491429
    GA4-32-23T-SEN-GA-H-5M
    Reference no. 491429
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 5
    Weight approx. [kg] 114.784
  • 23000
    16500
    6
    491430
    GA4-32-23T-SEN-GA-H-6M
    Reference no. 491430
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 162.5
Working load limit 0° 0–45° [kg] 1450
Working load limit 0° 45−60° [kg] 1050
Effective length WLL [m] 2
Reference no. 491371
  • Details
    GA4-8-1.45T-SEN-GA-H-2M
    Reference no. 491371
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 5.978
Working load limit 0° 0–45° [kg] 1450
Working load limit 0° 45−60° [kg] 1050
Effective length WLL [m] 3
Reference no. 491372
  • Details
    GA4-8-1.45T-SEN-GA-H-3M
    Reference no. 491372
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 7.498
Working load limit 0° 0–45° [kg] 1450
Working load limit 0° 45−60° [kg] 1050
Effective length WLL [m] 4
Reference no. 491373
  • Details
    GA4-8-1.45T-SEN-GA-H-4M
    Reference no. 491373
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 9.018
Working load limit 0° 0–45° [kg] 1450
Working load limit 0° 45−60° [kg] 1050
Effective length WLL [m] 5
Reference no. 491374
  • Details
    GA4-8-1.45T-SEN-GA-H-5M
    Reference no. 491374
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 10.538
Working load limit 0° 0–45° [kg] 1450
Working load limit 0° 45−60° [kg] 1050
Effective length WLL [m] 6
Reference no. 491375
  • Details
    GA4-8-1.45T-SEN-GA-H-6M
    Reference no. 491375
    Working load limit 0° 0–45° [kg] 1450
    Working load limit 0° 45−60° [kg] 1050
    Rope Ø ds [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 12.058
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Effective length WLL [m] 2
Reference no. 491376
  • Details
    GA4-10-2.1T-SEN-GA-H-2M
    Reference no. 491376
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 6.483
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Effective length WLL [m] 3
Reference no. 491377
  • Details
    GA4-10-2.1T-SEN-GA-H-3M
    Reference no. 491377
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 7.867
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Effective length WLL [m] 4
Reference no. 491378
  • Details
    GA4-10-2.1T-SEN-GA-H-4M
    Reference no. 491378
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 9.251
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Effective length WLL [m] 5
Reference no. 491379
  • Details
    GA4-10-2.1T-SEN-GA-H-5M
    Reference no. 491379
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 10.635
Working load limit 0° 0–45° [kg] 2100
Working load limit 0° 45−60° [kg] 1500
Effective length WLL [m] 6
Reference no. 491380
  • Details
    GA4-10-2.1T-SEN-GA-H-6M
    Reference no. 491380
    Working load limit 0° 0–45° [kg] 2100
    Working load limit 0° 45−60° [kg] 1500
    Rope Ø ds [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 12.019
Working load limit 0° 0–45° [kg] 3150
Working load limit 0° 45−60° [kg] 2300
Effective length WLL [m] 2
Reference no. 491381
  • Details
    GA4-12-3.15T-SEN-GA-H-2M
    Reference no. 491381
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 8.26
Working load limit 0° 0–45° [kg] 3150
Working load limit 0° 45−60° [kg] 2300
Effective length WLL [m] 3
Reference no. 491382
  • Details
    GA4-12-3.15T-SEN-GA-H-3M
    Reference no. 491382
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 3
    Weight approx. [kg] 10.252
Working load limit 0° 0–45° [kg] 3150
Working load limit 0° 45−60° [kg] 2300
Effective length WLL [m] 4
Reference no. 491383
  • Details
    GA4-12-3.15T-SEN-GA-H-4M
    Reference no. 491383
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 12.244
Working load limit 0° 0–45° [kg] 3150
Working load limit 0° 45−60° [kg] 2300
Effective length WLL [m] 5
Reference no. 491384
  • Details
    GA4-12-3.15T-SEN-GA-H-5M
    Reference no. 491384
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 5
    Weight approx. [kg] 14.236
Working load limit 0° 0–45° [kg] 3150
Working load limit 0° 45−60° [kg] 2300
Effective length WLL [m] 6
Reference no. 491385
  • Details
    GA4-12-3.15T-SEN-GA-H-6M
    Reference no. 491385
    Working load limit 0° 0–45° [kg] 3150
    Working load limit 0° 45−60° [kg] 2300
    Rope Ø ds [mm] 12
    Effective length WLL [m] 6
    Weight approx. [kg] 16.228
Working load limit 0° 0–45° [kg] 4200
Working load limit 0° 45−60° [kg] 3000
Effective length WLL [m] 2
Reference no. 491386
  • Details
    GA4-14-4.2T-SEN-GA-H-2M
    Reference no. 491386
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 2
    Weight approx. [kg] 10.577
Working load limit 0° 0–45° [kg] 4200
Working load limit 0° 45−60° [kg] 3000
Effective length WLL [m] 3
Reference no. 491387
  • Details
    GA4-14-4.2T-SEN-GA-H-3M
    Reference no. 491387
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 3
    Weight approx. [kg] 13.289
Working load limit 0° 0–45° [kg] 4200
Working load limit 0° 45−60° [kg] 3000
Effective length WLL [m] 4
Reference no. 491388
  • Details
    GA4-14-4.2T-SEN-GA-H-4M
    Reference no. 491388
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 4
    Weight approx. [kg] 16.001
Working load limit 0° 0–45° [kg] 4200
Working load limit 0° 45−60° [kg] 3000
Effective length WLL [m] 5
Reference no. 491389
  • Details
    GA4-14-4.2T-SEN-GA-H-5M
    Reference no. 491389
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 5
    Weight approx. [kg] 18.713
Working load limit 0° 0–45° [kg] 4200
Working load limit 0° 45−60° [kg] 3000
Effective length WLL [m] 6
Reference no. 491390
  • Details
    GA4-14-4.2T-SEN-GA-H-6M
    Reference no. 491390
    Working load limit 0° 0–45° [kg] 4200
    Working load limit 0° 45−60° [kg] 3000
    Rope Ø ds [mm] 14
    Effective length WLL [m] 6
    Weight approx. [kg] 21.425
Working load limit 0° 0–45° [kg] 5700
Working load limit 0° 45−60° [kg] 4000
Effective length WLL [m] 2
Reference no. 491391
  • Details
    GA4-16-5.7T-SEN-GA-H-2M
    Reference no. 491391
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 13.7
Working load limit 0° 0–45° [kg] 5700
Working load limit 0° 45−60° [kg] 4000
Effective length WLL [m] 3
Reference no. 491392
  • Details
    GA4-16-5.7T-SEN-GA-H-3M
    Reference no. 491392
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 17.592
Working load limit 0° 0–45° [kg] 5700
Working load limit 0° 45−60° [kg] 4000
Effective length WLL [m] 4
Reference no. 491393
  • Details
    GA4-16-5.7T-SEN-GA-H-4M
    Reference no. 491393
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 21.484
Working load limit 0° 0–45° [kg] 5700
Working load limit 0° 45−60° [kg] 4000
Effective length WLL [m] 5
Reference no. 491394
  • Details
    GA4-16-5.7T-SEN-GA-H-5M
    Reference no. 491394
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 25.376
Working load limit 0° 0–45° [kg] 5700
Working load limit 0° 45−60° [kg] 4000
Effective length WLL [m] 6
Reference no. 491395
  • Details
    GA4-16-5.7T-SEN-GA-H-6M
    Reference no. 491395
    Working load limit 0° 0–45° [kg] 5700
    Working load limit 0° 45−60° [kg] 4000
    Rope Ø ds [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 29.268
Working load limit 0° 0–45° [kg] 6600
Working load limit 0° 45−60° [kg] 4700
Effective length WLL [m] 2
Reference no. 491396
  • Details
    GA4-18-6.6T-SEN-GA-H-2M
    Reference no. 491396
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 16.815
Working load limit 0° 0–45° [kg] 6600
Working load limit 0° 45−60° [kg] 4700
Effective length WLL [m] 3
Reference no. 491397
  • Details
    GA4-18-6.6T-SEN-GA-H-3M
    Reference no. 491397
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 21.735
Working load limit 0° 0–45° [kg] 6600
Working load limit 0° 45−60° [kg] 4700
Effective length WLL [m] 4
Reference no. 491398
  • Details
    GA4-18-6.6T-SEN-GA-H-4M
    Reference no. 491398
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 26.655
Working load limit 0° 0–45° [kg] 6600
Working load limit 0° 45−60° [kg] 4700
Effective length WLL [m] 5
Reference no. 491399
  • Details
    GA4-18-6.6T-SEN-GA-H-5M
    Reference no. 491399
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 5
    Weight approx. [kg] 31.575
Working load limit 0° 0–45° [kg] 6600
Working load limit 0° 45−60° [kg] 4700
Effective length WLL [m] 6
Reference no. 491400
  • Details
    GA4-18-6.6T-SEN-GA-H-6M
    Reference no. 491400
    Working load limit 0° 0–45° [kg] 6600
    Working load limit 0° 45−60° [kg] 4700
    Rope Ø ds [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 36.495
Working load limit 0° 0–45° [kg] 8400
Working load limit 0° 45−60° [kg] 6000
Effective length WLL [m] 2
Reference no. 491401
  • Details
    GA4-20-8.4T-SEN-GA-H-2M
    Reference no. 491401
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 24.303
Working load limit 0° 0–45° [kg] 8400
Working load limit 0° 45−60° [kg] 6000
Effective length WLL [m] 3
Reference no. 491402
  • Details
    GA4-20-8.4T-SEN-GA-H-3M
    Reference no. 491402
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 29.823
Working load limit 0° 0–45° [kg] 8400
Working load limit 0° 45−60° [kg] 6000
Effective length WLL [m] 4
Reference no. 491403
  • Details
    GA4-20-8.4T-SEN-GA-H-4M
    Reference no. 491403
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 35.343
Working load limit 0° 0–45° [kg] 8400
Working load limit 0° 45−60° [kg] 6000
Effective length WLL [m] 5
Reference no. 491404
  • Details
    GA4-20-8.4T-SEN-GA-H-5M
    Reference no. 491404
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 5
    Weight approx. [kg] 40.863
Working load limit 0° 0–45° [kg] 8400
Working load limit 0° 45−60° [kg] 6000
Effective length WLL [m] 6
Reference no. 491405
  • Details
    GA4-20-8.4T-SEN-GA-H-6M
    Reference no. 491405
    Working load limit 0° 0–45° [kg] 8400
    Working load limit 0° 45−60° [kg] 6000
    Rope Ø ds [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 46.383
Working load limit 0° 0–45° [kg] 10500
Working load limit 0° 45−60° [kg] 7500
Effective length WLL [m] 2
Reference no. 491406
  • Details
    GA4-22-10.5T-SEN-GA-H-2M
    Reference no. 491406
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 27.005
Working load limit 0° 0–45° [kg] 10500
Working load limit 0° 45−60° [kg] 7500
Effective length WLL [m] 3
Reference no. 491407
  • Details
    GA4-22-10.5T-SEN-GA-H-3M
    Reference no. 491407
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 33.685
Working load limit 0° 0–45° [kg] 10500
Working load limit 0° 45−60° [kg] 7500
Effective length WLL [m] 4
Reference no. 491408
  • Details
    GA4-22-10.5T-SEN-GA-H-4M
    Reference no. 491408
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 40.365
Working load limit 0° 0–45° [kg] 10500
Working load limit 0° 45−60° [kg] 7500
Effective length WLL [m] 5
Reference no. 491409
  • Details
    GA4-22-10.5T-SEN-GA-H-5M
    Reference no. 491409
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 5
    Weight approx. [kg] 47.045
Working load limit 0° 0–45° [kg] 10500
Working load limit 0° 45−60° [kg] 7500
Effective length WLL [m] 6
Reference no. 491410
  • Details
    GA4-22-10.5T-SEN-GA-H-6M
    Reference no. 491410
    Working load limit 0° 0–45° [kg] 10500
    Working load limit 0° 45−60° [kg] 7500
    Rope Ø ds [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 53.725
Working load limit 0° 0–45° [kg] 13200
Working load limit 0° 45−60° [kg] 9400
Effective length WLL [m] 2
Reference no. 491411
  • Details
    GA4-24-13.2T-SEN-GA-H-2M
    Reference no. 491411
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 2
    Weight approx. [kg] 35.645
Working load limit 0° 0–45° [kg] 13200
Working load limit 0° 45−60° [kg] 9400
Effective length WLL [m] 3
Reference no. 491412
  • Details
    GA4-24-13.2T-SEN-GA-H-3M
    Reference no. 491412
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 3
    Weight approx. [kg] 44.405
Working load limit 0° 0–45° [kg] 13200
Working load limit 0° 45−60° [kg] 9400
Effective length WLL [m] 4
Reference no. 491413
  • Details
    GA4-24-13.2T-SEN-GA-H-4M
    Reference no. 491413
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 4
    Weight approx. [kg] 53.165
Working load limit 0° 0–45° [kg] 13200
Working load limit 0° 45−60° [kg] 9400
Effective length WLL [m] 5
Reference no. 491414
  • Details
    GA4-24-13.2T-SEN-GA-H-5M
    Reference no. 491414
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 5
    Weight approx. [kg] 61.925
Working load limit 0° 0–45° [kg] 13200
Working load limit 0° 45−60° [kg] 9400
Effective length WLL [m] 6
Reference no. 491415
  • Details
    GA4-24-13.2T-SEN-GA-H-6M
    Reference no. 491415
    Working load limit 0° 0–45° [kg] 13200
    Working load limit 0° 45−60° [kg] 9400
    Rope Ø ds [mm] 24
    Effective length WLL [m] 6
    Weight approx. [kg] 70.685
Working load limit 0° 0–45° [kg] 14700
Working load limit 0° 45−60° [kg] 10500
Effective length WLL [m] 2
Reference no. 491416
  • Details
    GA4-26-14.7T-SEN-GA-H-2M
    Reference no. 491416
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 42.462
Working load limit 0° 0–45° [kg] 14700
Working load limit 0° 45−60° [kg] 10500
Effective length WLL [m] 3
Reference no. 491417
  • Details
    GA4-26-14.7T-SEN-GA-H-3M
    Reference no. 491417
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 52.742
Working load limit 0° 0–45° [kg] 14700
Working load limit 0° 45−60° [kg] 10500
Effective length WLL [m] 4
Reference no. 491418
  • Details
    GA4-26-14.7T-SEN-GA-H-4M
    Reference no. 491418
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 63.022
Working load limit 0° 0–45° [kg] 14700
Working load limit 0° 45−60° [kg] 10500
Effective length WLL [m] 5
Reference no. 491419
  • Details
    GA4-26-14.7T-SEN-GA-H-5M
    Reference no. 491419
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 5
    Weight approx. [kg] 73.302
Working load limit 0° 0–45° [kg] 14700
Working load limit 0° 45−60° [kg] 10500
Effective length WLL [m] 6
Reference no. 491420
  • Details
    GA4-26-14.7T-SEN-GA-H-6M
    Reference no. 491420
    Working load limit 0° 0–45° [kg] 14700
    Working load limit 0° 45−60° [kg] 10500
    Rope Ø ds [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 83.582
Working load limit 0° 0–45° [kg] 16800
Working load limit 0° 45−60° [kg] 12000
Effective length WLL [m] 2
Reference no. 491421
  • Details
    GA4-28-16.8T-SEN-GA-H-2M
    Reference no. 491421
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 2
    Weight approx. [kg] 44.519
Working load limit 0° 0–45° [kg] 16800
Working load limit 0° 45−60° [kg] 12000
Effective length WLL [m] 3
Reference no. 491422
  • Details
    GA4-28-16.8T-SEN-GA-H-3M
    Reference no. 491422
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 3
    Weight approx. [kg] 55.359
Working load limit 0° 0–45° [kg] 16800
Working load limit 0° 45−60° [kg] 12000
Effective length WLL [m] 4
Reference no. 491423
  • Details
    GA4-28-16.8T-SEN-GA-H-4M
    Reference no. 491423
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 4
    Weight approx. [kg] 66.199
Working load limit 0° 0–45° [kg] 16800
Working load limit 0° 45−60° [kg] 12000
Effective length WLL [m] 5
Reference no. 491424
  • Details
    GA4-28-16.8T-SEN-GA-H-5M
    Reference no. 491424
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 5
    Weight approx. [kg] 77.039
Working load limit 0° 0–45° [kg] 16800
Working load limit 0° 45−60° [kg] 12000
Effective length WLL [m] 6
Reference no. 491425
  • Details
    GA4-28-16.8T-SEN-GA-H-6M
    Reference no. 491425
    Working load limit 0° 0–45° [kg] 16800
    Working load limit 0° 45−60° [kg] 12000
    Rope Ø ds [mm] 28
    Effective length WLL [m] 6
    Weight approx. [kg] 87.879
Working load limit 0° 0–45° [kg] 23000
Working load limit 0° 45−60° [kg] 16500
Effective length WLL [m] 2
Reference no. 491426
  • Details
    GA4-32-23T-SEN-GA-H-2M
    Reference no. 491426
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 69.664
Working load limit 0° 0–45° [kg] 23000
Working load limit 0° 45−60° [kg] 16500
Effective length WLL [m] 3
Reference no. 491427
  • Details
    GA4-32-23T-SEN-GA-H-3M
    Reference no. 491427
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 84.704
Working load limit 0° 0–45° [kg] 23000
Working load limit 0° 45−60° [kg] 16500
Effective length WLL [m] 4
Reference no. 491428
  • Details
    GA4-32-23T-SEN-GA-H-4M
    Reference no. 491428
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 99.744
Working load limit 0° 0–45° [kg] 23000
Working load limit 0° 45−60° [kg] 16500
Effective length WLL [m] 5
Reference no. 491429
  • Details
    GA4-32-23T-SEN-GA-H-5M
    Reference no. 491429
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 5
    Weight approx. [kg] 114.784
Working load limit 0° 0–45° [kg] 23000
Working load limit 0° 45−60° [kg] 16500
Effective length WLL [m] 6
Reference no. 491430
  • Details
    GA4-32-23T-SEN-GA-H-6M
    Reference no. 491430
    Working load limit 0° 0–45° [kg] 23000
    Working load limit 0° 45−60° [kg] 16500
    Rope Ø ds [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 162.5
Downloads

Applications

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
