Anti-slip mat Black-Cat-Panther

Anti-slip mat Black-Cat-Panther
Due to its closed surface, the anti-slip mat is washable and food-safe according to law, and therefore suitable for universal use in transport, logistics, industry and trades. Due to an additional textile insert the mesh is particularly tear-resistant, but remains flexible, easy to roll and easy to cut.
Technical data

Standard

  • (VDI 2700 sheet 14)

Operating temperature

  • –40 °C to +120 °C

Factor for coefficient of sliding friction

  • µ 0.94 at a surface pressure of up to 10 t/m²
  • µ 0.55 at a maximum surface pressure of up to 82.5 t/m2

Load types Anti-Slip underlays

  • Standard loads
Safety instruction
  • Additional measures against slipping are necessary. At least two lashing devices per load unit.
  • To ensure safety, anti-slip underlays must be used such that they are visible from outside without lifting or moving the load.
Product variants
Material thickness [mm]
Overall width B [mm]
Reference no.
Details
  • 4.5
    120
    234487
    LAM-ROL-BCP-4000X120X4MM-µ>0.6
    Reference no. 234487
    Material thickness [mm] 4.5
    Overall width B [mm] 120
    Overall length L [mm] 4000
    Format Roller
    Packing quantity 1 Ka
    Weight approx. [kg] 4.8
  • 4.5
    200
    234488
    LAM-ROL-BCP-4000X200X4MM-µ>0.6
    Reference no. 234488
    Material thickness [mm] 4.5
    Overall width B [mm] 200
    Overall length L [mm] 4000
    Format Roller
    Packing quantity 1 Ka
    Weight approx. [kg] 6.6
  • 4.5
    600
    234489
    LAM-ROL-BCP-4000X600X4MM-µ>0.6
    Reference no. 234489
    Material thickness [mm] 4.5
    Overall width B [mm] 600
    Overall length L [mm] 4000
    Format Roller
    Packing quantity 1 St
    Weight approx. [kg] 4.9
  • 4.5
    800
    234490
    LAM-ROL-BCP-4000X800X4MM-µ>0.6
    Reference no. 234490
    Material thickness [mm] 4.5
    Overall width B [mm] 800
    Overall length L [mm] 4000
    Format Roller
    Packing quantity 1 St
    Weight approx. [kg] 6.4
  • 4.5
    150
    234491
    LAM-PAD-BCP-150X150X4MM-µ0.6
    Reference no. 234491
    Material thickness [mm] 4.5
    Overall width B [mm] 150
    Overall length L [mm] 150

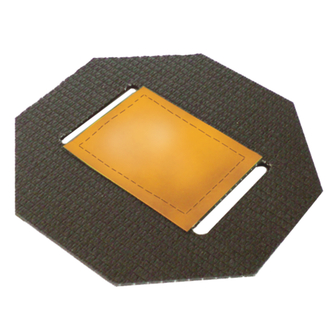

    Format Octagonal pad
    Packing quantity 1 Ka
    Weight approx. [kg] 3.6
  • 4.5
    800
    234492
    LAM-ROL-BCP-1200X800X4MM-µ>0.6
    Reference no. 234492
    Material thickness [mm] 4.5
    Overall width B [mm] 800
    Overall length L [mm] 1200
    Format Mesh
    Packing quantity 1 St
    Weight approx. [kg] 2
  • 4.5
    150
    373866
    EDGE-PROT-BLACK-CAT-150MM-24ST -OCTAGON
    Reference no. 373866
    Material thickness [mm] 4.5
    Overall width B [mm] 150
    Overall length L [mm] 150
    Format Octagonal pad with insertable belt slider
    Packing quantity NaN
    Weight approx. [kg] 0.04
Material thickness [mm] 4.5
Overall width B [mm] 120
Reference no. 234487
  • Details
    LAM-ROL-BCP-4000X120X4MM-µ>0.6
    Reference no. 234487
    Material thickness [mm] 4.5
    Overall width B [mm] 120
    Overall length L [mm] 4000
    Format Roller
    Packing quantity 1 Ka
    Weight approx. [kg] 4.8
Material thickness [mm] 4.5
Overall width B [mm] 200
Reference no. 234488
  • Details
    LAM-ROL-BCP-4000X200X4MM-µ>0.6
    Reference no. 234488
    Material thickness [mm] 4.5
    Overall width B [mm] 200
    Overall length L [mm] 4000
    Format Roller
    Packing quantity 1 Ka
    Weight approx. [kg] 6.6
Material thickness [mm] 4.5
Overall width B [mm] 600
Reference no. 234489
  • Details
    LAM-ROL-BCP-4000X600X4MM-µ>0.6
    Reference no. 234489
    Material thickness [mm] 4.5
    Overall width B [mm] 600
    Overall length L [mm] 4000
    Format Roller
    Packing quantity 1 St
    Weight approx. [kg] 4.9
Material thickness [mm] 4.5
Overall width B [mm] 800
Reference no. 234490
  • Details
    LAM-ROL-BCP-4000X800X4MM-µ>0.6
    Reference no. 234490
    Material thickness [mm] 4.5
    Overall width B [mm] 800
    Overall length L [mm] 4000
    Format Roller
    Packing quantity 1 St
    Weight approx. [kg] 6.4
Material thickness [mm] 4.5
Overall width B [mm] 150
Reference no. 234491
  • Details
    LAM-PAD-BCP-150X150X4MM-µ0.6
    Reference no. 234491
    Material thickness [mm] 4.5
    Overall width B [mm] 150
    Overall length L [mm] 150
    Format Octagonal pad
    Packing quantity 1 Ka
    Weight approx. [kg] 3.6
Material thickness [mm] 4.5
Overall width B [mm] 800
Reference no. 234492
  • Details
    LAM-ROL-BCP-1200X800X4MM-µ>0.6
    Reference no. 234492
    Material thickness [mm] 4.5
    Overall width B [mm] 800
    Overall length L [mm] 1200
    Format Mesh
    Packing quantity 1 St
    Weight approx. [kg] 2
Material thickness [mm] 4.5
Overall width B [mm] 150
Reference no. 373866
  • Details
    EDGE-PROT-BLACK-CAT-150MM-24ST -OCTAGON
    Reference no. 373866
    Material thickness [mm] 4.5
    Overall width B [mm] 150
    Overall length L [mm] 150
    Format Octagonal pad with insertable belt slider
    Packing quantity NaN
    Weight approx. [kg] 0.04
