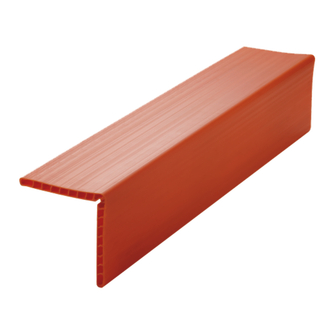

Double bridge edge protection rail

Double bridge edge protection rail
Edge protection rail for lashing of several individual load parts together for uniform force distribution to protect the lashing strap against damage by sharp edges. The inner air gap in the edge protection profile protects the load edge, the edge rounding on the outside protects the strap and increases the slippage of the straps, resulting in better transmission of the prestressing force.
Technical data

Material

  • Polyethylene

Material thickness

  • 19 mm

Material size

  • 19 mm

Leg Length

  • 190 mm
Safety instruction
  • To protect against damage to the lashing equipment and for the purpose of improved force deflection, the edges of sharp-edged and flat goods must be covered with edge protectors.
  • Edges are regarded as sharp if the edge radius R is smaller than the diameter of the rope / the thickness of the lifting strap or the round sling / the nominal thickness of the round steel chain (German Social Accident Insurance DGUV rule 109-017).
Product variants
Overall length L [mm]
Reference no.
Details
  • 400
    240219
    KWK DST-KSW-DOPPELSTEG-190MM-0.4M
    Reference no. 240219
    Overall length L [mm] 400
    Packing quantity 1 St
    Weight approx. [kg] 0.82
  • 800
    240220
    KWK DST-KSW-DOPPELSTEG-190MM-0.8M
    Reference no. 240220
    Overall length L [mm] 800
    Packing quantity 1 St
    Weight approx. [kg] 1.71
  • 1200
    240221
    KWK DST-KSW-DOPPELSTEG-190MM-1.2M
    Reference no. 240221
    Overall length L [mm] 1200
    Packing quantity 1 St
    Weight approx. [kg] 2.56
Overall length L [mm] 400
Reference no. 240219
  • Details
    KWK DST-KSW-DOPPELSTEG-190MM-0.4M
    Reference no. 240219
    Overall length L [mm] 400
    Packing quantity 1 St
    Weight approx. [kg] 0.82
Overall length L [mm] 800
Reference no. 240220
  • Details
    KWK DST-KSW-DOPPELSTEG-190MM-0.8M
    Reference no. 240220
    Overall length L [mm] 800
    Packing quantity 1 St
    Weight approx. [kg] 1.71
Overall length L [mm] 1200
Reference no. 240221
  • Details
    KWK DST-KSW-DOPPELSTEG-190MM-1.2M
    Reference no. 240221
    Overall length L [mm] 1200
    Packing quantity 1 St
    Weight approx. [kg] 2.56
