Lashing chain system GK12

Lashing chain system GK12

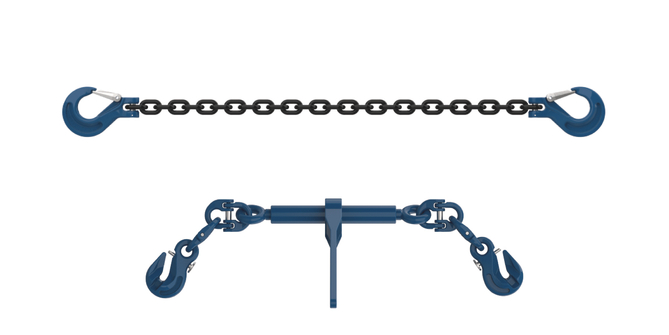

Two-part lashing chain system, quality grade 10, with a ratchet load tensioner for shortening, which can be positioned at any point of the chain.
Technical data

Material

  • steel

Standard

  • EN 12195-3

Quality grade

  • 10

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • coated

Component colour

  • blue

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range
Options

Options on request

  • Further lengths
  • Further versions
Safety instruction
  • The shorteners are provided with a safety device as required by BS EN 12195-3.
Product variants
Lashing capacity direct pull LC
Effective length WLL [m]
Reference no.
Details
  • 5000 [daN]
    3
    494359
    K12 RKH-8-50KN-HK-HK-3M
    Reference no. 494359
    Lashing capacity direct pull LC 5000 [daN]
    Prestressing force STF [daN] 1250
    Nominal size of chain [mm] 8

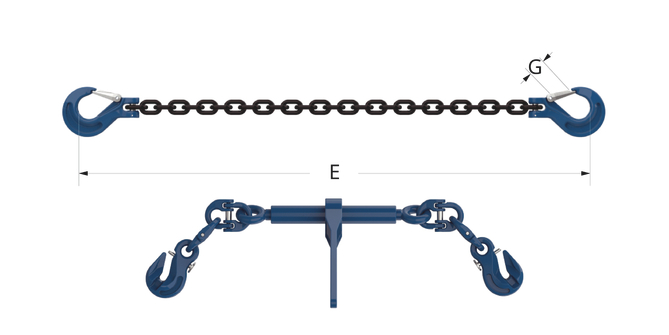

    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 252
    Effective length WLL [m] 3
    Weight approx. [kg] 10.221
  • 8000 [daN]
    3
    494360
    K12 RKH-10-80KN-HK-HK-3M
    Reference no. 494360
    Lashing capacity direct pull LC 8000 [daN]
    Prestressing force STF [daN] 2000
    Nominal size of chain [mm] 10
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 30
    Length of tensioning lever LH [mm] 248
    Effective length WLL [m] 3
    Weight approx. [kg] 15.642
  • 13400 [daN]
    3
    494361
    K12 RKH-13-134KN-HK-HK-3M
    Reference no. 494361
    Lashing capacity direct pull LC 13400 [daN]
    Prestressing force STF [daN] 2010
    Nominal size of chain [mm] 13
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 38
    Length of tensioning lever LH [mm] 322
    Effective length WLL [m] 3
    Weight approx. [kg] 30.231
Lashing capacity direct pull LC 5000 [daN]
Effective length WLL [m] 3
Reference no. 494359
  • Details
    K12 RKH-8-50KN-HK-HK-3M
    Reference no. 494359
    Lashing capacity direct pull LC 5000 [daN]
    Prestressing force STF [daN] 1250
    Nominal size of chain [mm] 8
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 252
    Effective length WLL [m] 3
    Weight approx. [kg] 10.221
Lashing capacity direct pull LC 8000 [daN]
Effective length WLL [m] 3
Reference no. 494360
  • Details
    K12 RKH-10-80KN-HK-HK-3M
    Reference no. 494360
    Lashing capacity direct pull LC 8000 [daN]
    Prestressing force STF [daN] 2000
    Nominal size of chain [mm] 10
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 30
    Length of tensioning lever LH [mm] 248
    Effective length WLL [m] 3
    Weight approx. [kg] 15.642
Lashing capacity direct pull LC 13400 [daN]
Effective length WLL [m] 3
Reference no. 494361
  • Details
    K12 RKH-13-134KN-HK-HK-3M
    Reference no. 494361
    Lashing capacity direct pull LC 13400 [daN]
    Prestressing force STF [daN] 2010
    Nominal size of chain [mm] 13
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 38
    Length of tensioning lever LH [mm] 322
    Effective length WLL [m] 3
    Weight approx. [kg] 30.231
