Lashing chain system GK12

Lashing chain system GK12

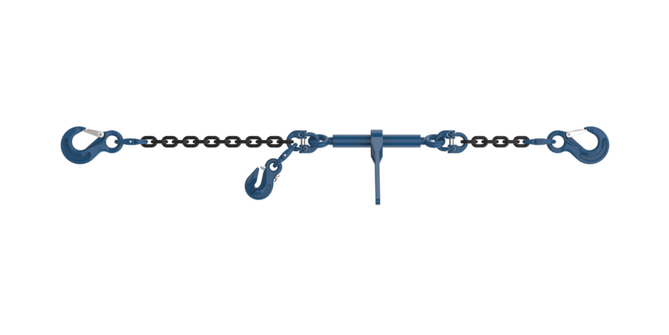

Lashing chain system in quality grade 10 with built-in ratchet load tensioner, PSW chain shortener and chain hook.
Technical data

Material

  • steel

Standard

  • EN 12195-3

Quality grade

  • 10

Chain surface

  • cathodic dip-paint coating

Chain colour

  • black

Component surface

  • coated

Component colour

  • blue

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range
Options

Options on request

  • Further lengths
  • Further versions
Safety instruction
  • The shorteners are provided with a safety device as required by BS EN 12195-3.
Product variants
Lashing capacity direct pull LC
Effective length WLL [m]
Reference no.
Details
  • 5000 [daN]
    3
    494351
    K11 RSH-8-50KN-HK-HK-3M-E1-1M
    Reference no. 494351
    Lashing capacity direct pull LC 5000 [daN]
    Prestressing force STF [daN] 1250
    Nominal size of chain [mm] 8

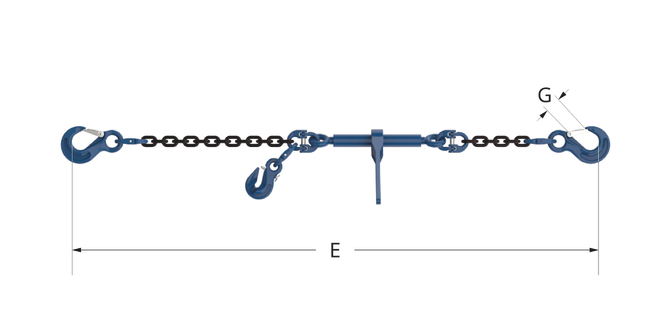

    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3165
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 252
    Effective length WLL [m] 3
    Weight approx. [kg] 9.874
  • 5000 [daN]
    3
    494352
    K11 RSH-8-50KN-HK-HK-3M-E1-0.28M
    Reference no. 494352
    Lashing capacity direct pull LC 5000 [daN]
    Prestressing force STF [daN] 1250
    Nominal size of chain [mm] 8
    Distance suspension point E [mm] 280
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3165
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 252
    Effective length WLL [m] 3
    Weight approx. [kg] 9.121
  • 8000 [daN]
    3
    494353
    K11 RSH-10-80KN-HK-HK-3M-E1-1M
    Reference no. 494353
    Lashing capacity direct pull LC 8000 [daN]
    Prestressing force STF [daN] 2000
    Nominal size of chain [mm] 10
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3155
    Hook opening width G [mm] 30
    Length of tensioning lever LH [mm] 248
    Effective length WLL [m] 3
    Weight approx. [kg] 14.914
  • 8000 [daN]
    3
    494354
    K11 RSH-10-80KN-HK-HK-3M-E1-0.33M
    Reference no. 494354
    Lashing capacity direct pull LC 8000 [daN]
    Prestressing force STF [daN] 2000
    Nominal size of chain [mm] 10
    Distance suspension point E [mm] 330
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3155
    Hook opening width G [mm] 30
    Length of tensioning lever LH [mm] 248
    Effective length WLL [m] 3
    Weight approx. [kg] 13.584
  • 13400 [daN]
    3
    494355
    K11 RSH-13-134KN-HK-HK-3M-E1-1M
    Reference no. 494355
    Lashing capacity direct pull LC 13400 [daN]
    Prestressing force STF [daN] 2010
    Nominal size of chain [mm] 13
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3145
    Hook opening width G [mm] 38
    Length of tensioning lever LH [mm] 322
    Effective length WLL [m] 3
    Weight approx. [kg] 29.281
  • 13400 [daN]
    3
    494356
    K11 RSH-13-134KN-HK-HK-3M-E1-0.42M
    Reference no. 494356
    Lashing capacity direct pull LC 13400 [daN]
    Prestressing force STF [daN] 2010
    Nominal size of chain [mm] 13
    Distance suspension point E [mm] 420
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3145
    Hook opening width G [mm] 38
    Length of tensioning lever LH [mm] 322
    Effective length WLL [m] 3
    Weight approx. [kg] 26.836
  • 20000 [daN]
    3
    494357
    K11 RSH-16-200KN-HK-HK-3M-E1-1M
    Reference no. 494357
    Lashing capacity direct pull LC 20000 [daN]
    Prestressing force STF [daN] 3000
    Nominal size of chain [mm] 16
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3300
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 350
    Effective length WLL [m] 3
    Weight approx. [kg] 43.288
  • 20000 [daN]
    3
    494358
    K11 RSH-16-200KN-HK-HK-3M-E1-0.5M
    Reference no. 494358
    Lashing capacity direct pull LC 20000 [daN]
    Prestressing force STF [daN] 3000
    Nominal size of chain [mm] 16
    Distance suspension point E [mm] 500
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3300
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 350
    Effective length WLL [m] 3
    Weight approx. [kg] 39.972
Lashing capacity direct pull LC 5000 [daN]
Effective length WLL [m] 3
Reference no. 494351
  • Details
    K11 RSH-8-50KN-HK-HK-3M-E1-1M
    Reference no. 494351
    Lashing capacity direct pull LC 5000 [daN]
    Prestressing force STF [daN] 1250
    Nominal size of chain [mm] 8
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3165
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 252
    Effective length WLL [m] 3
    Weight approx. [kg] 9.874
Lashing capacity direct pull LC 5000 [daN]
Effective length WLL [m] 3
Reference no. 494352
  • Details
    K11 RSH-8-50KN-HK-HK-3M-E1-0.28M
    Reference no. 494352
    Lashing capacity direct pull LC 5000 [daN]
    Prestressing force STF [daN] 1250
    Nominal size of chain [mm] 8
    Distance suspension point E [mm] 280
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3165
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 252
    Effective length WLL [m] 3
    Weight approx. [kg] 9.121
Lashing capacity direct pull LC 8000 [daN]
Effective length WLL [m] 3
Reference no. 494353
  • Details
    K11 RSH-10-80KN-HK-HK-3M-E1-1M
    Reference no. 494353
    Lashing capacity direct pull LC 8000 [daN]
    Prestressing force STF [daN] 2000
    Nominal size of chain [mm] 10
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3155
    Hook opening width G [mm] 30
    Length of tensioning lever LH [mm] 248
    Effective length WLL [m] 3
    Weight approx. [kg] 14.914
Lashing capacity direct pull LC 8000 [daN]
Effective length WLL [m] 3
Reference no. 494354
  • Details
    K11 RSH-10-80KN-HK-HK-3M-E1-0.33M
    Reference no. 494354
    Lashing capacity direct pull LC 8000 [daN]
    Prestressing force STF [daN] 2000
    Nominal size of chain [mm] 10
    Distance suspension point E [mm] 330
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3155
    Hook opening width G [mm] 30
    Length of tensioning lever LH [mm] 248
    Effective length WLL [m] 3
    Weight approx. [kg] 13.584
Lashing capacity direct pull LC 13400 [daN]
Effective length WLL [m] 3
Reference no. 494355
  • Details
    K11 RSH-13-134KN-HK-HK-3M-E1-1M
    Reference no. 494355
    Lashing capacity direct pull LC 13400 [daN]
    Prestressing force STF [daN] 2010
    Nominal size of chain [mm] 13
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3145
    Hook opening width G [mm] 38
    Length of tensioning lever LH [mm] 322
    Effective length WLL [m] 3
    Weight approx. [kg] 29.281
Lashing capacity direct pull LC 13400 [daN]
Effective length WLL [m] 3
Reference no. 494356
  • Details
    K11 RSH-13-134KN-HK-HK-3M-E1-0.42M
    Reference no. 494356
    Lashing capacity direct pull LC 13400 [daN]
    Prestressing force STF [daN] 2010
    Nominal size of chain [mm] 13
    Distance suspension point E [mm] 420
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3145
    Hook opening width G [mm] 38
    Length of tensioning lever LH [mm] 322
    Effective length WLL [m] 3
    Weight approx. [kg] 26.836
Lashing capacity direct pull LC 20000 [daN]
Effective length WLL [m] 3
Reference no. 494357
  • Details
    K11 RSH-16-200KN-HK-HK-3M-E1-1M
    Reference no. 494357
    Lashing capacity direct pull LC 20000 [daN]
    Prestressing force STF [daN] 3000
    Nominal size of chain [mm] 16
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3300
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 350
    Effective length WLL [m] 3
    Weight approx. [kg] 43.288
Lashing capacity direct pull LC 20000 [daN]
Effective length WLL [m] 3
Reference no. 494358
  • Details
    K11 RSH-16-200KN-HK-HK-3M-E1-0.5M
    Reference no. 494358
    Lashing capacity direct pull LC 20000 [daN]
    Prestressing force STF [daN] 3000
    Nominal size of chain [mm] 16
    Distance suspension point E [mm] 500
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3300
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 350
    Effective length WLL [m] 3
    Weight approx. [kg] 39.972
