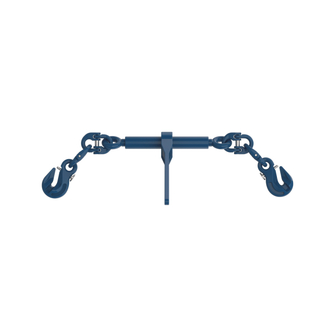

Ratchet load tensioner in quality grade 10 with grab hook

Ratchet load tensioner in quality grade 10 with grab hook
Ratchet load tensioner with grab hook for shortening lashing chain systems in quality grade 10. With lashing badge and test tag.
Technical data

Material

  • steel

Standard

  • EN 12195-3

Quality grade

  • 10

Component surface

  • coated

Component colour

  • blue

Operating temperature

  • –40 °C to +200 °C
Safety instruction
  • The shorteners are provided with a safety device as required by BS EN 12195-3.
Product variants
Lashing capacity direct pull LC
Reference no.
Details
  • 5000 [daN]
    241887
    LS1-GK10-LC5.0T-8-MM-PSW
    Reference no. 241887
    Lashing capacity direct pull LC 5000 [daN]
    Prestressing force STF [daN] 1250
    for nominal chain thickness [mm] 8

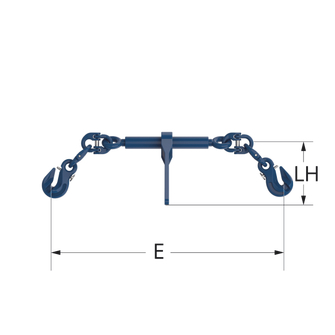

    Distance suspension point min Emin [mm] 610
    Distance suspension point max Emax [mm] 765
    Length of tensioning lever LH [mm] 237
    Weight approx. [kg] 4.7
  • 8000 [daN]
    241888
    LS1-GK10-LC8.0T-10-MM-PSW
    Reference no. 241888
    Lashing capacity direct pull LC 8000 [daN]
    Prestressing force STF [daN] 2000
    for nominal chain thickness [mm] 10
    Distance suspension point min Emin [mm] 678
    Distance suspension point max Emax [mm] 833
    Length of tensioning lever LH [mm] 355
    Weight approx. [kg] 6.5
  • 13400 [daN]
    241889
    LS1-GK10-LC13.4T-13-MM-PSW
    Reference no. 241889
    Lashing capacity direct pull LC 13400 [daN]
    Prestressing force STF [daN] 2010
    for nominal chain thickness [mm] 13
    Distance suspension point min Emin [mm] 973
    Distance suspension point max Emax [mm] 1270
    Length of tensioning lever LH [mm] 359
    Weight approx. [kg] 15.2
Lashing capacity direct pull LC 5000 [daN]
Reference no. 241887
  • Details
    LS1-GK10-LC5.0T-8-MM-PSW
    Reference no. 241887
    Lashing capacity direct pull LC 5000 [daN]
    Prestressing force STF [daN] 1250
    for nominal chain thickness [mm] 8
    Distance suspension point min Emin [mm] 610
    Distance suspension point max Emax [mm] 765
    Length of tensioning lever LH [mm] 237
    Weight approx. [kg] 4.7
Lashing capacity direct pull LC 8000 [daN]
Reference no. 241888
  • Details
    LS1-GK10-LC8.0T-10-MM-PSW
    Reference no. 241888
    Lashing capacity direct pull LC 8000 [daN]
    Prestressing force STF [daN] 2000
    for nominal chain thickness [mm] 10
    Distance suspension point min Emin [mm] 678
    Distance suspension point max Emax [mm] 833
    Length of tensioning lever LH [mm] 355
    Weight approx. [kg] 6.5
Lashing capacity direct pull LC 13400 [daN]
Reference no. 241889
  • Details
    LS1-GK10-LC13.4T-13-MM-PSW
    Reference no. 241889
    Lashing capacity direct pull LC 13400 [daN]
    Prestressing force STF [daN] 2010
    for nominal chain thickness [mm] 13
    Distance suspension point min Emin [mm] 973
    Distance suspension point max Emax [mm] 1270
    Length of tensioning lever LH [mm] 359
    Weight approx. [kg] 15.2
