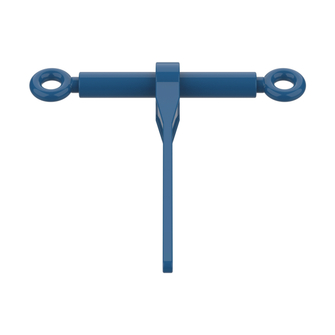

Ratchet load tensioner in quality grade 10
Ratchet load tensioner in quality grade 10
Technical data
Material
- steel
Standard
- EN 12195-3
Quality grade
- 10
Component surface
- coated
Component colour
- blue
Operating temperature
- –40 °C to +200 °C
Product variants
Lashing capacity direct pull LC
Reference no.
Details
-
5000 [daN]705280
LS1-GK10-LC5.0T-8-MM-OESEN-WK-BL-ANH

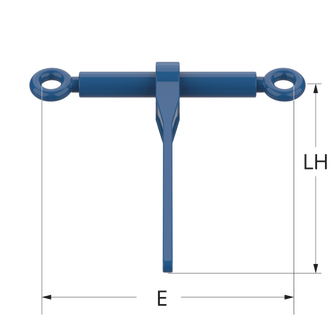

Reference no. 705280 Lashing capacity direct pull LC 5000 [daN] Prestressing force STF [daN] 1250 Nominal size of chain [mm] 8 Distance suspension point min Emin [mm] 335 Distance suspension point max Emax [mm] 500 Length of tensioning lever LH [mm] 252 Weight approx. [kg] 2.38 -
8000 [daN]705281
LS1-GK10-LC8.0T-10-MM-OESEN-WK-BL-ANH
Reference no. 705281 Lashing capacity direct pull LC 8000 [daN] Prestressing force STF [daN] 2000 Nominal size of chain [mm] 10 Distance suspension point min Emin [mm] 365 Distance suspension point max Emax [mm] 520 Length of tensioning lever LH [mm] 248 Weight approx. [kg] 3.82 -
13400 [daN]705282
LS1-GK10-LC13.4T-13-MM-OESEN-WK-BL-ANH
Reference no. 705282 Lashing capacity direct pull LC 13400 [daN] Prestressing force STF [daN] 2010 Nominal size of chain [mm] 13 Distance suspension point min Emin [mm] 370 Distance suspension point max Emax [mm] 515 Length of tensioning lever LH [mm] 322 Weight approx. [kg] 4.26
Lashing capacity direct pull LC
5000 [daN]
Reference no.
705280
-
Details
LS1-GK10-LC5.0T-8-MM-OESEN-WK-BL-ANH
Reference no. 705280 Lashing capacity direct pull LC 5000 [daN] Prestressing force STF [daN] 1250 Nominal size of chain [mm] 8 Distance suspension point min Emin [mm] 335 Distance suspension point max Emax [mm] 500 Length of tensioning lever LH [mm] 252 Weight approx. [kg] 2.38
Lashing capacity direct pull LC
8000 [daN]
Reference no.
705281
-
Details
LS1-GK10-LC8.0T-10-MM-OESEN-WK-BL-ANH
Reference no. 705281 Lashing capacity direct pull LC 8000 [daN] Prestressing force STF [daN] 2000 Nominal size of chain [mm] 10 Distance suspension point min Emin [mm] 365 Distance suspension point max Emax [mm] 520 Length of tensioning lever LH [mm] 248 Weight approx. [kg] 3.82
Lashing capacity direct pull LC
13400 [daN]
Reference no.
705282
-
Details
LS1-GK10-LC13.4T-13-MM-OESEN-WK-BL-ANH
Reference no. 705282 Lashing capacity direct pull LC 13400 [daN] Prestressing force STF [daN] 2010 Nominal size of chain [mm] 13 Distance suspension point min Emin [mm] 370 Distance suspension point max Emax [mm] 515 Length of tensioning lever LH [mm] 322 Weight approx. [kg] 4.26
