HIT lashing chain system quality grade 8

HIT lashing chain system quality grade 8

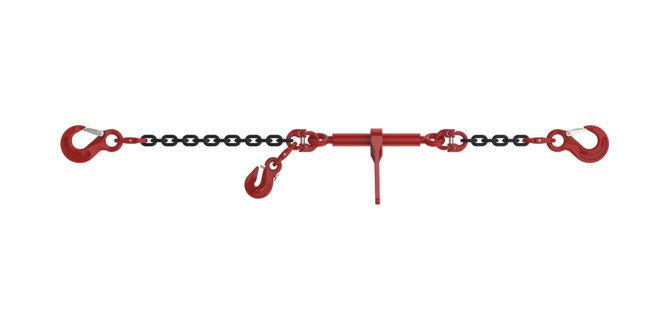

Lashing chain system in quality grade 8 with built-in RS ratchet load tensioner, grab hook or pocket shortener.
Technical data

Material

  • steel

Standard

  • EN 12195-3

Quality grade

  • 8

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red
Safety instruction
  • The shorteners are provided with a safety device as required by BS EN 12195-3.
Product variants
Lashing capacity direct pull LC
Effective length WLL [m]
Reference no.
Details
  • 4000 [daN]
    3
    494337
    K81 ARS-8-40KN-HK-HK-3M-E1-1M
    Reference no. 494337
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    Nominal size of chain [mm] 8

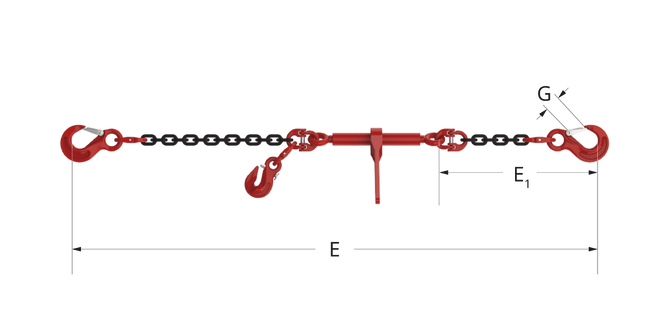

    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 27
    Effective length WLL [m] 3
    Weight approx. [kg] 9.692
  • 4000 [daN]
    3
    494339
    K81 ARS-8-40KN-HK-HK-3M-E1-0.28M
    Reference no. 494339
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    Nominal size of chain [mm] 8
    Distance suspension point E [mm] 280
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 27
    Effective length WLL [m] 3
    Weight approx. [kg] 9.042
  • 6300 [daN]
    3
    494338
    K81 ARS-10-63KN-HK-HK-3M-E1-1M
    Reference no. 494338
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    Nominal size of chain [mm] 10
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 30
    Effective length WLL [m] 3
    Weight approx. [kg] 13.74
  • 6300 [daN]
    3
    494340
    K81 ARS-10-63KN-HK-HK-3M-E1-0.33M
    Reference no. 494340
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    Nominal size of chain [mm] 10
    Distance suspension point E [mm] 330
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 30
    Effective length WLL [m] 3
    Weight approx. [kg] 12.684
  • 10000 [daN]
    3
    494341
    K81 ARS-13-100KN-HK-HK-3M-E1-1M
    Reference no. 494341
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    Nominal size of chain [mm] 13
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 38
    Effective length WLL [m] 3
    Weight approx. [kg] 21.433
  • 10000 [daN]
    3
    494342
    K81 ARS-13-100KN-HK-HK-3M-E1-0.42M
    Reference no. 494342
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    Nominal size of chain [mm] 13
    Distance suspension point E [mm] 420
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 38
    Effective length WLL [m] 3
    Weight approx. [kg] 19.358
  • 16000 [daN]
    3
    494343
    K81 ARS-16-160KN-HK-HK-3M-E1-1M
    Reference no. 494343
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    Nominal size of chain [mm] 16
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3160
    Hook opening width G [mm] 46
    Effective length WLL [m] 3
    Weight approx. [kg] 32.954
  • 16000 [daN]
    3
    494344
    K81 ARS-16-160KN-HK-HK-3M-E1-0.5M
    Reference no. 494344
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    Nominal size of chain [mm] 16
    Distance suspension point E [mm] 500
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3160
    Hook opening width G [mm] 46
    Effective length WLL [m] 3
    Weight approx. [kg] 29.944
Lashing capacity direct pull LC 4000 [daN]
Effective length WLL [m] 3
Reference no. 494337
  • Details
    K81 ARS-8-40KN-HK-HK-3M-E1-1M
    Reference no. 494337
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    Nominal size of chain [mm] 8
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 27
    Effective length WLL [m] 3
    Weight approx. [kg] 9.692
Lashing capacity direct pull LC 4000 [daN]
Effective length WLL [m] 3
Reference no. 494339
  • Details
    K81 ARS-8-40KN-HK-HK-3M-E1-0.28M
    Reference no. 494339
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    Nominal size of chain [mm] 8
    Distance suspension point E [mm] 280
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 27
    Effective length WLL [m] 3
    Weight approx. [kg] 9.042
Lashing capacity direct pull LC 6300 [daN]
Effective length WLL [m] 3
Reference no. 494338
  • Details
    K81 ARS-10-63KN-HK-HK-3M-E1-1M
    Reference no. 494338
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    Nominal size of chain [mm] 10
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 30
    Effective length WLL [m] 3
    Weight approx. [kg] 13.74
Lashing capacity direct pull LC 6300 [daN]
Effective length WLL [m] 3
Reference no. 494340
  • Details
    K81 ARS-10-63KN-HK-HK-3M-E1-0.33M
    Reference no. 494340
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    Nominal size of chain [mm] 10
    Distance suspension point E [mm] 330
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 30
    Effective length WLL [m] 3
    Weight approx. [kg] 12.684
Lashing capacity direct pull LC 10000 [daN]
Effective length WLL [m] 3
Reference no. 494341
  • Details
    K81 ARS-13-100KN-HK-HK-3M-E1-1M
    Reference no. 494341
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    Nominal size of chain [mm] 13
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 38
    Effective length WLL [m] 3
    Weight approx. [kg] 21.433
Lashing capacity direct pull LC 10000 [daN]
Effective length WLL [m] 3
Reference no. 494342
  • Details
    K81 ARS-13-100KN-HK-HK-3M-E1-0.42M
    Reference no. 494342
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    Nominal size of chain [mm] 13
    Distance suspension point E [mm] 420
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3170
    Hook opening width G [mm] 38
    Effective length WLL [m] 3
    Weight approx. [kg] 19.358
Lashing capacity direct pull LC 16000 [daN]
Effective length WLL [m] 3
Reference no. 494343
  • Details
    K81 ARS-16-160KN-HK-HK-3M-E1-1M
    Reference no. 494343
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    Nominal size of chain [mm] 16
    Distance suspension point E [mm] 1000
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3160
    Hook opening width G [mm] 46
    Effective length WLL [m] 3
    Weight approx. [kg] 32.954
Lashing capacity direct pull LC 16000 [daN]
Effective length WLL [m] 3
Reference no. 494344
  • Details
    K81 ARS-16-160KN-HK-HK-3M-E1-0.5M
    Reference no. 494344
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    Nominal size of chain [mm] 16
    Distance suspension point E [mm] 500
    Distance suspension point min Emin [mm] 3000
    Distance suspension point max Emax [mm] 3160
    Hook opening width G [mm] 46
    Effective length WLL [m] 3
    Weight approx. [kg] 29.944
