HIT lashing chain system quality grade 8

HIT lashing chain system quality grade 8

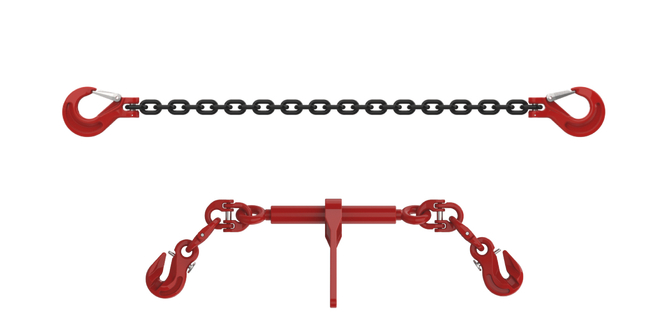

Two-part lashing chain system, quality grade 8, with a ratchet load tensioner for shortening, which can be positioned at any point of the chain. The high-strength chain and fittings are particularly suitable for harsh operating conditions.
Technical data

Material

  • steel

Standard

  • EN 12195-3

Quality grade

  • 8

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red
Safety instruction
  • The shorteners are provided with a safety device as required by BS EN 12195-3.
Product variants
Lashing capacity direct pull LC
Effective length WLL [m]
Reference no.
Details
  • 4000 [daN]
    3
    494345
    K82 ARK-8-40KN-HK-HK-3M
    Reference no. 494345
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    Nominal size of chain [mm] 8

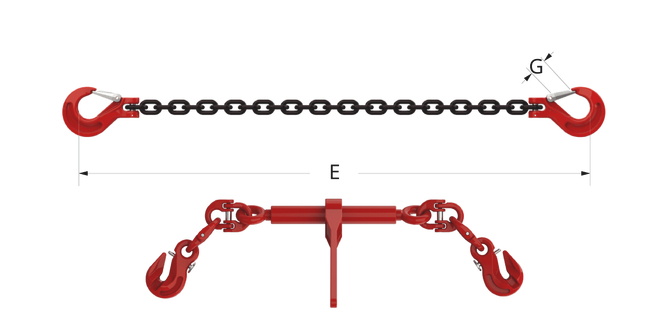

    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 27
    Effective length WLL [m] 3
    Weight approx. [kg] 9.866
  • 6300 [daN]
    3
    494346
    K82 ARK-10-63KN-HK-HK-3M
    Reference no. 494346
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    Nominal size of chain [mm] 10
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 30
    Effective length WLL [m] 3
    Weight approx. [kg] 14.004
  • 10000 [daN]
    3
    494347
    K82 ARK-13-100KN-HK-HK-3M
    Reference no. 494347
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    Nominal size of chain [mm] 13
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 38
    Effective length WLL [m] 3
    Weight approx. [kg] 22.72
  • 16000 [daN]
    3
    494348
    K82 ARK-16-160KN-HK-HK-3M
    Reference no. 494348
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    Nominal size of chain [mm] 16
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 46
    Effective length WLL [m] 3
    Weight approx. [kg] 31.689
Lashing capacity direct pull LC 4000 [daN]
Effective length WLL [m] 3
Reference no. 494345
  • Details
    K82 ARK-8-40KN-HK-HK-3M
    Reference no. 494345
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    Nominal size of chain [mm] 8
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 27
    Effective length WLL [m] 3
    Weight approx. [kg] 9.866
Lashing capacity direct pull LC 6300 [daN]
Effective length WLL [m] 3
Reference no. 494346
  • Details
    K82 ARK-10-63KN-HK-HK-3M
    Reference no. 494346
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    Nominal size of chain [mm] 10
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 30
    Effective length WLL [m] 3
    Weight approx. [kg] 14.004
Lashing capacity direct pull LC 10000 [daN]
Effective length WLL [m] 3
Reference no. 494347
  • Details
    K82 ARK-13-100KN-HK-HK-3M
    Reference no. 494347
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    Nominal size of chain [mm] 13
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 38
    Effective length WLL [m] 3
    Weight approx. [kg] 22.72
Lashing capacity direct pull LC 16000 [daN]
Effective length WLL [m] 3
Reference no. 494348
  • Details
    K82 ARK-16-160KN-HK-HK-3M
    Reference no. 494348
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    Nominal size of chain [mm] 16
    Distance suspension point max Emax [mm] 3000
    Hook opening width G [mm] 46
    Effective length WLL [m] 3
    Weight approx. [kg] 31.689
