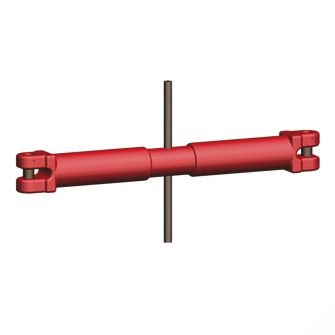

KSS chain coupling turnbuckle

KSS chain coupling turnbuckle
For easy tensioning of the chain lashing, infinitely adjustable and with built-in overwind protection. To prevent unintentional loosening, it is essential to attach the safety chain.
Technical data

Material

  • steel
Product variants
Lashing capacity direct pull LC
Reference no.
Details
  • 40 [kN]
    119698
    LS8-CPL-TURNBUCKLE-KSS-8MM-BO-SAFETYPIN
    Reference no. 119698
    Lashing capacity direct pull LC 40 [kN]
    for nominal chain thickness [mm] 8
    Distance suspension point min Emin [mm] 330
    Distance suspension point max Emax [mm] 445
    Working load limit 0° [kg] 2000
    Weight approx. [kg] 1.97
  • 63 [kN]
    119699
    LS8-CPL-TURNBUCKLE-KSS-10MM-BO-SAFETYPIN
    Reference no. 119699
    Lashing capacity direct pull LC 63 [kN]
    for nominal chain thickness [mm] 10
    Distance suspension point min Emin [mm] 460
    Distance suspension point max Emax [mm] 670
    Working load limit 0° [kg] 3150
    Weight approx. [kg] 4.24
  • 100 [kN]
    119700
    LS8-CPL-TURNBUCKLE-KSS-13MM-BO-SAFETYPIN
    Reference no. 119700
    Lashing capacity direct pull LC 100 [kN]
    for nominal chain thickness [mm] 13
    Distance suspension point min Emin [mm] 520
    Distance suspension point max Emax [mm] 770
    Working load limit 0° [kg] 5300
    Weight approx. [kg] 6.4
  • 160 [kN]
    165339
    LS1-CPL-TURNBUCKLE-KSS-16MM-BO-SAFETYPI
    Reference no. 165339
    Lashing capacity direct pull LC 160 [kN]
    for nominal chain thickness [mm] 16
    Distance suspension point min Emin [mm] 540
    Distance suspension point max Emax [mm] 790
    Working load limit 0° [kg] 8000
    Weight approx. [kg] 9.6
Lashing capacity direct pull LC 40 [kN]
Reference no. 119698
  • Details
    LS8-CPL-TURNBUCKLE-KSS-8MM-BO-SAFETYPIN
    Reference no. 119698
    Lashing capacity direct pull LC 40 [kN]
    for nominal chain thickness [mm] 8
    Distance suspension point min Emin [mm] 330
    Distance suspension point max Emax [mm] 445
    Working load limit 0° [kg] 2000
    Weight approx. [kg] 1.97
Lashing capacity direct pull LC 63 [kN]
Reference no. 119699
  • Details
    LS8-CPL-TURNBUCKLE-KSS-10MM-BO-SAFETYPIN
    Reference no. 119699
    Lashing capacity direct pull LC 63 [kN]
    for nominal chain thickness [mm] 10
    Distance suspension point min Emin [mm] 460
    Distance suspension point max Emax [mm] 670
    Working load limit 0° [kg] 3150
    Weight approx. [kg] 4.24
Lashing capacity direct pull LC 100 [kN]
Reference no. 119700
  • Details
    LS8-CPL-TURNBUCKLE-KSS-13MM-BO-SAFETYPIN
    Reference no. 119700
    Lashing capacity direct pull LC 100 [kN]
    for nominal chain thickness [mm] 13
    Distance suspension point min Emin [mm] 520
    Distance suspension point max Emax [mm] 770
    Working load limit 0° [kg] 5300
    Weight approx. [kg] 6.4
Lashing capacity direct pull LC 160 [kN]
Reference no. 165339
  • Details
    LS1-CPL-TURNBUCKLE-KSS-16MM-BO-SAFETYPI
    Reference no. 165339
    Lashing capacity direct pull LC 160 [kN]
    for nominal chain thickness [mm] 16
    Distance suspension point min Emin [mm] 540
    Distance suspension point max Emax [mm] 790
    Working load limit 0° [kg] 8000
    Weight approx. [kg] 9.6
