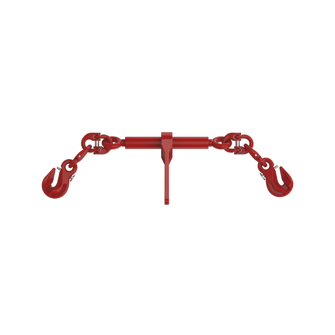

Ratchet load tensioner in quality grade 8 with grab hook

Ratchet load tensioner in quality grade 8 with grab hook
Ratchet load tensioner with grab hook for shortening lashing chain systems in quality grade 8. With lashing badge and test tag.
Technical data

Material

  • steel

Standard

  • EN 12195-3

Quality grade

  • 8

Component surface

  • coated

Component colour

  • red
Safety instruction
  • The shorteners are provided with a safety device as required by BS EN 12195-3.
Product variants
Lashing capacity direct pull LC
Reference no.
Details
  • 4000 [daN]
    217124
    LS8-W-P-HOOK-LC4.0T-8-MM-TAG
    Reference no. 217124
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    for nominal chain thickness [mm] 8

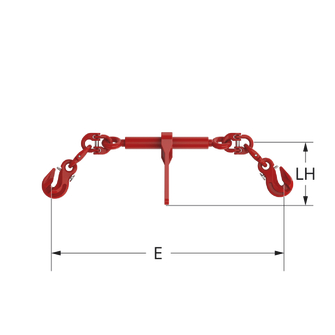

    Distance suspension point min Emin [mm] 580
    Distance suspension point max Emax [mm] 750
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 4.6
  • 6300 [daN]
    217125
    LS8-W-P-HOOK-SAFE-LC6.3T-10-MM-TAG
    Reference no. 217125
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    for nominal chain thickness [mm] 10
    Distance suspension point min Emin [mm] 695
    Distance suspension point max Emax [mm] 765
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 5.3
  • 10000 [daN]
    217126
    LS8-W-P-HOOK-LC10.0T-13-MM-TAG
    Reference no. 217126
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    for nominal chain thickness [mm] 13
    Distance suspension point min Emin [mm] 690
    Distance suspension point max Emax [mm] 855
    Length of tensioning lever LH [mm] 330
    Weight approx. [kg] 7.8
  • 16000 [daN]
    217127
    LS8-W-P-HOOK-LC16.0T-16-MM-TAG
    Reference no. 217127
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    for nominal chain thickness [mm] 16
    Distance suspension point min Emin [mm] 730
    Distance suspension point max Emax [mm] 895
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 9.8
Lashing capacity direct pull LC 4000 [daN]
Reference no. 217124
  • Details
    LS8-W-P-HOOK-LC4.0T-8-MM-TAG
    Reference no. 217124
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    for nominal chain thickness [mm] 8
    Distance suspension point min Emin [mm] 580
    Distance suspension point max Emax [mm] 750
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 4.6
Lashing capacity direct pull LC 6300 [daN]
Reference no. 217125
  • Details
    LS8-W-P-HOOK-SAFE-LC6.3T-10-MM-TAG
    Reference no. 217125
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    for nominal chain thickness [mm] 10
    Distance suspension point min Emin [mm] 695
    Distance suspension point max Emax [mm] 765
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 5.3
Lashing capacity direct pull LC 10000 [daN]
Reference no. 217126
  • Details
    LS8-W-P-HOOK-LC10.0T-13-MM-TAG
    Reference no. 217126
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    for nominal chain thickness [mm] 13
    Distance suspension point min Emin [mm] 690
    Distance suspension point max Emax [mm] 855
    Length of tensioning lever LH [mm] 330
    Weight approx. [kg] 7.8
Lashing capacity direct pull LC 16000 [daN]
Reference no. 217127
  • Details
    LS8-W-P-HOOK-LC16.0T-16-MM-TAG
    Reference no. 217127
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    for nominal chain thickness [mm] 16
    Distance suspension point min Emin [mm] 730
    Distance suspension point max Emax [mm] 895
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 9.8
