Ratchet load tensioner in quality grade 8

Ratchet load tensioner in quality grade 8

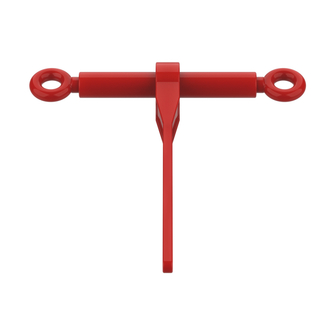

Ratchet load tensioner for lashing chain systems in quality grade 8.
Technical data

Material

  • steel

Standard

  • EN 12195-3

Quality grade

  • 8

Component surface

  • coated

Component colour

  • red
Product variants
Lashing capacity direct pull LC
Reference no.
Details
  • 4000 [daN]
    283764
    LS8-RS-LC4.0T-8-MM-CH-EYE
    Reference no. 283764
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    for nominal chain thickness [mm] 8

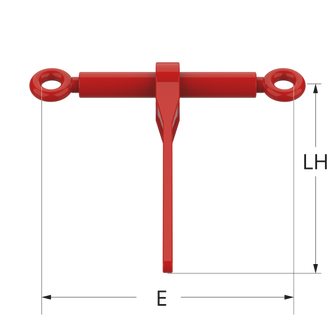

    Distance suspension point min Emin [mm] 340
    Distance suspension point max Emax [mm] 510
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 3.4
  • 6300 [daN]
    283765
    LS8-RS-LC6.3T-10-MM-CH-EYE
    Reference no. 283765
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    for nominal chain thickness [mm] 10
    Distance suspension point min Emin [mm] 345
    Distance suspension point max Emax [mm] 515
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 3.5
  • 10000 [daN]
    283766
    LS8-RS-LC10.0T-13-MM-CH-EYE
    Reference no. 283766
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    for nominal chain thickness [mm] 13
    Distance suspension point min Emin [mm] 380
    Distance suspension point max Emax [mm] 545
    Length of tensioning lever LH [mm] 330
    Weight approx. [kg] 4.26
  • 16000 [daN]
    283767
    LS8-RS-LC16.0T-16-MM-CH-EYE
    Reference no. 283767
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    for nominal chain thickness [mm] 16
    Distance suspension point min Emin [mm] 360
    Distance suspension point max Emax [mm] 555
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 7
Lashing capacity direct pull LC 4000 [daN]
Reference no. 283764
  • Details
    LS8-RS-LC4.0T-8-MM-CH-EYE
    Reference no. 283764
    Lashing capacity direct pull LC 4000 [daN]
    Prestressing force STF [daN] 1000
    for nominal chain thickness [mm] 8
    Distance suspension point min Emin [mm] 340
    Distance suspension point max Emax [mm] 510
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 3.4
Lashing capacity direct pull LC 6300 [daN]
Reference no. 283765
  • Details
    LS8-RS-LC6.3T-10-MM-CH-EYE
    Reference no. 283765
    Lashing capacity direct pull LC 6300 [daN]
    Prestressing force STF [daN] 1575
    for nominal chain thickness [mm] 10
    Distance suspension point min Emin [mm] 345
    Distance suspension point max Emax [mm] 515
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 3.5
Lashing capacity direct pull LC 10000 [daN]
Reference no. 283766
  • Details
    LS8-RS-LC10.0T-13-MM-CH-EYE
    Reference no. 283766
    Lashing capacity direct pull LC 10000 [daN]
    Prestressing force STF [daN] 1500
    for nominal chain thickness [mm] 13
    Distance suspension point min Emin [mm] 380
    Distance suspension point max Emax [mm] 545
    Length of tensioning lever LH [mm] 330
    Weight approx. [kg] 4.26
Lashing capacity direct pull LC 16000 [daN]
Reference no. 283767
  • Details
    LS8-RS-LC16.0T-16-MM-CH-EYE
    Reference no. 283767
    Lashing capacity direct pull LC 16000 [daN]
    Prestressing force STF [daN] 2400
    for nominal chain thickness [mm] 16
    Distance suspension point min Emin [mm] 360
    Distance suspension point max Emax [mm] 555
    Length of tensioning lever LH [mm] 335
    Weight approx. [kg] 7
