Product variants
Lashing capacity direct pull LC
Effective length WLL [m]
Reference no.
Details
  • 50 [kN]
    3
    710091
    KT2 PTX-50KN-100X20X8-H8-H8-3M
    Reference no. 710091
    Lashing capacity direct pull LC 50 [kN]
    Prestressing force STF [daN] 1500

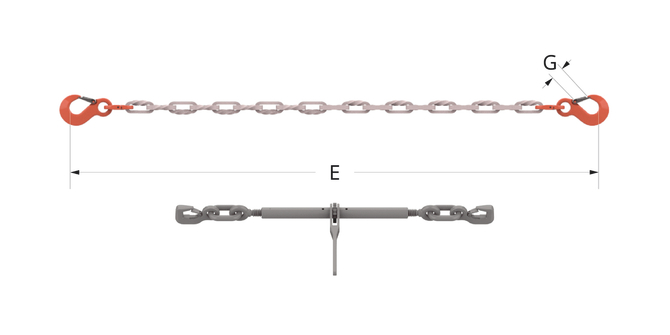

    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 3
    Weight approx. [kg] 10.466
  • 50 [kN]
    4
    710092
    KT2 PTX-50KN-100X20X8-H8-H8-4M
    Reference no. 710092
    Lashing capacity direct pull LC 50 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 4
    Weight approx. [kg] 10.791
  • 50 [kN]
    5
    710093
    KT2 PTX-50KN-100X20X8-H8-H8-5M
    Reference no. 710093
    Lashing capacity direct pull LC 50 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 5
    Weight approx. [kg] 11.116
  • 50 [kN]
    6
    710094
    KT2 PTX-50KN-100X20X8-H8-H8-6M
    Reference no. 710094
    Lashing capacity direct pull LC 50 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 6
    Weight approx. [kg] 11.441
  • 100 [kN]
    3
    710095
    KT2 PTX-100KN-100X20X16-H13-H13-3M
    Reference no. 710095
    Lashing capacity direct pull LC 100 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 40
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 3
    Weight approx. [kg] 14.824
  • 100 [kN]
    4
    710096
    KT2 PTX-100KN-100X20X16-H13-H13-4M
    Reference no. 710096
    Lashing capacity direct pull LC 100 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 40
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 4
    Weight approx. [kg] 15.449
  • 100 [kN]
    5
    710097
    KT2 PTX-100KN-100X20X16-H13-H13-5M
    Reference no. 710097
    Lashing capacity direct pull LC 100 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 40
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 5
    Weight approx. [kg] 16.074
  • 100 [kN]
    6
    710098
    KT2 PTX-100KN-100X20X16-H13-H13-6M
    Reference no. 710098
    Lashing capacity direct pull LC 100 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 40
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 6
    Weight approx. [kg] 16.699
  • 80 [kN]
    3
    710099
    KT2 PTX-80KN-100X20X16-H10-H10-3M
    Reference no. 710099
    Lashing capacity direct pull LC 80 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 31
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 3
    Weight approx. [kg] 12.964
  • 80 [kN]
    4
    710100
    KT2 PTX-80KN-100X20X16-H10-H10-4M
    Reference no. 710100
    Lashing capacity direct pull LC 80 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 31
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 4
    Weight approx. [kg] 13.589
  • 80 [kN]
    5
    710101
    KT2 PTX-80KN-100X20X16-H10-H10-5M
    Reference no. 710101
    Lashing capacity direct pull LC 80 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 31
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 5
    Weight approx. [kg] 14.214
  • 80 [kN]
    6
    710102
    KT2 PTX-80KN-100X20X16-H10-H10-6M
    Reference no. 710102
    Lashing capacity direct pull LC 80 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 31
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 6
    Weight approx. [kg] 14.839
  • 160 [kN]
    3
    710103
    KT2 PTX-160KN-125X30X16-H16-H16-3M
    Reference no. 710103
    Lashing capacity direct pull LC 160 [kN]
    Prestressing force STF [daN] 3000
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 3
    Weight approx. [kg] 25.494
  • 160 [kN]
    4
    710104
    KT2 PTX-160KN-125X30X16-H16-H16-4M
    Reference no. 710104
    Lashing capacity direct pull LC 160 [kN]
    Prestressing force STF [daN] 3000
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 4
    Weight approx. [kg] 26.434
  • 160 [kN]
    5
    710105
    KT2 PTX-160KN-125X30X16-H16-H16-5M
    Reference no. 710105
    Lashing capacity direct pull LC 160 [kN]
    Prestressing force STF [daN] 3000
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 5
    Weight approx. [kg] 27.374
  • 160 [kN]
    6
    710106
    KT2 PTX-160KN-125X30X16-H16-H16-6M
    Reference no. 710106
    Lashing capacity direct pull LC 160 [kN]
    Prestressing force STF [daN] 3000
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 6
    Weight approx. [kg] 28.314
Lashing capacity direct pull LC 50 [kN]
Effective length WLL [m] 3
Reference no. 710091
  • Details
    KT2 PTX-50KN-100X20X8-H8-H8-3M
    Reference no. 710091
    Lashing capacity direct pull LC 50 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 3
    Weight approx. [kg] 10.466
Lashing capacity direct pull LC 50 [kN]
Effective length WLL [m] 4
Reference no. 710092
  • Details
    KT2 PTX-50KN-100X20X8-H8-H8-4M
    Reference no. 710092
    Lashing capacity direct pull LC 50 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 4
    Weight approx. [kg] 10.791
Lashing capacity direct pull LC 50 [kN]
Effective length WLL [m] 5
Reference no. 710093
  • Details
    KT2 PTX-50KN-100X20X8-H8-H8-5M
    Reference no. 710093
    Lashing capacity direct pull LC 50 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 5
    Weight approx. [kg] 11.116
Lashing capacity direct pull LC 50 [kN]
Effective length WLL [m] 6
Reference no. 710094
  • Details
    KT2 PTX-50KN-100X20X8-H8-H8-6M
    Reference no. 710094
    Lashing capacity direct pull LC 50 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 26
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 6
    Weight approx. [kg] 11.441
Lashing capacity direct pull LC 100 [kN]
Effective length WLL [m] 3
Reference no. 710095
  • Details
    KT2 PTX-100KN-100X20X16-H13-H13-3M
    Reference no. 710095
    Lashing capacity direct pull LC 100 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 40
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 3
    Weight approx. [kg] 14.824
Lashing capacity direct pull LC 100 [kN]
Effective length WLL [m] 4
Reference no. 710096
  • Details
    KT2 PTX-100KN-100X20X16-H13-H13-4M
    Reference no. 710096
    Lashing capacity direct pull LC 100 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 40
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 4
    Weight approx. [kg] 15.449
Lashing capacity direct pull LC 100 [kN]
Effective length WLL [m] 5
Reference no. 710097
  • Details
    KT2 PTX-100KN-100X20X16-H13-H13-5M
    Reference no. 710097
    Lashing capacity direct pull LC 100 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 40
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 5
    Weight approx. [kg] 16.074
Lashing capacity direct pull LC 100 [kN]
Effective length WLL [m] 6
Reference no. 710098
  • Details
    KT2 PTX-100KN-100X20X16-H13-H13-6M
    Reference no. 710098
    Lashing capacity direct pull LC 100 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 40
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 6
    Weight approx. [kg] 16.699
Lashing capacity direct pull LC 80 [kN]
Effective length WLL [m] 3
Reference no. 710099
  • Details
    KT2 PTX-80KN-100X20X16-H10-H10-3M
    Reference no. 710099
    Lashing capacity direct pull LC 80 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 31
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 3
    Weight approx. [kg] 12.964
Lashing capacity direct pull LC 80 [kN]
Effective length WLL [m] 4
Reference no. 710100
  • Details
    KT2 PTX-80KN-100X20X16-H10-H10-4M
    Reference no. 710100
    Lashing capacity direct pull LC 80 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 31
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 4
    Weight approx. [kg] 13.589
Lashing capacity direct pull LC 80 [kN]
Effective length WLL [m] 5
Reference no. 710101
  • Details
    KT2 PTX-80KN-100X20X16-H10-H10-5M
    Reference no. 710101
    Lashing capacity direct pull LC 80 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 31
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 5
    Weight approx. [kg] 14.214
Lashing capacity direct pull LC 80 [kN]
Effective length WLL [m] 6
Reference no. 710102
  • Details
    KT2 PTX-80KN-100X20X16-H10-H10-6M
    Reference no. 710102
    Lashing capacity direct pull LC 80 [kN]
    Prestressing force STF [daN] 1500
    Hook opening width G [mm] 31
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 6
    Weight approx. [kg] 14.839
Lashing capacity direct pull LC 160 [kN]
Effective length WLL [m] 3
Reference no. 710103
  • Details
    KT2 PTX-160KN-125X30X16-H16-H16-3M
    Reference no. 710103
    Lashing capacity direct pull LC 160 [kN]
    Prestressing force STF [daN] 3000
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 3
    Weight approx. [kg] 25.494
Lashing capacity direct pull LC 160 [kN]
Effective length WLL [m] 4
Reference no. 710104
  • Details
    KT2 PTX-160KN-125X30X16-H16-H16-4M
    Reference no. 710104
    Lashing capacity direct pull LC 160 [kN]
    Prestressing force STF [daN] 3000
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 4
    Weight approx. [kg] 26.434
Lashing capacity direct pull LC 160 [kN]
Effective length WLL [m] 5
Reference no. 710105
  • Details
    KT2 PTX-160KN-125X30X16-H16-H16-5M
    Reference no. 710105
    Lashing capacity direct pull LC 160 [kN]
    Prestressing force STF [daN] 3000
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 5
    Weight approx. [kg] 27.374
Lashing capacity direct pull LC 160 [kN]
Effective length WLL [m] 6
Reference no. 710106
  • Details
    KT2 PTX-160KN-125X30X16-H16-H16-6M
    Reference no. 710106
    Lashing capacity direct pull LC 160 [kN]
    Prestressing force STF [daN] 3000
    Hook opening width G [mm] 45
    Length of tensioning lever LH [mm] 355
    Effective length WLL [m] 6
    Weight approx. [kg] 28.314
