Weldable lashing eye

Weldable lashing eye

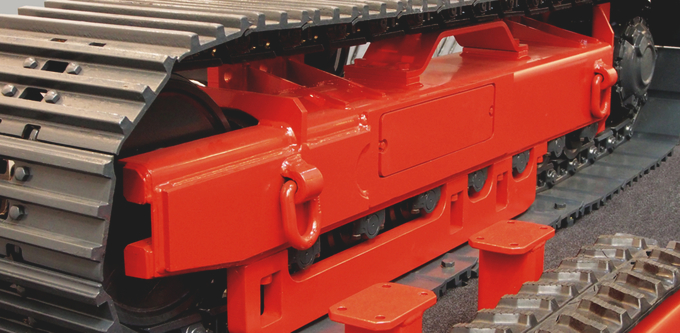

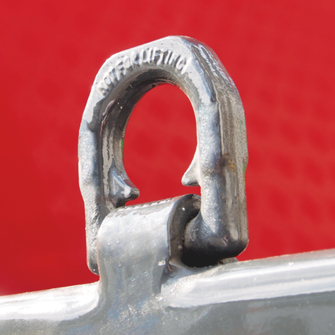

Lashing ring for welding with special marking (lashing capacity in daN) for load securing according to EN 12640 / EN 12195-1.
Technical data

Standard

  • EN 12195-1
  • EN 12640

Certification

  • H-stamp

Quality grade

  • 10

Operating temperature

  • –20 °C to +400 °C

Attachment

  • weldable

Range of application Attachment devices

  • Cargo Lashing Equipment

Type of attachment

  • multi-leg

Technical note

  • Special identification (LC) for the securing of loads and with daN specification
Safety instruction
  • Not suitable for lifting loads and/or persons.
  • Observe the operating instructions!
Product variants
Lashing capacity LC [daN]
Type
Reference no.
Details
  • 3000
    without spring
    256685
    AWZ C831X-3000DAN-G10-BK
    Reference no. 256685
    Lashing capacity LC [daN] 3000
    Overall length L [mm] 79
    Eye Ø D [mm] 38
    Component width B [mm] 66
    Base height J [mm] 25
    Base width U [mm] 31
    Stirrup height C [mm] 14
    Stirrup section Ø F [mm] 16
    Weight approx. [kg] 0.39
    Type without spring
  • 3000
    with spring
    256708
    AWZ C831XM-3000DAN-G10-BK-FEDER
    Reference no. 256708
    Lashing capacity LC [daN] 3000
    Overall length L [mm] 79
    Eye Ø D [mm] 38
    Component width B [mm] 66
    Base height J [mm] 25
    Base width U [mm] 31
    Stirrup height C [mm] 14
    Stirrup section Ø F [mm] 16
    Weight approx. [kg] 0.39
    Type with spring
  • 5000
    without spring
    256686
    AWZ C831X-5000DAN-G10-BK
    Reference no. 256686
    Lashing capacity LC [daN] 5000
    Overall length L [mm] 91
    Eye Ø D [mm] 45
    Component width B [mm] 77
    Base height J [mm] 27
    Base width U [mm] 34.5
    Stirrup height C [mm] 16
    Stirrup section Ø F [mm] 18
    Weight approx. [kg] 0.59
    Type without spring
  • 5000
    with spring
    256709
    AWZ C831XM-5000DAN-G10-BK-FEDER
    Reference no. 256709
    Lashing capacity LC [daN] 5000
    Overall length L [mm] 91
    Eye Ø D [mm] 45
    Component width B [mm] 77
    Base height J [mm] 27
    Base width U [mm] 35.5
    Stirrup height C [mm] 16
    Stirrup section Ø F [mm] 18
    Weight approx. [kg] 0.59
    Type with spring
  • 8000
    without spring
    256687
    AWZ C831X-8000DAN-G10-BK
    Reference no. 256687
    Lashing capacity LC [daN] 8000
    Overall length L [mm] 102
    Eye Ø D [mm] 51
    Component width B [mm] 87
    Base height J [mm] 32
    Base width U [mm] 40
    Stirrup height C [mm] 18
    Stirrup section Ø F [mm] 20
    Weight approx. [kg] 0.87
    Type without spring
  • 8000
    with spring
    256710
    AWZ C831XM-8000DAN-G10-BK-FEDER
    Reference no. 256710
    Lashing capacity LC [daN] 8000
    Overall length L [mm] 102
    Eye Ø D [mm] 51
    Component width B [mm] 87
    Base height J [mm] 32
    Base width U [mm] 40
    Stirrup height C [mm] 18
    Stirrup section Ø F [mm] 20
    Weight approx. [kg] 0.87
    Type with spring
  • 13400
    without spring
    256688
    AWZ C831X-13400DAN-G10-BK
    Reference no. 256688
    Lashing capacity LC [daN] 13400
    Overall length L [mm] 141
    Eye Ø D [mm] 67.3
    Component width B [mm] 115
    Base height J [mm] 44
    Base width U [mm] 58.5
    Stirrup height C [mm] 24
    Stirrup section Ø F [mm] 26
    Weight approx. [kg] 2.23
    Type without spring
  • 13400
    with spring
    256711
    AWZ C831XM-13400DAN-G10-BK-FEDER
    Reference no. 256711
    Lashing capacity LC [daN] 13400
    Overall length L [mm] 141
    Eye Ø D [mm] 67.3
    Component width B [mm] 115
    Base height J [mm] 44
    Base width U [mm] 58.5
    Stirrup height C [mm] 24
    Stirrup section Ø F [mm] 26
    Weight approx. [kg] 2.23
    Type with spring
  • 20000
    without spring
    256689
    AWZ C831X-20000DAN-G10-BK
    Reference no. 256689
    Lashing capacity LC [daN] 20000
    Overall length L [mm] 157
    Eye Ø D [mm] 67
    Component width B [mm] 129
    Base height J [mm] 55
    Base width U [mm] 70.5
    Stirrup height C [mm] 31
    Stirrup section Ø F [mm] 28.5
    Weight approx. [kg] 3.33
    Type without spring
  • 20000
    with spring
    256712
    AWZ C831XM-20000DAN-G10-BK-FEDER
    Reference no. 256712
    Lashing capacity LC [daN] 20000
    Overall length L [mm] 157
    Eye Ø D [mm] 67
    Component width B [mm] 123
    Base height J [mm] 55
    Base width U [mm] 70.5
    Stirrup height C [mm] 31
    Stirrup section Ø F [mm] 28.5
    Weight approx. [kg] 3.33
    Type with spring
  • 32000
    without spring
    256690
    AWZ C831X-32000DAN-G10-BK
    Reference no. 256690
    Lashing capacity LC [daN] 32000
    Overall length L [mm] 219
    Eye Ø D [mm] 100
    Component width B [mm] 190
    Base height J [mm] 69
    Base width U [mm] 87
    Stirrup height C [mm] 45
    Stirrup section Ø F [mm] 42
    Weight approx. [kg] 9.28
    Type without spring
  • 32000
    with spring
    256713
    AWZ C831XM-32000DAN-G10-BK-FEDER
    Reference no. 256713
    Lashing capacity LC [daN] 32000
    Overall length L [mm] 219
    Eye Ø D [mm] 100
    Component width B [mm] 190
    Base height J [mm] 69
    Base width U [mm] 87
    Stirrup height C [mm] 45
    Stirrup section Ø F [mm] 42
    Weight approx. [kg] 9.28
    Type with spring
Lashing capacity LC [daN] 3000
Type without spring
Reference no. 256685
  • Details
    AWZ C831X-3000DAN-G10-BK
    Reference no. 256685
    Lashing capacity LC [daN] 3000
    Overall length L [mm] 79
    Eye Ø D [mm] 38
    Component width B [mm] 66
    Base height J [mm] 25
    Base width U [mm] 31
    Stirrup height C [mm] 14
    Stirrup section Ø F [mm] 16
    Weight approx. [kg] 0.39
    Type without spring
Lashing capacity LC [daN] 3000
Type with spring
Reference no. 256708
  • Details
    AWZ C831XM-3000DAN-G10-BK-FEDER
    Reference no. 256708
    Lashing capacity LC [daN] 3000
    Overall length L [mm] 79
    Eye Ø D [mm] 38
    Component width B [mm] 66
    Base height J [mm] 25
    Base width U [mm] 31
    Stirrup height C [mm] 14
    Stirrup section Ø F [mm] 16
    Weight approx. [kg] 0.39
    Type with spring
Lashing capacity LC [daN] 5000
Type without spring
Reference no. 256686
  • Details
    AWZ C831X-5000DAN-G10-BK
    Reference no. 256686
    Lashing capacity LC [daN] 5000
    Overall length L [mm] 91
    Eye Ø D [mm] 45
    Component width B [mm] 77
    Base height J [mm] 27
    Base width U [mm] 34.5
    Stirrup height C [mm] 16
    Stirrup section Ø F [mm] 18
    Weight approx. [kg] 0.59
    Type without spring
Lashing capacity LC [daN] 5000
Type with spring
Reference no. 256709
  • Details
    AWZ C831XM-5000DAN-G10-BK-FEDER
    Reference no. 256709
    Lashing capacity LC [daN] 5000
    Overall length L [mm] 91
    Eye Ø D [mm] 45
    Component width B [mm] 77
    Base height J [mm] 27
    Base width U [mm] 35.5
    Stirrup height C [mm] 16
    Stirrup section Ø F [mm] 18
    Weight approx. [kg] 0.59
    Type with spring
Lashing capacity LC [daN] 8000
Type without spring
Reference no. 256687
  • Details
    AWZ C831X-8000DAN-G10-BK
    Reference no. 256687
    Lashing capacity LC [daN] 8000
    Overall length L [mm] 102
    Eye Ø D [mm] 51
    Component width B [mm] 87
    Base height J [mm] 32
    Base width U [mm] 40
    Stirrup height C [mm] 18
    Stirrup section Ø F [mm] 20
    Weight approx. [kg] 0.87
    Type without spring
Lashing capacity LC [daN] 8000
Type with spring
Reference no. 256710
  • Details
    AWZ C831XM-8000DAN-G10-BK-FEDER
    Reference no. 256710
    Lashing capacity LC [daN] 8000
    Overall length L [mm] 102
    Eye Ø D [mm] 51
    Component width B [mm] 87
    Base height J [mm] 32
    Base width U [mm] 40
    Stirrup height C [mm] 18
    Stirrup section Ø F [mm] 20
    Weight approx. [kg] 0.87
    Type with spring
Lashing capacity LC [daN] 13400
Type without spring
Reference no. 256688
  • Details
    AWZ C831X-13400DAN-G10-BK
    Reference no. 256688
    Lashing capacity LC [daN] 13400
    Overall length L [mm] 141
    Eye Ø D [mm] 67.3
    Component width B [mm] 115
    Base height J [mm] 44
    Base width U [mm] 58.5
    Stirrup height C [mm] 24
    Stirrup section Ø F [mm] 26
    Weight approx. [kg] 2.23
    Type without spring
Lashing capacity LC [daN] 13400
Type with spring
Reference no. 256711
  • Details
    AWZ C831XM-13400DAN-G10-BK-FEDER
    Reference no. 256711
    Lashing capacity LC [daN] 13400
    Overall length L [mm] 141
    Eye Ø D [mm] 67.3
    Component width B [mm] 115
    Base height J [mm] 44
    Base width U [mm] 58.5
    Stirrup height C [mm] 24
    Stirrup section Ø F [mm] 26
    Weight approx. [kg] 2.23
    Type with spring
Lashing capacity LC [daN] 20000
Type without spring
Reference no. 256689
  • Details
    AWZ C831X-20000DAN-G10-BK
    Reference no. 256689
    Lashing capacity LC [daN] 20000
    Overall length L [mm] 157
    Eye Ø D [mm] 67
    Component width B [mm] 129
    Base height J [mm] 55
    Base width U [mm] 70.5
    Stirrup height C [mm] 31
    Stirrup section Ø F [mm] 28.5
    Weight approx. [kg] 3.33
    Type without spring
Lashing capacity LC [daN] 20000
Type with spring
Reference no. 256712
  • Details
    AWZ C831XM-20000DAN-G10-BK-FEDER
    Reference no. 256712
    Lashing capacity LC [daN] 20000
    Overall length L [mm] 157
    Eye Ø D [mm] 67
    Component width B [mm] 123
    Base height J [mm] 55
    Base width U [mm] 70.5
    Stirrup height C [mm] 31
    Stirrup section Ø F [mm] 28.5
    Weight approx. [kg] 3.33
    Type with spring
Lashing capacity LC [daN] 32000
Type without spring
Reference no. 256690
  • Details
    AWZ C831X-32000DAN-G10-BK
    Reference no. 256690
    Lashing capacity LC [daN] 32000
    Overall length L [mm] 219
    Eye Ø D [mm] 100
    Component width B [mm] 190
    Base height J [mm] 69
    Base width U [mm] 87
    Stirrup height C [mm] 45
    Stirrup section Ø F [mm] 42
    Weight approx. [kg] 9.28
    Type without spring
Lashing capacity LC [daN] 32000
Type with spring
Reference no. 256713
  • Details
    AWZ C831XM-32000DAN-G10-BK-FEDER
    Reference no. 256713
    Lashing capacity LC [daN] 32000
    Overall length L [mm] 219
    Eye Ø D [mm] 100
    Component width B [mm] 190
    Base height J [mm] 69
    Base width U [mm] 87
    Stirrup height C [mm] 45
    Stirrup section Ø F [mm] 42
    Weight approx. [kg] 9.28
    Type with spring
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
