Weldable lashing ring

Weldable lashing ring

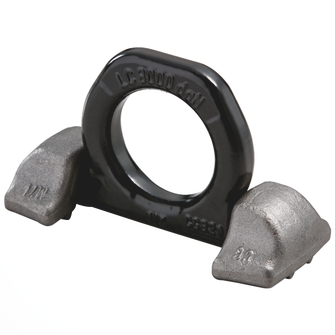

Lashing ring for welding with special marking (LC in daN) for load securing according to EN 12640 / EN 12195-1. The load application via the two weld-on lugs leads to optimal force distribution in the load.
Technical data

Standard

  • EN 12195-1
  • EN 12640

Certification

  • H-stamp

Quality grade

  • 10

Operating temperature

  • –20 °C to +400 °C

Attachment

  • weldable

Range of application Attachment devices

  • Cargo Lashing Equipment

Type of attachment

  • multi-leg

Technical note

  • Selection and attachment according to standard EN12640/EN12195-1
  • Special identification (LC) for the securing of loads and with daN specification
Safety instruction
  • Not suitable for lifting loads and/or persons.
  • Observe the operating instructions!
Product variants
Lashing capacity LC [daN]
Reference no.
Details
  • 8000
    256691
    RBZ C821X-8000DAN-G10-BK
    Reference no. 256691

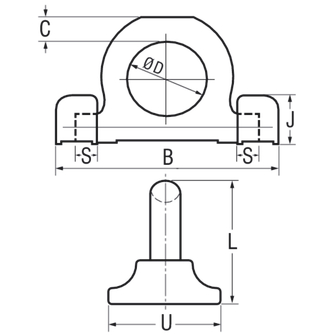

    Lashing capacity LC [daN] 8000
    Overall length L [mm] 79
    Eye Ø D [mm] 48
    Component width B [mm] 134
    Base height J [mm] 29
    Base width U [mm] 60
    Stirrup height C [mm] 14
    S [mm] 11.4
    Weight approx. [kg] 0.73
  • 13400
    256692
    RBZ C821X-134000DAN-G10-BK
    Reference no. 256692
    Lashing capacity LC [daN] 13400
    Overall length L [mm] 103
    Eye Ø D [mm] 60
    Component width B [mm] 169
    Base height J [mm] 39
    Base width U [mm] 88
    Stirrup height C [mm] 20
    S [mm] 16
    Weight approx. [kg] 1.8
  • 20000
    256693
    RBZ C821X-20000DAN-G10-BK
    Reference no. 256693
    Lashing capacity LC [daN] 20000
    Overall length L [mm] 118
    Eye Ø D [mm] 65
    Component width B [mm] 196
    Base height J [mm] 48
    Base width U [mm] 98
    Stirrup height C [mm] 22
    S [mm] 19.5
    Weight approx. [kg] 3
  • 32000
    256694
    RBZ C821X-32000DAN-G10-BK
    Reference no. 256694
    Lashing capacity LC [daN] 32000
    Overall length L [mm] 155
    Eye Ø D [mm] 90
    Component width B [mm] 264
    Base height J [mm] 55
    Base width U [mm] 127
    Stirrup height C [mm] 31
    S [mm] 29
    Weight approx. [kg] 5.75
Lashing capacity LC [daN] 8000
Reference no. 256691
  • Details
    RBZ C821X-8000DAN-G10-BK
    Reference no. 256691
    Lashing capacity LC [daN] 8000
    Overall length L [mm] 79
    Eye Ø D [mm] 48
    Component width B [mm] 134
    Base height J [mm] 29
    Base width U [mm] 60
    Stirrup height C [mm] 14
    S [mm] 11.4
    Weight approx. [kg] 0.73
Lashing capacity LC [daN] 13400
Reference no. 256692
  • Details
    RBZ C821X-134000DAN-G10-BK
    Reference no. 256692
    Lashing capacity LC [daN] 13400
    Overall length L [mm] 103
    Eye Ø D [mm] 60
    Component width B [mm] 169
    Base height J [mm] 39
    Base width U [mm] 88
    Stirrup height C [mm] 20
    S [mm] 16
    Weight approx. [kg] 1.8
Lashing capacity LC [daN] 20000
Reference no. 256693
  • Details
    RBZ C821X-20000DAN-G10-BK
    Reference no. 256693
    Lashing capacity LC [daN] 20000
    Overall length L [mm] 118
    Eye Ø D [mm] 65
    Component width B [mm] 196
    Base height J [mm] 48
    Base width U [mm] 98
    Stirrup height C [mm] 22
    S [mm] 19.5
    Weight approx. [kg] 3
Lashing capacity LC [daN] 32000
Reference no. 256694
  • Details
    RBZ C821X-32000DAN-G10-BK
    Reference no. 256694
    Lashing capacity LC [daN] 32000
    Overall length L [mm] 155
    Eye Ø D [mm] 90
    Component width B [mm] 264
    Base height J [mm] 55
    Base width U [mm] 127
    Stirrup height C [mm] 31
    S [mm] 29
    Weight approx. [kg] 5.75
