Polytex® lashing strap system KS-35

Polytex® lashing strap system KS-35
One-piece lashing strap with clamping lock with 800 daN lashing capacity for light and moderate applications – ideal for the simple and fast bundling and fixing of goods of any kind for transport or storage.
Technical data

Lashing capacity strapping

  • 800 daN

Colour harness strap

  • green

Width harness strap

  • 35 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo
  • Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

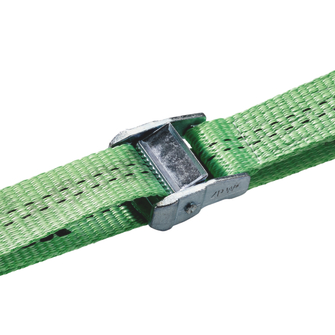

Type of ratchet

  • Clamping lock

Version Strap

  • Lashing strap system with clamping lock
Options

Options on request

  • with individual imprint
  • further useful lengths
Product variants

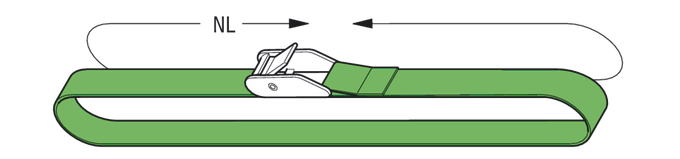

Effective length WLL [m]
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 4
    800
    without hook
    473804
    Z13 KST-800-4M
    Reference no. 473804
    Effective length WLL [m] 4
    Lashing capacity strapping LC [daN] 800
    Hook type without hook
    System parts Quantity one-piece
    Weight approx. [kg] 0.25
  • 6
    800
    without hook
    473805
    Z13 KST-800-6M
    Reference no. 473805
    Effective length WLL [m] 6
    Lashing capacity strapping LC [daN] 800
    Hook type without hook
    System parts Quantity one-piece
    Weight approx. [kg] 0.36
Effective length WLL [m] 4
Lashing capacity strapping LC [daN] 800
Hook type without hook
Reference no. 473804
  • Details
    Z13 KST-800-4M
    Reference no. 473804
    Effective length WLL [m] 4
    Lashing capacity strapping LC [daN] 800
    Hook type without hook
    System parts Quantity one-piece
    Weight approx. [kg] 0.25
Effective length WLL [m] 6
Lashing capacity strapping LC [daN] 800
Hook type without hook
Reference no. 473805
  • Details
    Z13 KST-800-6M
    Reference no. 473805
    Effective length WLL [m] 6
    Lashing capacity strapping LC [daN] 800
    Hook type without hook
    System parts Quantity one-piece
    Weight approx. [kg] 0.36
