Polytex® lashing strap system RS-35

Polytex® lashing strap system RS-35
Lashing strap system for small and medium loads in all applications from trades to industry, on trailers, in vans or on trucks.
Technical data

Ratchet prestressing force

  • 260 daN

Lashing capacity strapping

  • 2000 daN

Colour harness strap

  • green

Width harness strap

  • 35 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo

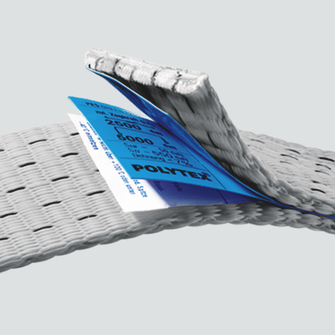

  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

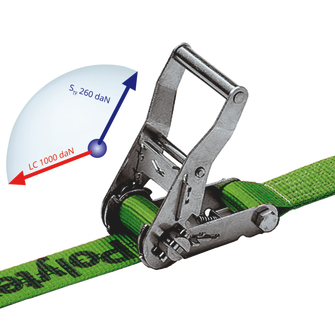

Type of ratchet

  • Compact push-ratchet with transport securing device

Number of teeth on ratchet

  • 11 pcs

Lever length

  • 120 mm

Handle length

  • 150 mm

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
  • further hook types
Product variants
Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 4
    2000
    without hook
    473789
    Z13 RST-2000-4M
    Reference no. 473789
    Effective length WLL [m] 4
    Lashing capacity strapping LC [daN] 2000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 0.8
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 120
    produkt_laenge_griff_met_td 150
  • 6
    2000
    without hook
    473790
    Z13 RST-2000-6M
    Reference no. 473790
    Effective length WLL [m] 6
    Lashing capacity strapping LC [daN] 2000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 0.91
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 120
    produkt_laenge_griff_met_td 150
  • 4
    1000 [daN]
    2000

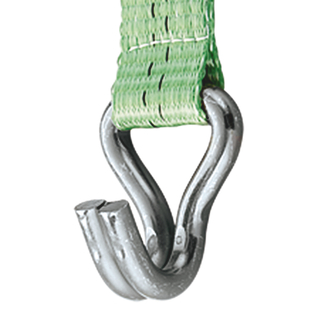

    Wire claw hook
    473793
    Z23 RST-1000-KDH_KDH-4M
    Reference no. 473793
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.09
    produkt_laenge_hebel_met_td 120
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 150
  • 6
    1000 [daN]
    2000
    Wire claw hook
    473795
    Z23 RST-1000-KDH_KDH-6M
    Reference no. 473795
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.21
    produkt_laenge_griff_met_td 150
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 120
  • 4
    1000 [daN]
    2000
    J-hook
    473798
    Z23 RST-1000-KSH_KSH-4M
    Reference no. 473798
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.23
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 150
    produkt_laenge_hebel_met_td 120
  • 6
    1000 [daN]
    2000
    J-hook
    473799
    Z23 RST-1000-KSH_KSH-6M
    Reference no. 473799
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.35
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 150
    produkt_laenge_hebel_met_td 120
  • 4
    1000 [daN]
    2000

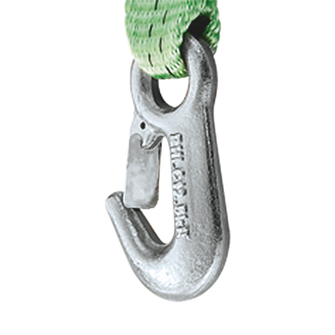

    Eye hook
    473801
    Z23 RST-1000-HBF_HBF-4M
    Reference no. 473801
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type Eye hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.14
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 120
    produkt_laenge_griff_met_td 150
  • 6
    1000 [daN]
    2000
    Eye hook
    473802
    Z23 RST-1000-HBF_HBF-6M
    Reference no. 473802
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type Eye hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.25
    produkt_laenge_hebel_met_td 120
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 150
Effective length WLL [m] 4
Lashing capacity strapping LC [daN] 2000
Hook type without hook
Reference no. 473789
  • Details
    Z13 RST-2000-4M
    Reference no. 473789
    Effective length WLL [m] 4
    Lashing capacity strapping LC [daN] 2000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 0.8
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 120
    produkt_laenge_griff_met_td 150
Effective length WLL [m] 6
Lashing capacity strapping LC [daN] 2000
Hook type without hook
Reference no. 473790
  • Details
    Z13 RST-2000-6M
    Reference no. 473790
    Effective length WLL [m] 6
    Lashing capacity strapping LC [daN] 2000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 0.91
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 120
    produkt_laenge_griff_met_td 150
Effective length WLL [m] 4
Lashing capacity direct pull LC 1000 [daN]
Lashing capacity strapping LC [daN] 2000
Hook type Wire claw hook
Reference no. 473793
  • Details
    Z23 RST-1000-KDH_KDH-4M
    Reference no. 473793
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.09
    produkt_laenge_hebel_met_td 120
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 150
Effective length WLL [m] 6
Lashing capacity direct pull LC 1000 [daN]
Lashing capacity strapping LC [daN] 2000
Hook type Wire claw hook
Reference no. 473795
  • Details
    Z23 RST-1000-KDH_KDH-6M
    Reference no. 473795
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.21
    produkt_laenge_griff_met_td 150
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 120
Effective length WLL [m] 4
Lashing capacity direct pull LC 1000 [daN]
Lashing capacity strapping LC [daN] 2000
Hook type J-hook
Reference no. 473798
  • Details
    Z23 RST-1000-KSH_KSH-4M
    Reference no. 473798
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.23
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 150
    produkt_laenge_hebel_met_td 120
Effective length WLL [m] 6
Lashing capacity direct pull LC 1000 [daN]
Lashing capacity strapping LC [daN] 2000
Hook type J-hook
Reference no. 473799
  • Details
    Z23 RST-1000-KSH_KSH-6M
    Reference no. 473799
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.35
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 150
    produkt_laenge_hebel_met_td 120
Effective length WLL [m] 4
Lashing capacity direct pull LC 1000 [daN]
Lashing capacity strapping LC [daN] 2000
Hook type Eye hook
Reference no. 473801
  • Details
    Z23 RST-1000-HBF_HBF-4M
    Reference no. 473801
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type Eye hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.14
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 120
    produkt_laenge_griff_met_td 150
Effective length WLL [m] 6
Lashing capacity direct pull LC 1000 [daN]
Lashing capacity strapping LC [daN] 2000
Hook type Eye hook
Reference no. 473802
  • Details
    Z23 RST-1000-HBF_HBF-6M
    Reference no. 473802
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 1000 [daN]
    Lashing capacity strapping LC [daN] 2000
    Length fixed end [m] 0.3
    Hook type Eye hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 260
    Weight approx. [kg] 1.25
    produkt_laenge_hebel_met_td 120
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 150
