Polytex® ECO lashing strap system LH-ERGO

Polytex® ECO lashing strap system LH-ERGO
Lashing strap system with pull ratchet for easy handling of simple applications or for strapping. The LH-ERGO PLUS pull-down ratchet with a long lever is actuated by pulling instead of pushing, which makes the prestressing force easier to apply and thus protects the user's back.
Technical data

Ratchet prestressing force

  • 500 daN

Lashing capacity strapping

  • 5000 daN

Colour harness strap

  • blue

Width harness strap

  • 50 mm

Material harness strap

  • polyester

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Performance class

  • High-performance all-round system

Type of ratchet

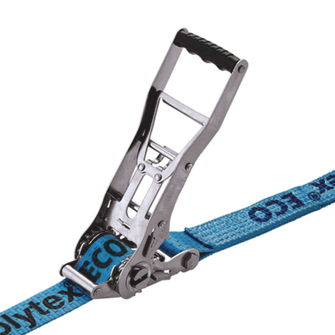

  • LH-ERGO pull-ratchet with long lever and transport securing device

Version Strap

  • Lashing strap system with ratchet
Product variants
Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 10
    2500 [daN]
    5000
    Wire claw hook
    711707
    E25 LHE-2500-KDH_KDH-8M-BL-STF500
    Reference no. 711707
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.1
  • 10
    2500 [daN]
    5000
    Wire claw hook
    711708
    E25 LHE-2500-KDH_KDH-10M-BL-STF500
    Reference no. 711708
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.4
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 711707
  • Details
    E25 LHE-2500-KDH_KDH-8M-BL-STF500
    Reference no. 711707
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.1
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 711708
  • Details
    E25 LHE-2500-KDH_KDH-10M-BL-STF500
    Reference no. 711708
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.4
