Polytex® ECO lashing strap system RS-50
Polytex® ECO lashing strap system RS-50
Technical data
Ratchet prestressing force
- 300 daN
Lashing capacity strapping
- 5000 daN
Colour harness strap
- blue
Width harness strap
- 50 mm
Material harness strap
- polyester
Standard
- DIN EN 12195-2
Operating temperature
- –40 °C to +100 °C
Performance class
- Standard system
Type of ratchet

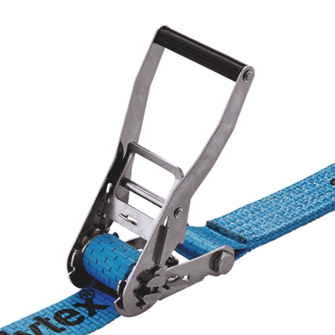

- Quality push-ratchet with transport securing device
Version Strap
- Lashing strap system with ratchet
Product variants
Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
-
82500 [daN]5000Wire claw hook257602
E25 RST-2500-KDH_KDH-8M-BLReference no. 257602 Effective length WLL [m] 8 Lashing capacity direct pull LC 2500 [daN] Lashing capacity strapping LC [daN] 5000 Length fixed end [m] 0.5 Hook type Wire claw hook System parts Quantity two-piece Ratchet prestressing force STF [daN] 300 Weight approx. [kg] 2.6 -
102500 [daN]5000Wire claw hook257603
E25 RST-2500-KDH_KDH-10M-BL
Reference no. 257603 Effective length WLL [m] 10 Lashing capacity direct pull LC 2500 [daN] Lashing capacity strapping LC [daN] 5000 Length fixed end [m] 0.5 Hook type Wire claw hook System parts Quantity two-piece Ratchet prestressing force STF [daN] 300 Weight approx. [kg] 2.8
Effective length WLL [m]
8
Lashing capacity direct pull LC
2500 [daN]
Lashing capacity strapping LC [daN]
5000
Hook type
Wire claw hook
Reference no.
257602
-
Details
E25 RST-2500-KDH_KDH-8M-BL
Reference no. 257602 Effective length WLL [m] 8 Lashing capacity direct pull LC 2500 [daN] Lashing capacity strapping LC [daN] 5000 Length fixed end [m] 0.5 Hook type Wire claw hook System parts Quantity two-piece Ratchet prestressing force STF [daN] 300 Weight approx. [kg] 2.6
Effective length WLL [m]
10
Lashing capacity direct pull LC
2500 [daN]
Lashing capacity strapping LC [daN]
5000
Hook type
Wire claw hook
Reference no.
257603
-
Details
E25 RST-2500-KDH_KDH-10M-BL
Reference no. 257603 Effective length WLL [m] 10 Lashing capacity direct pull LC 2500 [daN] Lashing capacity strapping LC [daN] 5000 Length fixed end [m] 0.5 Hook type Wire claw hook System parts Quantity two-piece Ratchet prestressing force STF [daN] 300 Weight approx. [kg] 2.8
