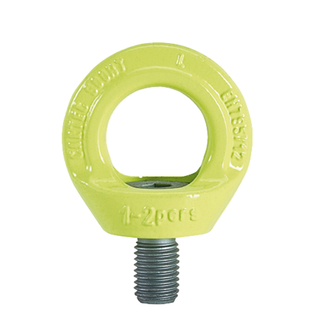

PPE eyebolt rotatable H.T.

PPE eyebolt rotatable H.T.
Technical data

Material

  • steel

Operating temperature

  • -40 °C to +280 °C

Standard

  • EN 795

Rotation

  • 360°
Product variants
Permitted number of persons [St]
Thread diameter metric M
Reference no.
Details
  • 1
    M 12
    470866
    Eye-bolt PSA C900XHT12 drehbar EN 795 1/2 per.
    Reference no. 470866
    Overall length L [mm] 72 [mm]
    Thread length K [mm] 18
    Permitted number of persons 1
    Stirrup width H 11.5
    Stirrup height C [mm] 12.5
    Ø of contact surface E 30.6
    Clearance W [mm] 30
    Outer ring Ø O [mm] 55.5
    Weight approx. [kg] 0.18
    Thread diameter metric M M 12
    Manufacturer-Ident-No. C900XHT12
  • 2
    M 16
    470864
    Eye-bolt PSA C900XHT16 drehbar EN 795 1/2 per.
    Reference no. 470864
    Overall length L [mm] 88 [mm]
    Thread length K [mm] 24
    Permitted number of persons 2
    Stirrup width H 15
    Stirrup height C [mm] 14.5
    Ø of contact surface E 36.5
    Clearance W [mm] 35
    Outer ring Ø O [mm] 64.5
    Weight approx. [kg] 0.35
    Thread diameter metric M M 16
    Manufacturer-Ident-No. C900XHT16
  • 2
    M 20
    470865
    Eye-bolt PSA C900XHT20 drehbar EN 795 1/2 per.
    Reference no. 470865
    Overall length L [mm] 104 [mm]
    Thread length K [mm] 30
    Permitted number of persons 2
    Stirrup width H 18
    Stirrup height C [mm] 16
    Ø of contact surface E 42
    Clearance W [mm] 40
    Outer ring Ø O [mm] 74.5
    Weight approx. [kg] 0.6
    Thread diameter metric M M 20
    Manufacturer-Ident-No. C900XHT20
Permitted number of persons 1
Thread diameter metric M M 12
Reference no. 470866
  • Details
    Eye-bolt PSA C900XHT12 drehbar EN 795 1/2 per.
    Reference no. 470866
    Overall length L [mm] 72 [mm]
    Thread length K [mm] 18
    Permitted number of persons 1
    Stirrup width H 11.5
    Stirrup height C [mm] 12.5
    Ø of contact surface E 30.6
    Clearance W [mm] 30
    Outer ring Ø O [mm] 55.5
    Weight approx. [kg] 0.18
    Thread diameter metric M M 12
    Manufacturer-Ident-No. C900XHT12
Permitted number of persons 2
Thread diameter metric M M 16
Reference no. 470864
  • Details
    Eye-bolt PSA C900XHT16 drehbar EN 795 1/2 per.
    Reference no. 470864
    Overall length L [mm] 88 [mm]
    Thread length K [mm] 24
    Permitted number of persons 2
    Stirrup width H 15
    Stirrup height C [mm] 14.5
    Ø of contact surface E 36.5
    Clearance W [mm] 35
    Outer ring Ø O [mm] 64.5
    Weight approx. [kg] 0.35
    Thread diameter metric M M 16
    Manufacturer-Ident-No. C900XHT16
Permitted number of persons 2
Thread diameter metric M M 20
Reference no. 470865
  • Details
    Eye-bolt PSA C900XHT20 drehbar EN 795 1/2 per.
    Reference no. 470865
    Overall length L [mm] 104 [mm]
    Thread length K [mm] 30
    Permitted number of persons 2
    Stirrup width H 18
    Stirrup height C [mm] 16
    Ø of contact surface E 42
    Clearance W [mm] 40
    Outer ring Ø O [mm] 74.5
    Weight approx. [kg] 0.6
    Thread diameter metric M M 20
    Manufacturer-Ident-No. C900XHT20
