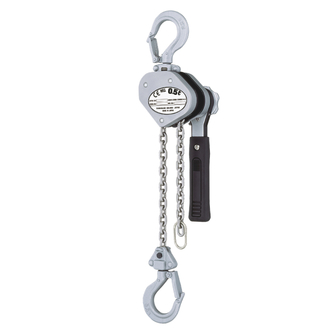

LX-ALU mini lever hoist

LX-ALU mini lever hoist
The ultra-light and compact lever hoists of the LX series are designed for loads of 250 kg or 500 kg. The lever hoist can be compactly folded and stored in a belt pouch so that it can always be carried along and is readily available for use. The LX lever hoists have a chain freewheel device with load fall arrester, where the brake tightens safely in freewheel mode in case of a sudden increase in load.
Technical data

Standard

  • Hoist: EN 13157
  • Chain: EN 818-7

Safety factor

  • 4

Operating temperature

  • –40 °C to +60 °C
  • reduced carrying capacities outside this range

Housing material

  • Aluminum

Suitability for application

  • Attachment technology
  • Cargo Lashing Equipment
Options

Options on request

  • in further lifting heights
  • with friction coupling
Safety instruction
  • Note the minimum load for achieving the full brake function
  • No parallel shear pull! Positioning of the device always centrally underneath the suspension gear.
  • Hooks may not be loaded at the hook tip.
  • Load chain may not be used a chain sling.
Product variants
Working load limit [kg]
Lifting height max Hmax [m]
Reference no.
Details
  • 250
    1.5
    308270
    KHZ LXA-0.25T-ST1-LIFT-1.5M
    Reference no. 308270
    Working load limit [kg] 250
    Number of legs AS 1
    Lever pressure under full load 20 [daN]
    Body width B 73.5
    Spacing body right to central suspension point S2 62
    Distance suspension point min Emin [mm] 205
    Load hook Thickness A 11
    Clear span load hook W 32
    Hook opening width G [mm] 21
    Handle length LG 150
    Chain link length 9
    Chain link width 3.2
    Lifting height max Hmax 1.5
    Weight approx. [kg] 1.7 [kg]
  • 500
    1.5
    308271
    KHZ LXA-0.5T-ST1-LIFT-1.5M
    Reference no. 308271
    Working load limit [kg] 500
    Number of legs AS 1
    Lever pressure under full load 31 [daN]
    Body width B 93
    Spacing body right to central suspension point S2 68
    Distance suspension point min Emin [mm] 246
    Load hook Thickness A 12
    Clear span load hook W 35.5
    Hook opening width G [mm] 24.5
    Handle length LG 180
    Chain link length 12
    Chain link width 4.3
    Lifting height max Hmax 1.5
    Weight approx. [kg] 2.7 [kg]
  • 250
    3
    308327
    KHZ LXA-0.25T-ST1-LIFT-3M
    Reference no. 308327
    Working load limit [kg] 250
    Number of legs AS 1
    Lever pressure under full load 20 [daN]
    Body width B 73.5
    Spacing body right to central suspension point S2 62
    Distance suspension point min Emin [mm] 205
    Load hook Thickness A 11
    Clear span load hook W 32
    Hook opening width G [mm] 21
    Handle length LG 150
    Chain link length 9
    Chain link width 3.2
    Lifting height max Hmax 3
    Weight approx. [kg] 2 [kg]
  • 500
    3
    308328
    KHZ LXA-0.5T-ST1-LIFT-3M
    Reference no. 308328
    Working load limit [kg] 500
    Number of legs AS 1
    Lever pressure under full load 31 [daN]
    Body width B 93
    Spacing body right to central suspension point S2 68
    Distance suspension point min Emin [mm] 246
    Load hook Thickness A 12
    Clear span load hook W 35.5
    Hook opening width G [mm] 24.5
    Handle length LG 180
    Chain link length 12
    Chain link width 4.3
    Lifting height max Hmax 3
    Weight approx. [kg] 3.3 [kg]
Working load limit [kg] 250
Lifting height max Hmax 1.5
Reference no. 308270
  • Details
    KHZ LXA-0.25T-ST1-LIFT-1.5M
    Reference no. 308270
    Working load limit [kg] 250
    Number of legs AS 1
    Lever pressure under full load 20 [daN]
    Body width B 73.5
    Spacing body right to central suspension point S2 62
    Distance suspension point min Emin [mm] 205
    Load hook Thickness A 11
    Clear span load hook W 32
    Hook opening width G [mm] 21
    Handle length LG 150
    Chain link length 9
    Chain link width 3.2
    Lifting height max Hmax 1.5
    Weight approx. [kg] 1.7 [kg]
Working load limit [kg] 500
Lifting height max Hmax 1.5
Reference no. 308271
  • Details
    KHZ LXA-0.5T-ST1-LIFT-1.5M
    Reference no. 308271
    Working load limit [kg] 500
    Number of legs AS 1
    Lever pressure under full load 31 [daN]
    Body width B 93
    Spacing body right to central suspension point S2 68
    Distance suspension point min Emin [mm] 246
    Load hook Thickness A 12
    Clear span load hook W 35.5
    Hook opening width G [mm] 24.5
    Handle length LG 180
    Chain link length 12
    Chain link width 4.3
    Lifting height max Hmax 1.5
    Weight approx. [kg] 2.7 [kg]
Working load limit [kg] 250
Lifting height max Hmax 3
Reference no. 308327
  • Details
    KHZ LXA-0.25T-ST1-LIFT-3M
    Reference no. 308327
    Working load limit [kg] 250
    Number of legs AS 1
    Lever pressure under full load 20 [daN]
    Body width B 73.5
    Spacing body right to central suspension point S2 62
    Distance suspension point min Emin [mm] 205
    Load hook Thickness A 11
    Clear span load hook W 32
    Hook opening width G [mm] 21
    Handle length LG 150
    Chain link length 9
    Chain link width 3.2
    Lifting height max Hmax 3
    Weight approx. [kg] 2 [kg]
Working load limit [kg] 500
Lifting height max Hmax 3
Reference no. 308328
  • Details
    KHZ LXA-0.5T-ST1-LIFT-3M
    Reference no. 308328
    Working load limit [kg] 500
    Number of legs AS 1
    Lever pressure under full load 31 [daN]
    Body width B 93
    Spacing body right to central suspension point S2 68
    Distance suspension point min Emin [mm] 246
    Load hook Thickness A 12
    Clear span load hook W 35.5
    Hook opening width G [mm] 24.5
    Handle length LG 180
    Chain link length 12
    Chain link width 4.3
    Lifting height max Hmax 3
    Weight approx. [kg] 3.3 [kg]
