Crane scales Multi

Crane scales Multi

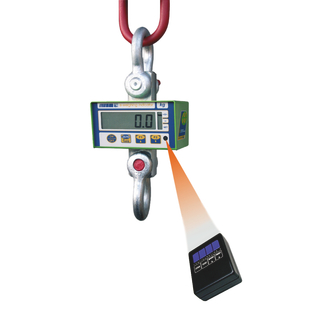

Reliable crane scales with LCD display for in-plant applications. Accuracy 0.03% within the weighing range. The humidity-protected keyboard has 4 keys: ON/OFF, zero setting/automatic tare deduction, F1 and F2. Infrared remote control is configurable as a taring device or remote keyboard. Delivery in a handy transport case.
Technical data

Operating temperature

  • –10 °C to +40 °C

Protection class

  • IP40

Battery type

  • 4 x AA

Battery lifetime (continuous operation)

  • 40 h

Version Weighing devices

  • Crane scales

Display

  • on the measuring device
Product variants
Type
Measuring range max [kg]
Reference no.
Details
  • MCWN-1500-6000
    6000
    197922
    WKW MLT-3-WEIGHING-RANGE-1500-6000KG
    Reference no. 197922
    Type MCWN-1500-6000
    Measuring range max [kg] 6000
    Scale division min [kg] 0.5
    Scale division max [kg] 2

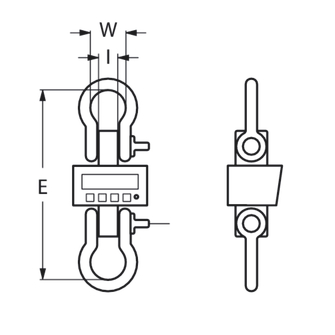

    Clearance W 58
    Distance suspension point E [mm] 353
    Distance to eye I 33
    Weight approx. [kg] 10 [kg]
  • MCWN-3000-9500
    9500
    197923
    WKW MLT-3-WEIGHING-RANGE-3000-9500KG
    Reference no. 197923
    Type MCWN-3000-9500
    Measuring range max [kg] 9500
    Scale division min [kg] 1
    Scale division max [kg] 5
    Clearance W 75
    Distance suspension point E [mm] 419
    Distance to eye I 46
    Weight approx. [kg] 11.5 [kg]
Type MCWN-1500-6000
Measuring range max [kg] 6000
Reference no. 197922
  • Details
    WKW MLT-3-WEIGHING-RANGE-1500-6000KG
    Reference no. 197922
    Type MCWN-1500-6000
    Measuring range max [kg] 6000
    Scale division min [kg] 0.5
    Scale division max [kg] 2
    Clearance W 58
    Distance suspension point E [mm] 353
    Distance to eye I 33
    Weight approx. [kg] 10 [kg]
Type MCWN-3000-9500
Measuring range max [kg] 9500
Reference no. 197923
  • Details
    WKW MLT-3-WEIGHING-RANGE-3000-9500KG
    Reference no. 197923
    Type MCWN-3000-9500
    Measuring range max [kg] 9500
    Scale division min [kg] 1
    Scale division max [kg] 5
    Clearance W 75
    Distance suspension point E [mm] 419
    Distance to eye I 46
    Weight approx. [kg] 11.5 [kg]
The shackles are already included when ordering the crane scales.
