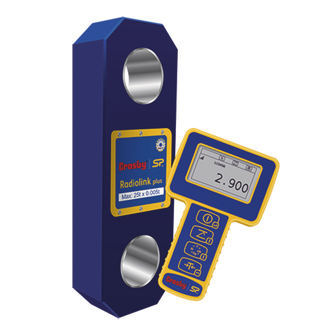

Dynamometer Radiolink Plus

Dynamometer Radiolink Plus
Remotely readable dynamometer for normal weighing or dynamic force monitoring. Top measuring accuracy +/-0.1 % of the maximum measuring range. Including PW-HHP wireless remote read-out device with 6-digit LCD display and system range of 1000 m. The measuring device has an acoustic warning signal in case of overload and a tare function. Supplied in an aluminium case or a high-quality wooden box. 2-year manufacturer's warranty.
Technical data

Operating temperature

  • –10 °C to +50 °C

Protection class

  • IP67

Battery type

  • Standard AA battery

Battery lifetime (continuous operation)

  • 1200 h

Version Weighing devices

  • Dynamometer

Certification

  • Calibration certificate included
Product variants
Type
Measuring range max [t]
Reference no.
Details
  • PRLP1T
    1
    217173
    WZM RLP-PFEIFER-REMOTELY-READABLE-1.00T
    Reference no. 217173
    Type PRLP1T
    Measuring range max [t] 1
    Scale division [kg] 0.5
    Safety factor SF 12
    Overall length L [mm] 204
    Total thickness S 43
    Overall width B [mm] 104
    Distance suspension point E [mm] 146
    Eye Ø D [mm] 24.5
    Weight approx. [kg] 1.5 [kg]
  • PRLP2T5
    2.5
    217174
    WZM RLP-PFEIFER-REMOTELY-READABLE-2.50T
    Reference no. 217174
    Type PRLP2T5
    Measuring range max [t] 2.5
    Scale division [kg] 1
    Safety factor SF 7
    Overall length L [mm] 204
    Total thickness S 43
    Overall width B [mm] 104
    Distance suspension point E [mm] 146
    Eye Ø D [mm] 24.5
    Weight approx. [kg] 1.5 [kg]
  • PRLP6T5
    6.5
    217175
    WZM RLP-PFEIFER-REMOTELY-READABLE-6.50T
    Reference no. 217175
    Type PRLP6T5
    Measuring range max [t] 6.5
    Scale division [kg] 1
    Safety factor SF 7
    Overall length L [mm] 249
    Total thickness S 43
    Overall width B [mm] 113
    Distance suspension point E [mm] 165
    Eye Ø D [mm] 38
    Weight approx. [kg] 2.4 [kg]
  • PRLP12T
    12
    217177
    WZM RLP-PFEIFER-REMOTELY-READABLE-12.0T
    Reference no. 217177
    Type PRLP12T
    Measuring range max [t] 12
    Scale division [kg] 2
    Safety factor SF 7
    Overall length L [mm] 305
    Total thickness S 47
    Overall width B [mm] 113
    Distance suspension point E [mm] 193
    Eye Ø D [mm] 47.5
    Weight approx. [kg] 3.7 [kg]
  • PRLP25T
    25
    217179
    WZM RLP-PFEIFER-REMOTELY-READABLE-25.0T
    Reference no. 217179
    Type PRLP25T
    Measuring range max [t] 25
    Scale division [kg] 5
    Safety factor SF 5
    Overall length L [mm] 340
    Total thickness S 60
    Overall width B [mm] 115
    Distance suspension point E [mm] 215
    Eye Ø D [mm] 55
    Weight approx. [kg] 5 [kg]
  • PRLP35T
    35
    277257
    WZM RLP-PFEIFER-REMOTELY-READABLE-35.0T
    Reference no. 277257
    Type PRLP35T
    Measuring range max [t] 35
    Scale division [kg] 5
    Safety factor SF 5
    Overall length L [mm] 393
    Total thickness S 75
    Overall width B [mm] 126
    Distance suspension point E [mm] 225
    Eye Ø D [mm] 60
    Weight approx. [kg] 8.6 [kg]
    durchmesser_auge_met_td 127
    tragfaehigkeit_tonnen_td 35
  • PRLP55T
    55
    217180
    WZM RLP-PFEIFER-REMOTELY-READABLE-55.0T
    Reference no. 217180
    Type PRLP55T
    Measuring range max [t] 55
    Scale division [kg] 10
    Safety factor SF 5
    Overall length L [mm] 424
    Total thickness S 75
    Overall width B [mm] 180
    Distance suspension point E [mm] 230
    Eye Ø D [mm] 76
    Weight approx. [kg] 13 [kg]
    durchmesser_auge_met_td 152
    tragfaehigkeit_tonnen_td 55
  • PRLP75T
    75
    277258
    WZM RLP-PFEIFER-REMOTELY-READABLE-75.0T
    Reference no. 277258
    Type PRLP75T
    Measuring range max [t] 75
    Scale division [kg] 10
    Safety factor SF 5
    Overall length L [mm] 470
    Total thickness S 75
    Overall width B [mm] 202
    Distance suspension point E [mm] 260
    Eye Ø D [mm] 76
    Weight approx. [kg] 16 [kg]
  • PRLP100T
    100
    217181
    WZM RLP-PFEIFER-REMOTELY-READABLE-100.0T
    Reference no. 217181
    Type PRLP100T
    Measuring range max [t] 100
    Scale division [kg] 50
    Safety factor SF 5
    Overall length L [mm] 608
    Total thickness S 99
    Overall width B [mm] 255
    Distance suspension point E [mm] 320
    Eye Ø D [mm] 109
    Weight approx. [kg] 34 [kg]
  • PRLP150T
    150
    277259
    WZM RLP-PFEIFER-REMOTELY-READABLE-150.0T
    Reference no. 277259
    Type PRLP150T
    Measuring range max [t] 150
    Scale division [kg] 50
    Safety factor SF 4
    Overall length L [mm] 670
    Total thickness S 99
    Overall width B [mm] 303
    Distance suspension point E [mm] 360
    Eye Ø D [mm] 109
    Weight approx. [kg] 46 [kg]
  • PRLP200T
    200
    217182
    WZM RLP-PFEIFER-REMOTELY-READABLE-200.0T
    Reference no. 217182
    Type PRLP200T
    Measuring range max [t] 200
    Scale division [kg] 100
    Safety factor SF 5
    Overall length L [mm] 700
    Total thickness S 144
    Overall width B [mm] 350
    Distance suspension point E [mm] 350
    Eye Ø D [mm] 132
    Weight approx. [kg] 82 [kg]
  • PRLP250T
    250
    217183
    WZM RLP-PFEIFER-REMOTELY-READABLE-250.0T
    Reference no. 217183
    Type PRLP250T
    Measuring range max [t] 250
    Scale division [kg] 100
    Safety factor SF 4
    Overall length L [mm] 700
    Total thickness S 144
    Overall width B [mm] 350
    Distance suspension point E [mm] 350
    Eye Ø D [mm] 132
    Weight approx. [kg] 82 [kg]
  • PRLP300T
    300
    277261
    WZM RLP-PFEIFER-REMOTELY-READABLE-300.0T
    Reference no. 277261
    Type PRLP300T
    Measuring range max [t] 300
    Scale division [kg] 100
    Safety factor SF 5
    Overall length L [mm] 806
    Total thickness S 150
    Overall width B [mm] 426
    Distance suspension point E [mm] 350
    Eye Ø D [mm] 160
    Weight approx. [kg] 118 [kg]
Type PRLP1T
Measuring range max [t] 1
Reference no. 217173
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-1.00T
    Reference no. 217173
    Type PRLP1T
    Measuring range max [t] 1
    Scale division [kg] 0.5
    Safety factor SF 12
    Overall length L [mm] 204
    Total thickness S 43
    Overall width B [mm] 104
    Distance suspension point E [mm] 146
    Eye Ø D [mm] 24.5
    Weight approx. [kg] 1.5 [kg]
Type PRLP2T5
Measuring range max [t] 2.5
Reference no. 217174
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-2.50T
    Reference no. 217174
    Type PRLP2T5
    Measuring range max [t] 2.5
    Scale division [kg] 1
    Safety factor SF 7
    Overall length L [mm] 204
    Total thickness S 43
    Overall width B [mm] 104
    Distance suspension point E [mm] 146
    Eye Ø D [mm] 24.5
    Weight approx. [kg] 1.5 [kg]
Type PRLP6T5
Measuring range max [t] 6.5
Reference no. 217175
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-6.50T
    Reference no. 217175
    Type PRLP6T5
    Measuring range max [t] 6.5
    Scale division [kg] 1
    Safety factor SF 7
    Overall length L [mm] 249
    Total thickness S 43
    Overall width B [mm] 113
    Distance suspension point E [mm] 165
    Eye Ø D [mm] 38
    Weight approx. [kg] 2.4 [kg]
Type PRLP12T
Measuring range max [t] 12
Reference no. 217177
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-12.0T
    Reference no. 217177
    Type PRLP12T
    Measuring range max [t] 12
    Scale division [kg] 2
    Safety factor SF 7
    Overall length L [mm] 305
    Total thickness S 47
    Overall width B [mm] 113
    Distance suspension point E [mm] 193
    Eye Ø D [mm] 47.5
    Weight approx. [kg] 3.7 [kg]
Type PRLP25T
Measuring range max [t] 25
Reference no. 217179
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-25.0T
    Reference no. 217179
    Type PRLP25T
    Measuring range max [t] 25
    Scale division [kg] 5
    Safety factor SF 5
    Overall length L [mm] 340
    Total thickness S 60
    Overall width B [mm] 115
    Distance suspension point E [mm] 215
    Eye Ø D [mm] 55
    Weight approx. [kg] 5 [kg]
Type PRLP35T
Measuring range max [t] 35
Reference no. 277257
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-35.0T
    Reference no. 277257
    Type PRLP35T
    Measuring range max [t] 35
    Scale division [kg] 5
    Safety factor SF 5
    Overall length L [mm] 393
    Total thickness S 75
    Overall width B [mm] 126
    Distance suspension point E [mm] 225
    Eye Ø D [mm] 60
    Weight approx. [kg] 8.6 [kg]
    durchmesser_auge_met_td 127
    tragfaehigkeit_tonnen_td 35
Type PRLP55T
Measuring range max [t] 55
Reference no. 217180
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-55.0T
    Reference no. 217180
    Type PRLP55T
    Measuring range max [t] 55
    Scale division [kg] 10
    Safety factor SF 5
    Overall length L [mm] 424
    Total thickness S 75
    Overall width B [mm] 180
    Distance suspension point E [mm] 230
    Eye Ø D [mm] 76
    Weight approx. [kg] 13 [kg]
    durchmesser_auge_met_td 152
    tragfaehigkeit_tonnen_td 55
Type PRLP75T
Measuring range max [t] 75
Reference no. 277258
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-75.0T
    Reference no. 277258
    Type PRLP75T
    Measuring range max [t] 75
    Scale division [kg] 10
    Safety factor SF 5
    Overall length L [mm] 470
    Total thickness S 75
    Overall width B [mm] 202
    Distance suspension point E [mm] 260
    Eye Ø D [mm] 76
    Weight approx. [kg] 16 [kg]
Type PRLP100T
Measuring range max [t] 100
Reference no. 217181
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-100.0T
    Reference no. 217181
    Type PRLP100T
    Measuring range max [t] 100
    Scale division [kg] 50
    Safety factor SF 5
    Overall length L [mm] 608
    Total thickness S 99
    Overall width B [mm] 255
    Distance suspension point E [mm] 320
    Eye Ø D [mm] 109
    Weight approx. [kg] 34 [kg]
Type PRLP150T
Measuring range max [t] 150
Reference no. 277259
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-150.0T
    Reference no. 277259
    Type PRLP150T
    Measuring range max [t] 150
    Scale division [kg] 50
    Safety factor SF 4
    Overall length L [mm] 670
    Total thickness S 99
    Overall width B [mm] 303
    Distance suspension point E [mm] 360
    Eye Ø D [mm] 109
    Weight approx. [kg] 46 [kg]
Type PRLP200T
Measuring range max [t] 200
Reference no. 217182
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-200.0T
    Reference no. 217182
    Type PRLP200T
    Measuring range max [t] 200
    Scale division [kg] 100
    Safety factor SF 5
    Overall length L [mm] 700
    Total thickness S 144
    Overall width B [mm] 350
    Distance suspension point E [mm] 350
    Eye Ø D [mm] 132
    Weight approx. [kg] 82 [kg]
Type PRLP250T
Measuring range max [t] 250
Reference no. 217183
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-250.0T
    Reference no. 217183
    Type PRLP250T
    Measuring range max [t] 250
    Scale division [kg] 100
    Safety factor SF 4
    Overall length L [mm] 700
    Total thickness S 144
    Overall width B [mm] 350
    Distance suspension point E [mm] 350
    Eye Ø D [mm] 132
    Weight approx. [kg] 82 [kg]
Type PRLP300T
Measuring range max [t] 300
Reference no. 277261
  • Details
    WZM RLP-PFEIFER-REMOTELY-READABLE-300.0T
    Reference no. 277261
    Type PRLP300T
    Measuring range max [t] 300
    Scale division [kg] 100
    Safety factor SF 5
    Overall length L [mm] 806
    Total thickness S 150
    Overall width B [mm] 426
    Distance suspension point E [mm] 350
    Eye Ø D [mm] 160
    Weight approx. [kg] 118 [kg]
Matching shackles are not included in the scope of delivery.
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
