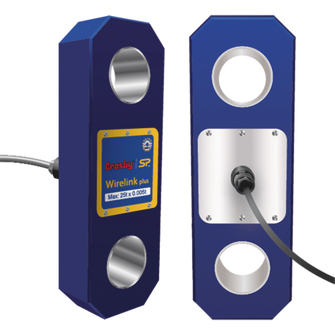

Dynamometer Wirelink Plus

Dynamometer Wirelink Plus

Dynamometer suitable for use as crane scales or for measuring tensile forces. With wired remote read-out device with LCD display – system range depends on the cable length (10 m cable included). Accuracy +/-0.1% of the maximum measuring range (standard units of measurement in kg, t, kN, lbs). The measuring device has an acoustic warning signal in case of overload and a tare function. Supplied in a top-quality aluminium case. 2-year manufacturer's warranty.

Technical data
Product variants
Contact

Technical data

Operating temperature

–10 °C to +50 °C

Protection class

IP67

Battery type

9V block battery

Battery lifetime (continuous operation)

80 h

Version Weighing devices

Dynamometer

Certification

Calibration certificate included

Product variants

WZM WLP-PFEIFER-1.0T-CABLE-10M

Reference no.	225748
Type	WLP1T
Measuring range max [t]	1
Scale division [kg]	0.5
Safety factor SF	12

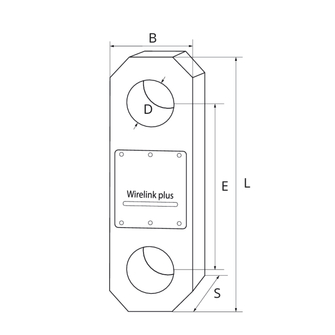

Overall length L [mm]	204
Total thickness S	43
Overall width B [mm]	104
Distance suspension point E [mm]	146
Eye Ø D [mm]	24.5
Weight approx. [kg]	1.5 [kg]

WZM WLP-PFEIFER-2.5T-CABLE-10M

Reference no.	225749
Type	WLP2T5
Measuring range max [t]	2.5
Scale division [kg]	1
Safety factor SF	7
Overall length L [mm]	204
Total thickness S	43
Overall width B [mm]	104
Distance suspension point E [mm]	146
Eye Ø D [mm]	24.5
Weight approx. [kg]	1.5 [kg]

WZM WLP-PFEIFER-6.5T-CABLE-10M

Reference no.	225750
Type	WLP6T5
Measuring range max [t]	6.5
Scale division [kg]	1
Safety factor SF	7
Overall length L [mm]	249
Total thickness S	43
Overall width B [mm]	113
Distance suspension point E [mm]	165
Eye Ø D [mm]	38
Weight approx. [kg]	2.4 [kg]

WZM WLP-PFEIFER-12.0T-CABLE-10M

Reference no.	225751
Type	WLP12T
Measuring range max [t]	12
Scale division [kg]	2
Safety factor SF	7
Overall length L [mm]	305
Total thickness S	47
Overall width B [mm]	113
Distance suspension point E [mm]	193
Eye Ø D [mm]	47.5
Weight approx. [kg]	3.7 [kg]

WZM WLP-PFEIFER-25.0T-CABLE-10M

Reference no.	225752
Type	WLP25T
Measuring range max [t]	25
Scale division [kg]	5
Safety factor SF	5
Overall length L [mm]	340
Total thickness S	60
Overall width B [mm]	115
Distance suspension point E [mm]	215
Eye Ø D [mm]	55
Weight approx. [kg]	5 [kg]

WZM WLP-PFEIFER-35.0T-CABLE-10M

Reference no.	279954
Type	WLP35T
Measuring range max [t]	35
Scale division [kg]	5
Safety factor SF	5
Overall length L [mm]	393
Total thickness S	75
Overall width B [mm]	126
Distance suspension point E [mm]	225
Eye Ø D [mm]	60
Weight approx. [kg]	8.6 [kg]
tragfaehigkeit_tonnen_td	35
durchmesser_auge_met_td	127

WZM WLP-PFEIFER-75.0T-CABLE-10M

Reference no.	279955
Type	WLP75T
Measuring range max [t]	75
Scale division [kg]	10
Safety factor SF	5
Overall length L [mm]	470
Total thickness S	75
Overall width B [mm]	202
Distance suspension point E [mm]	260
Eye Ø D [mm]	76
Weight approx. [kg]	16 [kg]

WZM WLP-PFEIFER-100.0T-CABLE-10M

Reference no.	225754
Type	WLP100T
Measuring range max [t]	100
Scale division [kg]	50
Safety factor SF	5
Overall length L [mm]	608
Total thickness S	99
Overall width B [mm]	255
Distance suspension point E [mm]	320
Eye Ø D [mm]	109
Weight approx. [kg]	34 [kg]

WZM WLP-PFEIFER-150.0T-CABLE-10M

Reference no.	279956
Type	WLP150T
Measuring range max [t]	150
Scale division [kg]	50
Safety factor SF	5
Overall length L [mm]	670
Total thickness S	99
Overall width B [mm]	303
Distance suspension point E [mm]	360
Eye Ø D [mm]	109
Weight approx. [kg]	46 [kg]

WZM WLP-PFEIFER-200.0T-CABLE-10M

Reference no.	225755
Type	WLP200T
Measuring range max [t]	200
Scale division [kg]	100
Safety factor SF	5
Overall length L [mm]	700
Total thickness S	144
Overall width B [mm]	350
Distance suspension point E [mm]	350
Eye Ø D [mm]	132
Weight approx. [kg]	72 [kg]

WZM WLP-PFEIFER-250.0T-CABLE-10M

Reference no.	225756
Type	WLP250T
Measuring range max [t]	250
Scale division [kg]	100
Safety factor SF	4
Overall length L [mm]	700
Total thickness S	144
Overall width B [mm]	350
Distance suspension point E [mm]	350
Eye Ø D [mm]	132
Weight approx. [kg]	72 [kg]

WZM WLP-PFEIFER-300.0T-CABLE-10M

Reference no.	279957
Type	WLP300T
Measuring range max [t]	300
Scale division [kg]	100
Safety factor SF	5
Overall length L [mm]	806
Total thickness S	150
Overall width B [mm]	426
Distance suspension point E [mm]	350
Eye Ø D [mm]	160
Weight approx. [kg]	118 [kg]

Type WLP1T

Measuring range max [t] 1

Reference no. 225748

WZM WLP-PFEIFER-1.0T-CABLE-10M

Reference no.	225748
Type	WLP1T
Measuring range max [t]	1
Scale division [kg]	0.5
Safety factor SF	12
Overall length L [mm]	204
Total thickness S	43
Overall width B [mm]	104
Distance suspension point E [mm]	146
Eye Ø D [mm]	24.5
Weight approx. [kg]	1.5 [kg]

Type WLP2T5

Measuring range max [t] 2.5

Reference no. 225749

WZM WLP-PFEIFER-2.5T-CABLE-10M

Reference no.	225749
Type	WLP2T5
Measuring range max [t]	2.5
Scale division [kg]	1
Safety factor SF	7
Overall length L [mm]	204
Total thickness S	43
Overall width B [mm]	104
Distance suspension point E [mm]	146
Eye Ø D [mm]	24.5
Weight approx. [kg]	1.5 [kg]

Type WLP6T5

Measuring range max [t] 6.5

Reference no. 225750

WZM WLP-PFEIFER-6.5T-CABLE-10M

Reference no.	225750
Type	WLP6T5
Measuring range max [t]	6.5
Scale division [kg]	1
Safety factor SF	7
Overall length L [mm]	249
Total thickness S	43
Overall width B [mm]	113
Distance suspension point E [mm]	165
Eye Ø D [mm]	38
Weight approx. [kg]	2.4 [kg]

Type WLP12T

Measuring range max [t] 12

Reference no. 225751

WZM WLP-PFEIFER-12.0T-CABLE-10M

Reference no.	225751
Type	WLP12T
Measuring range max [t]	12
Scale division [kg]	2
Safety factor SF	7
Overall length L [mm]	305
Total thickness S	47
Overall width B [mm]	113
Distance suspension point E [mm]	193
Eye Ø D [mm]	47.5
Weight approx. [kg]	3.7 [kg]

Type WLP25T

Measuring range max [t] 25

Reference no. 225752

WZM WLP-PFEIFER-25.0T-CABLE-10M

Reference no.	225752
Type	WLP25T
Measuring range max [t]	25
Scale division [kg]	5
Safety factor SF	5
Overall length L [mm]	340
Total thickness S	60
Overall width B [mm]	115
Distance suspension point E [mm]	215
Eye Ø D [mm]	55
Weight approx. [kg]	5 [kg]

Type WLP35T

Measuring range max [t] 35

Reference no. 279954

WZM WLP-PFEIFER-35.0T-CABLE-10M

Reference no.	279954
Type	WLP35T
Measuring range max [t]	35
Scale division [kg]	5
Safety factor SF	5
Overall length L [mm]	393
Total thickness S	75
Overall width B [mm]	126
Distance suspension point E [mm]	225
Eye Ø D [mm]	60
Weight approx. [kg]	8.6 [kg]
tragfaehigkeit_tonnen_td	35
durchmesser_auge_met_td	127

Type WLP75T

Measuring range max [t] 75

Reference no. 279955

WZM WLP-PFEIFER-75.0T-CABLE-10M

Reference no.	279955
Type	WLP75T
Measuring range max [t]	75
Scale division [kg]	10
Safety factor SF	5
Overall length L [mm]	470
Total thickness S	75
Overall width B [mm]	202
Distance suspension point E [mm]	260
Eye Ø D [mm]	76
Weight approx. [kg]	16 [kg]

Type WLP100T

Measuring range max [t] 100

Reference no. 225754

WZM WLP-PFEIFER-100.0T-CABLE-10M

Reference no.	225754
Type	WLP100T
Measuring range max [t]	100
Scale division [kg]	50
Safety factor SF	5
Overall length L [mm]	608
Total thickness S	99
Overall width B [mm]	255
Distance suspension point E [mm]	320
Eye Ø D [mm]	109
Weight approx. [kg]	34 [kg]

Type WLP150T

Measuring range max [t] 150

Reference no. 279956

WZM WLP-PFEIFER-150.0T-CABLE-10M

Reference no.	279956
Type	WLP150T
Measuring range max [t]	150
Scale division [kg]	50
Safety factor SF	5
Overall length L [mm]	670
Total thickness S	99
Overall width B [mm]	303
Distance suspension point E [mm]	360
Eye Ø D [mm]	109
Weight approx. [kg]	46 [kg]

Type WLP200T

Measuring range max [t] 200

Reference no. 225755

WZM WLP-PFEIFER-200.0T-CABLE-10M

Reference no.	225755
Type	WLP200T
Measuring range max [t]	200
Scale division [kg]	100
Safety factor SF	5
Overall length L [mm]	700
Total thickness S	144
Overall width B [mm]	350
Distance suspension point E [mm]	350
Eye Ø D [mm]	132
Weight approx. [kg]	72 [kg]

Type WLP250T

Measuring range max [t] 250

Reference no. 225756

WZM WLP-PFEIFER-250.0T-CABLE-10M

Reference no.	225756
Type	WLP250T
Measuring range max [t]	250
Scale division [kg]	100
Safety factor SF	4
Overall length L [mm]	700
Total thickness S	144
Overall width B [mm]	350
Distance suspension point E [mm]	350
Eye Ø D [mm]	132
Weight approx. [kg]	72 [kg]

Type WLP300T

Measuring range max [t] 300

Reference no. 279957

WZM WLP-PFEIFER-300.0T-CABLE-10M

Reference no.	279957
Type	WLP300T
Measuring range max [t]	300
Scale division [kg]	100
Safety factor SF	5
Overall length L [mm]	806
Total thickness S	150
Overall width B [mm]	426
Distance suspension point E [mm]	350
Eye Ø D [mm]	160
Weight approx. [kg]	118 [kg]

Matching shackles are not included in the scope of delivery.

Contact

Market	Contact	Location type
All other markets	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info	Parent company/Head office
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info	Service centre
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info	Service centre
Austria	PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at	Sales subsidiary
France	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Luxemburg	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Poland	PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl	Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

E-Mail

verkauf-azs@pfeifer.de

Inquiry

please leave empty!

Mr Mrs

* Required fields

Send me a copy.

I consent to my data being processed in accordance with the data protection declaration.

Wired reading device (10 m as standard)
Insensitive to radio and interference signals
Weighing, dynamic force monitoring and traction force measurement (horizontal and vertical)
Overload warning signal
Tare function
