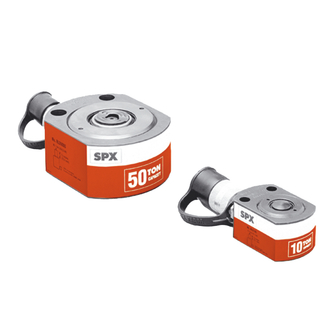

Hydraulic cylinder series RLS

Hydraulic cylinder series RLS
The flat, single-action hydraulic cylinder without external thread is ideally suited for confined spaces, small profiles or frames and applications such as straightening, lifting and clamping, and in compact presses. Quick retraction is possible due to the optimised return spring. The cylinder can be used with standard, hand and foot pump cylinders as well as lightweight pumps. The plunger is exchangeable.
Technical data

Piston rod Surface

  • hard-chrome plated

Thread size NPT

  • 3/8
Options

Options on request

  • larger nominal loads
  • further lifting heights
Safety instruction
  • When selecting a standard, hand or foot pump, note that the oil volume of the pump must be larger than that of the cylinder.
Product variants
Type
lifting capacity HL [t]
Lifting height max Hmax [mm]
Reference no.
Details
  • RLS50
    5
    14.3
    156022
    WZY RLS-50-50KN-LIFT-14.3MM
    Reference no. 156022
    Type RLS50
    lifting capacity HL [t] 5
    Lifting height max Hmax [mm] 14.3
    Oil requirement [cm³] 10.2
    Body height X [mm] 41.3
    Weight approx. [kg] 1 [kg]
  • RLS100
    10
    11.1
    156023
    WZY RLS-100-100KN-LIFT-11.1MM
    Reference no. 156023
    Type RLS100
    lifting capacity HL [t] 10
    Lifting height max Hmax [mm] 11.1
    Oil requirement [cm³] 16.4
    Body height X [mm] 44.5
    Weight approx. [kg] 1.5 [kg]
  • RLS200
    20
    11.1
    156024
    WZY RLS-200-200KN-LIFT-11.1MM
    Reference no. 156024
    Type RLS200
    lifting capacity HL [t] 20
    Lifting height max Hmax [mm] 11.1
    Oil requirement [cm³] 32.8
    Body height X [mm] 50.8
    Weight approx. [kg] 2.5 [kg]
  • RLS300
    30
    12.7
    156025
    WZY RLS-300-300KN-LIFT-12.7MM
    Reference no. 156025
    Type RLS300
    lifting capacity HL [t] 30
    Lifting height max Hmax [mm] 12.7
    Oil requirement [cm³] 52.5
    Body height X [mm] 58.7
    Weight approx. [kg] 3.9 [kg]
  • RLS500S
    50
    15.9
    156026
    WZY RLS-500S-500KN-LIFT-15.9MM
    Reference no. 156026
    Type RLS500S
    lifting capacity HL [t] 50
    Lifting height max Hmax [mm] 15.9
    Oil requirement [cm³] 98.4
    Body height X [mm] 66.7
    Weight approx. [kg] 6.3 [kg]
  • RLS750S
    75
    16
    706734
    WZY RLS-750S-750KN-HUB-15.9MM
    Reference no. 706734
    Type RLS750S
    lifting capacity HL [t] 75
    Lifting height max Hmax [mm] 16
    Oil requirement [cm³] 162.2
    Body height X [mm] 79.5
    Weight approx. [kg] 10.6 [kg]
Type RLS50
lifting capacity HL [t] 5
Lifting height max Hmax [mm] 14.3
Reference no. 156022
  • Details
    WZY RLS-50-50KN-LIFT-14.3MM
    Reference no. 156022
    Type RLS50
    lifting capacity HL [t] 5
    Lifting height max Hmax [mm] 14.3
    Oil requirement [cm³] 10.2
    Body height X [mm] 41.3
    Weight approx. [kg] 1 [kg]
Type RLS100
lifting capacity HL [t] 10
Lifting height max Hmax [mm] 11.1
Reference no. 156023
  • Details
    WZY RLS-100-100KN-LIFT-11.1MM
    Reference no. 156023
    Type RLS100
    lifting capacity HL [t] 10
    Lifting height max Hmax [mm] 11.1
    Oil requirement [cm³] 16.4
    Body height X [mm] 44.5
    Weight approx. [kg] 1.5 [kg]
Type RLS200
lifting capacity HL [t] 20
Lifting height max Hmax [mm] 11.1
Reference no. 156024
  • Details
    WZY RLS-200-200KN-LIFT-11.1MM
    Reference no. 156024
    Type RLS200
    lifting capacity HL [t] 20
    Lifting height max Hmax [mm] 11.1
    Oil requirement [cm³] 32.8
    Body height X [mm] 50.8
    Weight approx. [kg] 2.5 [kg]
Type RLS300
lifting capacity HL [t] 30
Lifting height max Hmax [mm] 12.7
Reference no. 156025
  • Details
    WZY RLS-300-300KN-LIFT-12.7MM
    Reference no. 156025
    Type RLS300
    lifting capacity HL [t] 30
    Lifting height max Hmax [mm] 12.7
    Oil requirement [cm³] 52.5
    Body height X [mm] 58.7
    Weight approx. [kg] 3.9 [kg]
Type RLS500S
lifting capacity HL [t] 50
Lifting height max Hmax [mm] 15.9
Reference no. 156026
  • Details
    WZY RLS-500S-500KN-LIFT-15.9MM
    Reference no. 156026
    Type RLS500S
    lifting capacity HL [t] 50
    Lifting height max Hmax [mm] 15.9
    Oil requirement [cm³] 98.4
    Body height X [mm] 66.7
    Weight approx. [kg] 6.3 [kg]
Type RLS750S
lifting capacity HL [t] 75
Lifting height max Hmax [mm] 16
Reference no. 706734
  • Details
    WZY RLS-750S-750KN-HUB-15.9MM
    Reference no. 706734
    Type RLS750S
    lifting capacity HL [t] 75
    Lifting height max Hmax [mm] 16
    Oil requirement [cm³] 162.2
    Body height X [mm] 79.5
    Weight approx. [kg] 10.6 [kg]
