PFEIFER rope hoist - standard

PFEIFER rope hoist - standard

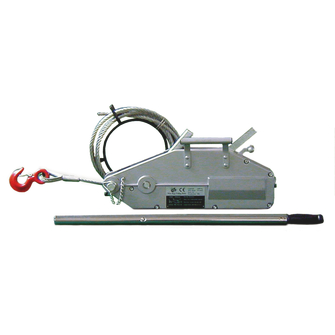

Corrosion-resistant rope hoist with attachment bolts for standard load lifting and pulling applications. The rope hoist has a rope release for unwinding the unloaded rope.
Technical data

Standard

  • EN 13157

Safety factor

  • 4

Housing material

  • Aluminum

Overload protection

  • Shear pins

Rope hoist rope

  • Rope length unlimited
Product variants
Working load limit [kg]
Reference no.
Details
  • 800
    156256
    SSZ PFR-PFEIFER-WITHOUT-ROPE-800KG
    Reference no. 156256
    Working load limit [kg] 800
    Rope Ø ds [mm] 8.4
    Body length V [mm] 426
    Body width B 64
    Body height X [mm] 235
    Lever length min Kmin [mm] 800
    Lever length max Kmax [mm] 800
    Weight approx. [kg] 7.05 [kg]
  • 1600
    156257
    SSZ PFR-PFEIFER-WITHOUT-ROPE-1600KG
    Reference no. 156257
    Working load limit [kg] 1600
    Rope Ø ds [mm] 11.5
    Body length V [mm] 545
    Body width B 97
    Body height X [mm] 280
    Lever length min Kmin [mm] 800
    Lever length max Kmax [mm] 1200
    Weight approx. [kg] 14.75 [kg]
  • 3200
    156258
    SSZ PFR-PFEIFER-WITHOUT-ROPE-3200KG
    Reference no. 156258
    Working load limit [kg] 3200
    Rope Ø ds [mm] 16.3
    Body length V [mm] 660
    Body width B 116
    Body height X [mm] 325
    Lever length min Kmin [mm] 800
    Lever length max Kmax [mm] 1200
    Weight approx. [kg] 25.3 [kg]
Working load limit [kg] 800
Reference no. 156256
  • Details
    SSZ PFR-PFEIFER-WITHOUT-ROPE-800KG
    Reference no. 156256
    Working load limit [kg] 800
    Rope Ø ds [mm] 8.4
    Body length V [mm] 426
    Body width B 64
    Body height X [mm] 235
    Lever length min Kmin [mm] 800
    Lever length max Kmax [mm] 800
    Weight approx. [kg] 7.05 [kg]
Working load limit [kg] 1600
Reference no. 156257
  • Details
    SSZ PFR-PFEIFER-WITHOUT-ROPE-1600KG
    Reference no. 156257
    Working load limit [kg] 1600
    Rope Ø ds [mm] 11.5
    Body length V [mm] 545
    Body width B 97
    Body height X [mm] 280
    Lever length min Kmin [mm] 800
    Lever length max Kmax [mm] 1200
    Weight approx. [kg] 14.75 [kg]
Working load limit [kg] 3200
Reference no. 156258
  • Details
    SSZ PFR-PFEIFER-WITHOUT-ROPE-3200KG
    Reference no. 156258
    Working load limit [kg] 3200
    Rope Ø ds [mm] 16.3
    Body length V [mm] 660
    Body width B 116
    Body height X [mm] 325
    Lever length min Kmin [mm] 800
    Lever length max Kmax [mm] 1200
    Weight approx. [kg] 25.3 [kg]
Delivery without rope
