Rope pulley

Rope pulley

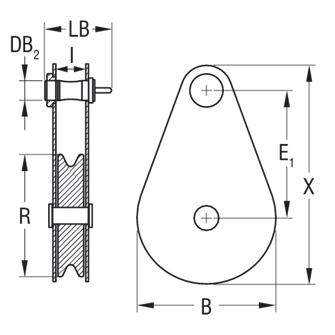

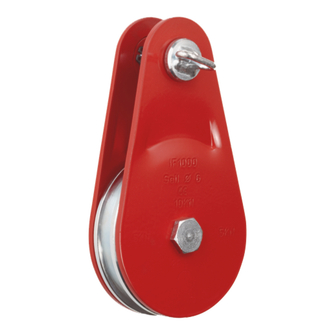

Rope pulley with fastening bolt for deflecting loads.
Technical data

Safety factor

  • 2 (designated permissible tensile force)

Housing material

  • Sheet steel

Rolls Material

  • Steel (galvanized and with ball bearings)

Suspension

  • bolt suspension
Safety instruction
  • Caution: The use of rope pulleys with a diameter ratio between pulley and rope of considerably less than 20:1 will lead to increased rope wear and thus to a significantly shorter life expectancy of the ropes!
  • The specified tensile force of the winch in kN indicates the max. permissible load weight!
  • The spreading angle of the deflected rope decisively affects the loading of the return pulley. Observe the mounting instructions!
