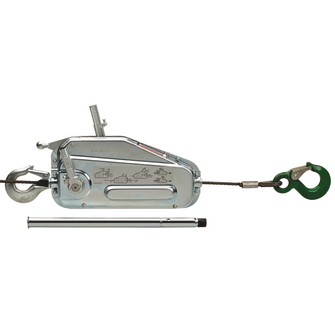

TU grip hoist-rope hoist

TU grip hoist-rope hoist
Corrosion-resistant rope hoist with equipment hooks for demanding applications in the lifting and pulling of loads. The rope hoist has a rope release for unwinding the unloaded rope.
Technical data

Standard

  • EN 13157

Safety factor

  • 4

Housing material

  • Aluminum

Overload protection

  • Shear pins

Rope hoist rope

  • Rope length unlimited
Product variants
Working load limit [kg]
Reference no.
Details
  • 800
    115348
    SSZ GTU-8-W-HEBELR-800KG
    Reference no. 115348
    Working load limit [kg] 800
    Rope hoist type TU8
    Body length V [mm] 530
    Body width B 120
    Body height X [mm] 285
    Lever length min Kmin [mm] 510
    Lever length max Kmax [mm] 770
    Weight approx. [kg] 9.4 [kg]
  • 1600
    260283
    SSZ GTU-16-W-HEBELR-1600KG
    Reference no. 260283
    Working load limit [kg] 1600
    Rope hoist type TU16
    Body length V [mm] 660
    Body width B 148
    Body height X [mm] 360
    Lever length min Kmin [mm] 680
    Lever length max Kmax [mm] 1190
    Weight approx. [kg] 20.4 [kg]
  • 3200
    260284
    SSZ GTU-32-W-HEBELR-3200KG
    Reference no. 260284
    Working load limit [kg] 3200
    Rope hoist type TU32
    Body length V [mm] 700
    Body width B 156
    Body height X [mm] 373
    Lever length min Kmin [mm] 680
    Lever length max Kmax [mm] 1190
    Weight approx. [kg] 29.4 [kg]
Working load limit [kg] 800
Reference no. 115348
  • Details
    SSZ GTU-8-W-HEBELR-800KG
    Reference no. 115348
    Working load limit [kg] 800
    Rope hoist type TU8
    Body length V [mm] 530
    Body width B 120
    Body height X [mm] 285
    Lever length min Kmin [mm] 510
    Lever length max Kmax [mm] 770
    Weight approx. [kg] 9.4 [kg]
Working load limit [kg] 1600
Reference no. 260283
  • Details
    SSZ GTU-16-W-HEBELR-1600KG
    Reference no. 260283
    Working load limit [kg] 1600
    Rope hoist type TU16
    Body length V [mm] 660
    Body width B 148
    Body height X [mm] 360
    Lever length min Kmin [mm] 680
    Lever length max Kmax [mm] 1190
    Weight approx. [kg] 20.4 [kg]
Working load limit [kg] 3200
Reference no. 260284
  • Details
    SSZ GTU-32-W-HEBELR-3200KG
    Reference no. 260284
    Working load limit [kg] 3200
    Rope hoist type TU32
    Body length V [mm] 700
    Body width B 156
    Body height X [mm] 373
    Lever length min Kmin [mm] 680
    Lever length max Kmax [mm] 1190
    Weight approx. [kg] 29.4 [kg]
Delivery without rope
