Forklift beam

Forklift beam

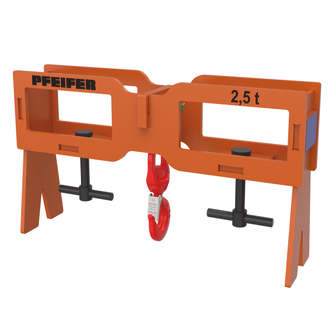

Forklift beam to be picked up directly by the forklift truck. Load lifting by central, swivel eye safety load hook (rotatable under load).
Advantages
  • Load attachment by central, swivel-eye, safety load hook (for swivelling under load)
  • Safe - Locking system by two tommy screws with jointed clamping disks at the lower side prevent sliding from the prongs
  • Robust - easy and well-established design at universal fields of application.
  • With set-down legs at the side for easy pickup by the fork lift prongs and safe and compact storage.
Standard design

Way of load picking up

  • Central load hook (rotatable under load)

Safety equipment

  • Two lower T-screws with moveable pressing disks

Supply

  • Completely assembled ready for operation.

Load lifting devices

  • Forklift

Version Spreader beams

  • rigid
Product variants

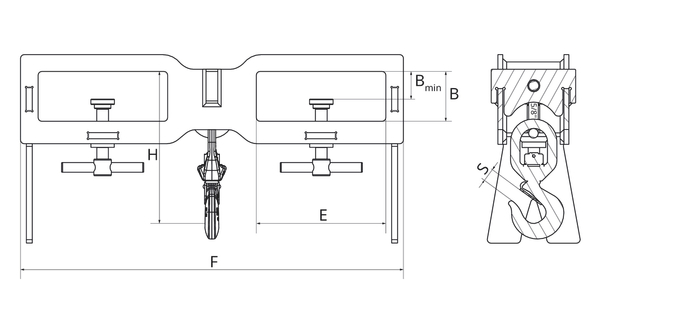

Working load limit max [kg]
Work area
Working length Lmax [mm]
Prong clearance Inner height B [mm]
Prong clearance Internal width E [mm]
Reference no.
Details
  • 1000
    rigid
    553
    75
    180
    498041
    Spreader fork lifters stand. 1000kg 600mm 180mmx75mm
    Reference no. 498041
    Working load limit max [kg] 1000
    Work area rigid
    Weight approx. [kg] 13.5
    Overall length F [mm] 593
    Installation height H [mm] 203
    Working length Lmax [mm] 553
    Prong clearance Inner height B [mm] 75
    Prong clearance Inner height Bmin [mm] 30
    Prong clearance Internal width E [mm] 180
    Opening width Load hook S [mm] 20
  • 2500
    rigid
    593
    85
    220
    498066
    Spreader fork lifters stand. 2500kg 650mm 220mmx85mm
    Reference no. 498066
    Working load limit max [kg] 2500
    Work area rigid
    Weight approx. [kg] 22
    Overall length F [mm] 653
    Installation height H [mm] 258
    Working length Lmax [mm] 593
    Prong clearance Inner height B [mm] 85
    Prong clearance Inner height Bmin [mm] 40
    Prong clearance Internal width E [mm] 220
    Opening width Load hook S [mm] 23
  • 6000
    rigid
    640
    95
    240
    497989
    Spreader fork lifters stand. 6000kg 700mm 240mmx95mm
    Reference no. 497989
    Working load limit max [kg] 6000
    Work area rigid
    Weight approx. [kg] 38
    Overall length F [mm] 700
    Installation height H [mm] 265
    Working length Lmax [mm] 640
    Prong clearance Inner height B [mm] 95
    Prong clearance Inner height Bmin [mm] 50
    Prong clearance Internal width E [mm] 240
    Opening width Load hook S [mm] 43
  • 10000
    rigid
    670
    120
    240
    498070
    Spreader fork lifters stand. 10000kg 730mm 240mmx120mm
    Reference no. 498070
    Working load limit max [kg] 10000
    Work area rigid
    Weight approx. [kg] 59.5
    Overall length F [mm] 730
    Installation height H [mm] 318
    Working length Lmax [mm] 670
    Prong clearance Inner height B [mm] 120
    Prong clearance Inner height Bmin [mm] 75
    Prong clearance Internal width E [mm] 240
    Opening width Load hook S [mm] 53
Working load limit max [kg] 1000
Work area rigid
Working length Lmax [mm] 553
Prong clearance Inner height B [mm] 75
Prong clearance Internal width E [mm] 180
Reference no. 498041
  • Details
    Spreader fork lifters stand. 1000kg 600mm 180mmx75mm
    Reference no. 498041
    Working load limit max [kg] 1000
    Work area rigid
    Weight approx. [kg] 13.5
    Overall length F [mm] 593
    Installation height H [mm] 203
    Working length Lmax [mm] 553
    Prong clearance Inner height B [mm] 75
    Prong clearance Inner height Bmin [mm] 30
    Prong clearance Internal width E [mm] 180
    Opening width Load hook S [mm] 20
Working load limit max [kg] 2500
Work area rigid
Working length Lmax [mm] 593
Prong clearance Inner height B [mm] 85
Prong clearance Internal width E [mm] 220
Reference no. 498066
  • Details
    Spreader fork lifters stand. 2500kg 650mm 220mmx85mm
    Reference no. 498066
    Working load limit max [kg] 2500
    Work area rigid
    Weight approx. [kg] 22
    Overall length F [mm] 653
    Installation height H [mm] 258
    Working length Lmax [mm] 593
    Prong clearance Inner height B [mm] 85
    Prong clearance Inner height Bmin [mm] 40
    Prong clearance Internal width E [mm] 220
    Opening width Load hook S [mm] 23
Working load limit max [kg] 6000
Work area rigid
Working length Lmax [mm] 640
Prong clearance Inner height B [mm] 95
Prong clearance Internal width E [mm] 240
Reference no. 497989
  • Details
    Spreader fork lifters stand. 6000kg 700mm 240mmx95mm
    Reference no. 497989
    Working load limit max [kg] 6000
    Work area rigid
    Weight approx. [kg] 38
    Overall length F [mm] 700
    Installation height H [mm] 265
    Working length Lmax [mm] 640
    Prong clearance Inner height B [mm] 95
    Prong clearance Inner height Bmin [mm] 50
    Prong clearance Internal width E [mm] 240
    Opening width Load hook S [mm] 43
Working load limit max [kg] 10000
Work area rigid
Working length Lmax [mm] 670
Prong clearance Inner height B [mm] 120
Prong clearance Internal width E [mm] 240
Reference no. 498070
  • Details
    Spreader fork lifters stand. 10000kg 730mm 240mmx120mm
    Reference no. 498070
    Working load limit max [kg] 10000
    Work area rigid
    Weight approx. [kg] 59.5
    Overall length F [mm] 730
    Installation height H [mm] 318
    Working length Lmax [mm] 670
    Prong clearance Inner height B [mm] 120
    Prong clearance Inner height Bmin [mm] 75
    Prong clearance Internal width E [mm] 240
    Opening width Load hook S [mm] 53
Additional options
Load hook for swivelling under load

Load hook for swivelling under load

Load hook with ball bearing for swivelling under load.
Manufacture also according to customer's requests

Manufacture also according to customer's requests

Individual dimensions for the prong gap, working length or other options for the handling of loads etc. Just ask us!
Custom-made solutions
With four load attachment points

With four load attachment points

as well as suspension eye for the transport by crane
Good to know

Operating temperature

  • -20 °C bis +100 °C

Standard

  • DIN EN 13155
